Yanhua ACDP MQB48 Module 33 A608 License & MQB RH850 Module 34 A609 License for Add Keys All Key Lost Instrument KM Correction

SPECIFICATIONS

Brand Name: Yanhua

Car Fitment: Universal

Combination: Key Programming

Communication: OBD via ACDP host

Function 1: Direct OBD programming for MQB key modules

Function 2: Fast IMMO data reading and writing

Function 3: Supports RH850 cluster calibration and updates

License: Module 33/34 requires separate license

Main Material: ABS + Electronic Components

Material: PCB, metal pins, plastic housing

Module Type: ECU/IMMO Key Programming

Operating Temp: -20℃ to 70℃

Place of Origin: Guangdong, China

Power Supply: 12 to 24V from main host, no internal battery

Screen Size: no

Size: 19.5cm*15cm*6cm

Supported Vehicles: MQB platform, key ECUs D70F3423/26, RH850 series

Type: Key Programming Module

Warranty: 12 Months

Specification

Function 1	Direct OBD programming for MQB key modules
Function 2	Fast IMMO data reading and writing
Function 3	Supports RH850 cluster calibration and updates
Supported Vehicles	MQB platform, key ECUs D70F3423/26, RH850 series
Module Type	ECU/IMMO Key Programming
Communication	OBD via ACDP host
Power Supply	12 to 24V from main host, no internal battery
Material	PCB, metal pins, plastic housing
Operating Temp	-20℃ to 70℃
License	Module 33/34 requires separate license

Product Description ACDP MQB48 Module 33 Plus MQB RH850 Module 34 for Add Keys All Key Lost Instrument KM ACDP Module 33 MQB-33 function:

Supports the 4th/4.5th generation and MQB 5A etc. IMMO and correction
Add keys and All key lost for Volkswagen MQB48 (AKL need to get Synchronous data from third party)

Module 33 Support the following chip module instrument cluster
3524, 3525, 3526, 3529, 3532, 3533, 3536, 3537, and 8pin chip 95320

ACDP Module 34 For MQB

1-D70F3423/3426 chip mask The 4th generation odometer Add keys & all key lost & correction
2- R7F71401/ 1402/ 1407 chip mask RH850 5Aodometer Add keys & all key lost & modify
3-R7F71401/ 1402/ 1404/ 1406/ 1407 chip mask RH850 5C odometer correct

Module 33 & Module 34 Features:

Precise pin positioning
Stable connection
Easy to set up

No welding
No warped feet
No cutting wire
data read & write is safer

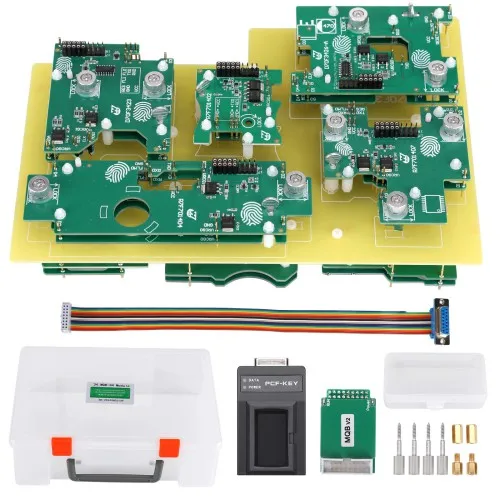

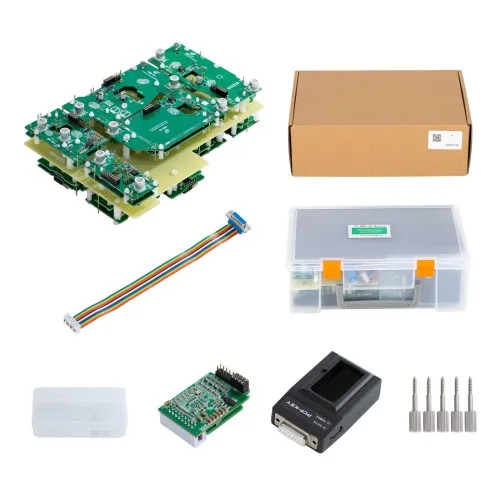

Package List:

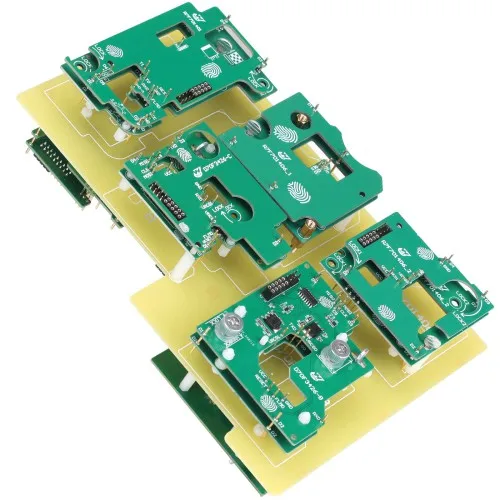

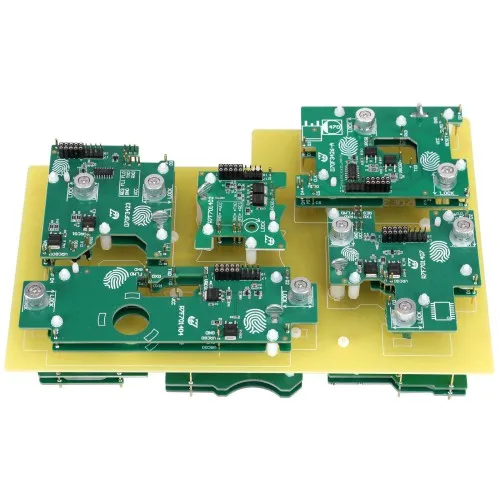

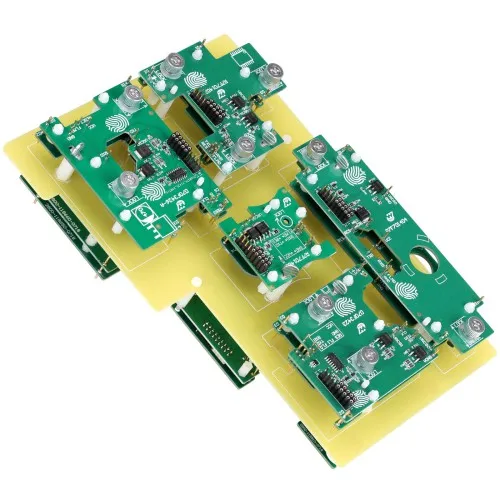

1pc x MQB-74 Interface board
1pc x MQB-75 Interface board
1pc x MQB-77 Interface board
1pc x MQB-78 Interface board
1pc x MQB-79 Interface board
1pc x MQB-80 Interface board
1pc x MQB-81 Interface board
1pc x MQB-82 Interface board
1pc x MQB-83 Interface board
1pc x MQB-84 Interface board
1pc x MQB-85 Interface board
1pc x MQB-86 Interface board
1pc x MQB-87 Interface board

1pc x R7F701401 Interface board
1pc x R7F701402 Interface board
1pc x R7F701404 Interface board
1pc x R7F701406-1 Interface board
1pc x R7F701406-2 Interface board
1pc x R7F701407 Interface board
1pc x D703423 Interface board
1pc x D703426-A Interface board
1pc x D703426-B Interface board
1pc x D703426-C Interface board
1pc x PCF-KEY adapter

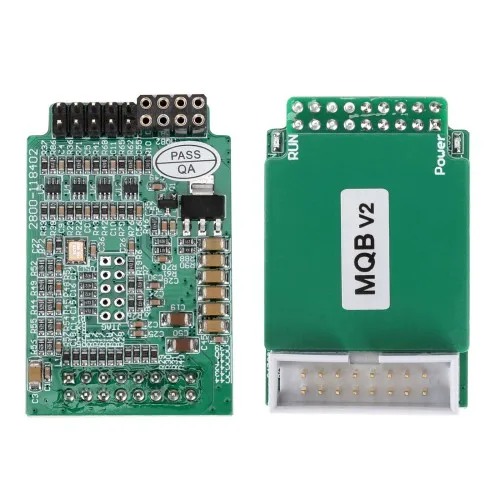

1pc x MQB V2 adapter
1pc x 20 PIN cable
8pcs x screws Company Profile
