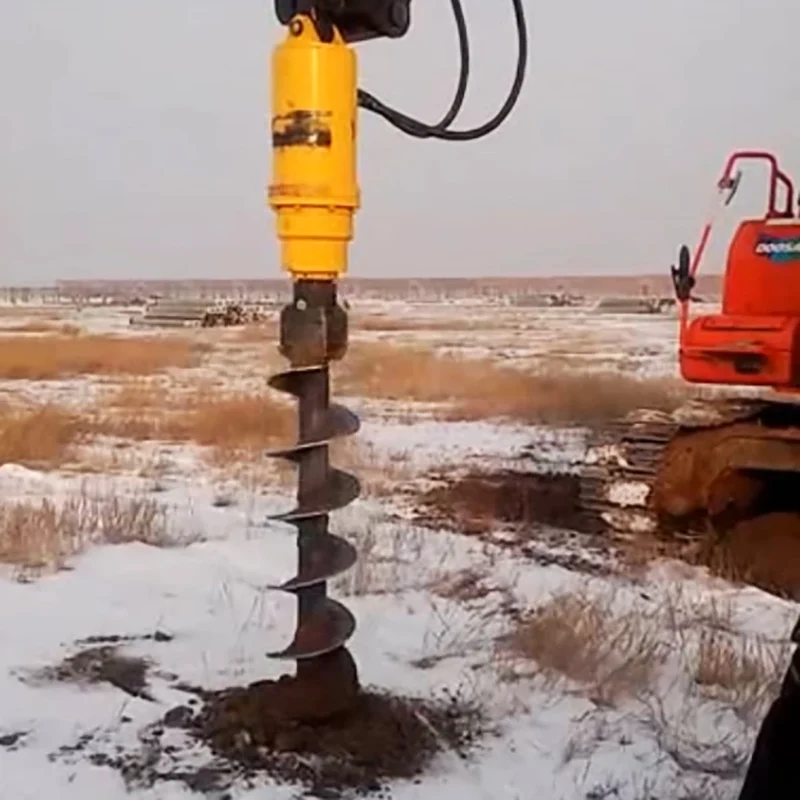

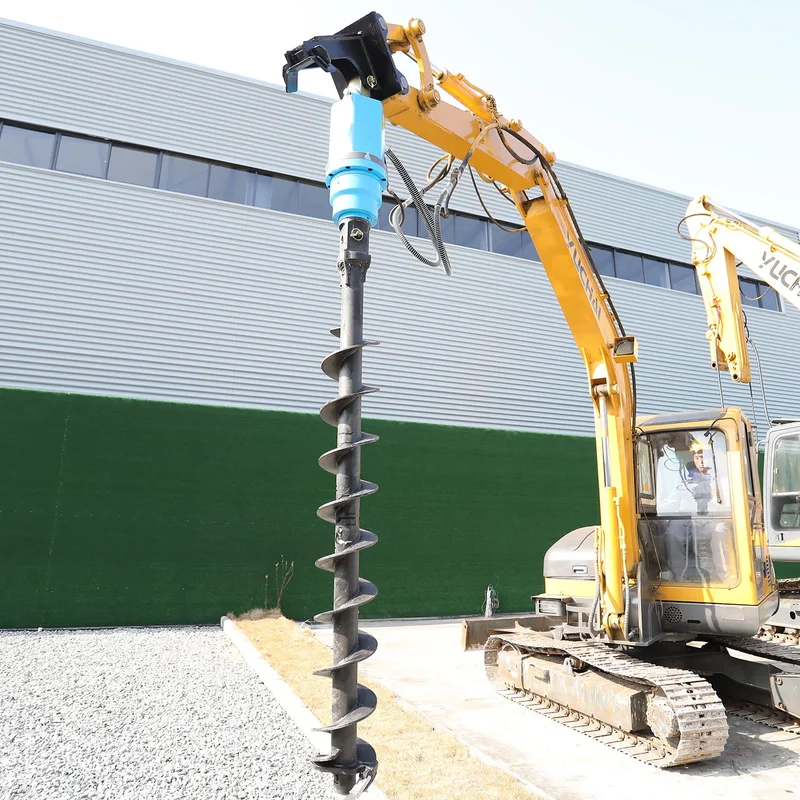

YA18000 Top-level High Quality Hydraulic Earth Auger Spiral Drilling Digga Auger Excavator Auger Attachment

SPECIFICATIONS

Brand Name: yichen

Core Components: Motor,Pump,Engine

Dimension(L*W*H): 5350*1850*2600mm

Drilling Depth: Max.100m

Drilling Diameter: 300 mm,50 mm,75mm,60 mm,100 mm,200 mm

Key Selling Points: Competitive Price

Machinery Test Report: Provided

Mobility: yes

Place of Origin: Zhejiang, China

Power Type: Diesel

Type: Rotary Drilling Rig

Usage: Water Well

Video outgoing-inspection: Provided

Voltage: diesel engine

Warranty: 1 Year

Weight: 4200 KG

PRODUCT INTRODUCTION

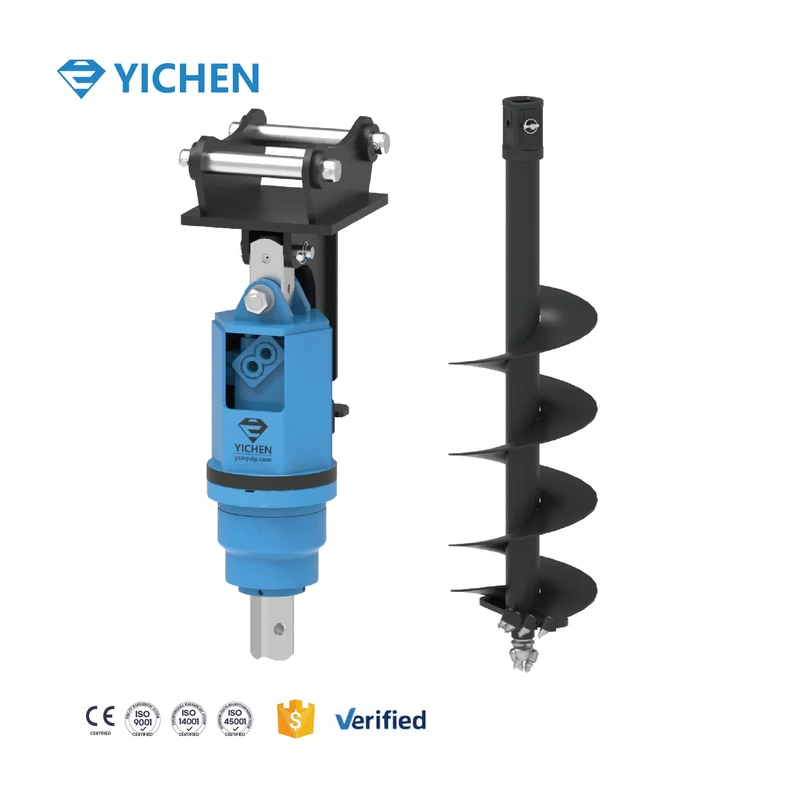

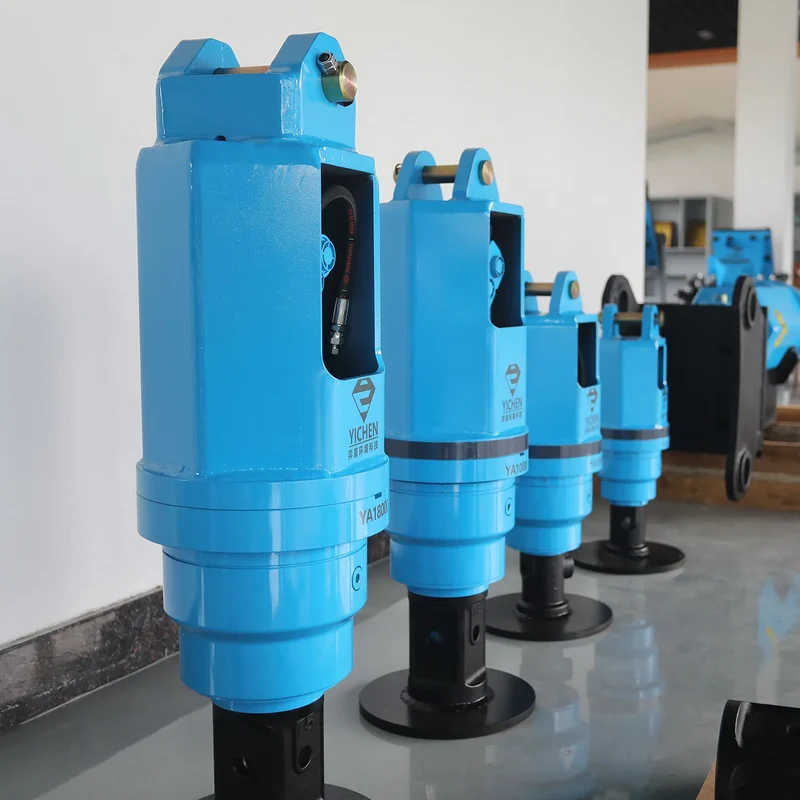

EQUIPMENT COMPOSITION · auger drive· Auger
· Hitch
· Extension
Product model Excavator tonnage 1.5-40 ton This product can be installed on different types of excavators. Product features and advantages PRODUCT FEATURES
① Made of high-quality materials
② The sturdy hood ear plate and safety pin design ensure that the drive head cannot fall off your bracket. ③ Structural design can withstand extreme working conditions
④ Equipped with high-quality and reliable motors

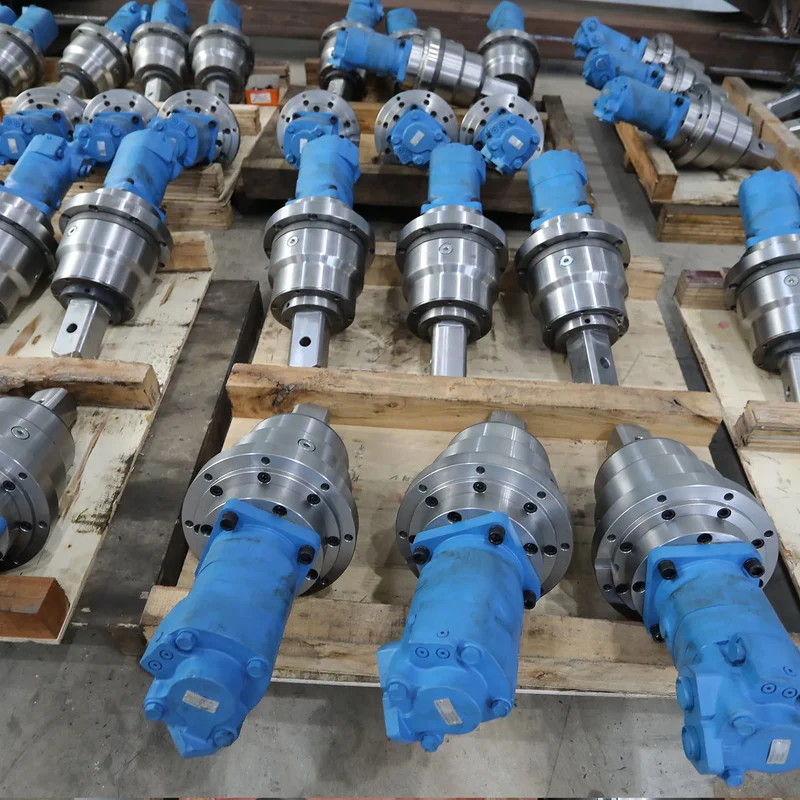

⑤ Adopting advanced carbon nitrogen co infiltration technology to achieve unparalleled strength and durability in gears. Precision planetary gearbox for more stable use and longer lifespan. ⑥ The output shaft provides a lifetime warranty Based on the above characteristics, the performance is 50% higher than similar products
High efficiency and shortened construction period
PRODUCT FEATURES ① Can be used in conjunction with all major standard wheels on the market, including 65mm round, 75and 110mm square, 2 "and 2.5" hex, etc.
② This feature design provides maximum soil transportation capacity.
③ Constant spiral cutting improves productivity. Enable each rotation to cut into a new soil layer.
④ The safety pin design ensures that it will not fall off at any time.
⑤ Select the highest grade steel to make drill rods, and the size varies according to the grade and actual application.
⑥ Installation is simple, effective, and sturdy
⑦ There are three types of drill bit tooth combinations that can be used to handle different geological conditions. Suitable for various geological conditions The company produces drilling teeth suitable for various geological conditions

W2 EARTH AUGERS
(EARTH/ CLAY/ SHALES)

all purpose earth auger forgeneral drilling

W3 COMBINATION AUGER
(ALL GROUND CONDITIONS)

taper teeth design the ultimateall performance auger

W4 ROCK AUGER(CONCRETE/ SHALE/ FRACTURABLE ROCK)

heavy duty auger for dedicatedrock drilling

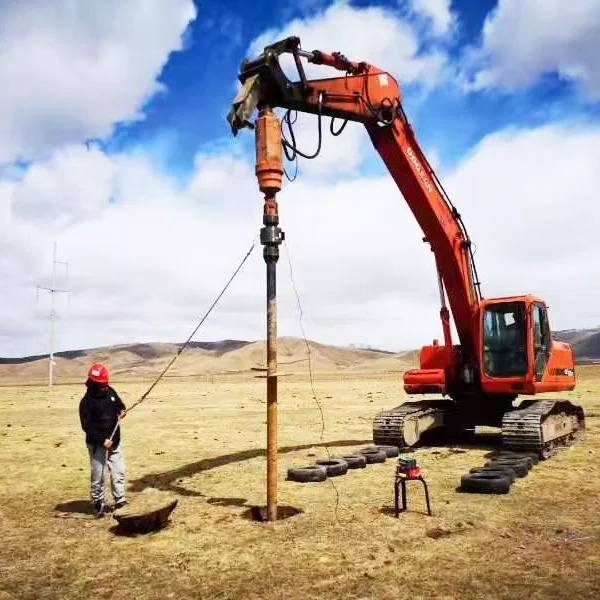

Drilling depth

up to12 meters
If an extension rod is installed

Single pin Hitch

The single pin hitch is lightweight and non-bulky, making it easy to transport and fit and offers a financially economical option.

Double Pin Hitch

The double pin hitch can be supplied in both loose and fixed pin versions to suit standard and quick hitch solutions on most excavators & backhoes.It is suitable for all Yichen drive unit ranges.

Double Pin Cradle Hitch

This hitch is suitable for all Yichen drives from the YA2000 to YA100000. Will eliminate Auger swing during dirt shake off, will enable you to safely transport your Earth Drill and Auger on site.

Skid Steer Loader Frame

This product is designed to allow you to take your auger drive and add it to a skid steer mounted frame with slide operation. It is suitable for Yichen drives from the YA2000 to YA5000. Detail display PRODUCT DETAILS

Model	YA-2000	YA-3000	YA-5000	YA-8000	YA-10000
Excavaor（ton）	0.5-2	1-3	3-4.5	4.5 -8	5-10
Max.Output Torque（Nm）	1900	3000	5000	8000	10000
Pressue（Bar）	70-240	70-240	80-240	80-260	80-260
Oil Flow（LPM）	27-75	27-75	50-95	60-135	60-135
Rated Power（kw）	19	24	42	67	80
Output shaft Speed(RPM)	30-95	35-88	42- 80	35-80	35-80
Weight(kgs)	41	41	66	124	131
Overall Length(mm)	606	606	687	808	808
Hydraulic Hose	1/2"BSP	1/2"BSP	1/2"BSP	1/2"BSP (Or 3/4"BSP)	1/2"BSP(or 3/4" BSP)

Model	YA-18000	YA-30000	YA-50000	YA-80000	YA-100000
Excavaor（ton）	8-15	15-22	20-36	26-40	32-52
Max.Output Torque（Nm）	18000	30000	50000	80000	100000
Pressue（Bar）	80-240	160-260	220-350	220-350	250-300
Oil Flow（LPM）	80-170	80-170	100-300	200-400	300-477
Rated Power（kw）	80	94	157	167	157
Output shaft Speed(RPM)	20-42	12-28	0-30	0-20	0-15
Weight(kgs)	165	255	460	770	1050
Overall Length(mm)	937	1158	1354	1572	1725
Hydraulic Hose	3/4"BSP	1"BSP	1'BSP 1-1/4"	SAEFS-20 1-1/4"	SAEFS-20 G1-1/4”

APPLICATIONS

· Fence piling · rod and mast installation · Sound barriers · Landscaping · Tree planting · Screw pile installations · Exploration and research · Ground source heat pumps · Well boring · Solar energy equipment installation · Well boring · Pole and mast installations · Road signage · wind turbine installation · Foundation piles Packing of products Product transportation F&Q Q1: Are you a trading company or a manufacturer?A1: We are a product manufacturer.
Q2: Can you design the product according to our size?
A2: Yes, we can customize the size of the equipment to fit your excavator according to wour needs.
Q3: What is the minimum order quantity?
A3: The MOQ is 1 unit.
Q4: How long is your delivery time?
A5: Usually, we have it in stock. So as soon as the customer orders, we can ship it.If the purchased quantity exceeds the stock, we will determine the delivery timeaccording to the product type, production quantity and delivery address.
