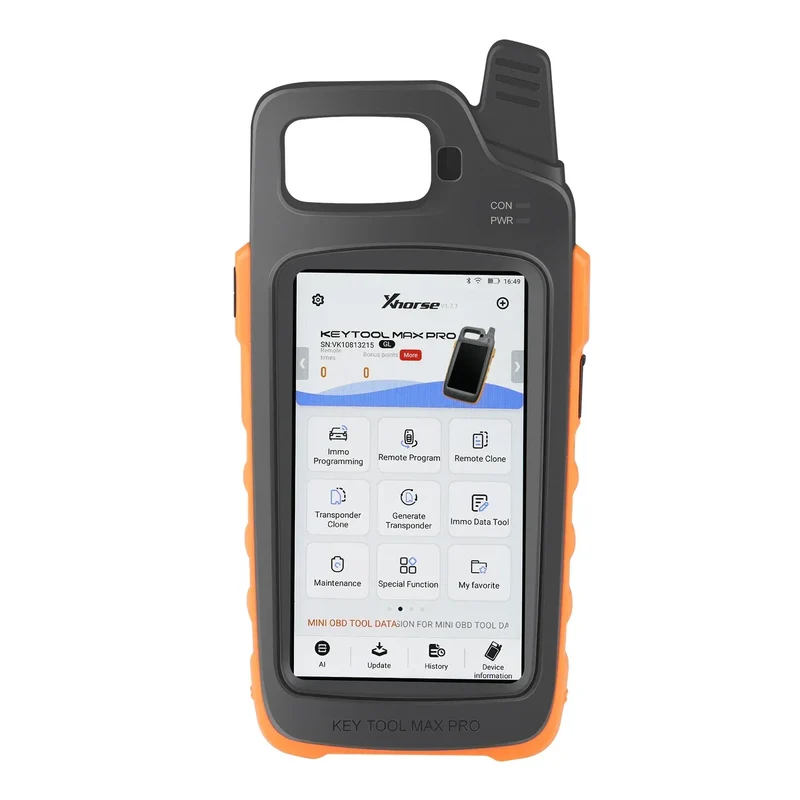

Xhorse VVDI Key Tool Max Pro With MINI OBD Tool Function Support Battery Voltage and Leakage Current

SPECIFICATIONS

Brand Name: Xhorse

Certification: CE

High-concerned chemical: None

Origin: Mainland China

modname=ckedito modname=ckeditor modname=ckeditor


Xhorse VVDI Key Tool Max Pro With MINI OBD Tool Function

Notice: It do not support Russian language, if you need Russian language, plz buy from your local delear, thanks!



Max Pro EU/UK/US Ship, NO Tax!

KEY TOOL MAX PRO, a real small tablet, with built-in OBD function, easy to carry, remote control matching tool!  It supports various OBD functions such as vehicle diagnosis, IMMO program, throttle program, TPMS, and maintenance light reset. As well as new functions: BMW CAS3 key programming, battery voltage measurement, leakage current measurement!

KeyToolMaxPro newly supports TPMS generation and programming, providing free upgrade service. Just update your device to get the powerful function combination of IMMO and TPMS to start your new business!

TPMS Function:

• Support XTPMS programming, up to 20 sensors simultaneously

• Reprogram XTPMS sensor

• Activate original TPMS and XTPMS sensor (315Mhz, 433Mhz)

• Copy and change sensor ID

• Read TPMS data like tire pressure, temperature, battery, etc.

• Support OBD reading, writing, read & clear DTCs

• Compatible with multiple car models, more models coming soon

Key Tool Max Pro Highlights:

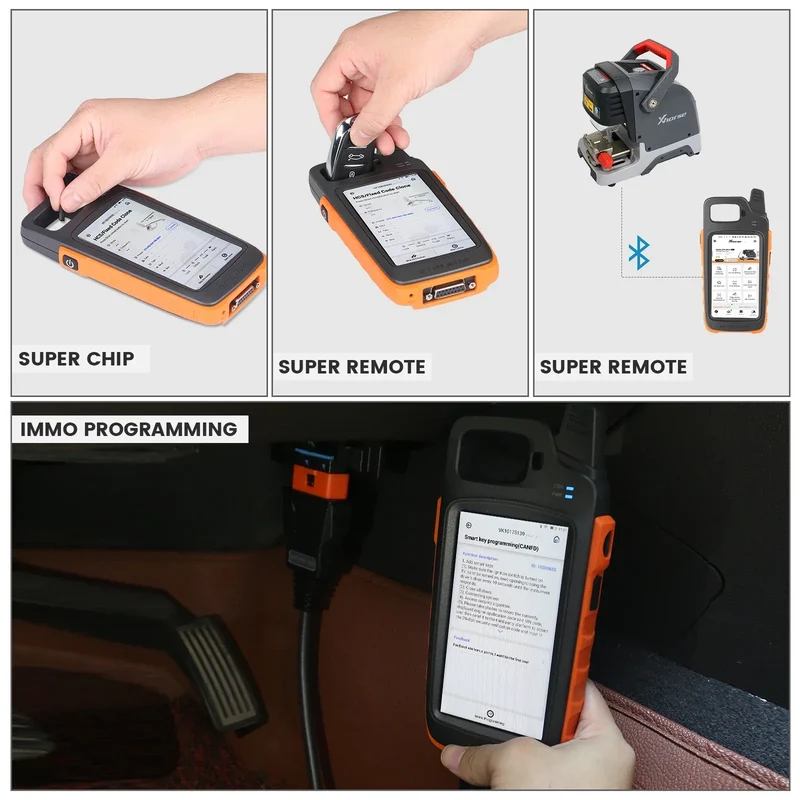

1. Cover Key Tool Max+Mini OBD Tool remote/transponder immo functions
2. Add New for BMW CAS3 and Toyota Models, and partial Toyota models key programming (For Corolla,for Highlander,for Camry,for REIZ,for VIOS,for LEVIN,for CROWN,for RAV4,for Hiraks,for Lexus,for PRADO/LAND CRUISER PRADO/for LAND CRUISER
*Currently not supported: 8A-A9 type all key lost, 4A/8A-AA type add/all key lost)
3. Xhorse App language on phone has no limitation. But Key Tool Max Pro language only English.
4. How to get ID48 96bit transponder clone function?
Use VVDI Max Pro to generate new vvdi remote key 10pcs, after collect points, 2 hours later, server will open ID48 96bit function automatically. Please note all brand new remotes.
5. Built-in CAN_FD Module
6. Supports for Toyota H all keys lost with 8A AKL adapter
7. Control Xhorse Condor/ Dolphin key cutting machine
8. Support TPMS Function

VVDI Key Tool Max Pro Main Functions:
IMMO OBD Match

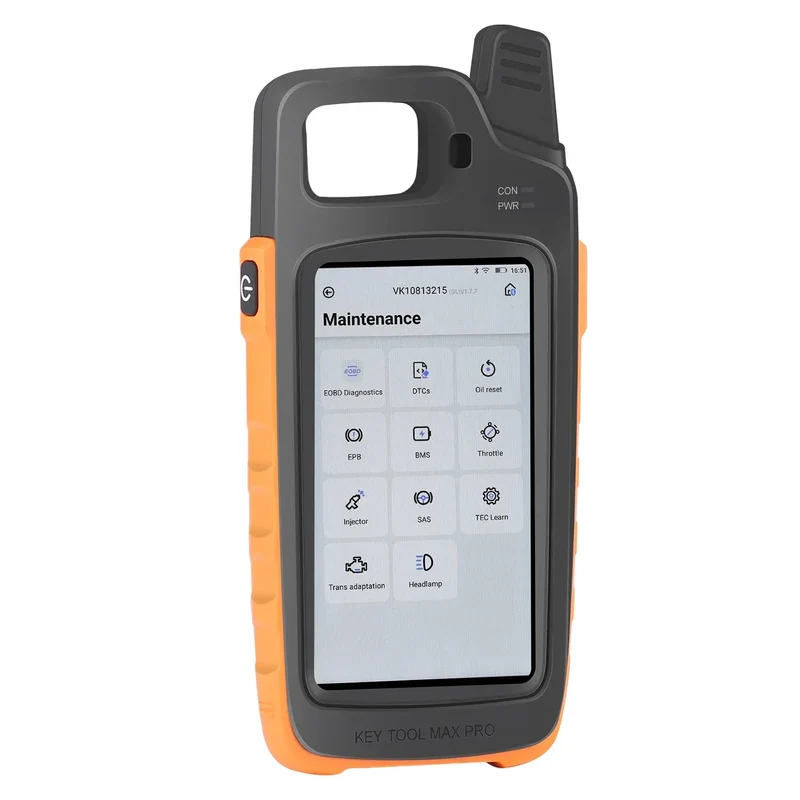

Maintenance
Remote leakage detection
Remote battery voltage detection
Remote key / smart card key generation
Transponder Editing & Cloning
Generate Transponder
Remote Renew
Access Card identification / copy
Generate Garage Remote
Frequency Detection and Copy Remote
Work with DOLPHIN XP-005, XP005L, MINI Plus, MINI Plus II
BMW CAS1- CAS3 Key Programming and Mileage Repair (NEW!)
Partial Toyota 8A/4D Add key and all keys lost (with 8A AKL adapter) (NEW!)
TPMS programming and activation (June 2023) (NEW!)

New - IMMO Programming Elevated Capability

Support for Fiat Viaggio, Ottimo 3 Button Smart Key
Generate Dealer Key
Add Key and All Key Lost

Support for Jeep Renegade Flip Key MQB48
Add Key and All Key Lost

NEW - For BMW CAS3\Toyota Models Programming
To make it a more powerful and competitive tool, KEY TOOL MAX PRO is projected to add programming features of for BMW CAS3 and some for Toyota models.

Support for BMW CAS3+and lower modules
CAS1 IMMO system
EWS IMMO system
CAS2 IMMO system
ECU ISN
CAS3/CAS3+IMMO system
Instrument mileage repair

Support partial for Toyota 8A/4D Add Key /All Key Lost
Support List
Corolla
Highlander
Camry
REIZ
VIOS
LEVIN
CROWN
RAV4
Hiraks
Lexus
PRADO/LAND CRUISER PRADO/LAND CRUISER
*Currently not supported: 8A-A9 type all key lost, 4A/8A-AA type add/all key lost

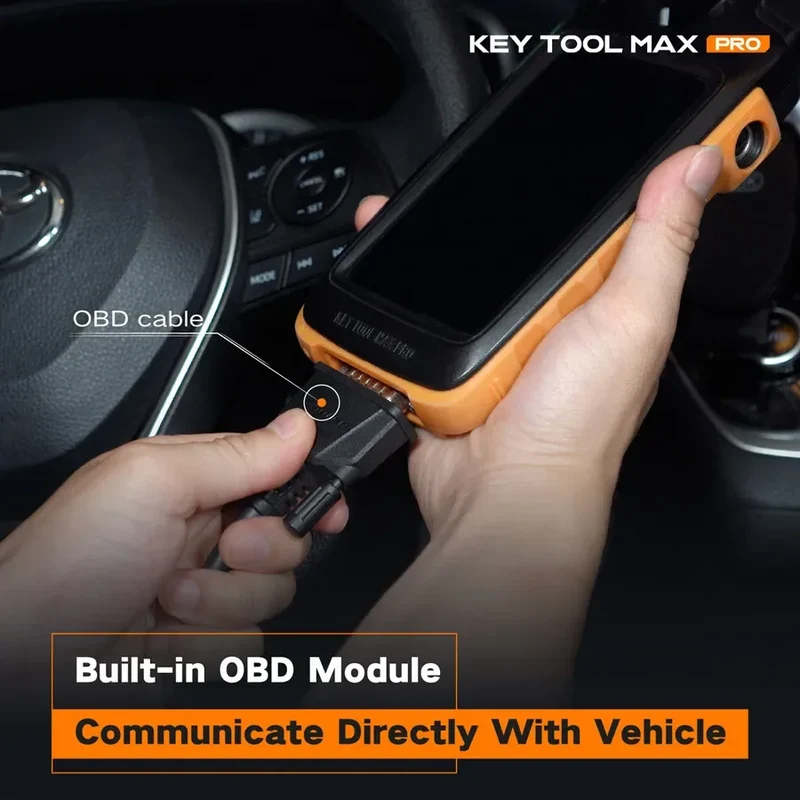

Add OBD Module
KEY TOOL MAX and MINI OBD TOOL used to be a great combination, enabling users to finish various works via wireless connection. Now, MAX PRO comes with an OBD cable which could connect it to vehicle OBDⅡ port, which means you don't need to purchase MINI OBD TOOL for immo programming and other functions. Meanwhile, wire connection usually can be highly secure and reliable with low risk.

Built-in CAN_FD Module, Expanded Function:

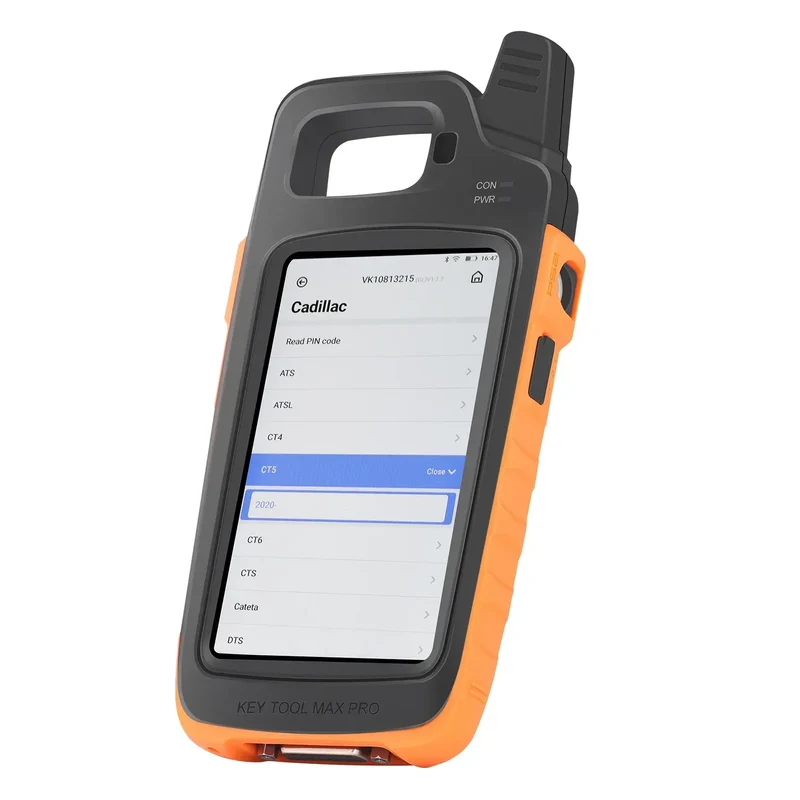

Concerning immo programming, MAX PRO is designed with a CAN_FD module, making it possible to complete immo programming for various CAN_FD models such as Cadillac CT4/CT5, Buick GL8, Encore, etc. Of particular note, Xhorse offers continuous upgrades for free and car models supported keep increasing for your convenience.

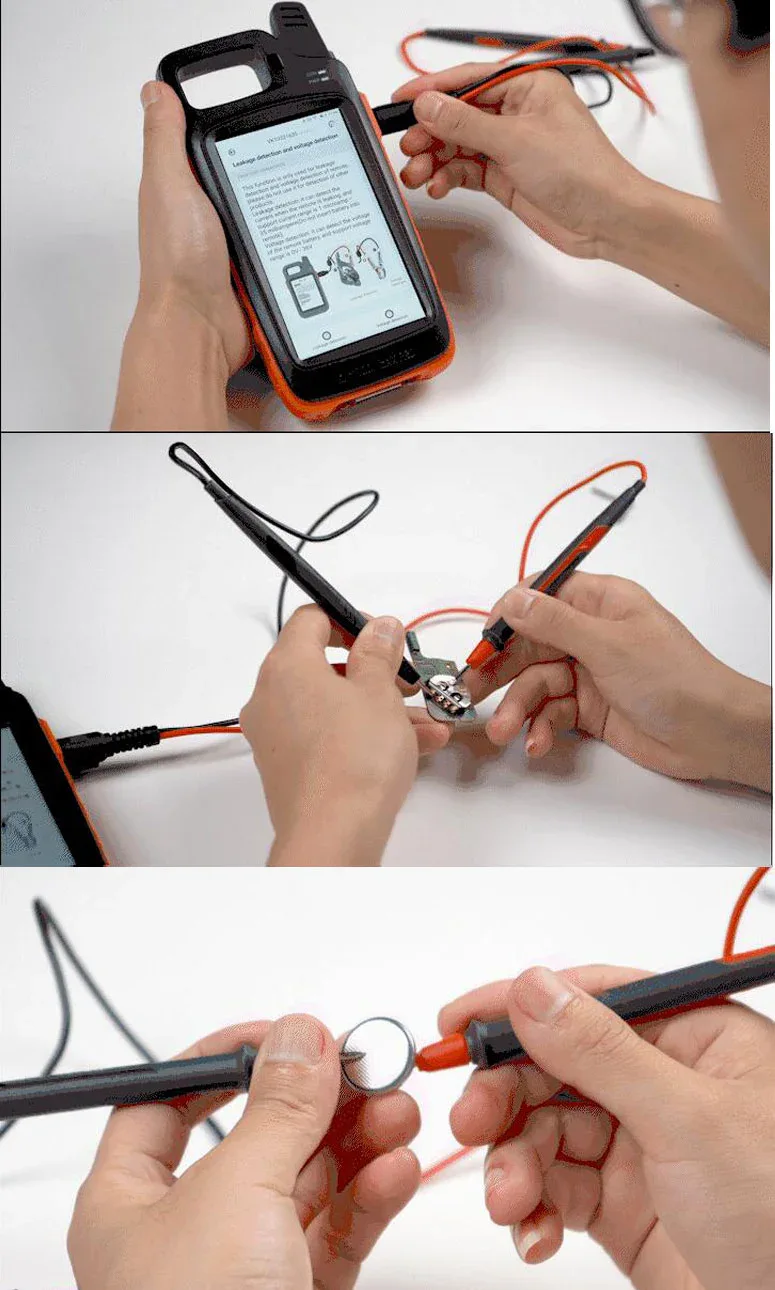

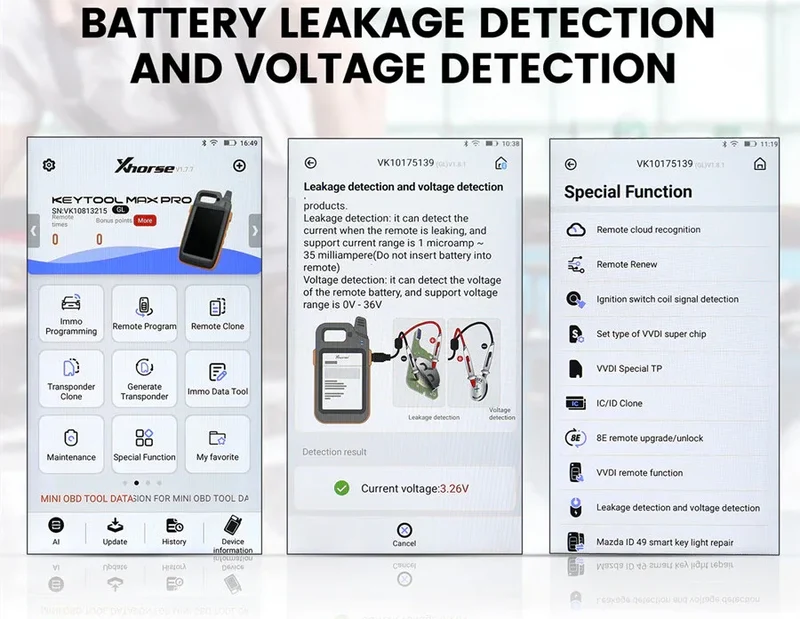

Read Voltage and Leakage Current:

This function is only used for leakage detection and voltage detection of remote, please do not use it for detection of other products.
Leakage detection: it can detect the current when the remote is leaking, and support current range is 1 microamp~35 milliampere(Do not insert battery into remote)
Voltage detection: it can detect the voltage of the remote battery,and support voltage range is 0V-36V

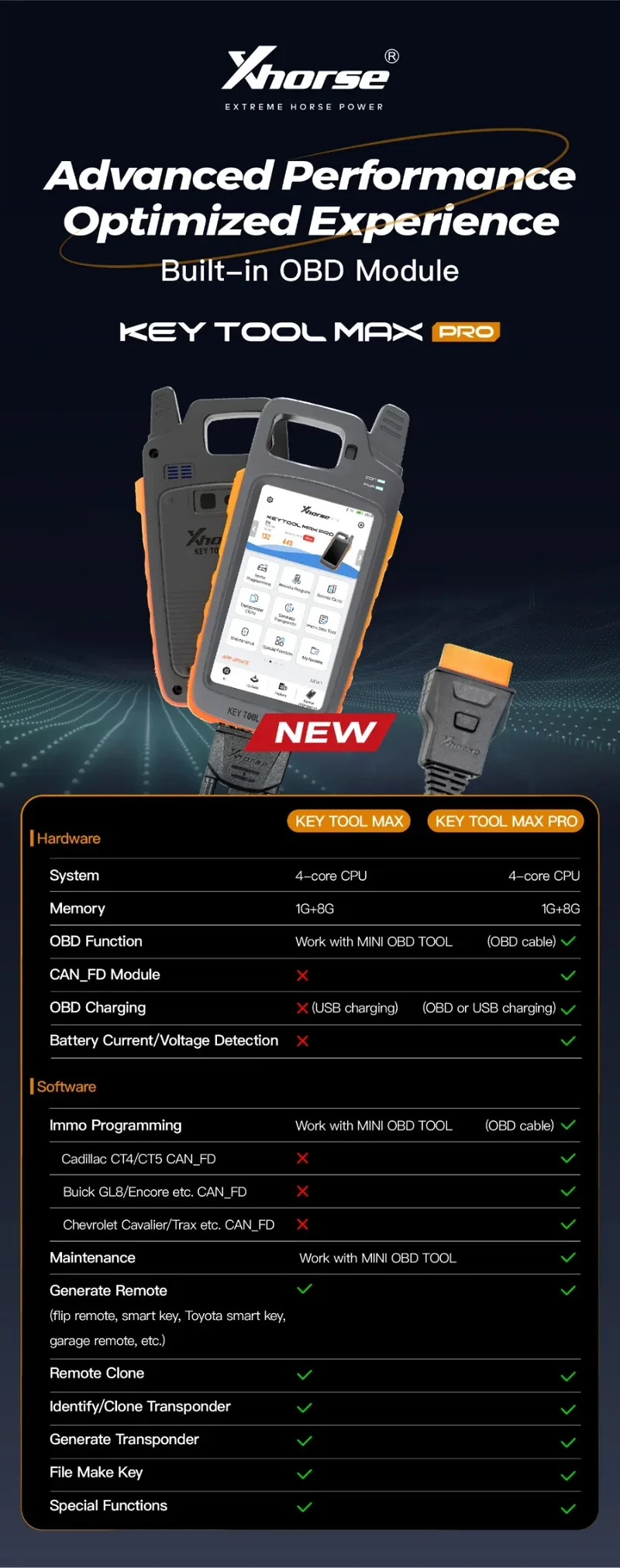

Xhorse VVDI Key Tool Max vs Key Tool Max Pro

	Key Tool Max	Key Tool Max Pro
Hardware
System	4-Core CPU	4-Core CPU
Memory	1G+8G	1G+8G
OBD Module	Mini OBD Tool	√
CANFD Module	×	√
Charge via OBD	×,  via USB cable	√, via OBD/USB cable
Current/Voltage Test Module	×	√
Software
IMMO	Mini OBD Tool	√
Cadillac CT4/CT5 CAN_FD	×	√
Buick GL8/Encore etc. CAN_FD	×	√
Chevyrolet Cavalier/Trax etc. CAN_FD	×	√
Maintenance	Mini OBD Tool	√
Generate Remote (flip, remote, smart card, Toyota smart card, garage door etc.)	√	√
Remote Clone	√	√
Identify/clone Transponder	√	√
Generate Transponder	√	√
Write via Dump	√	√
Special Function	√	√

Key Tool Max Pro Parameter:
Battery capacity: 3375mAh
Battery life>6 hours
Standby time>5 days
Recharging current: 1500mAh
Brightness>400nlts
Screen resolution: 1280*720P
Camera resolution: 800W
WIFI & Bluetooth: 802.11a/ b / g / n / ac & 4.2 BLE

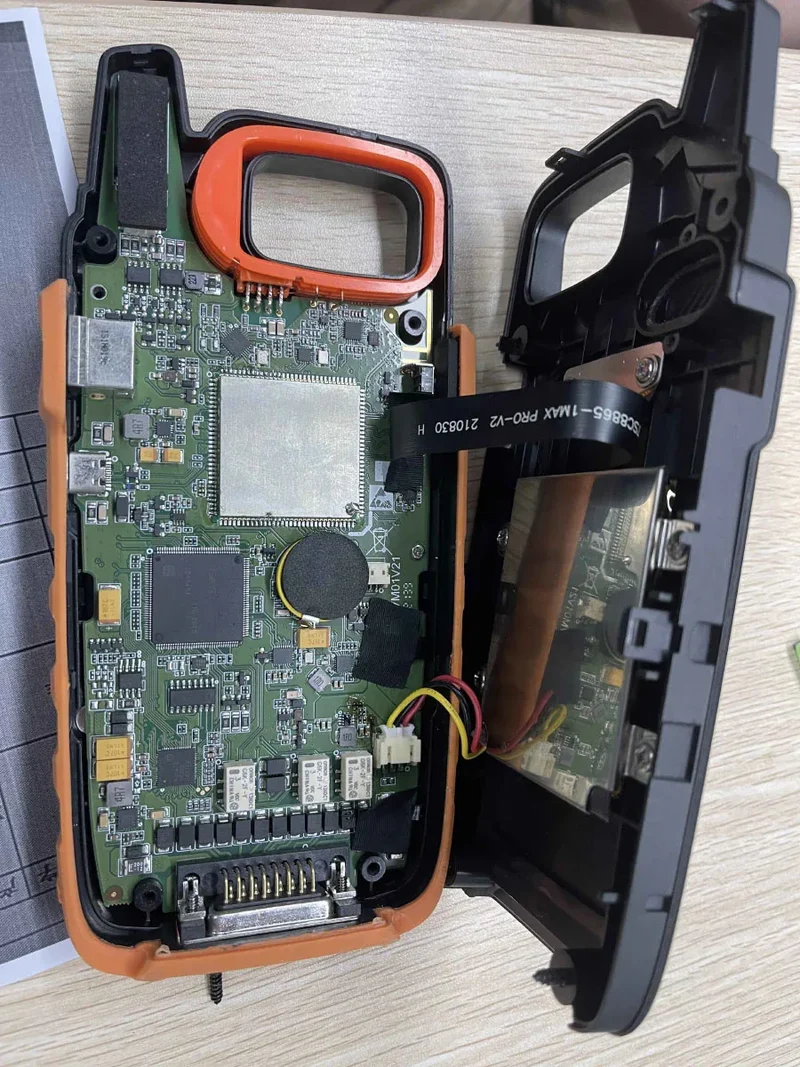

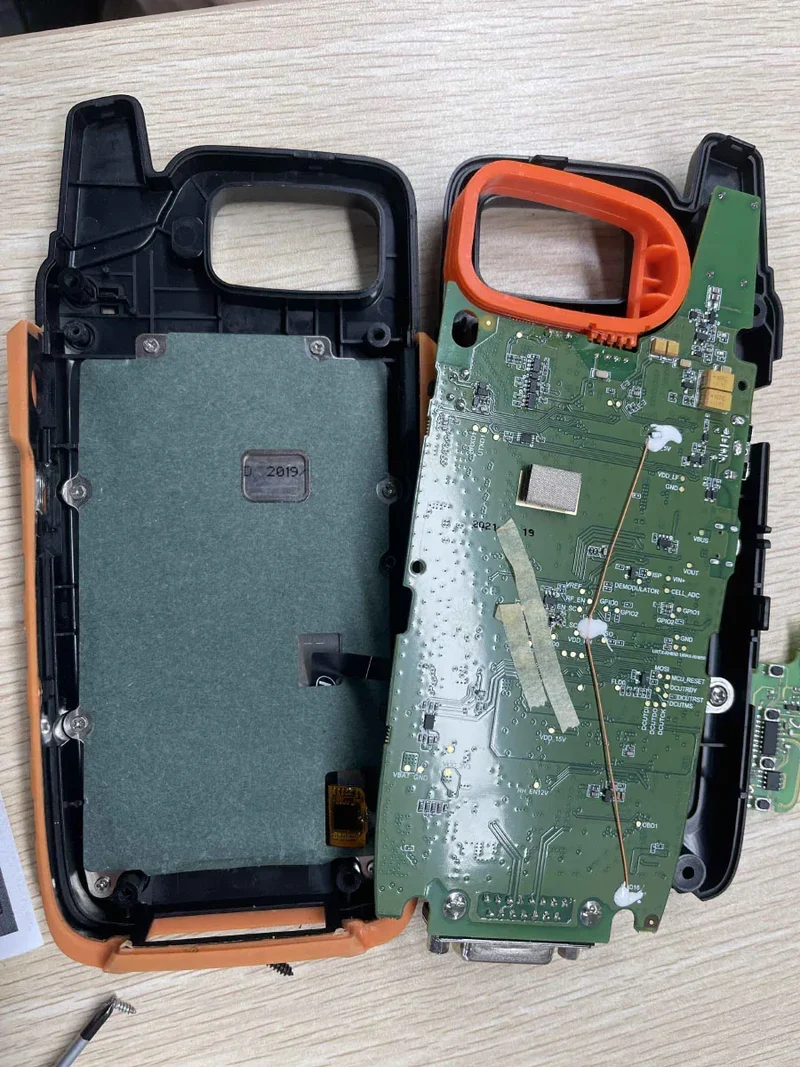

PCB Display:

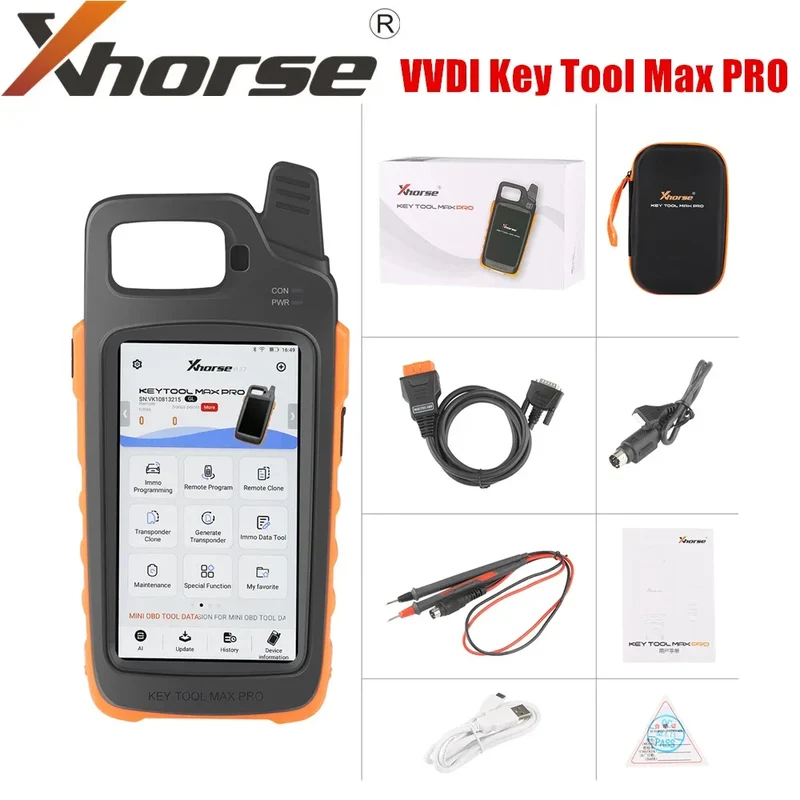

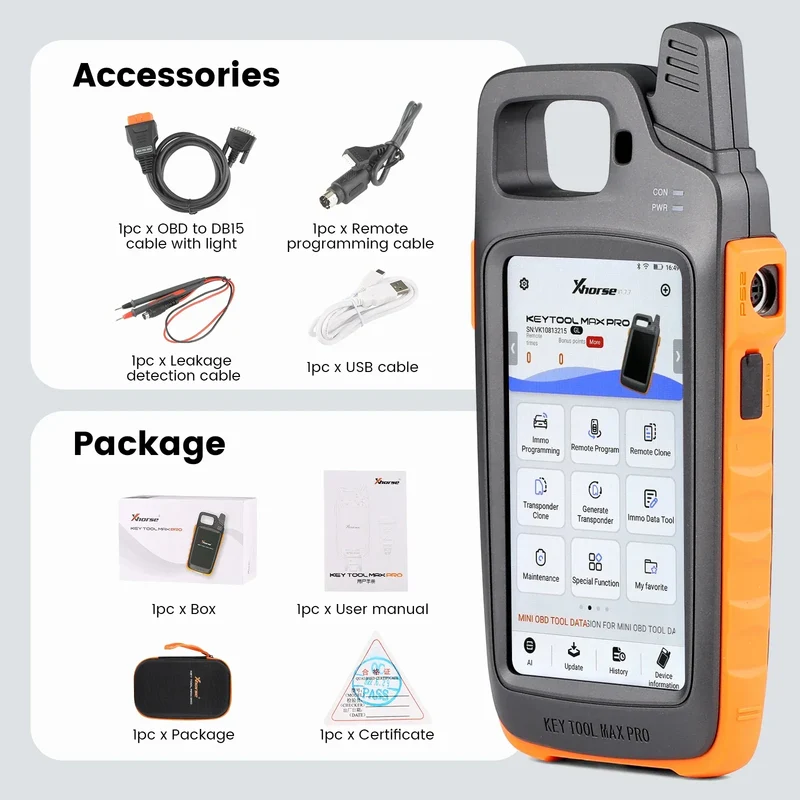

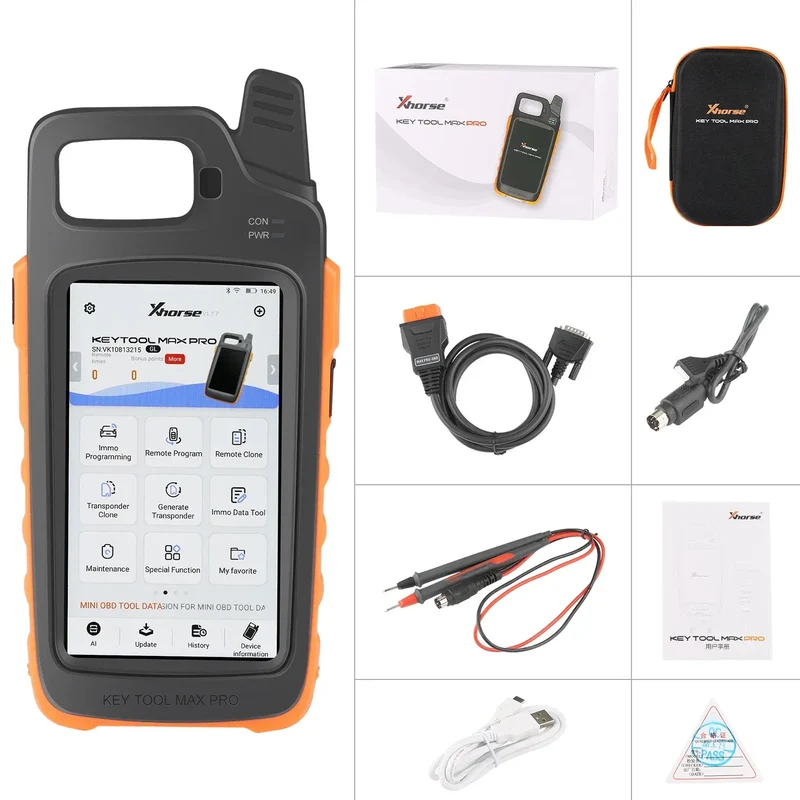

Package List:

1pc x KEY TOOL MAX PRO device 1pc x OBD to DB15 cable with light  1pc x Remote programming cable  1pc x Leakage detection cable 1pc x USB cable 1pc x User Manual
