Wind Directional Indicator for a Helipad or Airport Heliport Wind Cone with Obstruction Light

SPECIFICATIONS

Application: Helipad

Beam Angle(°): 360

Brand Name: CM

Color Rendering Index(Ra): 80

Color Temperature(CCT): 5000K (Daylight)

Emitting Color: red+white

IP Rating: IP65

Ingress Protection: IP65

Input Voltage(V): AC 110-265V

Item No: CM-HT12/F

Lamp Body Material: Stainless Steel

Lamp Luminous Efficiency(lm/w): 32.5

Lamp Luminous Flux(lm): 32.5

Life span: 100,000 hours

Lifespan (Hours): 100000

Light Intensity: 10cd

Light Source: LED,LED White and Red

Lighting solutions service: Lighting And Circuitry Design,Project Installation

Net Weight: 30-60 kg

Place of Origin: Hunan, China

Pole Material: 304 stainless steel

Power Consumption: 10W

Product name: Heliport LED wind cone

Support Dimmer: No

Type: Equipment Indicator Lights

Voltage: AC220~240V

Warranty(Year): 3-Year

Product Description

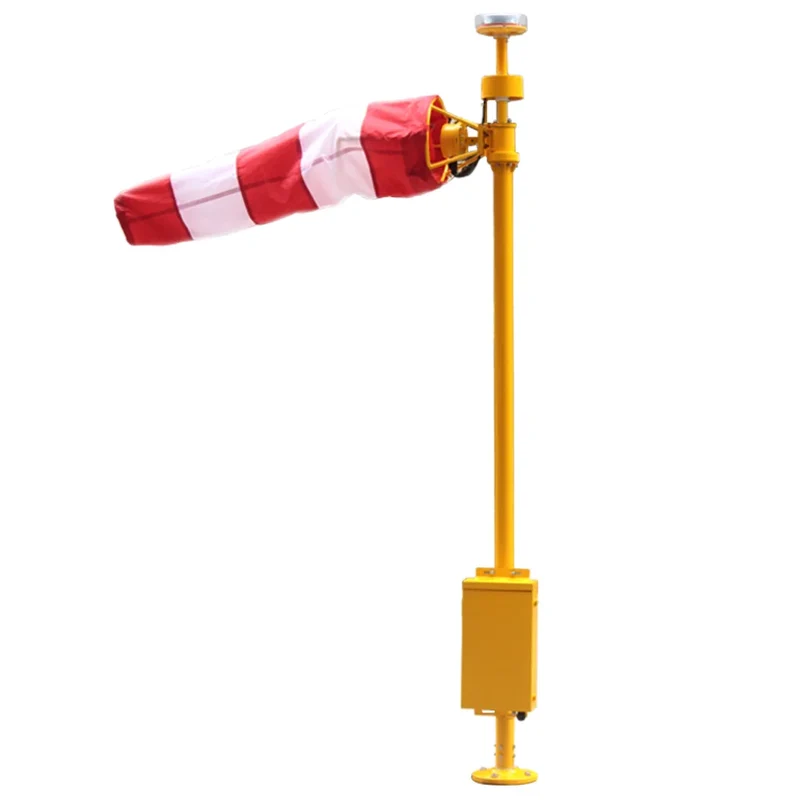

LED Heliport Windsock Light
There are 3 physical pictures (1 front +1 side +1 bottom or top) +1 product anatomy +1 product functional effect illustration

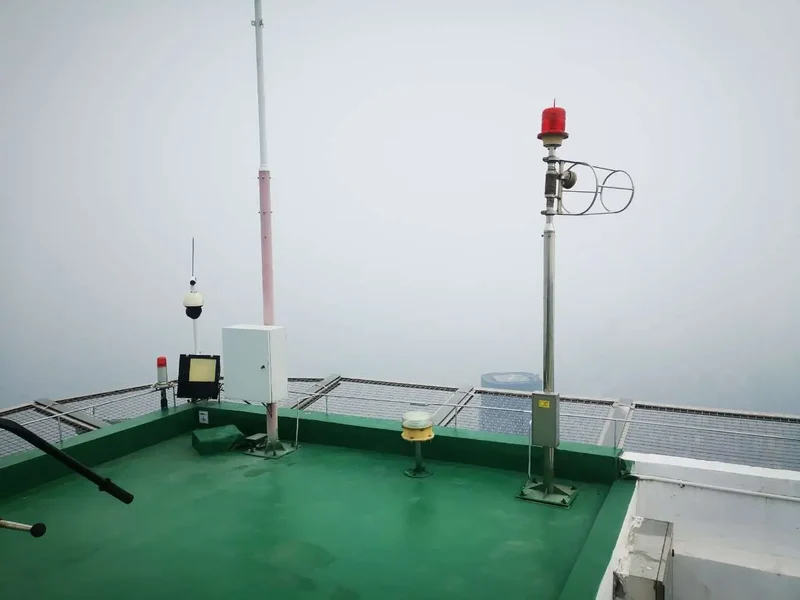

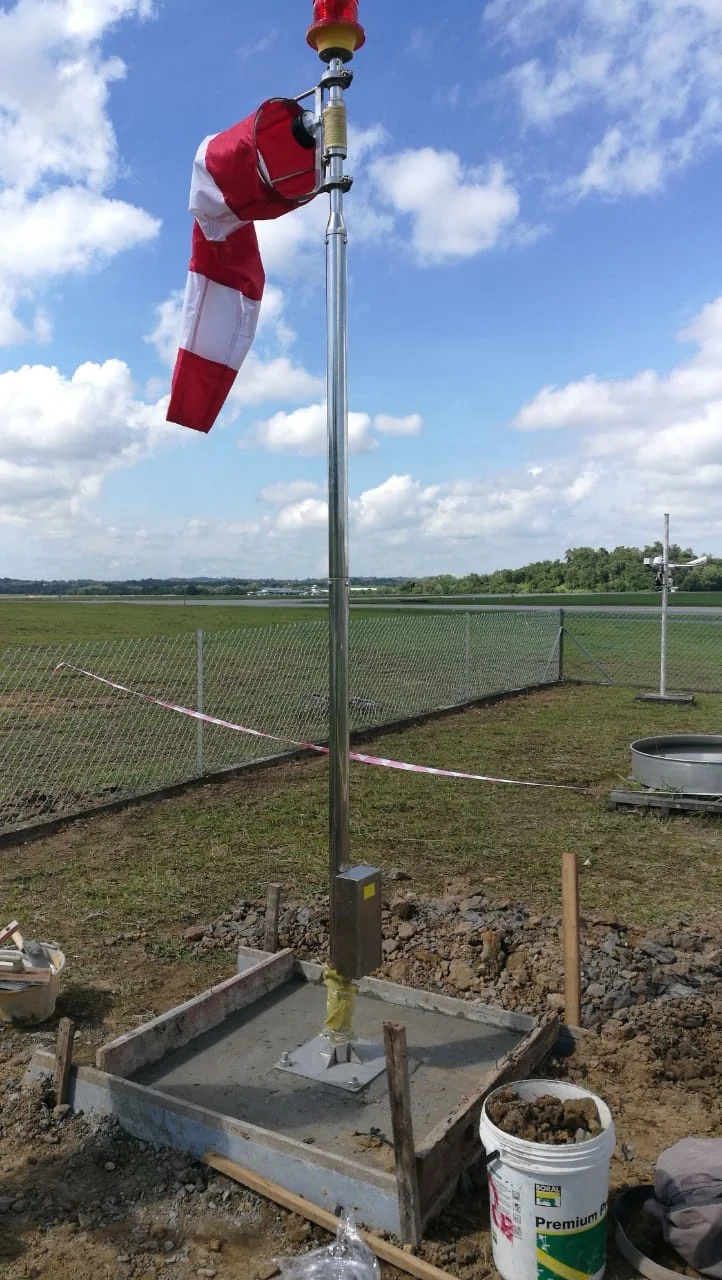

Project case

Here are the LED heliport flood light which used our helipad lightings in domestic and oversea.

Application

CM-HT12/F heliport wind vane is to indicate the wind direction of the final approach and take-off, it can make a good general indication to the wind speed.According to the ICAO provisions for each airport must be set at least one wind vane. Its installation location must not inter-referenced by nearby objects or the airflow blowed by the rotor, and must be guaranteed the helicopter can be clearly identified at least in 200 meters away. Detailed Images Product detail drawing

Product Features

①CM-HT12/F2 F3 F4 F5 F6 Illumination Vane(heliport windsock or wind cone） can be used as a sign in all kinds of airport to observe the wind power and wind direction in both daytime and night.
②On the top installed one red LED obstruction light, provide the obstacle hint for the pilot at night.

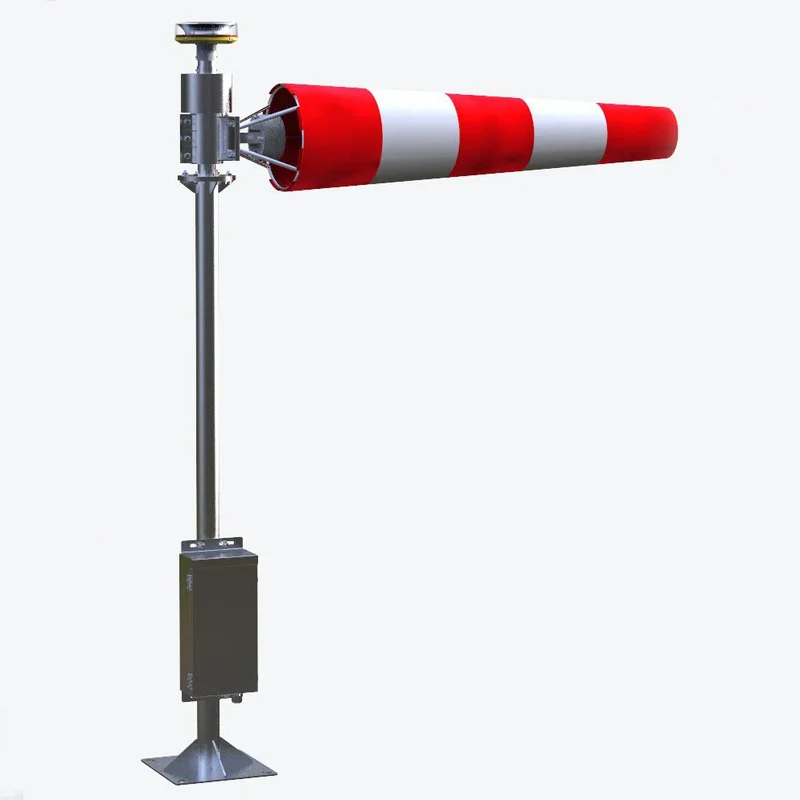

③On the upper of the pole installed a light stainless wind sleeve frame and one 360°rotation gear.

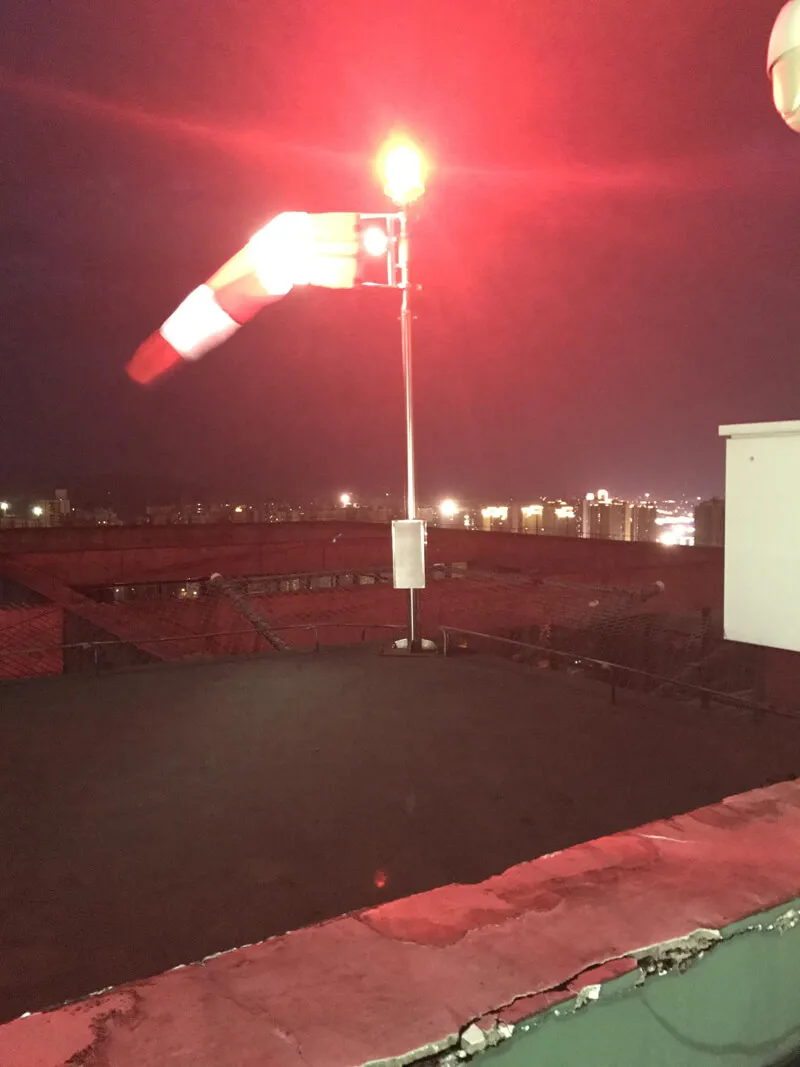

④Inside of the wind sleeve frame installed one waterproof LED spotlight, it will turn with the wind sleeve, could light the wind sleeve directly, not like the old outside flood light, then eliminate the power consumption and against the eye flare.
⑤On the wind sleeve frame installed one wind sleeve which is made of corrosion-resistant and high-temperature-resistant nylon anti-UV material, and lifetime is long. The color is red(orange) and white, have 5 sections, the start color is red(orange).

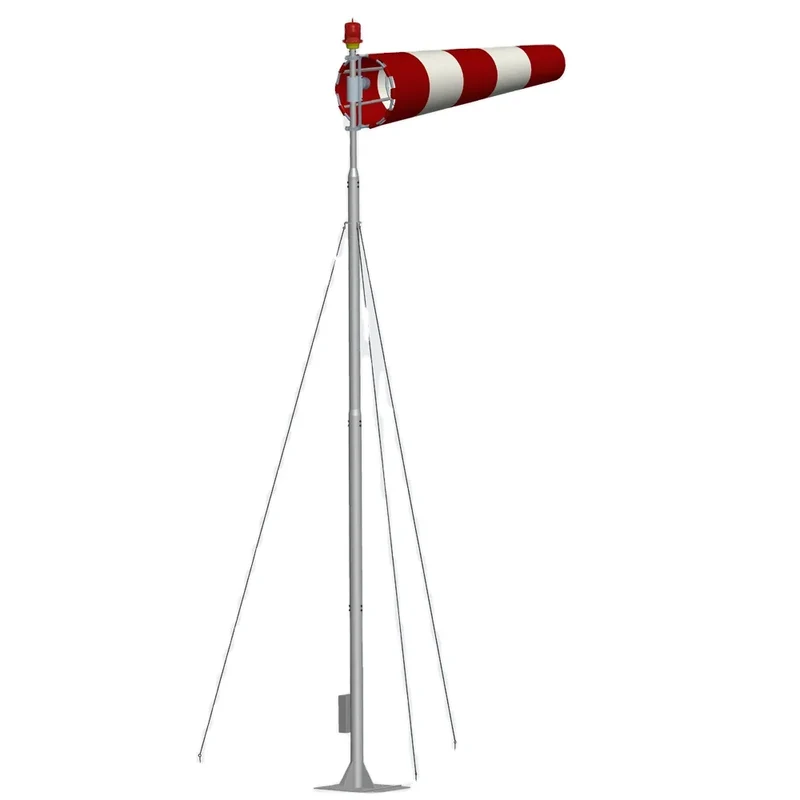

⑥The diameter is 300mm, the diameter at small end is 150mm and the length is 1.2m. The pole and the base all use the SUS304 stainless, in order to increase the stability, could add 3pcs steel rope.
⑦The power supply is AC220V-AC230V,50/60HZ.
Product Installation How to disable the light Internal instructure of the light,please connect with screws together. Product Presentation

Specifications and data sheet of Helipad insert or onimidirection perimeter light CM-HT12/CQ

Product Name	Led Heliport  Windsock
Model No.	CM-HT12/F
Input Power	AC110V  AC220V-240V
Power	5W/10W
Light Intensity	10cd or 100lm
Emitting Color	White Led and RED LED
Life Span	100,000 hrs
IP Grade	IP65
Environment Humidity	0-100%
Environment Temperature	-40-85 ℃
Net Weight	30 Kg
Overall Size	2m/3m/4m/5m/6m

• Size introduction and size picture

•    Packing Size： Wooden Case: 1540mm*740mm*440mm

Certificate This product has been authorized the CE certificate（reference the following picture） Related Products
