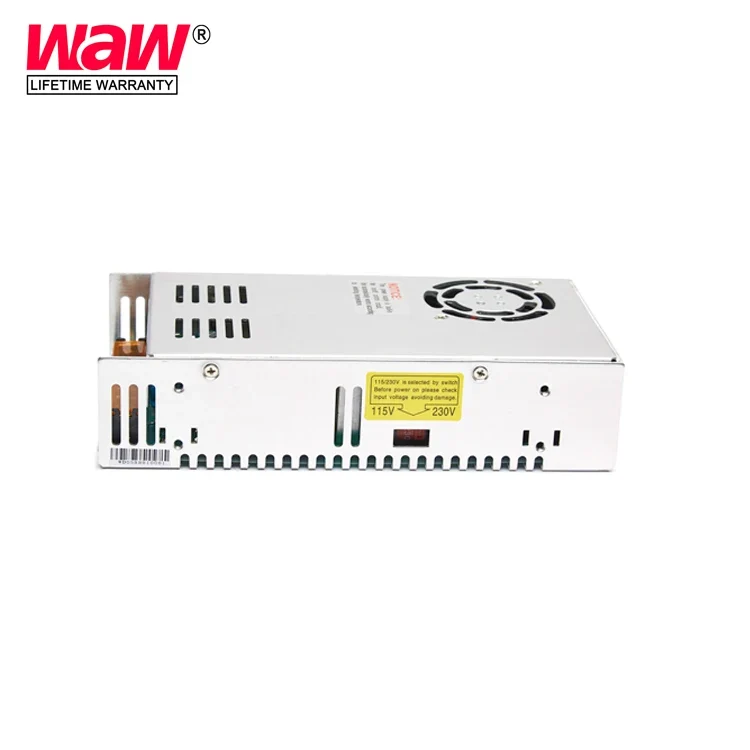

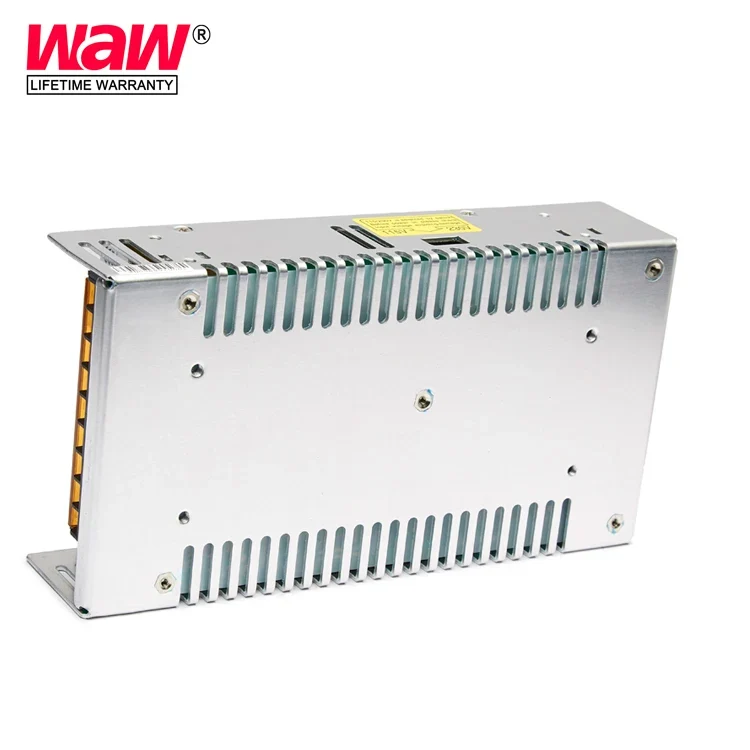

Wholesale Single Output Led Switching Power Supply 350w 24v 14A with CE RoHS

SPECIFICATIONS

Brand Name: WAW

Certification: CE ROHS

Input Voltage: 110V/220V

MOQ: 1pcs

Material: Aluminium

Model Number: S-350-24

Output Current: 14A

Output Frequency: 50/60Hz

Output Type: Single

Output Voltage: 24v

Packing: Carton

Place of Origin: Zhejiang, China

Size: 215*113*50mm

Warranty: Life-long Maintenance

Weight: 0.93Kg

Wholesale Single Output Led Switching Power Supply 350w

24v 14A with CE RoHS

Features

1.High Efficiency and good price

2.Built-in EMI filter

3.100% full load burn-in test

4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit

6.LIFETIME WARRANTY

Specifications

MODEL		S-350-5	S-350-12	S-350-24	S-350-36	S-350-48
OUTPUT	DC  voltage	5V	12V	24V	36V	48V
	Rated output current	50A	29A	14.6A	9.73A	7.3A
	Output current range	0~50A	0~29A	0~14.6A	0~9.73A	0~7.3A
	DC power	350W	350W	350W	350W	350W
	Voltage adj.range	±10%	±10%	±10%	±10%	±10%
	Voltage tolerance	±2%	±1%	±1%	±1%	±1%
	Ripple and noise	150mVp-p	150mVp-p	150mVp-p	240mVp-p	240mVp-p
	Intet stability	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	Load stability	±0.1%	±0.5%	±0.5%	±0.5%	±0.5%
INPUT	AC voltage range	85~132VAC/170~264VAC selected switch 47~63Hz 240~370VDC
	Current	6.5A/115V  4A/230V
	Efficiency	77%	81%	83%	85%	85%
	AC Inrush current	25A/115V  50A/230V
	Leakage current	<3.5mA/240VAC
PROTECTION	Overload	105%~150% Type:pulsing hiccup shutdown Resete:auto recovery
	Over-voltage	115%~135%
		5.75-6.75V	13.8-16.2V	27.6-32.4V	55.2-64.81V	55.2-64.81V
	High temperature	ERH3 ≥ 55°C Fan on,≤ 45°C Fan off,≥ 70°C,Cut down output(5~15V)
SAFETY	Setup rise hold up time	200ms,100ms,20ms
	Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
	Withstand voltage	Input and output interval,1.5KVAC,Input and enclosure,1.5KVAC,Output and enclosure,0.5KVAC
	Isolation resistance	Input and output interval,Input and enclosure,Output and enclosure,500VAC/100M Ohms
ENVIRONMENT	Temperature coefficient	±0.03%/°C (0~50°C )
	Working temperature and humidity	-10°C~+60°C,20~90%RH
	Store temperature and humidity	-20°C~+85°C,10~95%RH
OTHER	Overall dimension	215*113*50mm     17PCS/CARTON
	Weight	0.93Kg
CERTIFICATE	CE EMC Authenticate	EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008
		EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009
	CE LVD Authenticate	EN61347-1:2008T A1:2001 EN61347-2-13:2006
		EN60950-1:2006+A11:2009+A1:2010+A12:2001
	ROHS Authenticate	EPA3050B:1996 EN1122B:2001 EPA3052:1996 EPA3060A:1996
		EPA7196A:1992 EPA3540C:1996 EPA8270D:2007 IEC62321:2008
