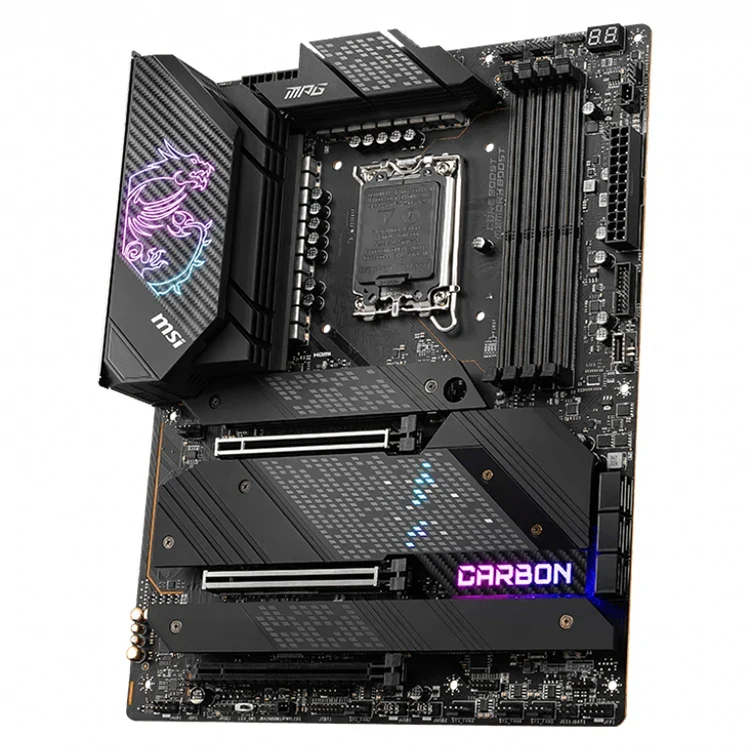

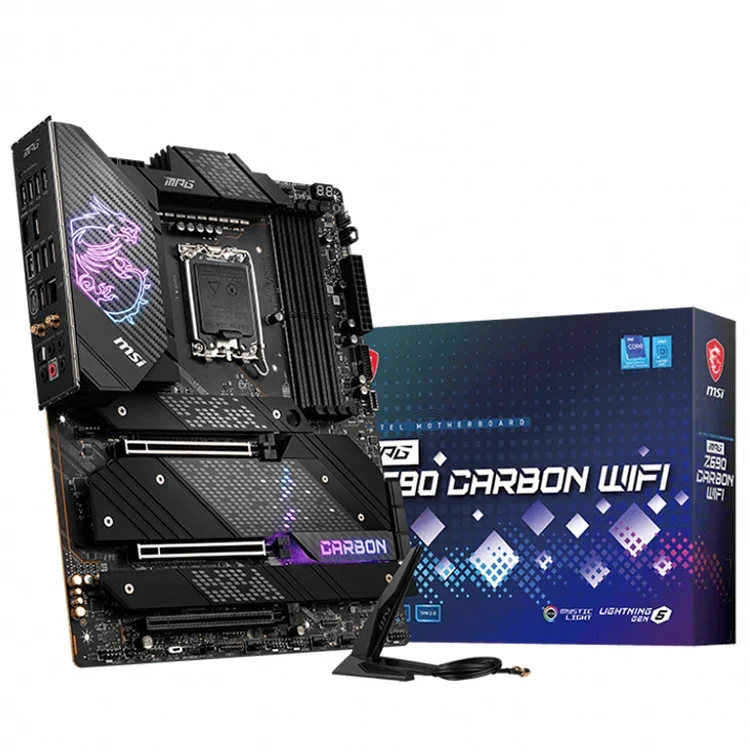

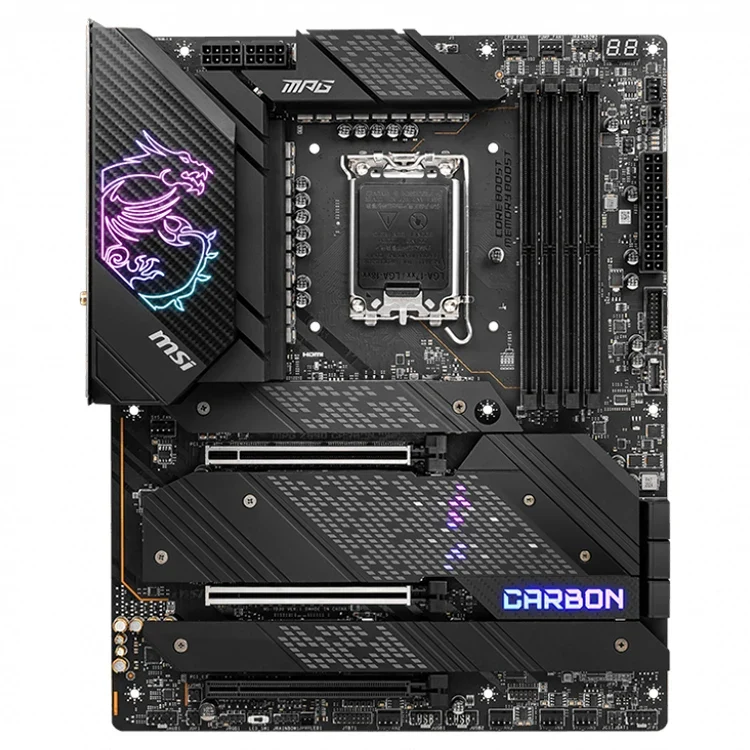

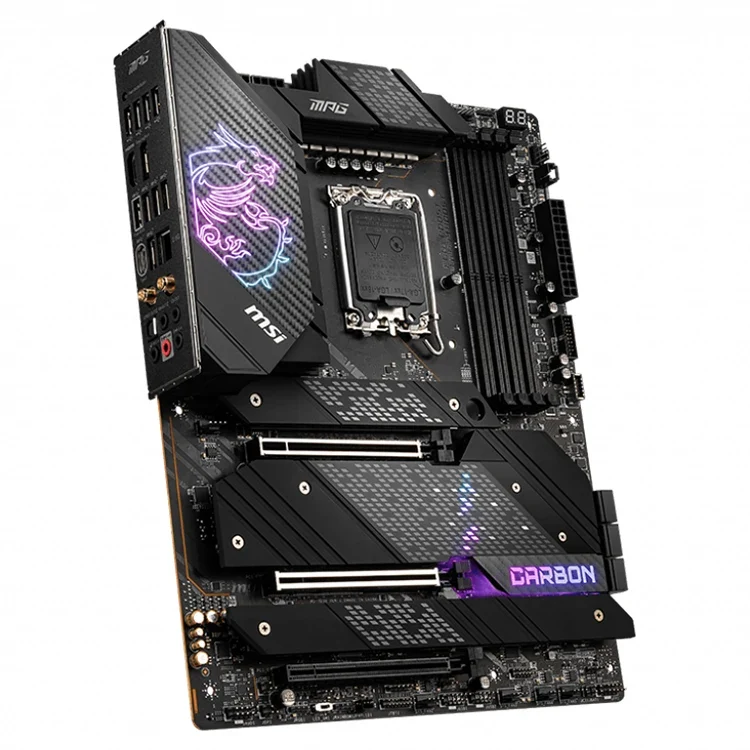

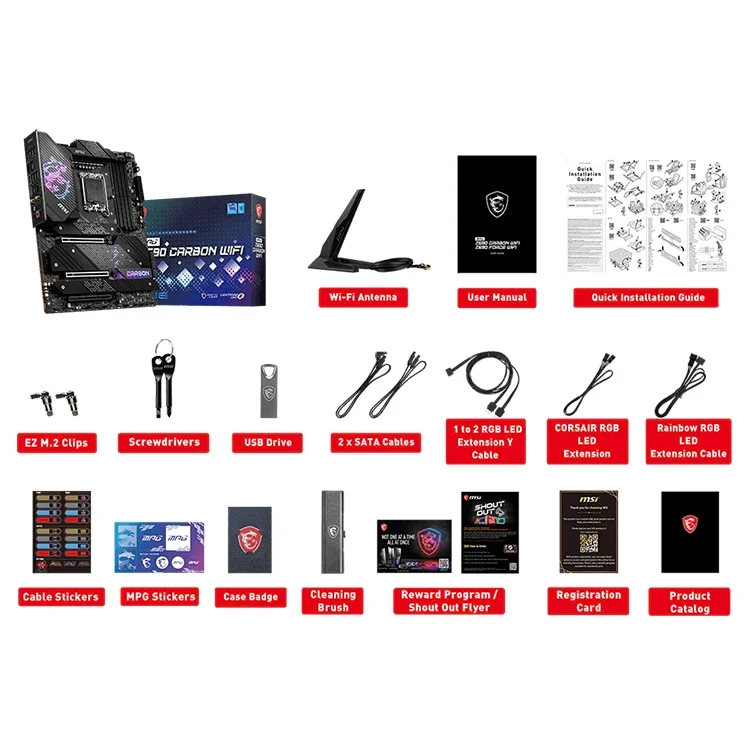

Used MSI MPG Z690 CARBON WIFI Motherboard Supports DDR5 Memory up to 6666+(OC) MHz and 12th Gen Intel Core/ Pentium Celeron CPU

SPECIFICATIONS

Audio: Realtek ALC4080 Codec

Brand: MSI

LAN: 1x Intel I225V 2.5Gbps LAN controller

Memory: DDR5 128G

Model: MPG Z690 CARBON WIFI

Operating System: Windows 11 64-bit/ Windows 10 64-bit

SATA: 6Gb/s

Size: 30.5*24.4cm

Socket: LGA 1700

USB: 6 x USB 3.2

application: Desktop

brand name: MSI

chipset: z690

chipset manufacturer: Intel

cpu type: Intel

form factor: ATX

fsb / ht: 6400/ 6200 / 6000/ 5400/ 5200 / 4800 / 4000 MHz

graphics card type: Integrated

hard drive interface: SATA

item condition: Used

maximum ram capacity: 128 GB

memory bank: DDR5

memory channel: Double

memory type: DDR5

package: No

place of origin: Guangdong, China

ports: Wi-Fi,SATA,DVI,VGA ,AGP PRO,PCI-Express X16,PCI-Express X8,PCI-Express X4,AGP 2X,USB 2.0,PS2,Display Port,Ethernet,M.2,USB 3.0,Usb3.1,PCI-E 3.0,PCI-Express X1,AGP 8X,AGP 4X

private mold: Yes

products status: Used

socket type: LGA1700

with cpu: No

MSI MPG Z690 CARBON WIFI Motherboard Supports DDR5 Memory, up to 6666+(OC) MHz And 12th Gen Intel Core/ Pentium Celeron CPU

Product Description

• Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
• Supports DDR5 Memory, up to 6666+(OC) MHz
• Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
• Enhanced Power Design: Direct 18+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost
• Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports RGB, RAINBOW(ARGB), Corsair LED strips and Ambient devices.
• 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
• High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material
• Pre-installed I/O Shield: Better EMI protection and more convenience for installation

PROCESSOR

• Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors 1
• Processor socket LGA1700

1. Please go to intel.com for compatibility information.

See supported processors

CHIPSET

Intel® Z690 Chipset

MEMORY

• 4x DDR5 memory slots, support up to 128GB1
• Supports 1R 4800 MHz (by JEDEC & POR)
• Max. overclocking frequency:
• 1DPC 1R Max speed up to 6666+ MHz
• 1DPC 2R Max speed up to 5600+ MHz
• 2DPC 1R Max speed up to 4000+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
• Supports Intel® XMP 3.0 OC
• Supports Dual Controller Dual-Channel mode
• Supports non-ECC, un-buffered memory

1. Please refer to www.msi.com for more information on compatible memory

See supported memory

EXPANSION SLOTS

• 3x PCIe x16 slots
• PCI_E1 & PCI_E2 slots (From CPU)
• Support PCIe 5.0
• Support x16/ x0, x8/ x8
• PCI_E3 slot (From Z690 Chipset)
• Supports PCIe 3.0 x4

ONBOARD GRAPHICS

• 1x HD.MI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz1/ 2
• 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz1/ 2

1. Available only on processors featuring integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.

MULTI-GPU

Supports AMD® CrossFire™ Technology

STORAGE

• 4x SATA 6Gb/s ports - SATA5~8* (From Z690 Chipset)1
• 2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia ASM1061)
• 5x M.2 slots (Key M)
• M2_1 slot (From CPU)
• Supports PCIe 4.0 x4
• Supports 2260/ 2280/ 22110 storage devices
• M2_2 slot (From Z690 Chipset)
• Supports PCIe 4.0 x4
• Supports 2260/ 2280 storage devices
• M2_3 slot (From Z690 Chipset)
• Supports PCIe 4.0 x4
• Supports 2242/ 2260/ 2280/ 22110 storage devices
• M2_4 slot (From Z690 Chipset)1
• Supports PCIe 3.0 x4
• Supports SATA 6Gb/s
• Supports 2242/ 2260/ 2280 storage devices
• M2_5 slot (From Z690 Chipset)
• Supports PCIe 4.0 x4
• Supports SATA 6Gb/s
• Supports 2260/ 2280 storage devices
• M2_2~5 support Intel® Optane™ Memory
• Supports Intel® Smart Response Technology for Intel Core™ processors

1. SATA7 will be unavailable when installing M.2 SATA SSD in the M2_4 slot.

RAID

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices

USB

Intel® Z690 Chipset

• 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel
• 6x USB 3.2 Gen 2 10Gbps ports (5 Type-A ports on the back panel, 1 Type-C available through the internal connector)
• 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector
• 4 USB 2.0 ports on the back panel

USB Hub-GL850G

• 4x USB 2.0 ports available through internal connectors

AUDIO

Realtek® ALC4080 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

1x Intel® I225V 2.5Gbps LAN controller

WIFI & BLUE.TOOTH

Intel® Wi-Fi 6E module

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/6GHz 1(160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Blue.tooth 5.22, FIPS, FISMA

1. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1 and Windows 11.
2. Blue.tooth 5.2 will be ready in WIN10 21H1 and Windows11.

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connectors
• 6x SATA 6Gb/s connectors
• 5x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C connector
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector
• 1x TBT connector (supports RTD3)
• 1x Tuning Controller connector

LED FEATURE

• 1x EZ LED Control switch
• 4x EZ Debug LED
• 1x 2-Digit Debug Code LED
• 1x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 1x 3-pin CORSAIR LED connector

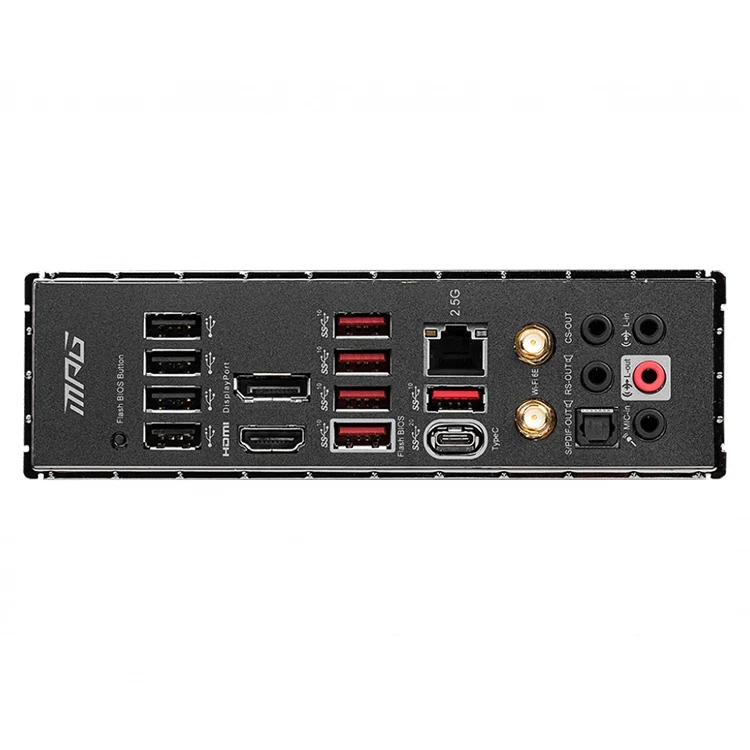

BACK PANEL PORTS

1. USB 2.0
2. DisplayPort
3. 2.5G LAN
4. Wi-Fi/Blue.tooth
5. Audio Connectors
6. Flash BIOS Button
7. HD.MI
8. USB 3.2 Gen 2 10Gbps Type-A
9. USB 3.2 Gen 2x2 20Gbps Type-C
10. Optical S/PDIF Out

DIMENSIONS

• ATX Form Factor
• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

MOUNTING

9 mounting holes

OPERATING SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit
