Used MS'I MPG Z590 GAMING EDGE WIFI Motherboard with 128GB DDR4 Memory Scokets Supports 11th and 10th Gen Intel Core Processors

SPECIFICATIONS

CHIPSET: Intel Z590 Chipset

DIMM SLOTS: 4

DIRECTX: 12

M.2 SLOT: 3

MAX MEMORY (GB): 128

MEMORY CHANNEL: Dual

PCI-E X16: 3

SATAIII: 6

SOCKET: 1200

application: Desktop

brand name: MS'I

chipset: Intel Z590 Chipset

chipset manufacturer: Intel

cpu type: Intel

form factor: ATX

graphics card type: Non-Integrated

hard drive interface: SATA

item condition: Used

maximum ram capacity: 128 GB

memory bank: 4 DDR4

memory channel: Double

memory type: DDR4

package: Yes

place of origin: Guangdong, China

ports: Wi-Fi,SATA,PCI-Express X8,PCI-Express X4,AGP 2X,USB 2.0,Display Port,M.2,USB 3.0,PCI-E 3.0

private mold: Yes

products status: Used

socket type: LGA 1200

with cpu: No

Product Description

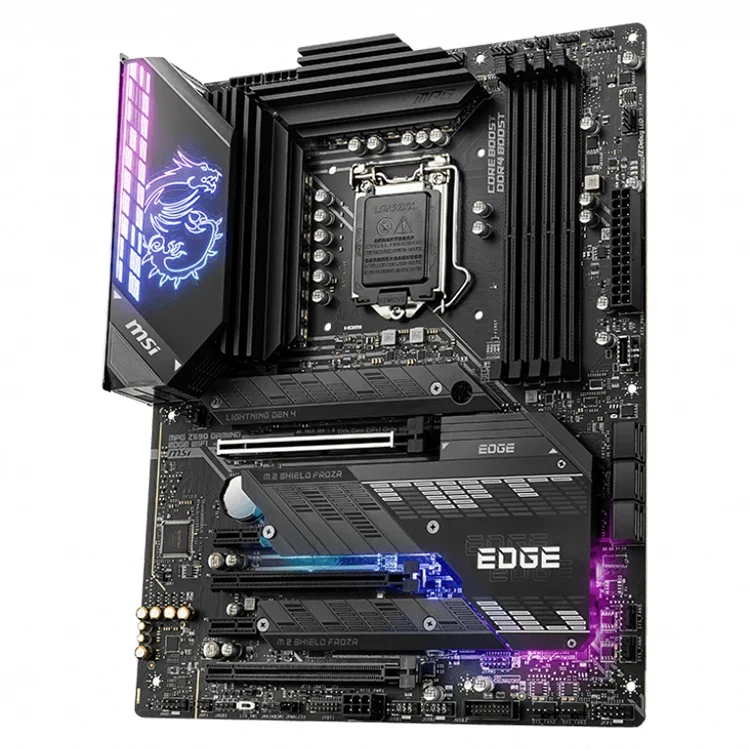

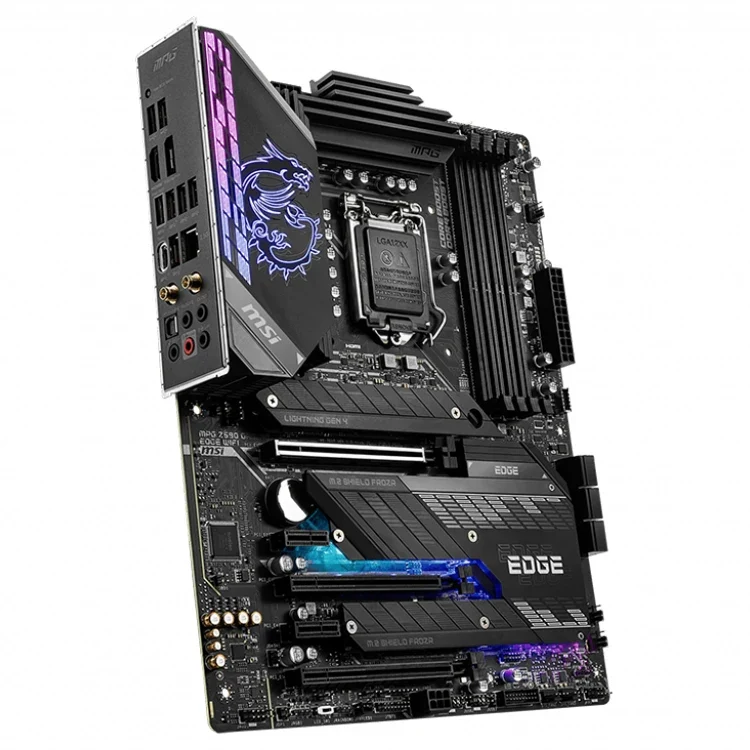

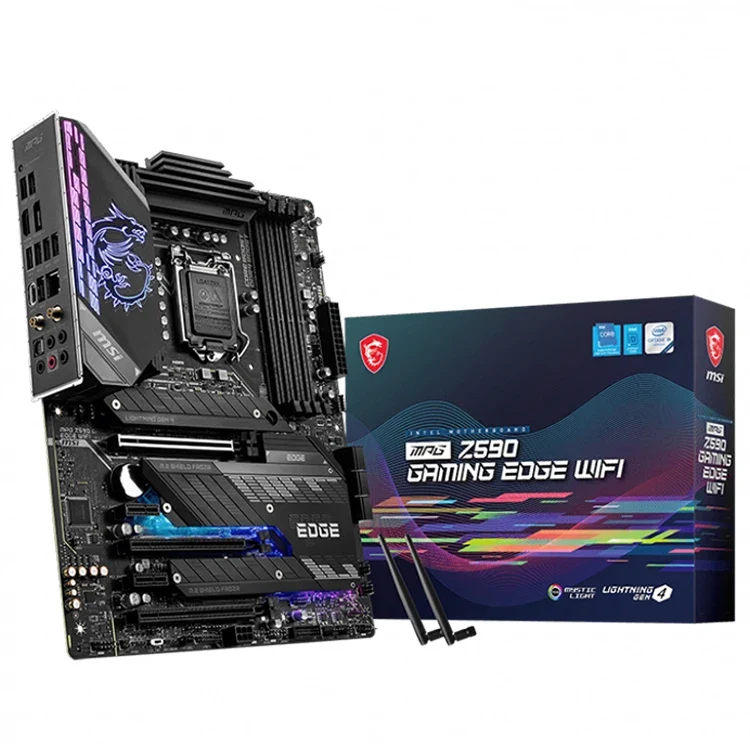

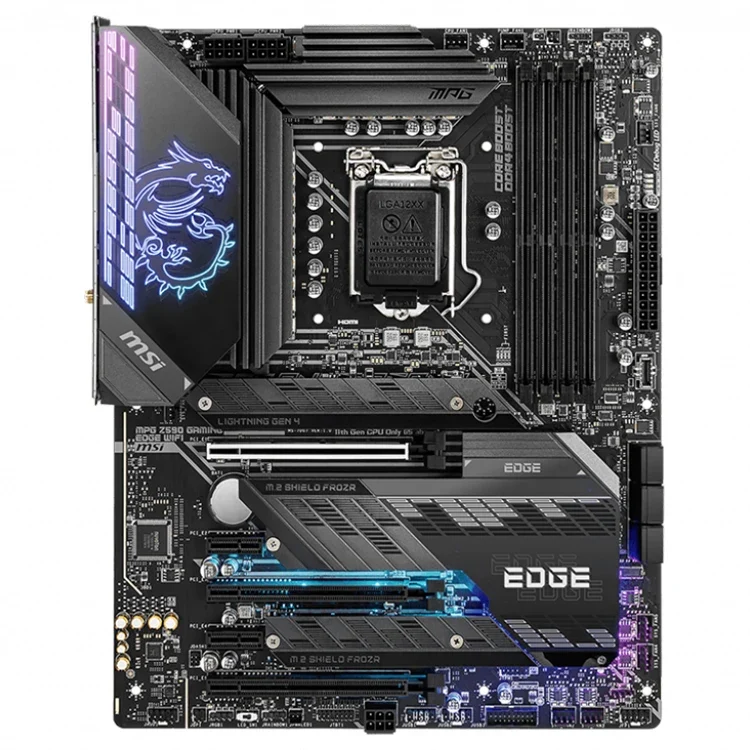

Used MSI MPG Z590 GAMING EDGE WIFI Motherboard with 128GB DDR4 Memory Supports 11th and 10th Gen Intel Core processors

• Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
• Supports DDR4 Memory, up to 5333(OC) MHz
• Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
• Enhanced Power Design: 14+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, DDR4 Boost
• Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and 3x M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
• 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
• High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
• Pre-installed I/O Shield: Better EMI protection and more convenience for installation

PROCESSOR

• Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1
• Processor socket LGA1200

CHIPSET

Intel® Z590 Chipset

MEMORY

• 4x DDR4 memory slots, support up to 128GB1
• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
• Max overclocking frequency:
• 1DPC 1R Max speed up to 5333 MHz
• 1DPC 2R Max speed up to 4700+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

EXPANSION SLOTS

• 3x PCIe x16 slots
  • Supports up to PCIe 4.0 for 11th Gen Intel® CPU
  • Supports up to PCIe 3.0 for 10th Gen Intel® CPU
  • Support up to PCIe 3.0
• Support x16/x4/x4
• PCI_E1 (From CPU)
• PCI_E3 & PCI_E5 (From Z590 Chipset)
• 2x PCIe 3.0 x1 slots (From Z590 Chipset)

ONBOARD GRAPHICS

• 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz1/ 2
• 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1/ 2

1. Available only on processors featuring integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.

MULTI-GPU

• Supports AMD® CrossFire™ Technology

STORAGE

• 6x SATA 6Gb/s ports (From Z590 Chipset)
• 3x M.2 slots (Key M)
  • Available only on 11th Gen Intel® CPU
  • Supports PCIe 4.0 x4
  • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • Support up to PCIe 3.0 x4 and SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • Intel® Optane™ Memory Ready3
• M2_1 slot (From CPU)
• M2_21 & M2_32 slot (From Z590 Chipset)
• Supports Intel® Smart Response Technology for Intel® Core™ processors

1. PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
2. SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot.
3. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 PCIe storage devices

USB

Intel® Z590 Chipset

• 1x USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel)
• 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A port on the back panel and 2 ports are available through the internal connectors)
• 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 3 Type-A ports on the back panel)

Hub-GL850G

• 6x USB 2.0 ports (2 Type-A port on the back panel and 4 ports are available through the internal connectors)

AUDIO

Realtek® ALC4080 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1x Intel® I225V 2.5Gbps LAN controller

WIFI & BLUE.TOOTH

Intel® Wi-Fi 6E AX210

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz1 (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Blue.tooth 5.22, FIPS, FISMA

1. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.
2. Blue.tooth 5.2 will be ready in WIN10 21H1.

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connectors
• 1x 6-pin PCIE power connector
• 6x SATA 6Gb/s connectors
• 3x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector
• 1x TBT connector (supports RTD3)

LED FEATURE

• 2x 4-pin RGB LED connectors
• 2x 3-pin RAINBOW LED connectors
• 1x EZ LED Control switch
• 4x EZ Debug LED

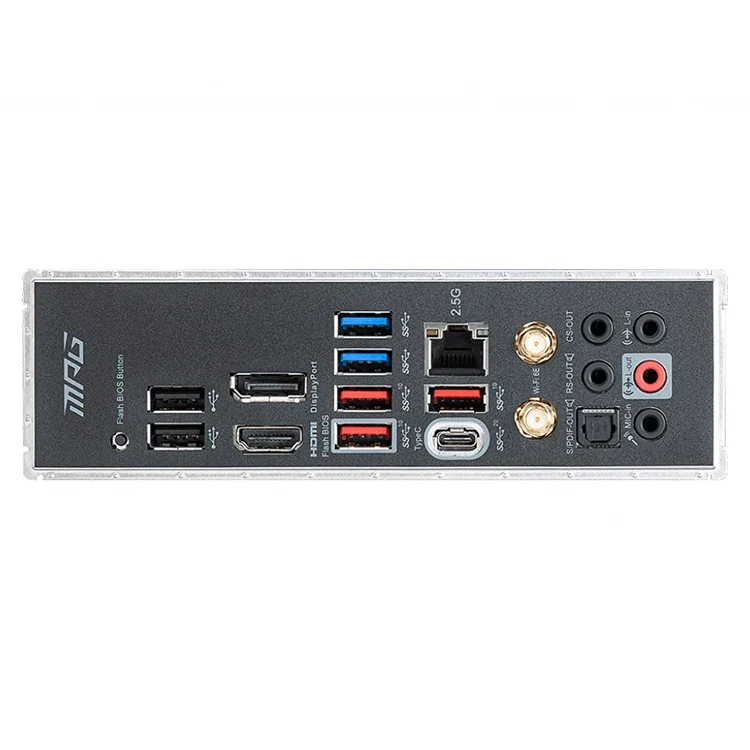

BACK PANEL PORTS

1. DisplayPort
2. USB 3.2 Gen 1 5Gbps Type-A
3. 2.5G LAN
4. Wi-Fi/Blue.tooth
5. Audio Connectors
6. Flash BIOS Button
7. USB 2.0
8. HDMI
9. USB 3.2 Gen 2 10Gbps Type-A
10. USB 3.2 Gen 2x2 20Gbps Type-C
11. Optical S/PDIF Out

DIMENSIONS

• ATX Form Factor
• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

MOUNTING

9 mounting holes

OPERATING SYSTEM

• Support for Windows® 10 64-bit
