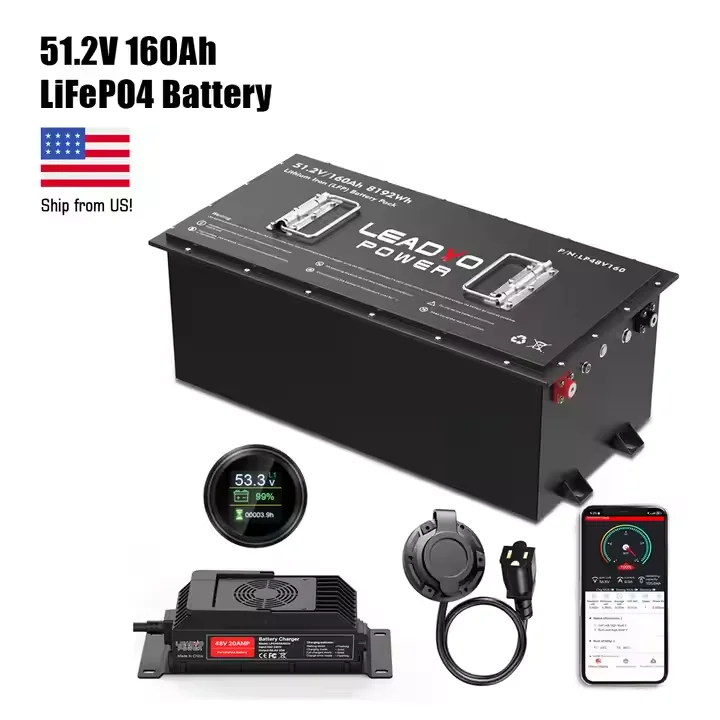

US Stock 48V Long-Life Lifepo4 Golf Cart Battery 51.2V 160Ah Lithium Ion Battery Pack for Golf Carts

SPECIFICATIONS

Apllication: Golf Carts

Application: electric vehicles,Home Appliances,SUBMARINES,Electric Forklifts,Electric Bicycles/Scooters,Golf Carts

BMS: Built-in BMS Protection

Battery cell: A-Grade 3.2V Prismatic Lifepo4 Cell

Brand Name: Leadyo

Capacity: 160Ah

Cathode Materials: LiFePO4

Certification: CE/UN38.3/MSDS

Cycle Life: 6000+ cycles

Dimension (L*W*H): 643*328*231

Material: Li-FePO4

Max Load Quantity(cells): 16

Model Number: LP48V160

OEM/ODM: Yes(Accepted)

Operating Temperature(℃): -20~65°

Place of Origin: Guangdong, China

Product name: 51.2V160Ah LifePO4 Lithium Battery Pack

Voltage: 51.2V

Warranty: 5 Years

Weight: 74kg

We accept OEM orders!

LECTRICAL SPECIFICATIONS	Nominal Voltage	51.2V	Nominal Capacity	160Ah
		Nominal Energy	5376Wh	Internal Resistance	≤30 @50% SOC
		Capacity	@20A: 300minutes(5hours)	Self Discharge	5% /per month
		Maximum In Series	No	Maximum In Parallel	No limit
MECHANICAL SPECIFICATIONS	Terminal Type	M8	Weight	74kg
		Case Size(L*W*H mm)	643*328*231mm	Case Type	Stainless steel case
		Cell type / Chemistry	LiFePO4	LCD or Bluetooth Function	Optional

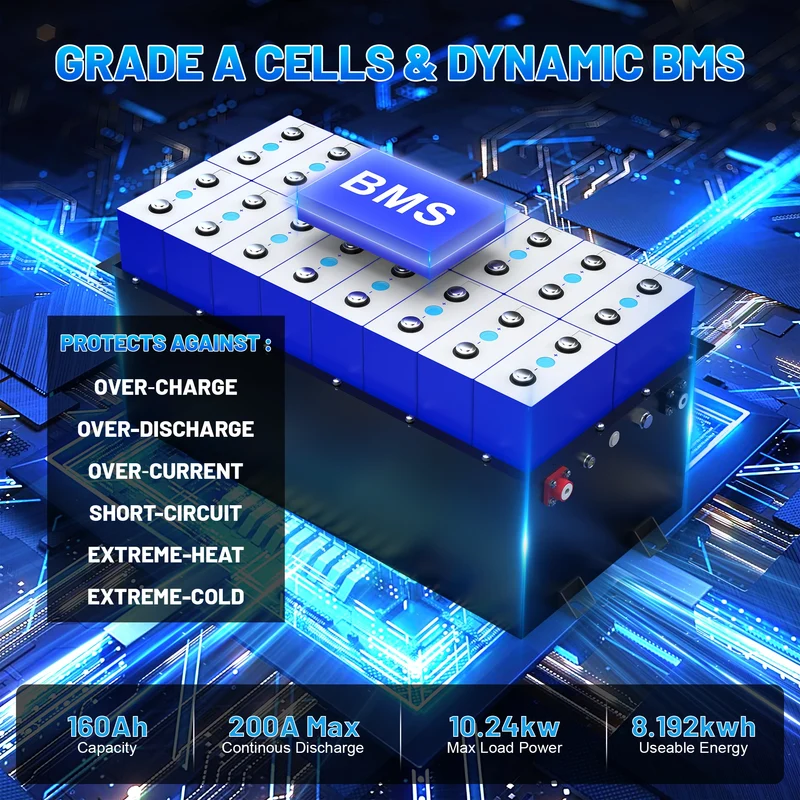

		BMS	low voltage,high voltage,over temperature ,over current,short-circuit protection,etc
Discharge Current and Voltage Specifications	MAX Continuous Discharge Current	250A	Max Discharge Current	520A /20s
		Discharge pulse current	570±50A (31±10ms)	BMS Low Voltge Cut-off	35.2V (2.2V±0.05v) pc)
		Short Circuit Protection	200-800 µs Auto recover or charge release
Charge Current and Voltage Specifications	Max Charge Current	100A	Recommended Charge Current	10A - 30A
		End of Charge voltage	57.6V±0.2V	Balancing current	Auto start
		Balancing Voltage	3.6V±0.05v pc
Temperature Ranges	Discharge Temperature	-20～+65℃	Charge Temperature	-20～+45℃
		Storage Temperature Range	-20～+45℃	BMS High Temperature Protection	90℃
		Battery High Temperature Protection	60℃
COMPLIANCE SPECIFICATIONS	Certifications	CE for Battery Pack,UL1642 & IEC62133 for cells
		Shipping classification	UN 3480

48V 20Amp High Performance Charger 1.Compatibility: Capable Of Seamlessly Matching With Our Battery Management System.2. Safety: Equipped With Multiple ProtectionFunctions Against Overcharging, Overheating, And Short Circuits.
3. Efficiency: High Conversion Efficiency Reduces Energy Loss And Speeds Up Charging.
4. Stability: Provides Stable Voltage And Current Output To Protect The Health Of The Battery.
5.Intelligence: Intelligently Recognizes Device Requirements And Automatically Adjusts Charging Modes.
6. Durability: Made With High-Quality Materials To Ensure Long-Term Use.
7.Certification: Possesses International Safety Certifications, Such As UL,CE,UKCA,UTV,KC Etc Ceritifaction Packing with UN3480 Box Company Profile FAQ 1. who are we?
We are based in Guangdong, China, start from 2013,sell to North America(18.00%),Western Europe(16.00%),Oceania(15.00%),Northern Europe(15.00%),Africa(12.00%),Eastern Asia(6.00%),South Asia(4.00%),Mid East(4.00%),Southern Europe(3.00%),Southeast Asia(3.00%),South America(2.00%),Eastern Europe(2.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Lithium Iron Battery, Lithium Ion Battery, BMS, Charger, Car Batteries

4. why should you buy from us not from other suppliers?
Our innovative engineers, experienced staff, modern facility, strict management, and strong corporate responsibility make us capable of offering reliable products at competitive costs and allow us to provide the best service to meet our clients' requests.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,DES；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
