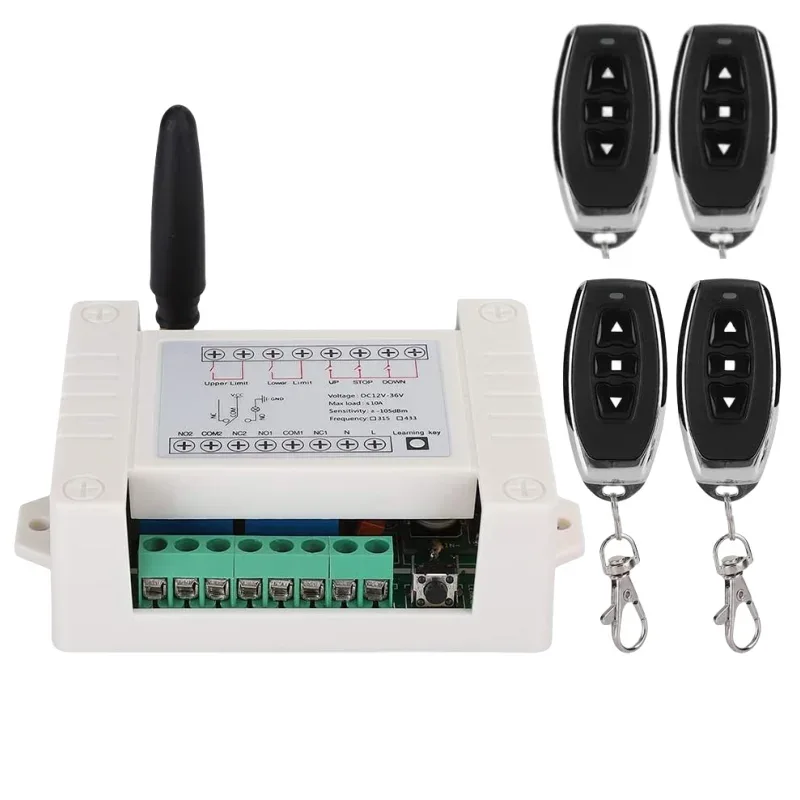

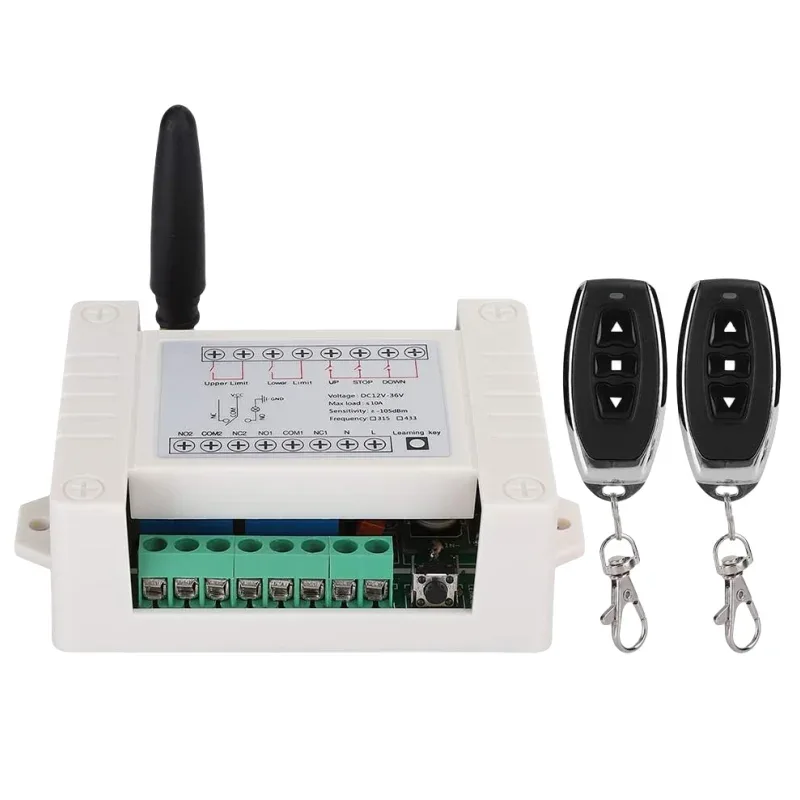

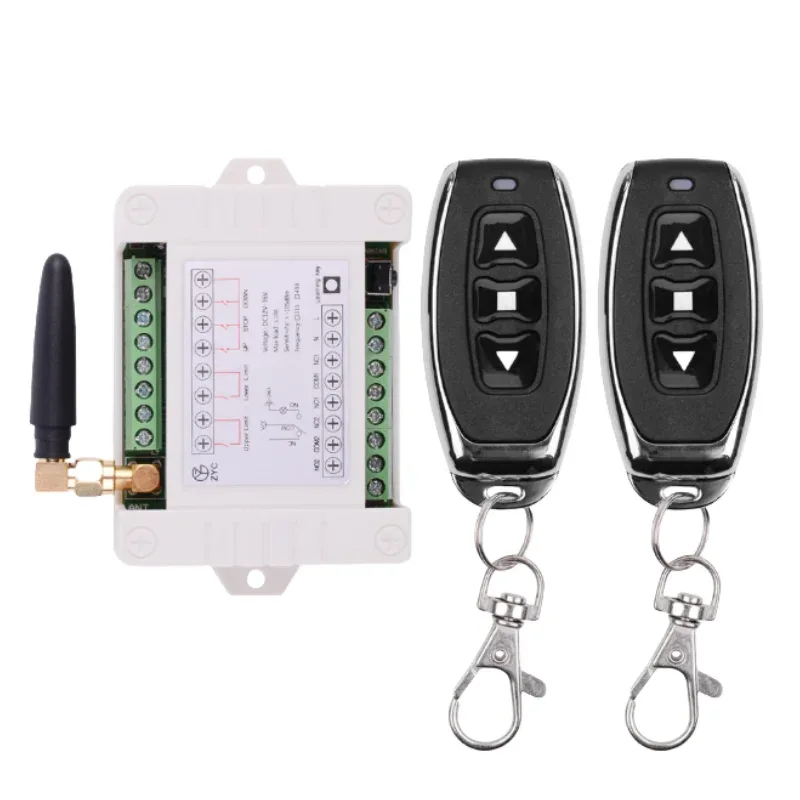

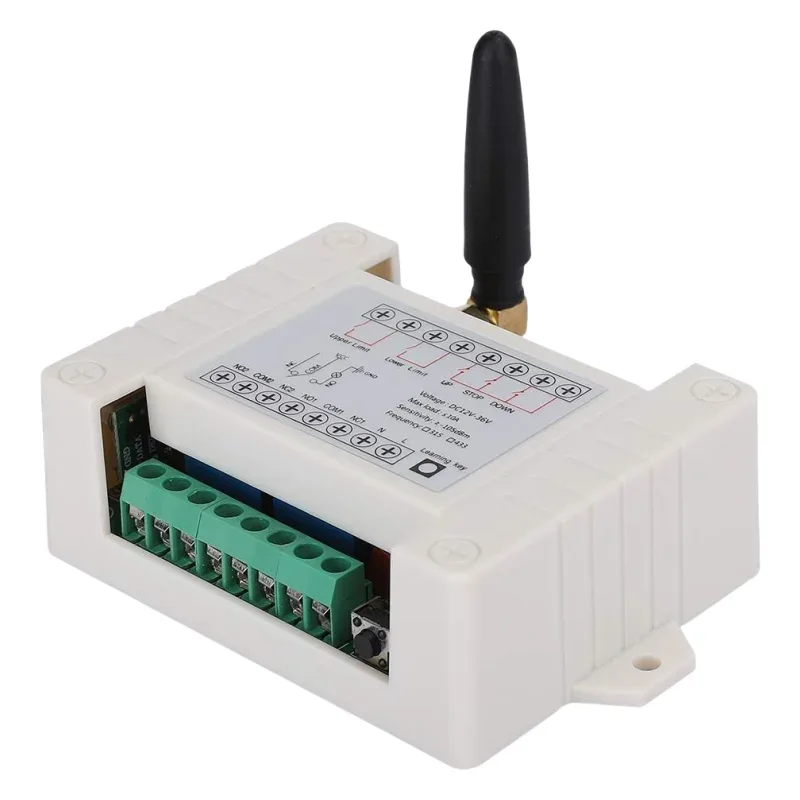

Universal 12V-36V 2-channel wireless motor RF remote control relay module switch receiver motor front and rear electric doors

SPECIFICATIONS

Brand Name: NONE

Channel: 2

Frequency: 433 MHz

High-concerned chemical: None

Origin: Mainland China

Package: Yes

Support APP: No

Use: Universal

Wireless Communication: RF

Universal 12V-36V 2-channel wireless motor RF remote control relay module switch receiver motor front and rear electric doors

Note: This product has two types: normally NO switch and NC switch. NC switch is issued by default. If you have special requirements, please note or leave a message when placing the order, otherwise the factory will issue NC switch by default.

Product description

Specification: Condition: 100% Brand New
Item Type: Remote Control
Material: plastic
Color: black
Weight: Approx. 150g
Working frequency: 433M (special frequency can be customized)
Transmit power ≥10MA

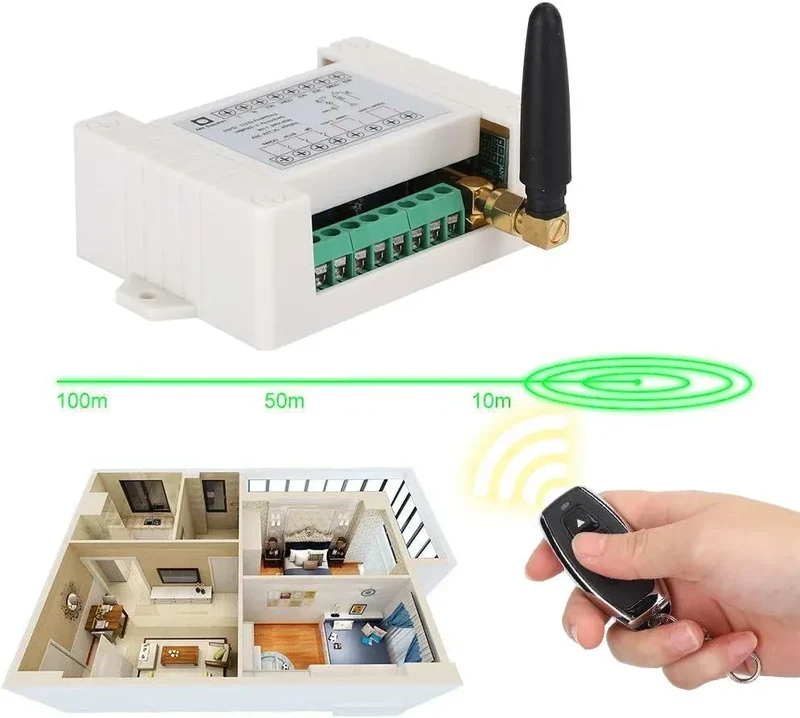

Starting range: 100 m (no barrier)
Data transfer rate: 50-60 KHZ
Fixed code: 2262, 2260, etc.
Learning code: 2240, 1527, HT6p20B, HT6P20D
Browse Code: HCS301.300.200, etc.
Remote control battery material: lithium-manganese dioxide battery
Battery capacity of the remote control: 230 mAh

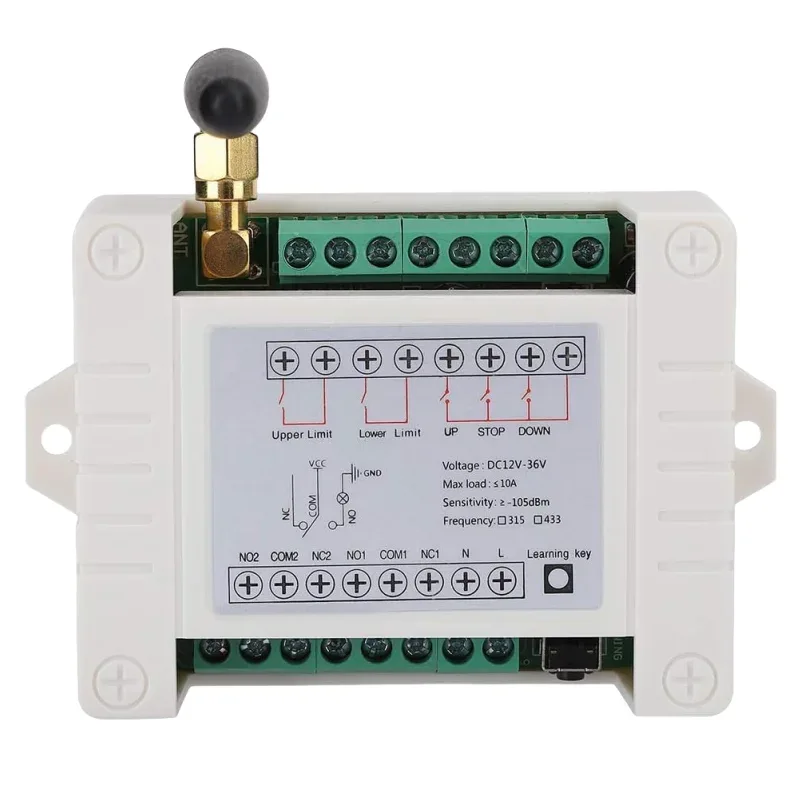

Module parameters: operating frequency: 433 MHz
Reception sensitivity: -105dbm
Maximum load: 10A relay
With built-in battery
