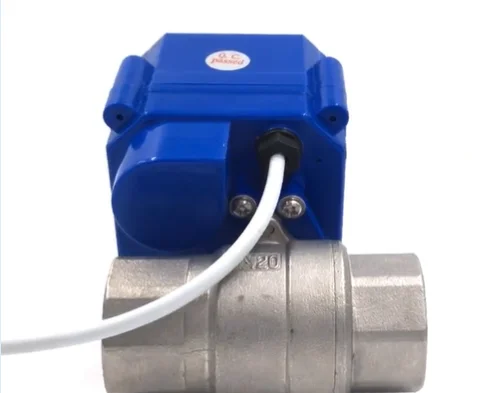

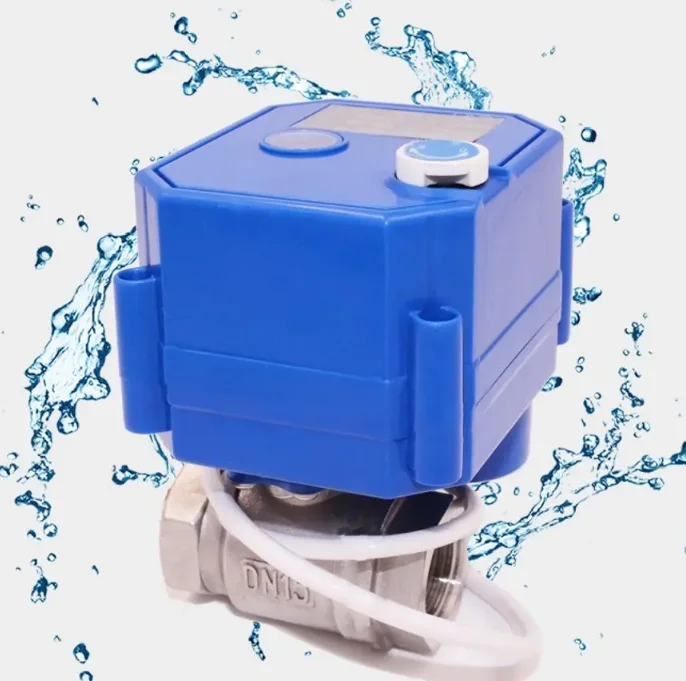

TOYI TOYI-25S Integrated Manual Electric Angle Control Valve SS304/Brass DN8~DN25 Water/Gas/Oil Valve OEM Customizable Smart

SPECIFICATIONS

Body material: SS304/Brass

Certificate: CE

Connection: BSP/NPT

Open/close time: <5S

Output Torque: 2.5Nm

Port Size: DN8-DN25

Product name,: mini electric actuator water control valve

Protection grade: IP65

Size: DN8~DN25

Voltage: DC3/6V DC9/24V AC220V AC85/265V

Working pressure: Max1.0MPa

application: General

brand name: TOYI

customized support: OEM,ODM

media: Water, Gas, oil

model number: TOYI-25S

place of origin: Guangdong, China

power: Electric

structure: Angle

temperature of media: Medium Temperature,Normal Temperature

warranty: 1 years

Product Description stainless steel electric smart valve 2 way motorized ball valve brass ss304 mini electric actuator water control valve 12v 1.POM material gear box ;
2.Manual Override, the valve can be operated when power failure;
3.Min dimension and position indicator
4.good sealing performance, IP65 enclosure
1.Heat energy meters, fire work, save water system.
2.Auto control system, industrial mini auto control equipment.
3.Water saving equipment, drinking water equipment.
4.Air-conditioning fan coin(HVAC).

Product model	Rated voltage	Working current	Output torque	Open/close time	Control mode
TOYI-25S	DC3-6V DC12V A/DC9-24V AC220V AC85-265V	Max80mA	Max2.5NM	<5s	CR01 CR02 CR03 CR04 CR05
Working pressure	Power	Medium temperature	Size	IP Gard	Special function
Max1.0Mpa	<2W	0-90℃	DN8-32 Two-way DN8-20 Three-way	IP65	Wireless switch control (within 200 meters)

Brass	Connection	Sizes	d(mm)	H(mm)	L(mm)
		Both female thread Full-port	DN8	8	46	31
				DN15	15	57	38
				DN20	20	71	45
				DN25	23.5	72	49
		Both female thread Reduce-port	DN10	8	46	31
				DN20	15	66	38
				DN25	20	72	47
				DN32	25	86	60
		Vertical Three-way	DN15	12	63	49
				DN20	15	66	53
		Female-male thread	DN15	15	63	38
				DN20	15	66	38
				DN32	20	76	50
		Both male thread	DN15	15	68	38
SS304	Both female thread	DN8	8	46	31
				DN10	8	46	30.5
				DN15	15	55	38
				DN20	15	63	39
				DN20	20	71	45
				DN25	20	75	47
				DN25	25	72	49
