Thread Round Nozzle Coolant Pipe Flexible Plastic Water Oil Coolant Pipe Hose Tube

SPECIFICATIONS

Applicable Industries: hotels

Application: Hydraulic Machinery

Color: Building Material Shops

Condition: New

Material: Garment Shops

Product name: cooling spray

Type: Cooling Pipe

brand name: HYCNC

colour: Black/white

core components: Motor

machinery test report: Provided

material: nylon

model: PK

texture of wood: plastic

video outgoing-inspection: Provided

warranty: 1.5 year

weight (kg): 1

Optional specifications Universal tool cooling spray nozzle. From the source to do the selection, relative to the general product, longer life, product upgrades at the same time, still maintain low prices, to help buyers.

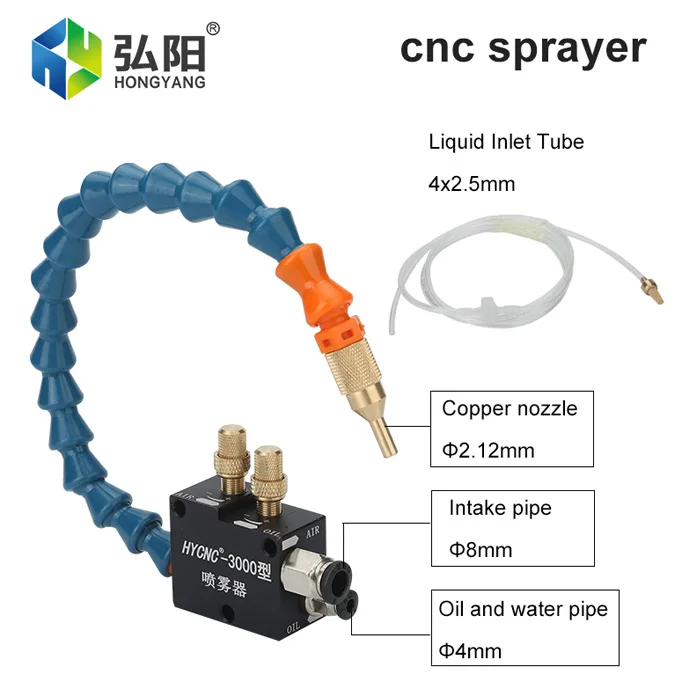

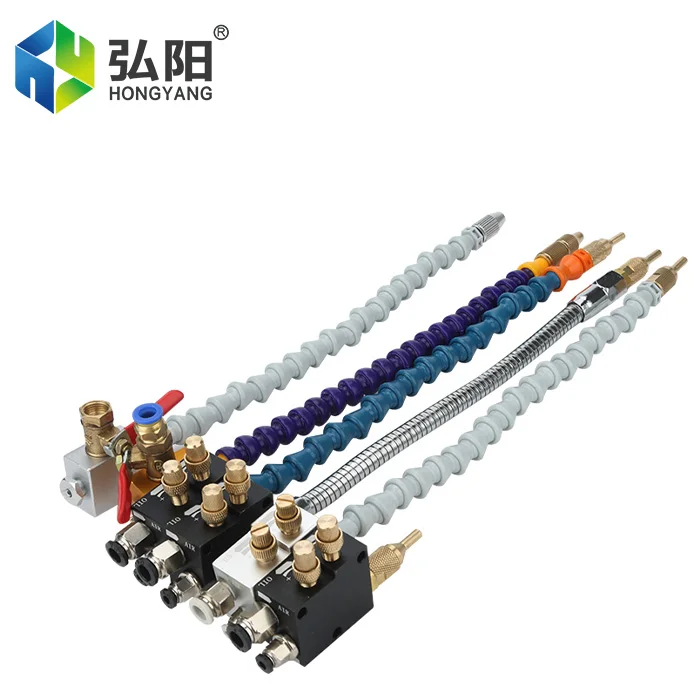

Name	Water pipe	Intake pipe	Oil and water pipe	Oil and water pipe length
Yellow aluminum block	31cm	8	4	1.2CM
White aluminum block	31cm	8	4	1.2CM
Magnet sprayer	31cm	8	4	1.2CM
Blue tube	32.3CM	8	4	1.5CM
White tube	31cm	8	4	1.6CM
clarinet	32.3CM	8	4	1.5CM
Metal tube	32.5CM	8	4	1.5CM
Direct injection	/	8	4	1.5CM

Note: 1. Clean liquids must be used. 2. Do not use corrosive liquids. 3. Do not use liquids with a viscosity higher than 68cSt. Good sealing performance, no air leakage Any distortion/high-precision mould/compact structure/high friction/good fixation. Does not fall off after repeated use Quick-connect connector, no air leakage and no falling off after repeated insertion and removal. Durable copper connectors The non-slip joint design makes it easy to use.                      Filter                                     Check valve Filter out magazines to prevent clogging of pipes Prevent liquid backflow intermittent spray 2. Available materials Application of CNC machine tool cooling processing spray for cooling and cooling, such as engraving machine/engraving machine/CNC machine tool for engraving, cutting, drilling, milling, milling, tapping and other processing tasks. You can use a smaller area cooling spray or a small area spray to freely polish the back cover of the mobile phone with automatic punching machine, spray cooling, extend tool life, and improve product surface finish.

3. Matters needing attention

1. Use clean liquid 2. Do not use corrosive liquids 3. When the liquid is output without pressure, the air pressure range should be kept within 5-7KGF/CM2 (the atomization effect is related to the mass and air pressure)
1. Connect the gas source to the quick plug, the red handle ball valve can adjust the pressure by itself for better Adjust the intake pressure to save the air source 2. Put the white hose into the cutting fluid to automatically absorb mist. Not too high from the water source So as not to affect the self-priming and spray effect 3. Adjusting the nozzle can adjust the spray effect, and the spray needle inside can also be adjusted by rotating The tightness of the plug can also be adjusted. The user can adjust the spray according to the situation.effect Jinan Hongyang CNC Machinery Co., Ltd. was established in 2008. There are more than 100 employees, and the inventory area is 10,000 square meters. It is mainly engaged in engraving machine parts, including spindle motor, frequency converter, stepper motor, drive, hybrid servo motor, servo motor, Richauto dsp series controller, weihong or nc studio controller, spindle cooling water pump, lubricating oil pump, tool sensor, Limit sensors, water-cooled vacuum pumps, air-cooled vacuum pumps, power supplies, transformers, gear boxes, racks, rails, sliders or blocks, ISO30 tool clips, cable chains, spindle dust covers, vacuum cleaners and other engraving machine accessories, welcome your For inquiries.
