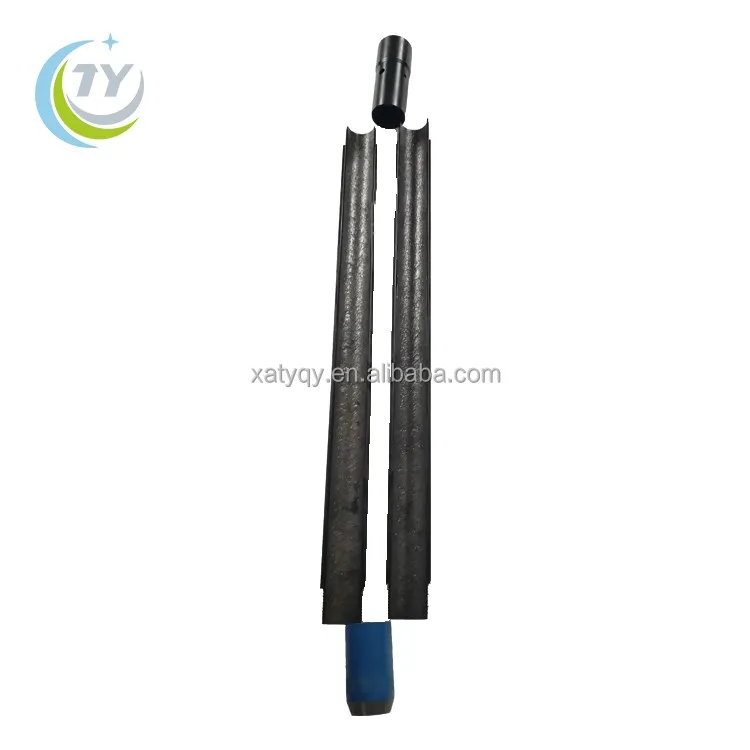

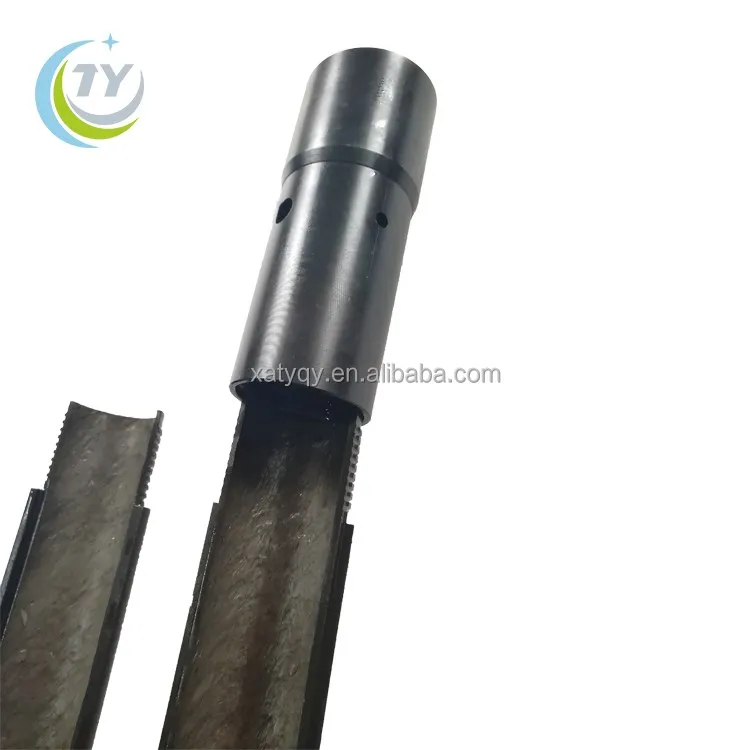

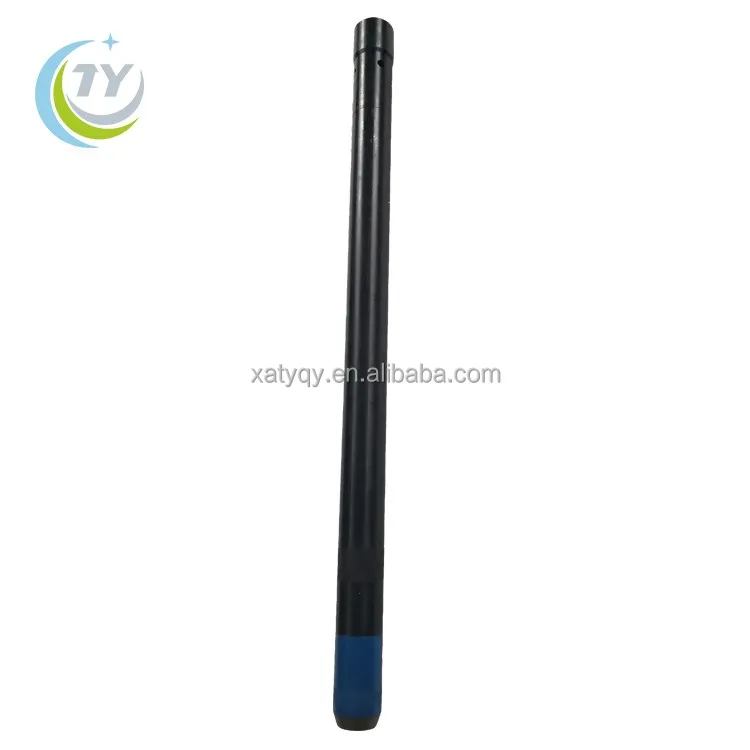

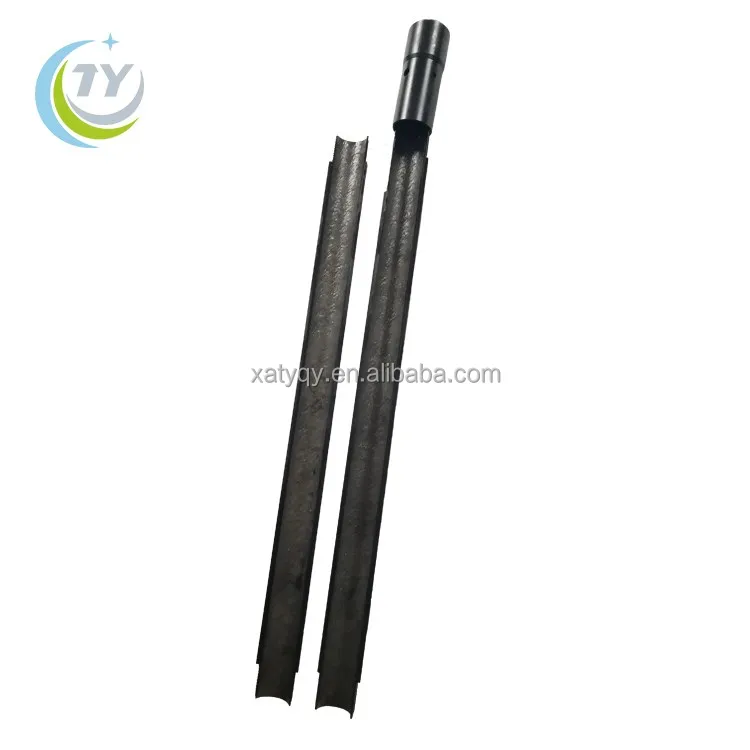

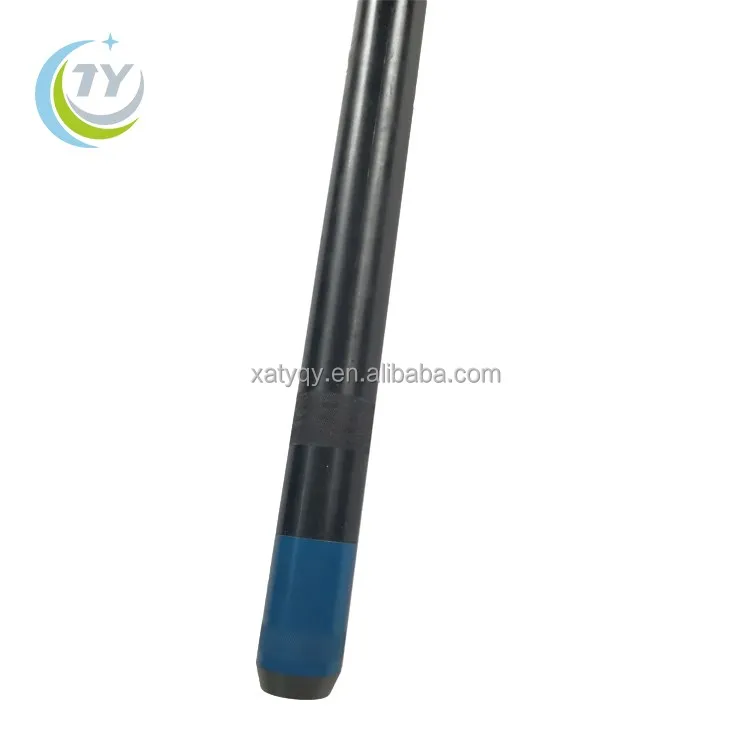

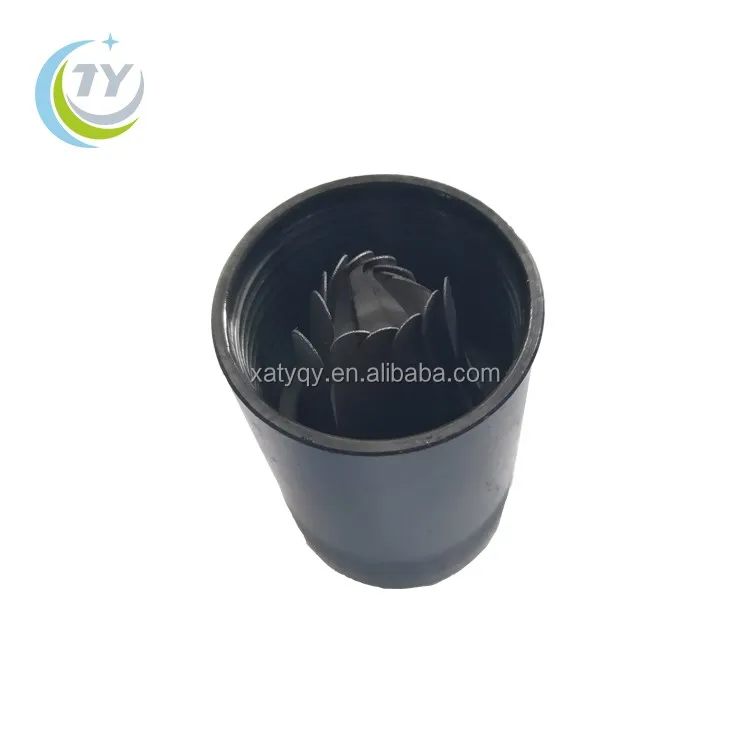

Split Spoon Sampler with Aw Rod Connection

SPECIFICATIONS

Connect rod: AW and Bw

Formation: Broken formation

Length: 0.6m

MOQ: 1 piece

Machine Type: Drilling Tool

Machinery Test Report: Not Available

Material: Carbon Steel

Pacakging: Woven bag

Place of Origin: Shaanxi, China

Processing Type: Forging

Product name: Split spoon sampler/soil insitue testing sampler

Type: SPT

Unit weight: 7kg

Usage: Sample coring

Use: Well Drilling

Video outgoing-inspection: Provided

Warranty: 3 Months

Weight (KG): 7.5

Product Description Soil insitu testing SPT sampler is most widely used to check various parameters and properties of soil on the construction site. For any building foundation, design and construction soil testing are essential. and one type of in-situ soil test and It is conducted to determine the geotechnical engineering properties of subsurface soils, especially for cohesionless soil. Split spoon sampler has an assembly of a steel tube, coupling, driving shoes, a check valve, and venting ports. Split spoon sampler collects only disturbed soil samples. Specification

Product name	Split spoon sampler
Material	Steel
Process	Forging
Application	Geological drilling
Usage	Sample coring
Formation	Broken formation
MOQ	1 piece
HS code	8207199000
Diameter	2"
Length	0.6m
Unit weight	7kg

Packing & Delivery Packaging for the Split spoon sampler with aw rod connection is in the woven bags or wooden box, it is up to the order quantity;Samples will be sent by express, batch products will be sent by air or by sea; Available products will be sent within 5 working days, batch products is up to the order quantity. Company Profile Xi'an Heaven Abundant Mining Equipment Co., Ltd is founded in 2008 at Xi'an, Shaanxi province of China. Our company is mainly engaged in mining machine spare parts, such as PDC matrix body bits, PDC steel body bits, PDC core bits and PDC non-coring bits, taper button bit, thread button bits, drill rods, shank adpators etc. We do export business since 2014, till now we have clients in more than 50 countries, and feedback is good. Welcome to contact us if you have demand for our products, we cherish and treat each client equally, hope to have chance to work with you and provide quality products with their value. Customer Photos Xi'an Heaven Abundant Mining Equipment Co.,ltd is one of the SPT manufacturers in China, we can supply SPT, SPT machine and other drilling tools. In the past 7 years, our spt test and other drilling tools, such as impregnated core bit, casing shoe, reaming shell, core barrel, drill rods etc drilling accessories have walked into more than 50 countries and feedback is good. If you are interested in any of them, please feel free to contact us by [email protected] or whatsapp me by +86 153 8908 2037. Buyer feedback Recommend Products Impregnated diamond core bit Casing shoes Reaming shell Core lifters Core lifter cases Split tubes
