Souria 22.1 inches Smart Black Color Waterproof Bathroom LED TV for Luxury Hotel SPA Kitchen TV Bluetooth Android New

SPECIFICATIONS

3D Image Support: No

Android TV: 11.0(ATSC) /14.0 (DVB)

Aspect Ratio: 16:9

Backlight Type: Direct LED

Brand Name: Souria

Certification: CE,FCC

Curve TV: No

DTV System: ATSC/DVB-T/DVB-T2/DVB-C/ISDB-T/DTMB-T (Region-specific)

Display Size: 22 inches

HDMI-Compatible Interface Number: 2

High-concerned chemical: None

Interface Type: LAN,USB,Bluetooth / USB,Wi-Fi,3.5 MM,HDMI-Compatible

Model Number: HYM22E-0BLS90005

Network Support: Yes

Origin: Mainland China

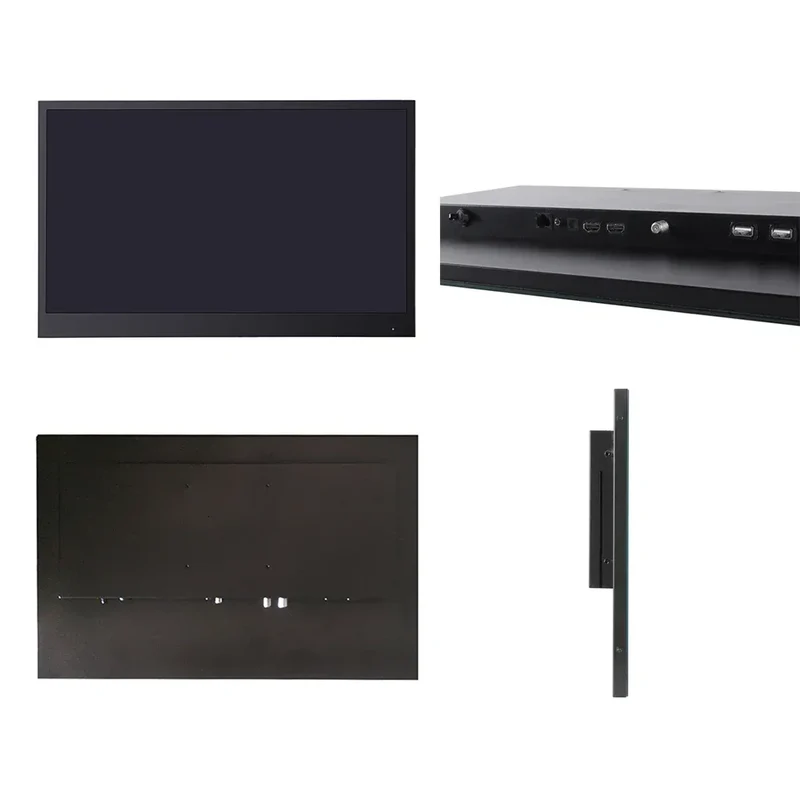

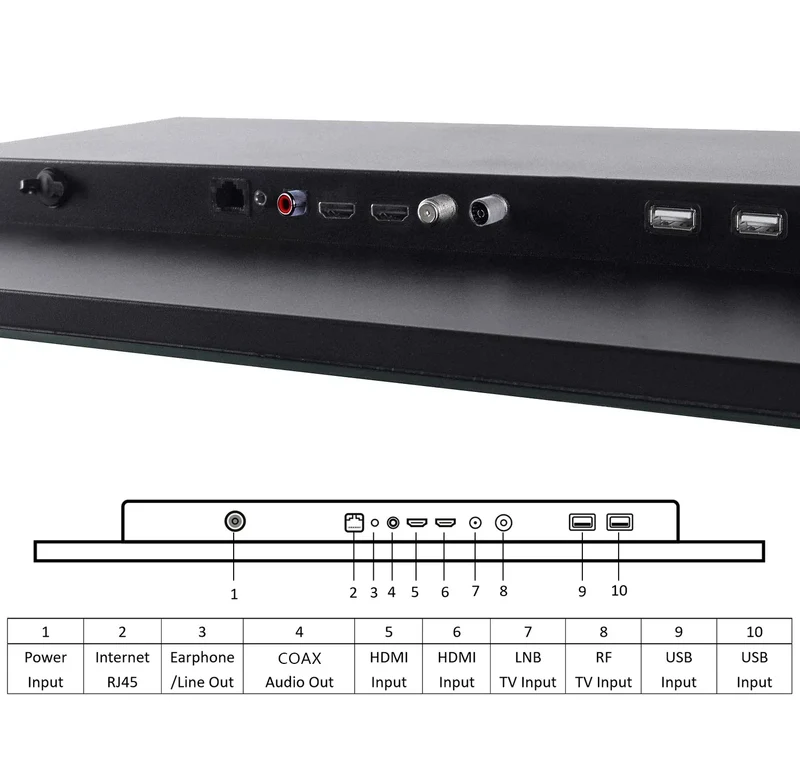

Ports and Connectors: TV, H.D.M.I*2, USB*2, Audio Output,LAN(RJ45)

Receiving System: PAL,NTSC,DVB-T2,DVB-S2,DVB-S,DVB-C,DVB-T

Refresh Rate: Ntsc(60Hz)

Resolution: HD1080(1920*1080)

SD Card Support: No

Screen Technology: LED

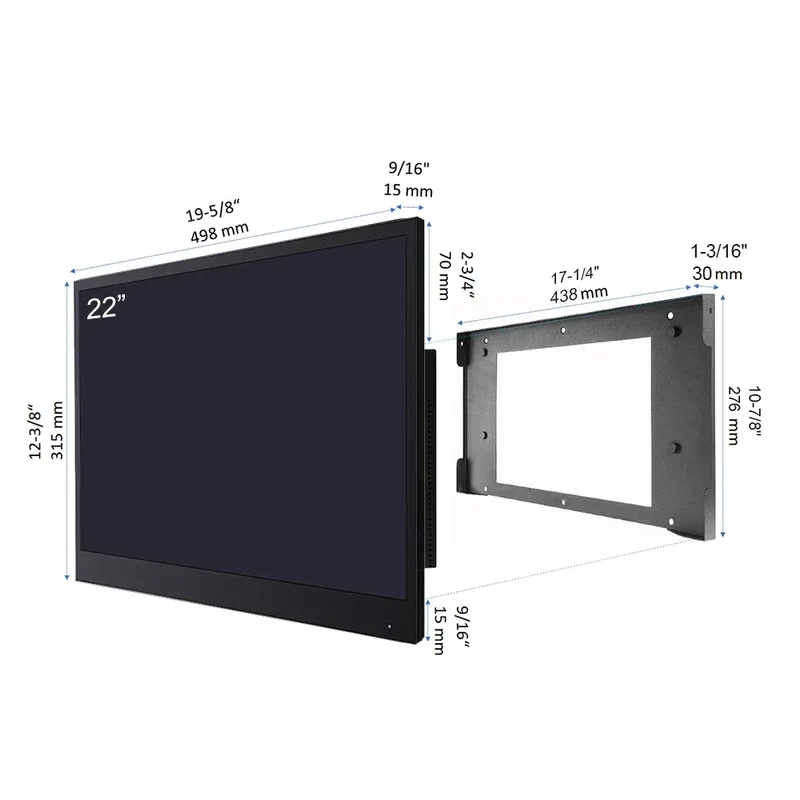

Size: W498 x H315 x D40 mm

Size(With Package): 58 x 47 x 12cm

Standard VESA: 100x100

Supported Formats: others

USB: USB2.0x2

Warranty: 2 years

Weight: 5kg

Weight(With Package): 7kg

WiFi: For a more stable connection, please make sure your WiFi is set to 2.4GHz before connecting the TV.

22" Full HD Black Color Android LED TV – IP66 Waterproof Elevate Your Space with Stunning, Waterproof Entertainment 1. Upgrade your home or business with the sleek, frameless 22-inch Full HD (1080P) Android LED TV. Designed for both style and durability, this IP66 waterproof-rated television is perfect for bathrooms, kitchens, swimming pools, spas, and other moisture-prone environments. 2. Crystal-Clear Picture & Immersive Viewing Experience vibrant, high-resolution visuals with Full HD 1080P clarity, transforming any space into a luxurious entertainment zone. Whether you're relaxing in the bath or running a business, this TV lets you enjoy movies, stream content, or even display promotional videos in commercial settings. 3. Smart Android TV with Endless Entertainment

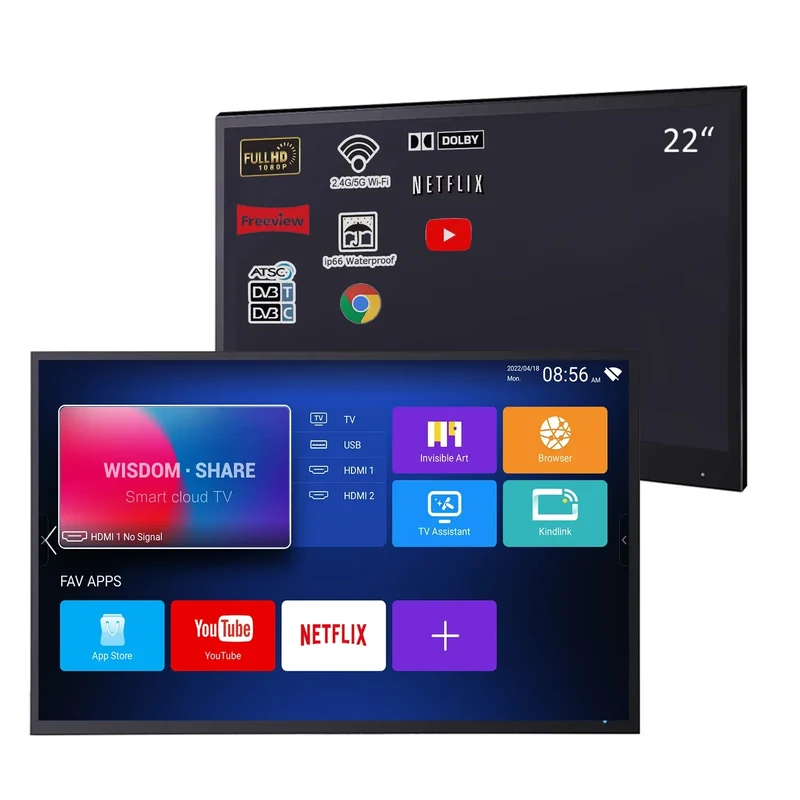

• Pre-installed YouTube & Netflix – Stream your favorite shows effortlessly.
• Download more apps via the integrated TV App Store.
• Built-in Wi-Fi for seamless connectivity.
• HDMI & USB ports – Connect external devices to watch TV, movies, or view photos.

4. Safe & Durable for Wet Environments

• 12V DC low-voltage operation ensures safety in water-exposed areas.
• Includes a 110-240V universal power adapter for worldwide compatibility.
• Rugged IP66 waterproof rating protects against dust and water splashes.

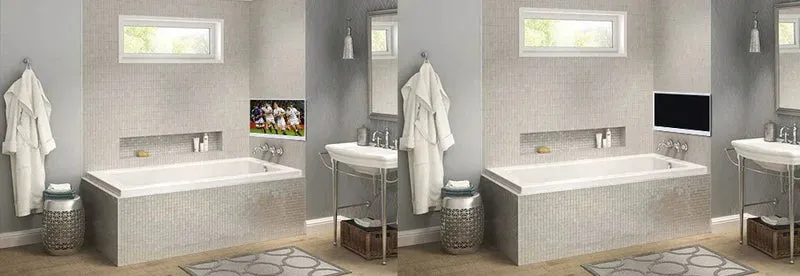

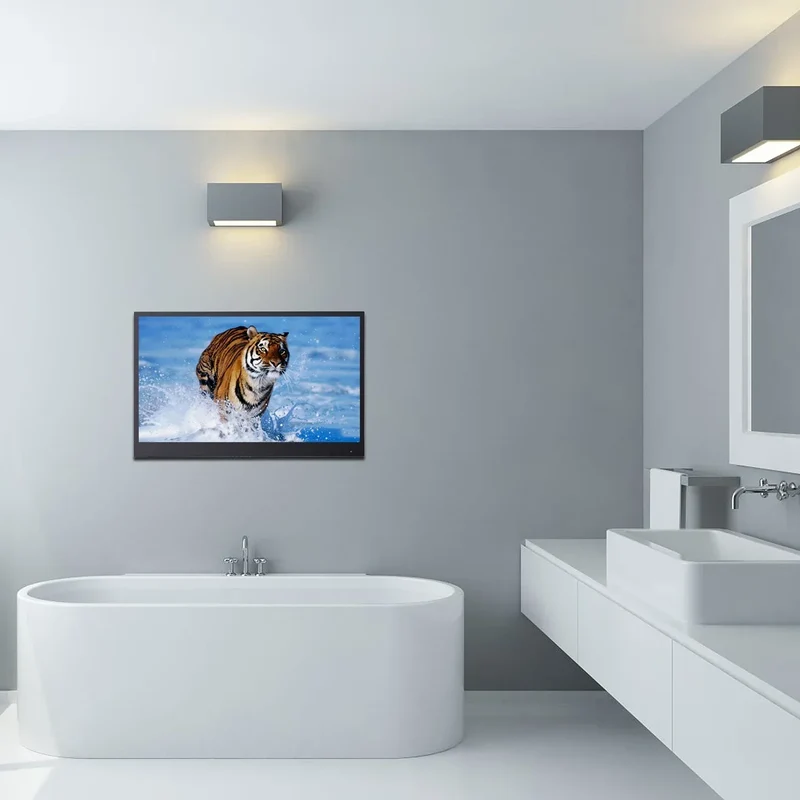

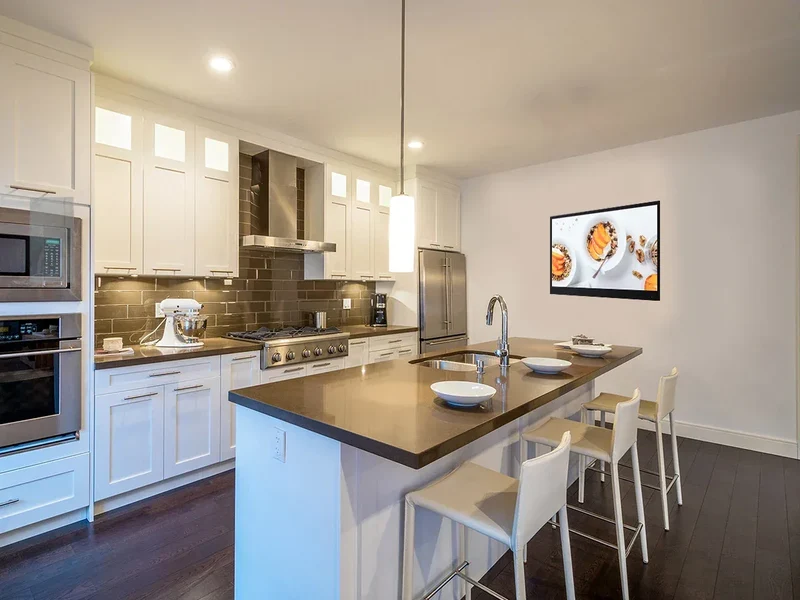

5. Versatile Mounting for Any Space Easily install this TV on the wall in: ✔ Swimming pools & spas ✔ Bathrooms & showers ✔ Kitchens & wet bars ✔ Commercial spaces (hotels, malls, gyms)   Fast Shipping & Warranty: 🚚 Ships in 1-3 business days after payment confirmation. ⏳ Delivery time: 3-10 business days (varies by location and shipping method). 🔒 Backed by a 2-Years Warranty for peace of mind. Design Front Panel Finish: Black Color Front Panel: Glass Cover: Metal   System Android System: 11.0 (ATSC) /14.0 (DVB) Bluetooth (In Android) : Yes Freeview (Digital) TV : Yes Freeview (Digital) Radio : Yes Analogue Tuner : Yes DTV System Options:  ATSC/DVB-T/DVB-T2/DVB-C/ISDB-T/DTMB-T (Region-specific) WiFi : For a more stable connection, please make sure your WiFi is set to 2.4GHz before connecting the TV.   Display Display Type: LED Aspect Ratio: 16:9 Contrast Ratio: 2000:1 Brightness (cd/m²) : 250 Resolution(pixels): 1920 x 1080 Display Colors: 16.7M View Angle (°H/V): 178/178 Audio Speakers: 8Ω5W x 2   Ports and Connectors TV Input: Yes USB Input : V2.0 x 2 Earphone Audio Output : Yes Optical/Digital Audio Output: Yes Internet LAN RJ45: Yes HDMI-compatibl: Yes   Operating Environment Working Temperature:  -10°C ~ +50°C Working Humidity: 10%-90%   Installation Recess Dimensions for In-wall(mm):  438W x 276H x 30D (17.2"W x 10.9"H x 1.2"D) VESA Dimensions for On-wall(mm):  100W x 100H TV Dimensions and WeightUnit Size (mm) (W x H x D): 498 x 315 x41 (19.6" x 12.4" x 1.6" ) Packing Size (mm) (W x H x D) : 575 x 410 x 120 (22-5/8”x16-1/8”x4-3/4”) Unit Weight(kg) : 4.3 Gross Weight(kg) : 7.0   Power Main Power:  12V Adapter :  110-240 VPower Consumption:  48W Standby Consumption(W):  <1W

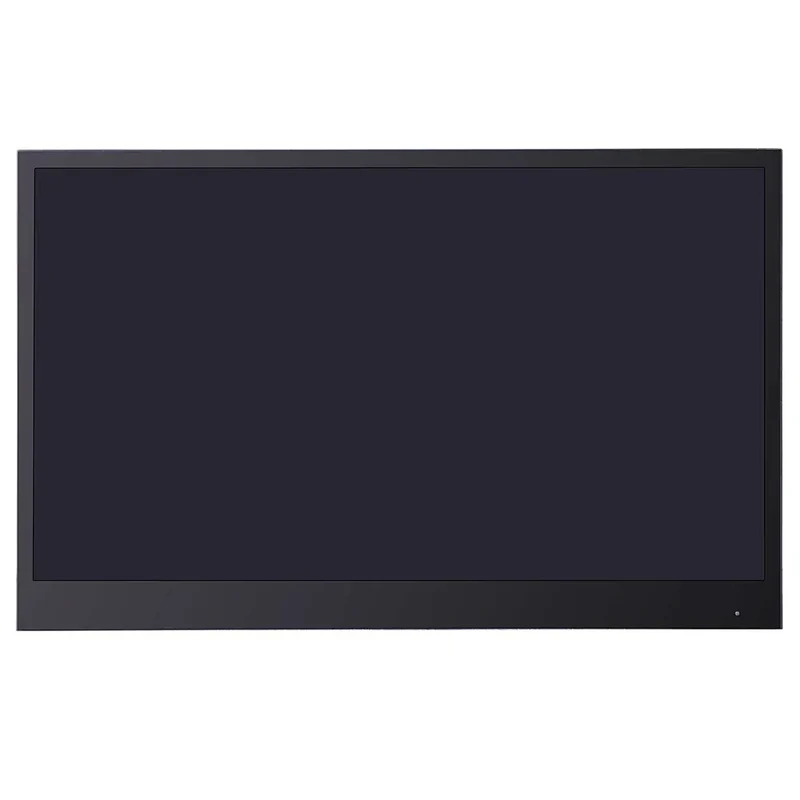

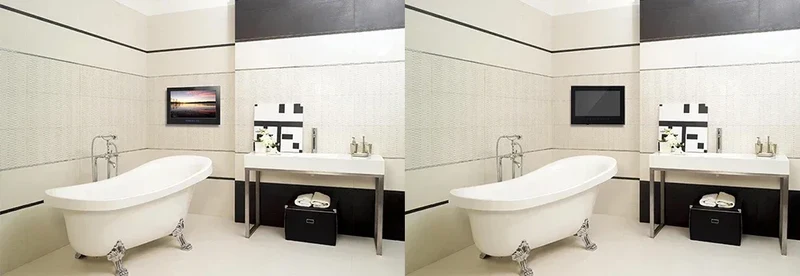

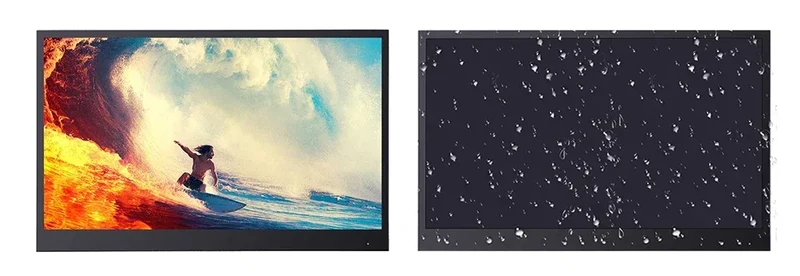

Black color when turned on or off:

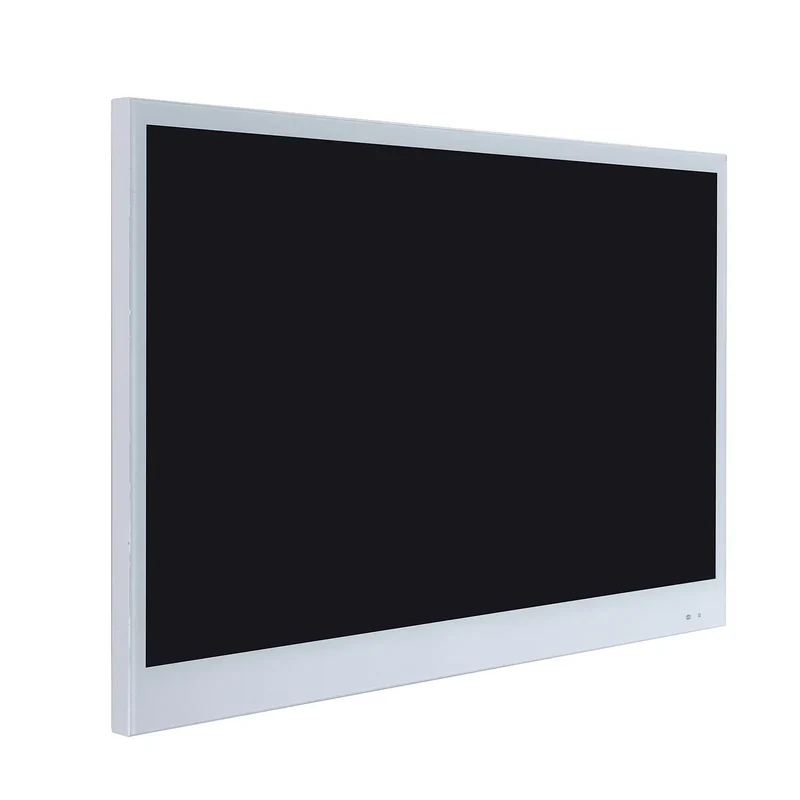

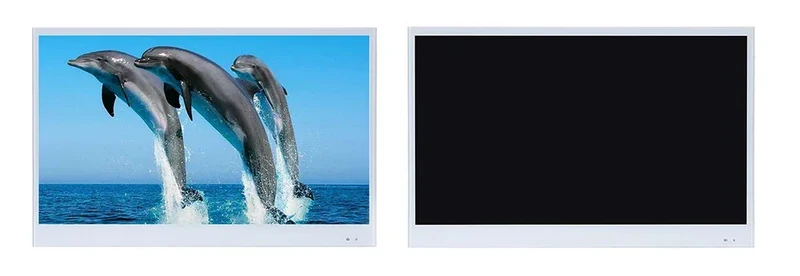

White color when turned on or off:

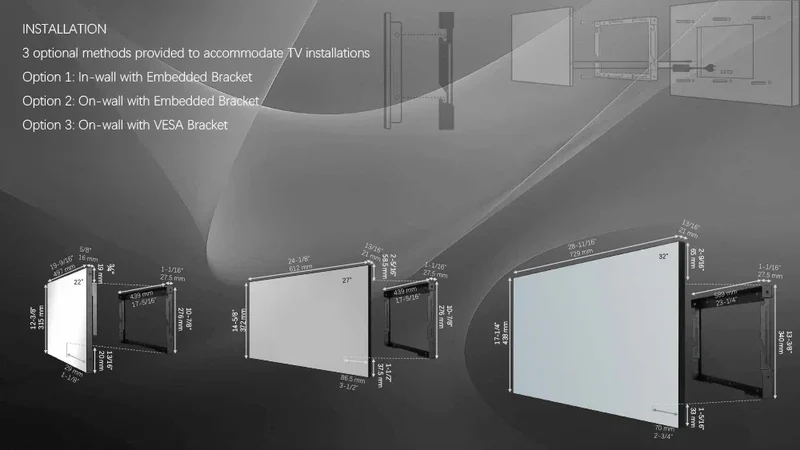

INSTALLATION:

3 optional methods provided to accommodate TV installations

Option 1: In-wall with Embedded Bracket

Option 2: On-wall with Embedded Bracket

Option 3: On-wall with VESA Bracket

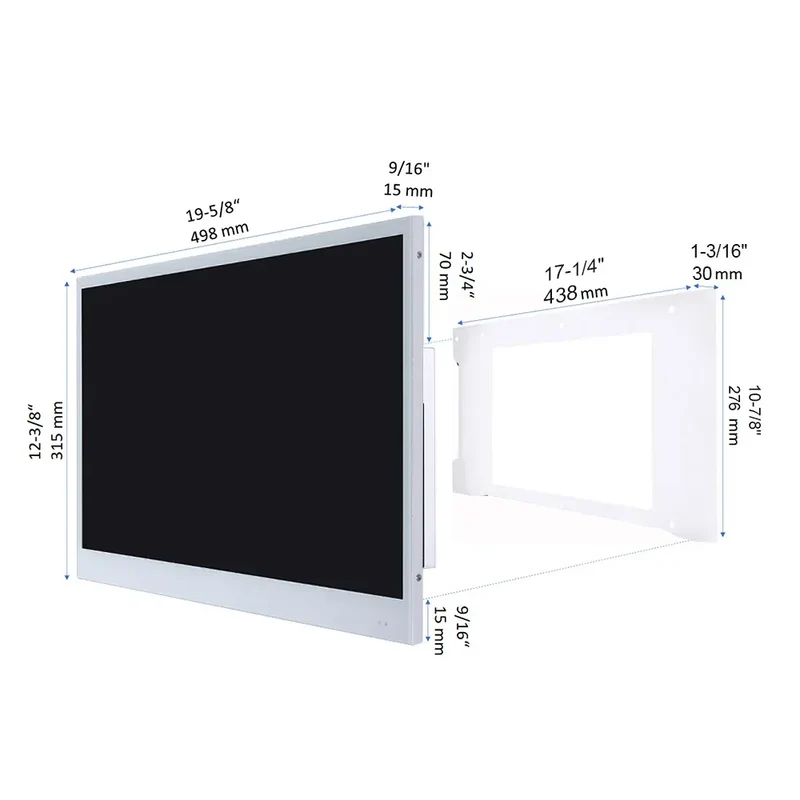

White Color Size:

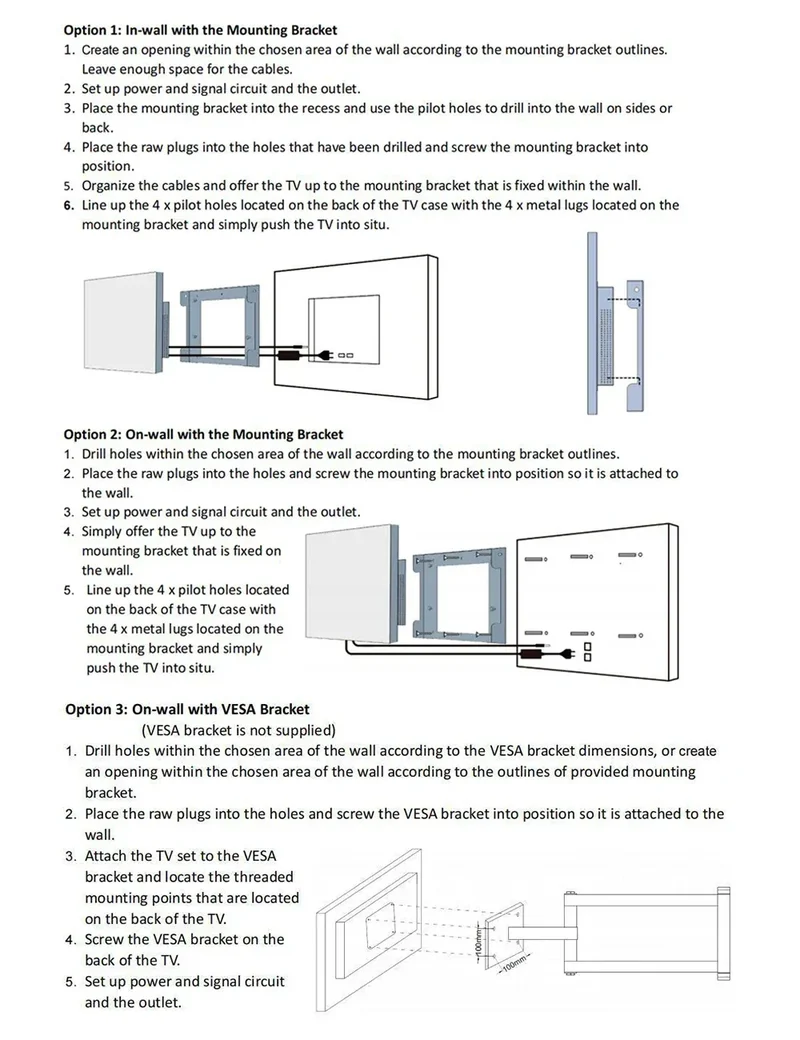

INSTALLATIONS:

Option 1: In-wall with Embedded Bracket

1. Create an opening within the chosen area of the wall according to the Embedded Bracket outlines. Leave enough space for the cables and adapter.

2. Set up power and signal circuit and the outlet.

3. Place the Embedded Bracket into the recess and use the pilot holes to drill into the wall.

4. Place the raw plugs into the holes that have been drilled and screw the Embedded Bracket into position.

5. Organize the cables and offer the TV up to the Embedded Bracket that is fixed within the wall.

6. Line up the 4 x metal lugs located on the sides of the TV case with the 4 x channels located within the Embedded Bracket and simply push the TV into situ.

Option 2: On-wall with Embedded Bracket

1. Drill holes within the chosen area of the wall according to the Embedded Bracket outlines.

2. Place the raw plugs into the holes and screw the Embedded Bracket into position so it is attached to the wall.

3. Set up power and signal circuit and the outlet.

4. Simply offer the TV up to the Embedded Bracket that is fixed on the wall.

5. Line up the 4 x metal lugs located on the sides of the TV case with the 4 x channels located within the Embedded Bracket and simply push the TV into situ.

ACCESSORIES:

1. Embedded Bracket

2. Power Adapter (Input: AC 100V – 240V, Output: DC 12V, 5A)

3. Waterproof Remote Control (Without Button Cell Battery Supplied, IP68 Waterproof)

4. User Manual

5. Installation Kit (6 sets)

Note: Without Button cell battery supplied in the packaging for the remote control. Battery Model Needed: CR2025  3V.

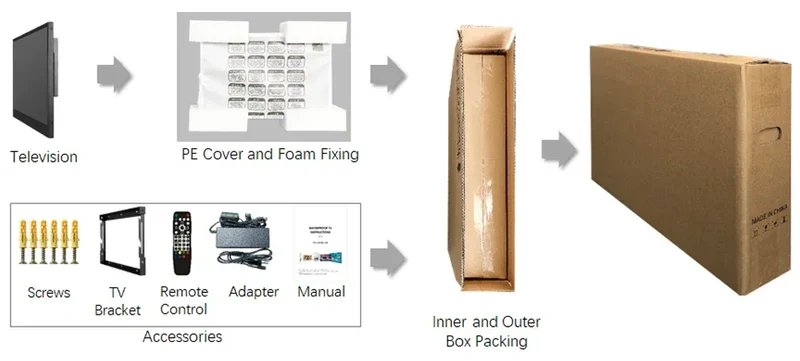

PACKAGING:

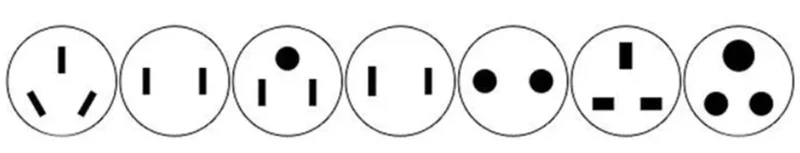

Note: The power cord is supplied in the packaging according to the destination standard.

FAQ

Q: What colors are available? A: There are 3 colors available for the front panel: white, black and silver mirror finish. Q: What's a mirror TV? A: It’s a mirror when switched off and a television when switched on. It adopts the vanishing glass mirror as the TV panel. Q: Can the TV work in our country? A: Yes. Different countries are with different tuner system, so we set the system well before we ship the TVs. Q: Does the TV support digital TV in our country? A: Yes. The TV supports ATSC which is the digital TV system in USA and Canada. Also it supports DVB-T which is the digital TV system of Australia, UK, Germany, France, The Netherlands, Belgium, Spain, Ireland, Greece, Italy, Norway, Sweden, Switzerland and Russia and other Europe countries. Q: Is the waterproof remote control included ? A: Yes, a IP68 waterproof remote control included. Q: What's the lead time? A: 3~5 working Days upon receipt of the payment. Q: What courier will be used for the delivery? And how long will the delivery take? A: DHL / FedEx / UPS, it takes 2~7 days to get to the destination. Q: How long is the warranty? A: We offer 2 years warranty. Q: Why can't I just install a regular television in my bathroom? A: A regular television is designed for use in dry areas, such as your living room or bedroom. They are not waterproof. The rear of the television is vented to allow for cooling, however, these vents will also allow moisture and condensation to accumulate inside the television. This can be extremely hazardous, with risks to the television shorting and potentially causing an electrical malfunction or fire.
The waterproof TV is a completely sealed design, engineered for use in wet areas. It is rated IP65 or higher and can withstand not only moisture, but also water from any direction. Q: How easy are the products to install? A: This depends on the television models and the installation method you are interested in.
For the models that are designed to be installed and recessed into your wall. It therefore requires a cavity to be cut into your wall, with size of cavity depend on the size of television you purchase. It is recommended that power and input cables are made available adjacent to the cavity opening inside the cavity. This will give you a seamless looking installation.
The on-wall mount method use mounting hardware and are therefore relatively simple to install. Q: Does the TV come with everything I need to install, power and control? A: All of our Bathroom TVs come complete with relevant bracket and instructions (for installation), and accessories to power and control (power adapter and remote control). Q: Can you install the bathroom TVs at the end of your bath or within a shower area? A: All our bathroom TVs conform to IP65 or IP66 standard, they can be installed at the end of the bath, of which is the most popular installation location. Q: Do you deliver worldwide? A: Absolutely – we can ship all over the world, but delivery times do vary. Q: What voltage is required to power the TV? A: To ensure that our waterproof TVs are safe for use in a wet environment, most of the models come with a 12V power supply. Just few models come with AC power supply. Q: Can I connect external speakers? A: It depends on the models. For the models with the audio-out, they allow you to use either the internal speakers or use the audio-out facility to connect with external speakers of your choice. It is important to note that you can only use either the internal or external speakers and not in conjunction with one another. For the models with Bluetooth, you can just connect it to your Bluetooth speakers. Q: Are the speakers waterproof? A: Yes. The speakers are waterproof. They are located inside the TV and with waterproof treated.
Q: Why don't you supply the button cell battery for the remote control? A: This is because of the air freight control for safety reason.
