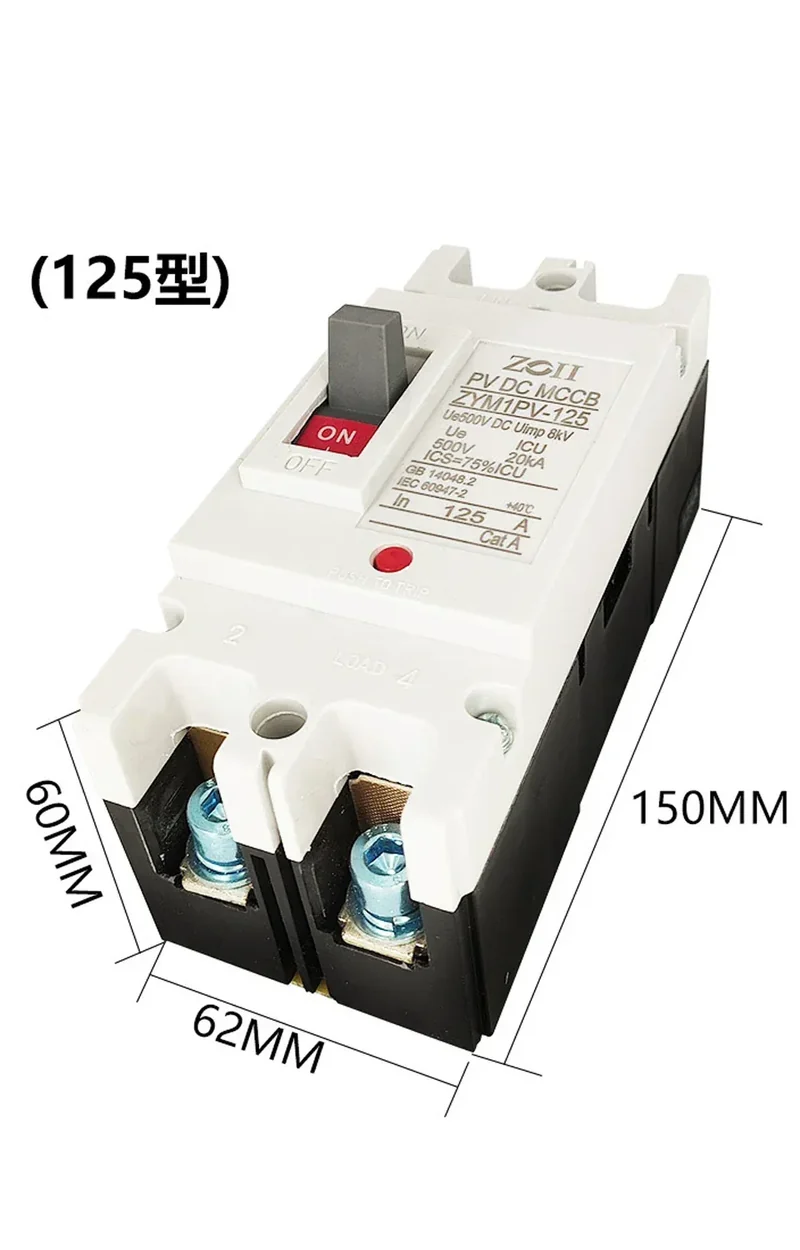

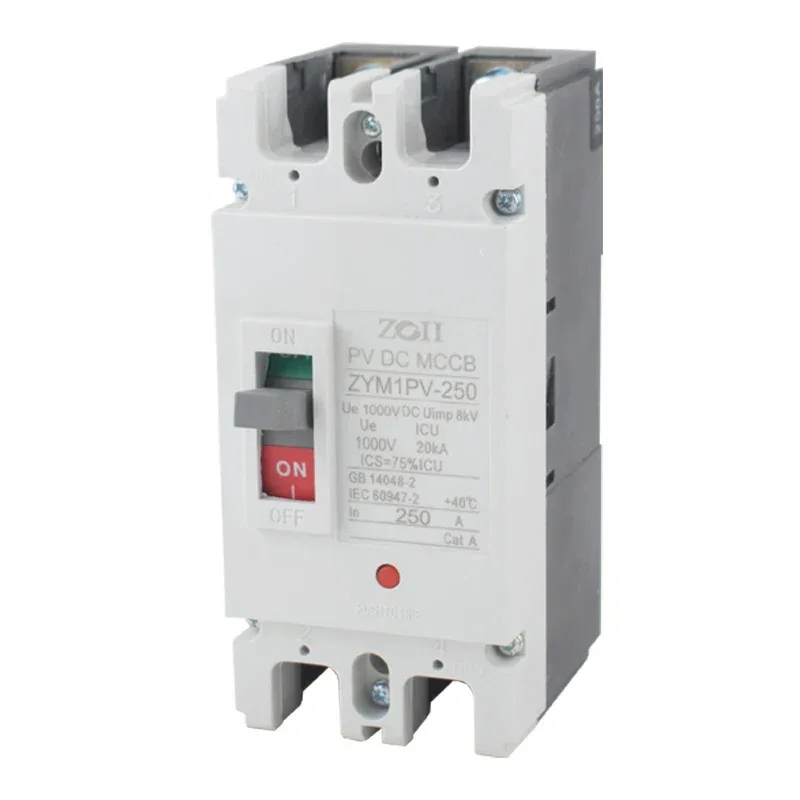

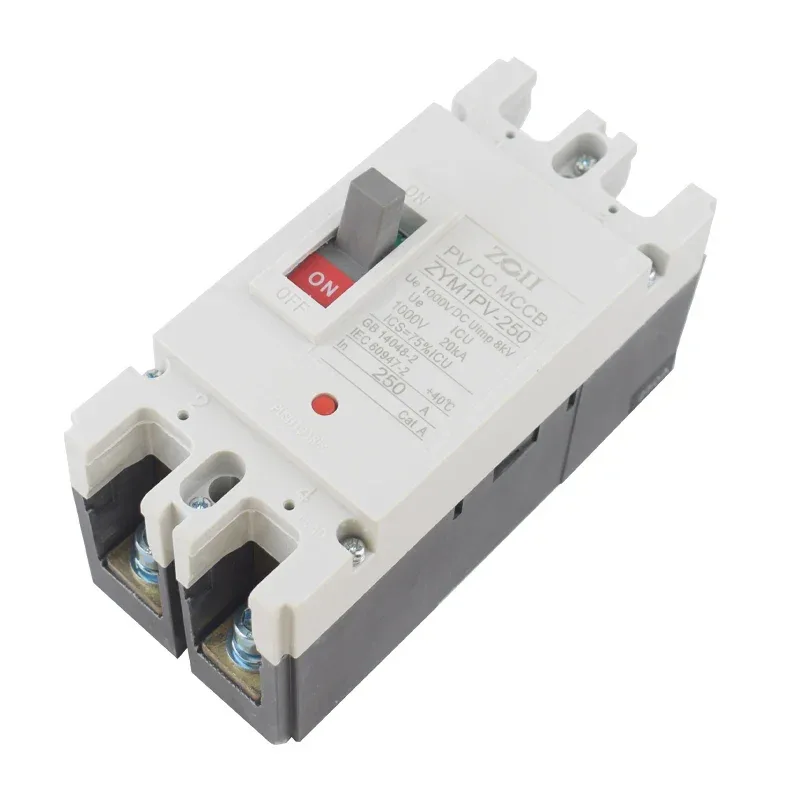

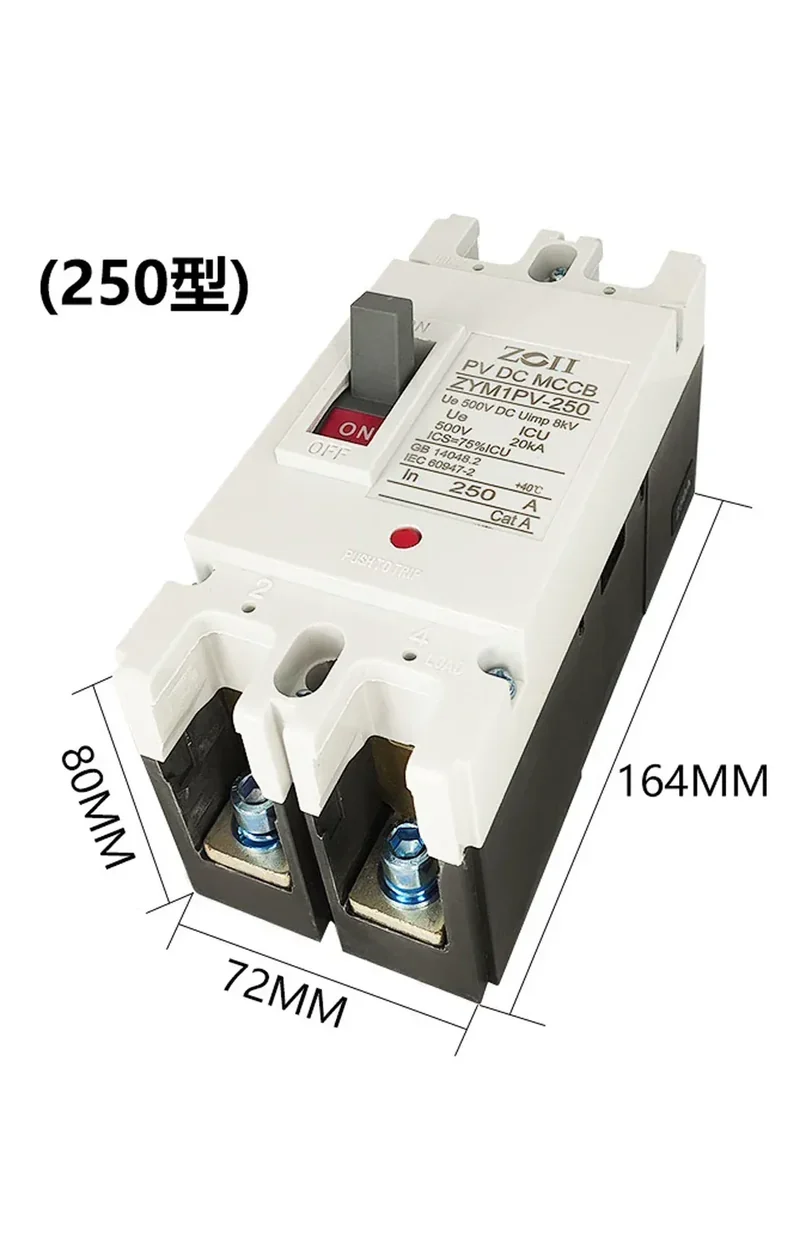

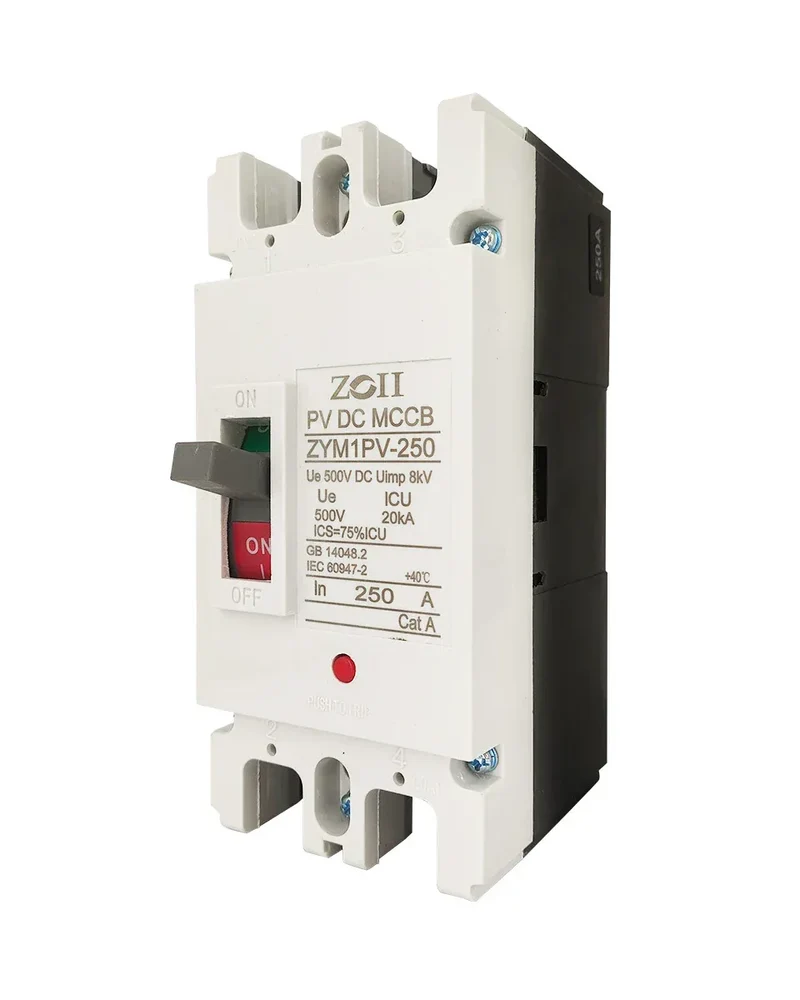

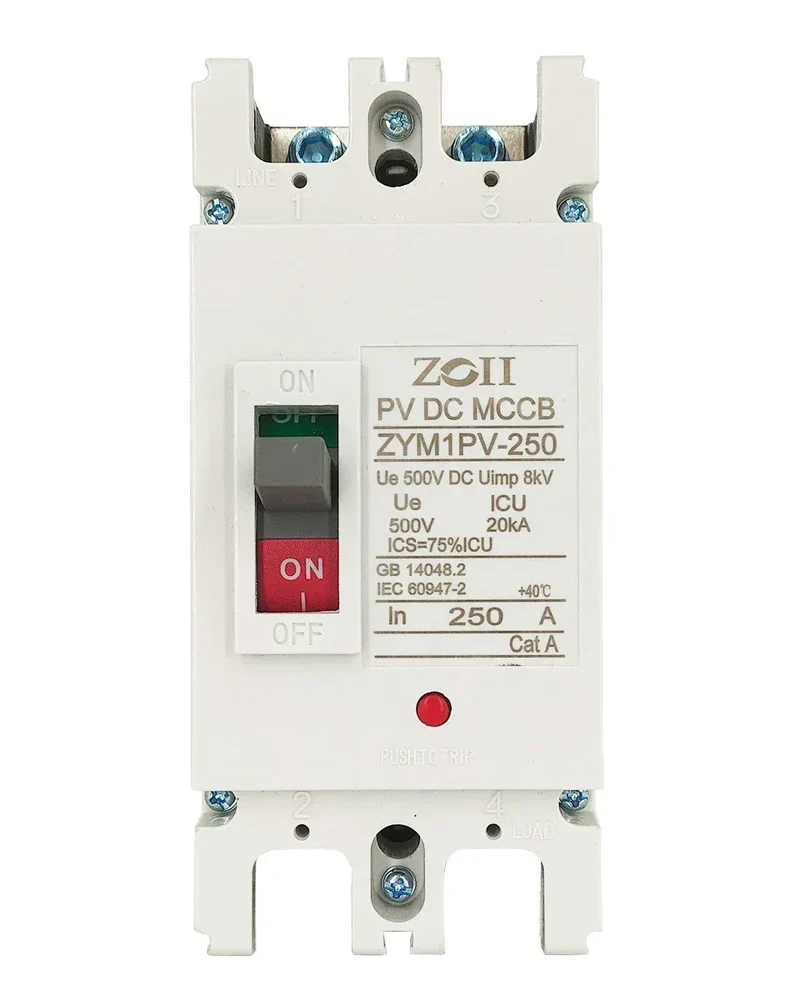

Solar Molded Case DC Circuit Breaker MCCB Overload Protection Switch Protector Solar Photovoltaic PV 150A 250A Battery Isolator

SPECIFICATIONS

Brand Name: ZJXH

Choice: yes

High-concerned chemical: None

Is Smart Device: No

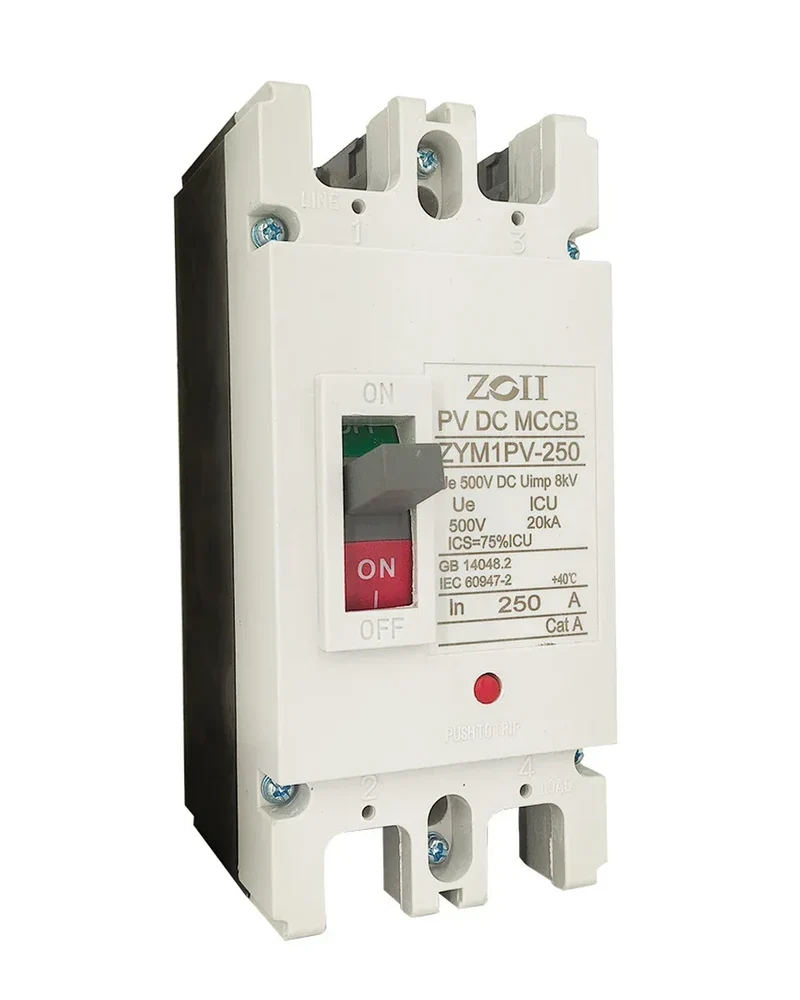

Model Number: ZYM1PV-250

Origin: Mainland China

Type: Moulded Case,Circuit breaker

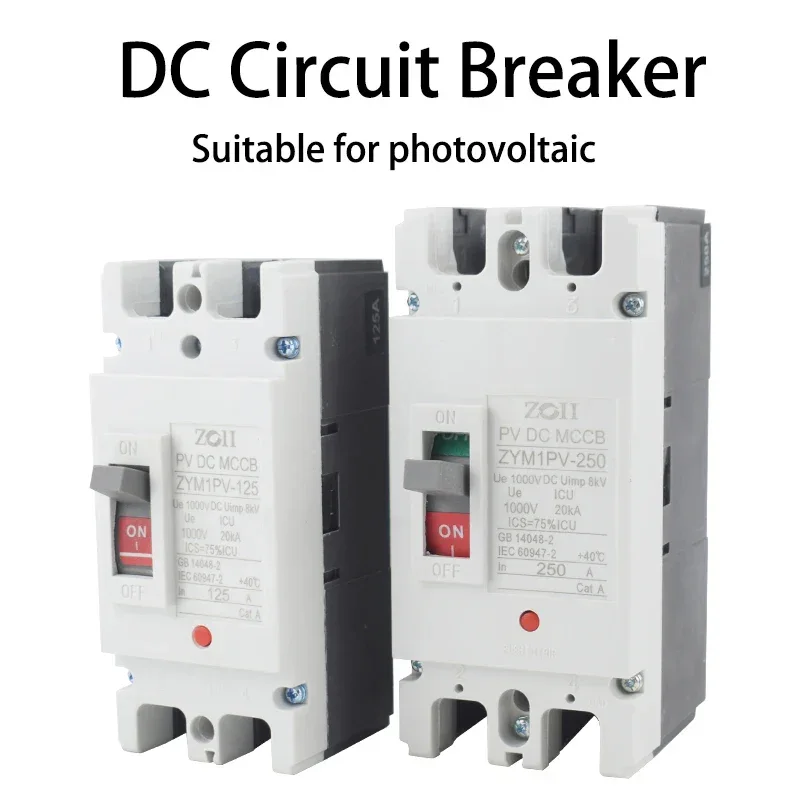

ZYM1 DC Circuit Breaker is mainly used for DC elctricity power line, such as pv solar, wind power, hydropower, car and any DC power supply device. ZYM1 has up to 50ka breaking capacity, can be used for DC24V-1000V lines, max current up to 1250A

The products are widely used in photovoltaic power generation systems, wind power generation systems, roof building power generation systems, rail transit power distribution systems and infrastructure construction and other low-voltage dc generation transmission and distribution application occasions

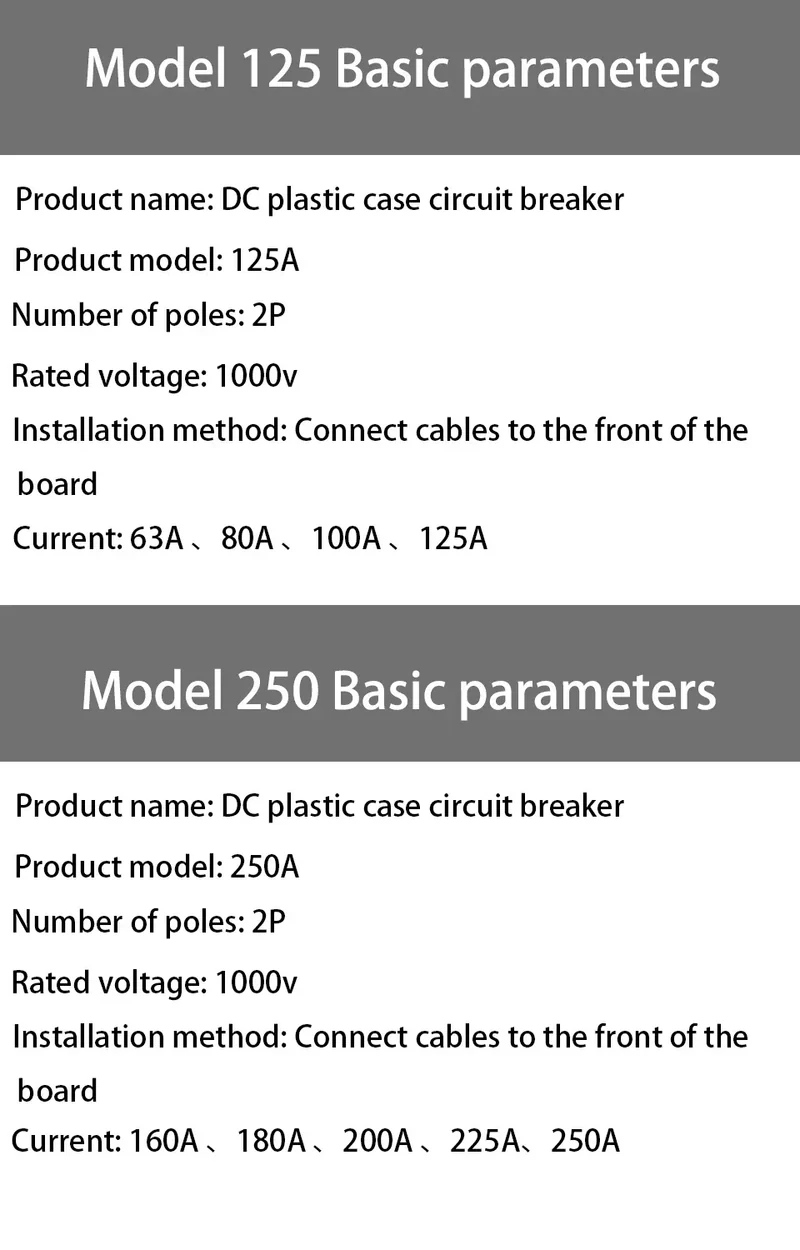

Technical Data

Pole No.: 2P

Rated short Circuit Capacity: 20KA

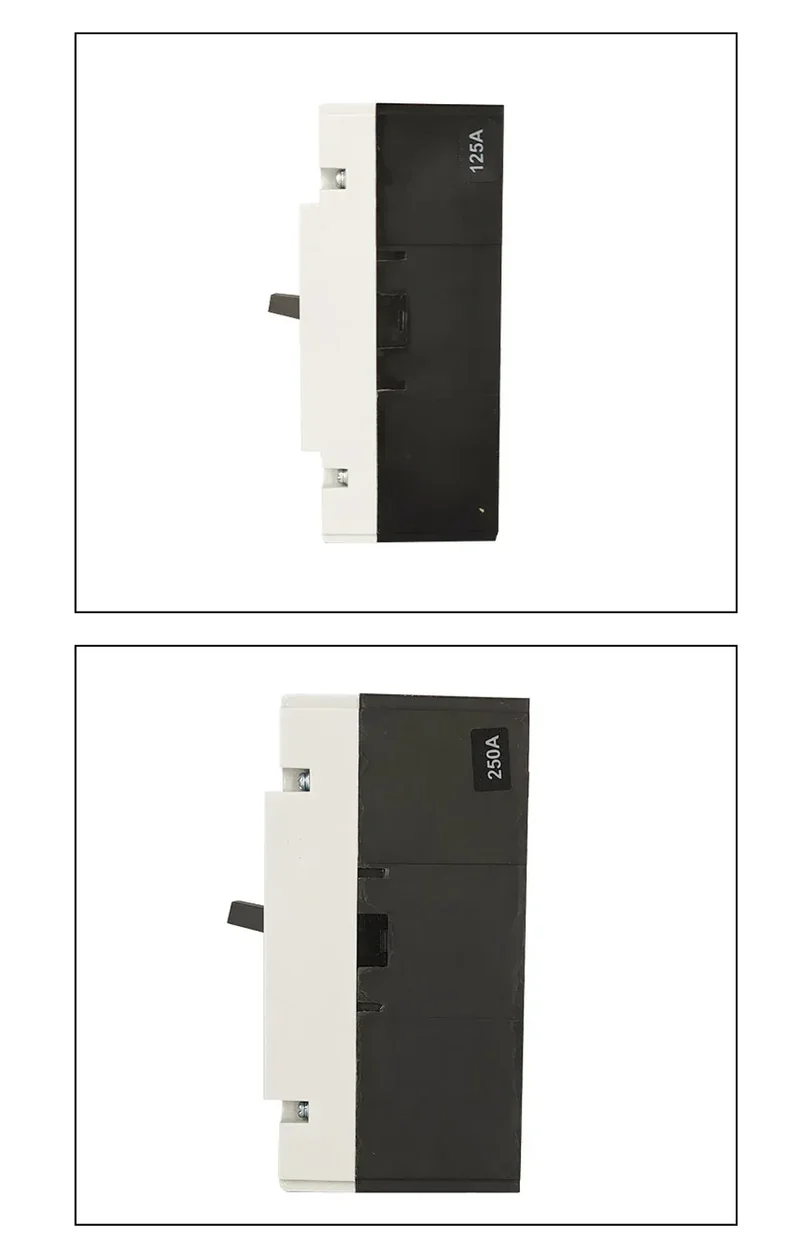

Rated Current(A): 100A 125A 150A 160A 200A 250A

Rated Voltage: DC500V  DC1000V

Protect: Over Current Protect

             Short Circuit Protect

Standard：IEC/EN 60947-2

Certificate：CE
