SMTAV 4KP60 UHD Box Camera 12X/20X zoom Communication All-in-one Camera SDI NDI Camera

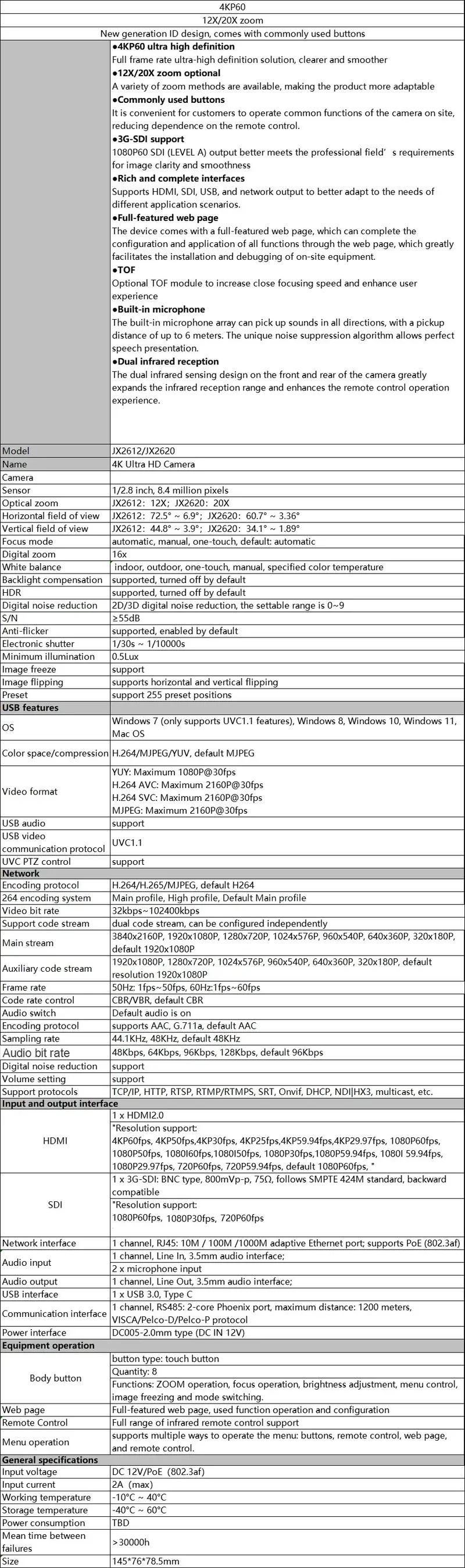

SPECIFICATIONS

Brand Name: SMTAV

High Definition Support: 4K

High-concerned chemical: None

Inbox adaptor: No

Origin: Mainland China

Power Source: Other

Sensor Size: 1/2.8 inches

Sensor Size (inches): 1/2.8

Usage: Professional

Use: Professional

▼4K60FPS

Utilizing a 1/2.8-inch, 8.4 million pixels UHD CMOS sensor, it outputs

4K60FPS. It is also backward compatible with various resolutions, including

1080P and 720P.

▼20x Optical Zoom + HD Wide-Angle Lens

20X：

Equipped with a full HD telephoto lens, supporting a maximum 20×

optical zoom, and a 61.2° horizontal FoV.

12X：

Utilizing a full HD lens, with a maximum 72.8° horizontal FoV and

support for 12× optical zoom.

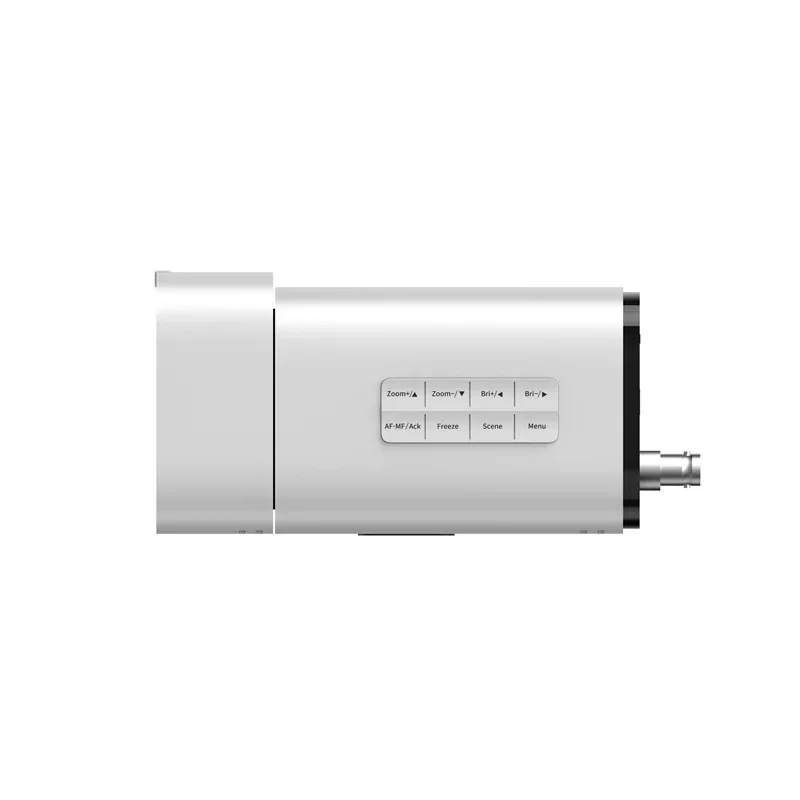

▼Built-in Button Controls

The camera has convenient onboard buttons for quick control, eliminating

the need for a remote control and facilitating on-site installation and setup.

▼Full-Function Webpage

The device features a comprehensive webpage, allowing all configurations

and applications to be completed through the web interface, greatly

facilitating on-site equipment installation and setup

▼TOF 1

The camera is equipped with a laser-assisted autofocus system, utilizing

advanced autofocus algorithms to achieve rapid and precise automatic

focusing

▼Support for 3G-SDI

It supports 3G-SDI outputting video streams at 1080P60 resolution,

better meeting the requirements for image clarity and smoothness in

professional fields.

▼Built-in Microphone

The camera features a built-in microphone array for 360° omnidirectional

audio pickup. With noise suppression algorithms, it achieves clear audio

pickup with a range of 6 meters.

▼Dual Infrared Receivers

The camera is designed with front and rear dual infrared sensors,

significantly expanding the infrared reception range and enhancing the

remote control experience.

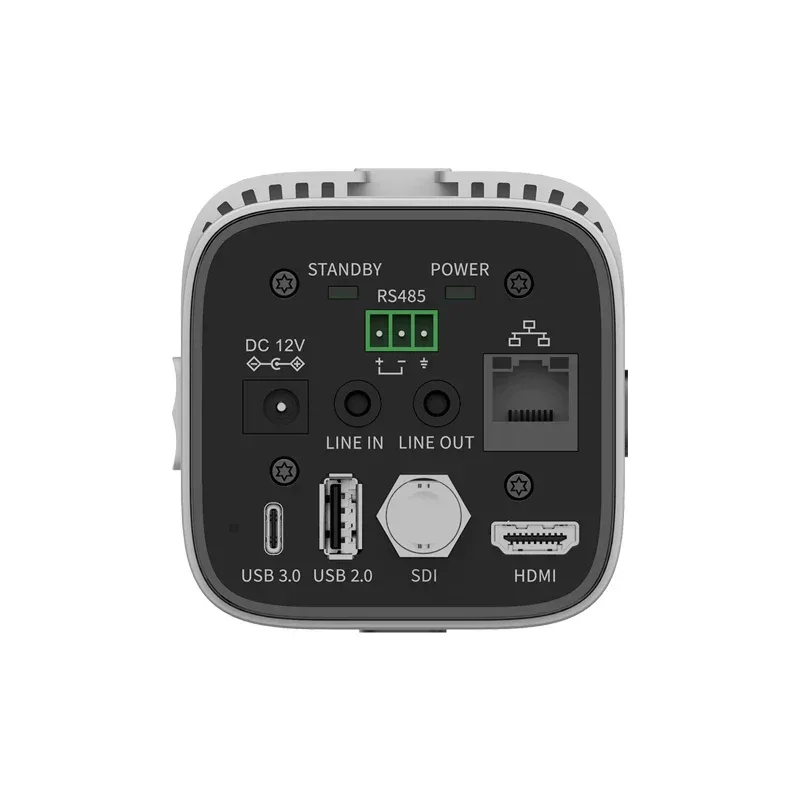

▼Multiple Interfaces

It supports HDMI, SDI, USB, and network output, adapting well to

diverse application scenarios.
