Small Mini Solar Panel Monocrystalline Battery Charger for Cctv Camera With 6v 9v 12v External Solar Power Panel Lithium 8000mah

SPECIFICATIONS

Application: outdoor or indoor power supply

Brand Name: OEM

Cell size: 156.75mmx156.75mm

Color: Black

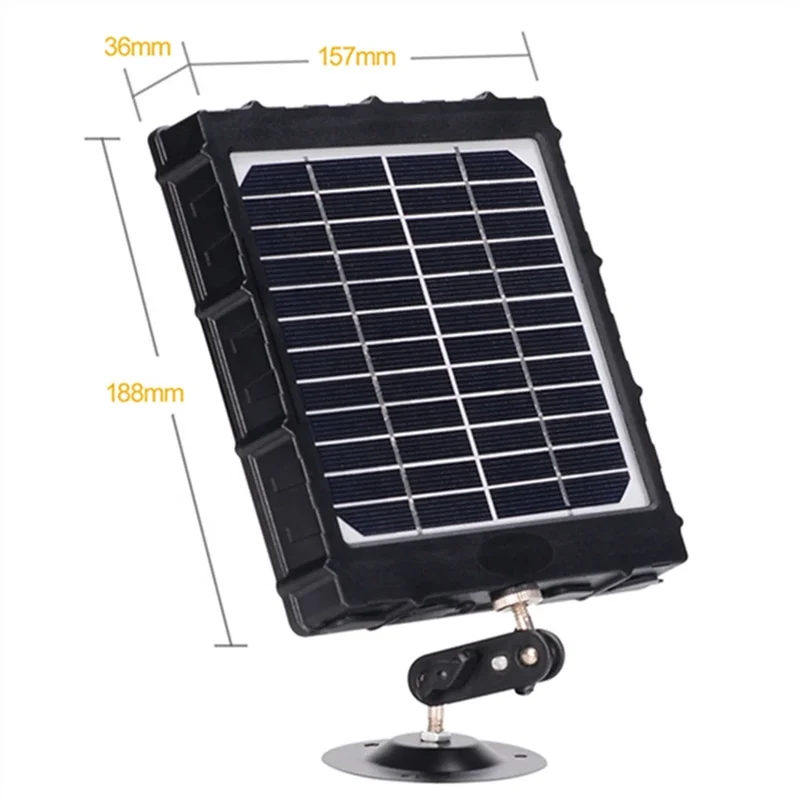

Dimension: 188*157*36mm

Input: 5V/2A

Interface dimensions: 4*1.7mm

Li battery capacity: 8000mah

Model Number: BL8000

Output: 12V/1.2A,12V/1.6A,6V/2.4A

Panel Dimensions: 188*157*36mm

Photovoltaic Panels Material: High-Quality Monocrystalline Silicon

Place of Origin: Guangdong, China

Product name: Small Solar panel battery charger for cctv camera with 12v

Type: All Black

Working temperature: -10℃~60℃/14℉~140℉

Small mini Solar panel battery charger for cctv camera with 6v 9v 12v external Solar power panel 8000mah

Product Description

Specifications:

Model	BL8000
Input Voltage	5V/2A
Output Voltage	12V/1.2A,9V/1.6A,6V/2.4A
Dimension	188mm(L)*157mm(W)*36mm(H)
Li Battery Capacity	8000mAH
Interface Dimensions	4*1.7mm
Working Temperature	-10℃~60℃/14℉~140℉
The time of charging fully	charging by 5V/2A adaptor,5 hour Charging by sunshine, about 40 hour
Color	Black
Photovoltaic Panels Material	High-Quality Monocrystalline Silicon
Application	outdoor or indoor power supply

Packaging & Shipping

1pcs in a gift box

20pcs in a carton

Carton size:48*35*44cm

G.W.:20KGS/CTN

FAQ

 Solar Panel Q&A

Question:This charger will support all trail camera?

Answer: Yes it supports

Question:If user use rechargeable batteries in camera, charger also will it recharge them?

Answer: This charger has rechargeable lithium batteries inside which feeds power to the camera. The sunlight charges the batteries inside the Solar Charger. The solar charger does not charge the batteries inside the camera. When camera is connecting AA battery and solar panel, camera will choose the one who is with higher power to work.

Question:Is this compatible with Moultrie cameras?

Answer:yes, this charger has 12V/9V/6V output, and it can support 3.5*1.35mm,4.0* 1.7MM and 5.5*2.1MM DC jack

Question:Is it weatherproof?

Answer: Yes, it is waterproof and anti-hail

Question: How is this solar panel charged by DC power

Answer: Please use DC adapter(5V/2A) to support it via USB cable. Normal mobile adapter can charge this solar panel kits.

Question:When temperature is under -20℃,it can work?

Answer: NO. the inside Li battery can not work, if it is forced to work, it may be damaged.

Question: If there are something like leaves on solar panel surface, the solar panel can work?

Answer: yes, the solar panel can work, but the inside battery can not be charged fully due to lack of sunlight.
