Sinbosen Stereo Integrated Power Amp Circuit Switch Class Td 4 Channel 1000 Watts Brand Professional Power Amplifier

DS-10Q AMPLIFIER SPECIFICATIONS		DS-10Q AMPLIFIER SPECIFICATIONS

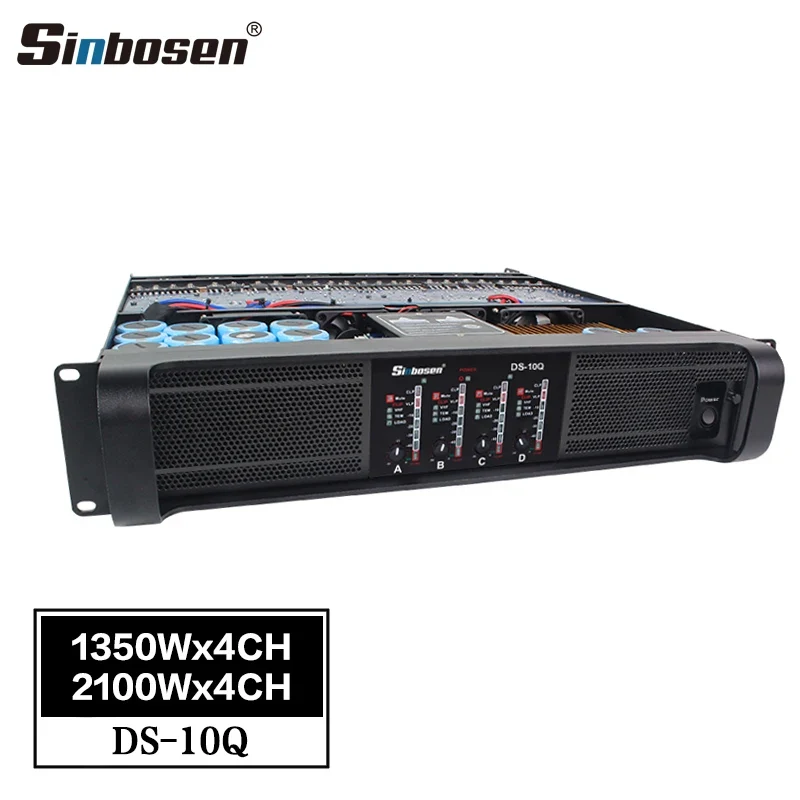

	DS-10Q
8Ω Stereo Power	1350W  * 4CH
4Ω Stereo Power	2100W * 4CH
8Ω Bridged Power	4200W * 2CH
4Ω Bridged Power	5000W * 2CH
Frequency Response(+o/-0.3dB,1W/8Ω)	20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W	<0.1%
Signal-to-Noise Ratio	>112 dBA
Channel separation (Crosstalk) at 1 kHz	>70 dB

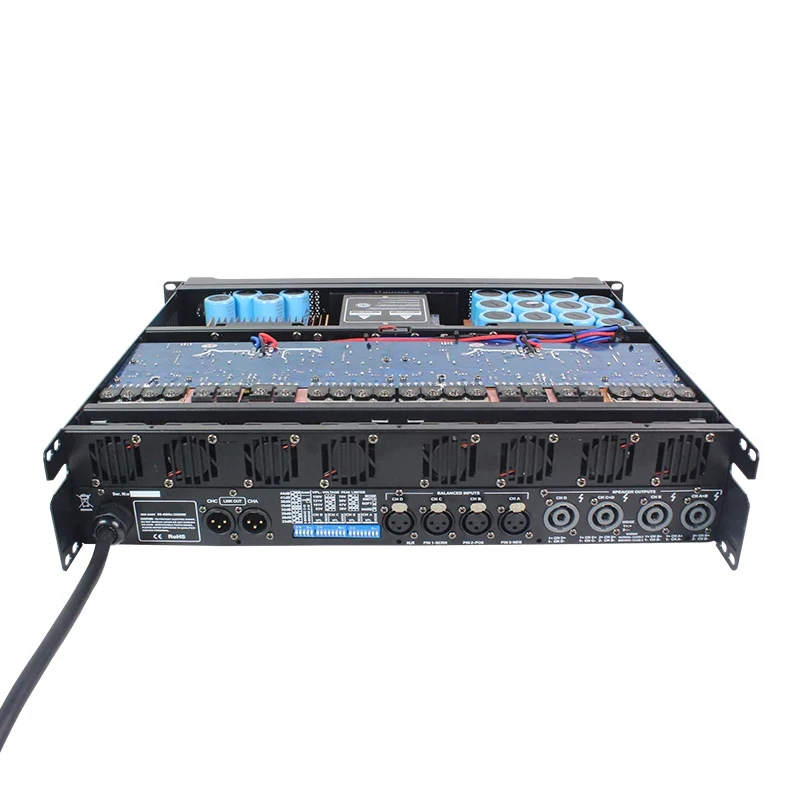

Input Connectors (per channel)	3-pin XLR, electronically balanced
Output Connectors (per channel)	Binding Posts 2-pole
Class	TD
RK Dual 8" line Array System 16+8 Hanging Combination Set wit.TourClass Protection	ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input
Operating voltage	220 V / 110 V nominal ； 180-240 V / 90-130 V selectable
Voltage Gain(dB)	23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance	20 kOhm
Level adjustment (per ch.)	Front-panel potentiometer, 31 position detented from -inf to 0 dB

DS-10Q FEATURE:-Good for dual 15 inch Speaker ,double 10/12 inch line array.
-Create SUPER sound quality. -Separately controllable on Gain. -Scalable Voltage Peak Limiter (VPL). -Bridge-mode operation for Touring Applications. -Comprehensive protection scheme. -Use Original capacitor 3300uf 200V. -Use Original power output transistor and XLR.

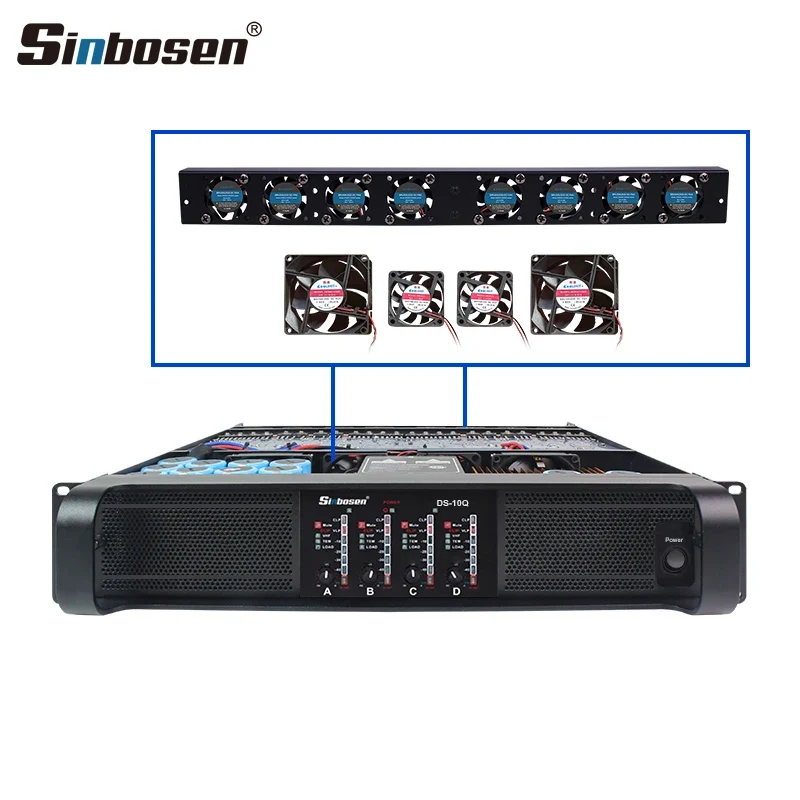

Unique cooling system:

We upgrade cooling system, add rear fans ,which is Enhance cooling system capability of the amplifier. Quiet and efficient, fast heat dissipation.

Capacitor Upgrade:

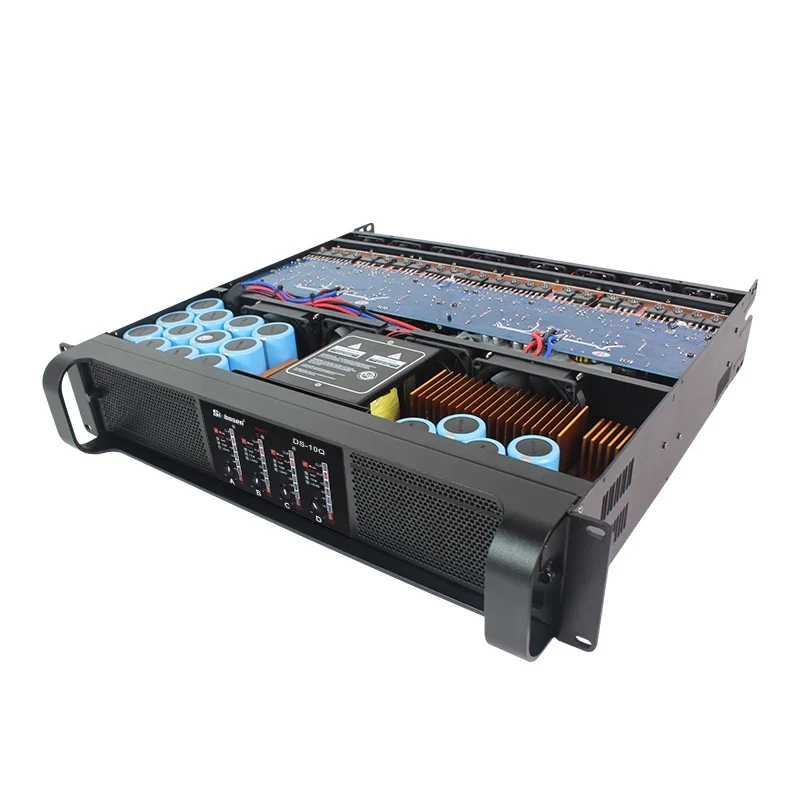

The old version we use 10 pcs 3300UF/200V capacitor +4 pcs 2200uf/200V capacitors, and now the new version is add more 2 pcs 3300uf/200V. Totally add more 6600UF capacitance. The amplifier power supply board is better than before, it will make sound quality more loud and powerful. Product Description

4 Output Channels Power amplifier
	DS-6Q	DS-8Q	DS-10Q	DS-20Q	DS-22Q
8Ω Stereo Power	625W X4	1000W X4	1350W X4	2200W X4	2500W X4
4Ω Stereo Power	1300W X4	1600W X4	2100w X4	4000W X4	4650W X4
8Ω Bridged Power	2500W X2	3200w X2	4200w X2	8000w X2	9000w X2
4Ω Bridged Power	3000W X2	3800w X2	5000w X2	9000w X2	15000w X2
2 Output Channels Power amplifier
	DS-14K	DS-9K	DS-7K	DS-24K	If you are interested in more products details , View our Products list or Contact us >>>
8Ω Stereo Power	2400W X2	1800W X2	1500W X2	4200W X 2
4Ω Stereo Power	4400W X2	3000W X2	2800W X2	7500W X 2
8Ω Bridged Power	8800W	6000W	5600W	/
4Ω Bridged Power	14000W	9000W	7000W	/

♦Impedance Matching : Our DS-Series amplifier suitable for impedance above 4ohms and above.

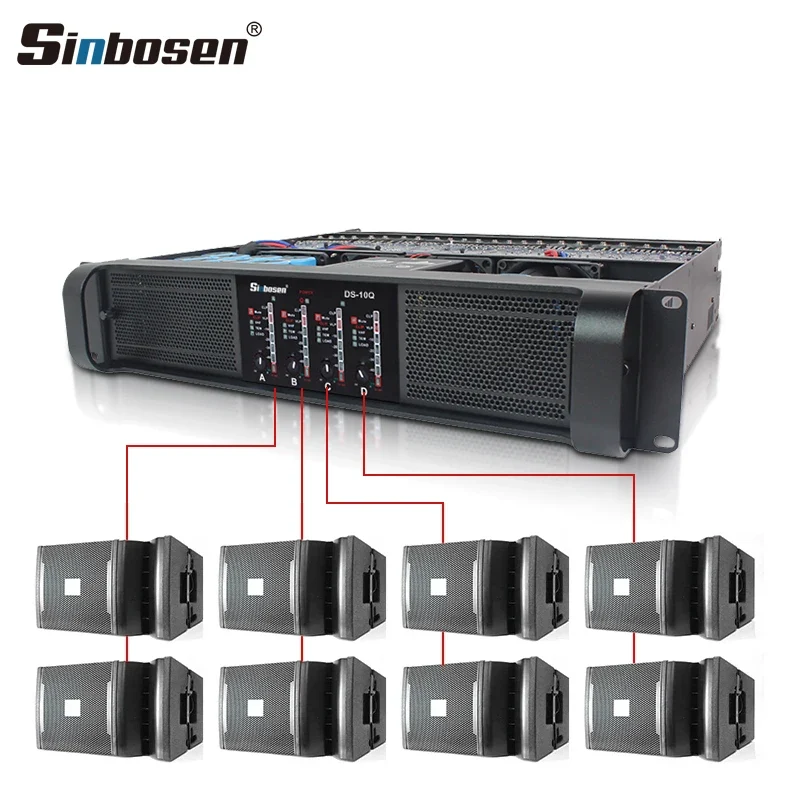

♦How to match our amplifier with your speaker ?  Under certain impedance conditions, our DS-10Q suitable for the speaker rated power around 800W@8ohm(Below 800W also ok ).  ♦Suggest match: DS-10Q match with 4pcs Single 15inch or 4pcs Double 15inch professional PA speaker .  ♦Best match : DS-10Q match with 2pcs single 15inch full frequency professional PA speaker + 2pcs single 18inch sub woofer .
♦Can I use your DS-10Q to push 400W speaker(8ohms) ?  Yes, you can. Generally , you can choose our amplifier’s power twice of your speaker ’s power, it’s no problem. There is a limiter protection design in our circuit.
♦Does your unit with warranty ?  If there is a problem with your amplifier, please send us pictures or videos, and the engineer will determine the problem and send replacement parts. For specific warranty terms, please click here to view. Related Products Company Profile Contact us
