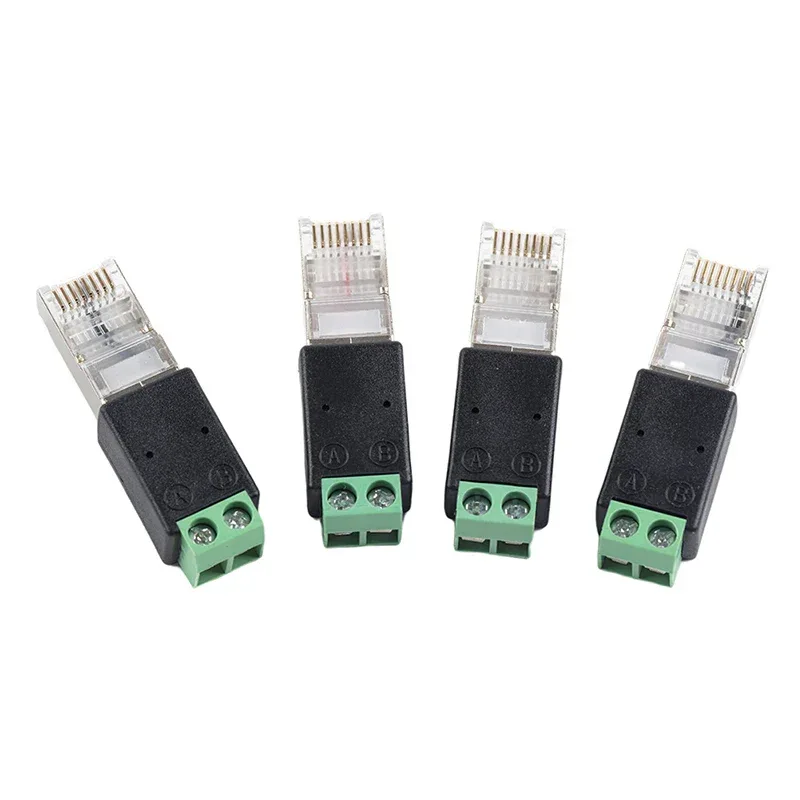

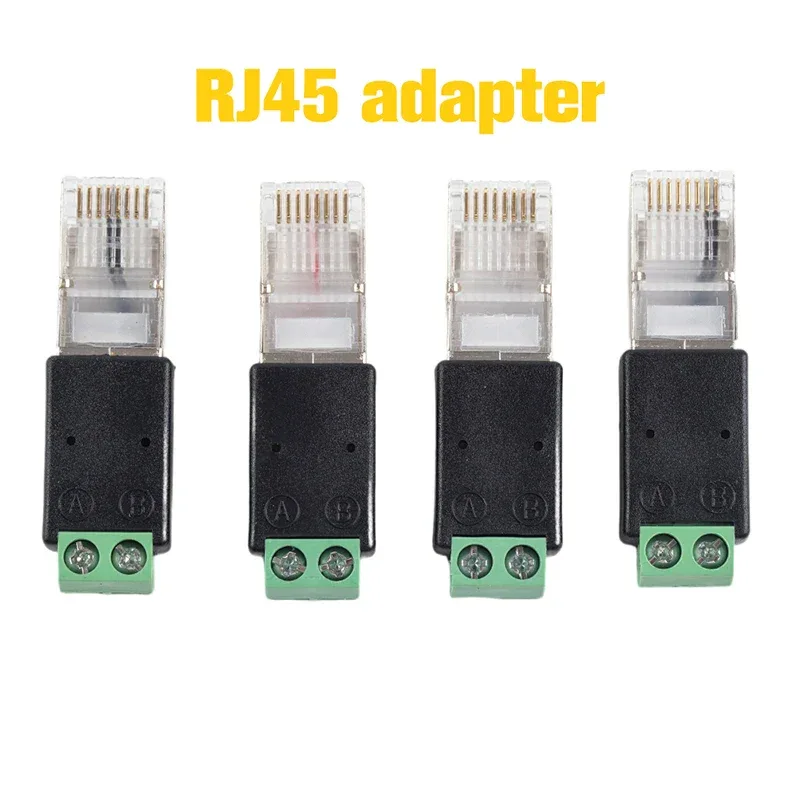

RJ45 to RS485 Converter RJ45 Terminal Adapter RJ45 to RS485 Adapter Crystal Head to Terminal

SPECIFICATIONS

Brand Name: NONE

Certification: None

High-concerned chemical: None

Origin: Mainland China

Type: lug

Brand new 100% high quality

1. Connection method A jacking 4+B jacking 5, A top input 5+B top input 6, A jacking 6+B jacking 7, A top input 7+B top input 8.

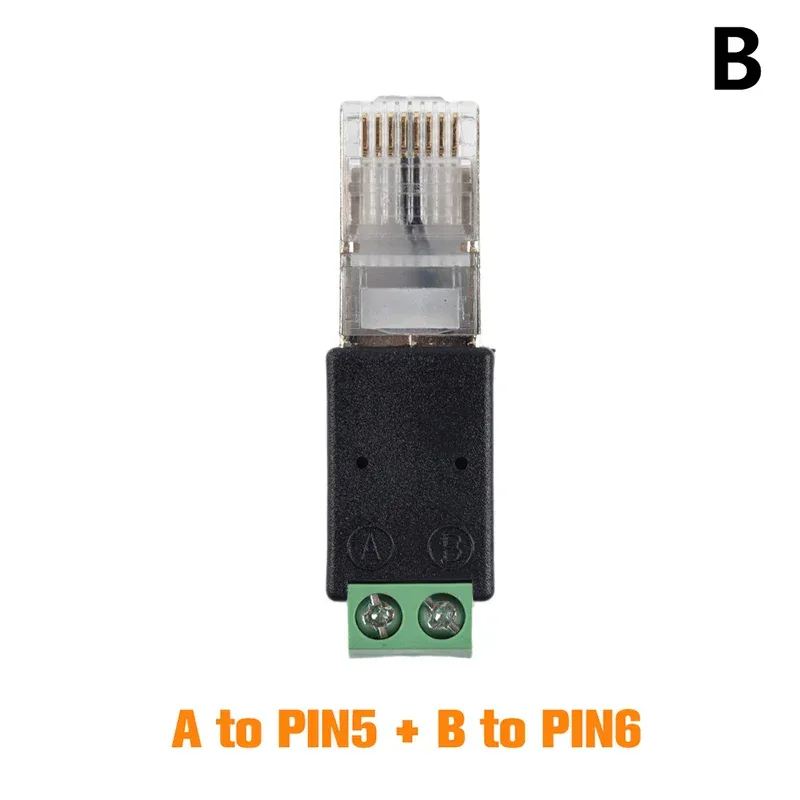

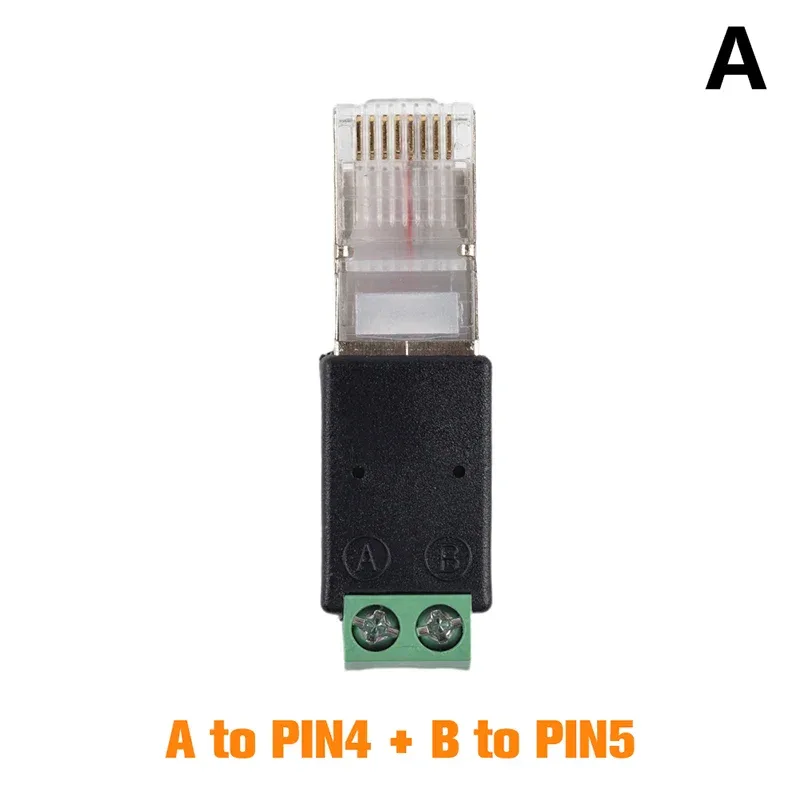

2. The pins of RJ 45 are Pin 4 (485A) and Pin 5 (485B), the A of the terminal is connected to the B of the 485A terminal

Connect 485B as long as these two pins are connected in reverse, such as Pin 4 (485B) and Pin 5

(485A) At this time, the A of our terminal is connected to 485B, and the B of the terminal is connected to 485A.

3. The pins of RJ 45 are Pin 6 (485A) and Pin 7 (485B), the A of the terminal is connected to the B of the 485A terminal

Connect 485B as long as these two pins can be reversed, such as Pin 6 (485B) and Pin 7

(485A) At this time, the A of our terminal is connected to 485B, and the B of the terminal is connected to 485A.

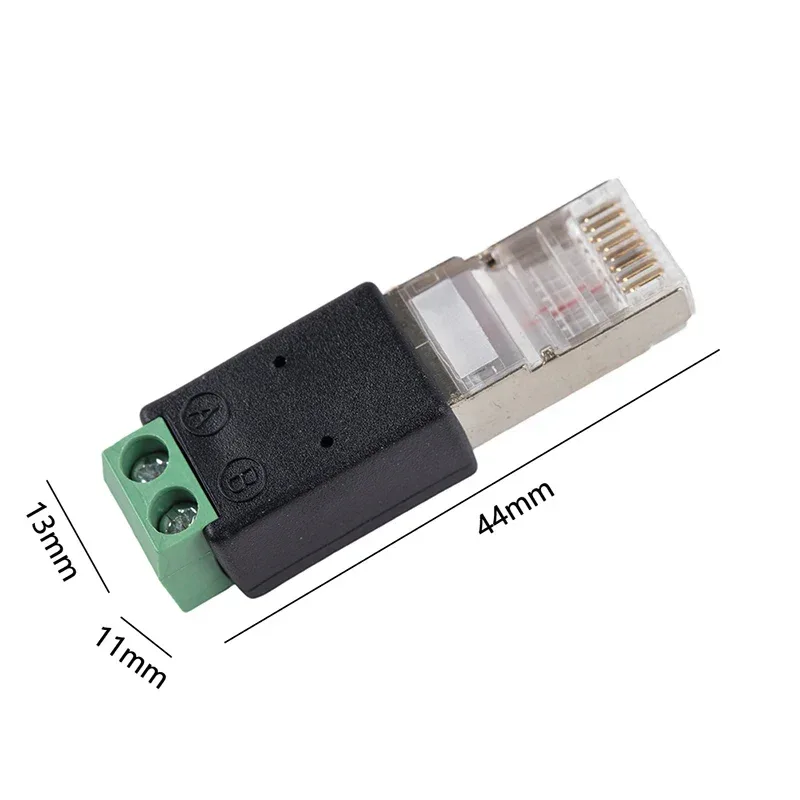

4. The size is 4.4*1.3*1.1cm, the working temperature is -40~85°C, mainly for physical transfer between 485 and RJ45.

5. Applicable: The physical interface of 485 is RJ45.

Product information:

1. Product name: RJ45 to 485 crystal terminal

2. Material: plastic + electronic components

3. Size: 4.4*1.3*1.1cm

4. Color: as shown

5. Function: connect 485 and RJ45 interface

6. Applicable: The physical interface of 485 is RJ45

7. Pins: pin 4 and pin 5 or pin 6 and pin 7 or pin 7 and pin 8

8. Purpose: The physical interface of 485 is RJ45

9. Working temperature: -40~85°C

10. Quantity: 1Pcs
