RF Wireless Remote Control Switch 433Mhz AC 110V 120V 240V 220V 30A Relay for Light Lamp Water Pump Door Access System

SPECIFICATIONS

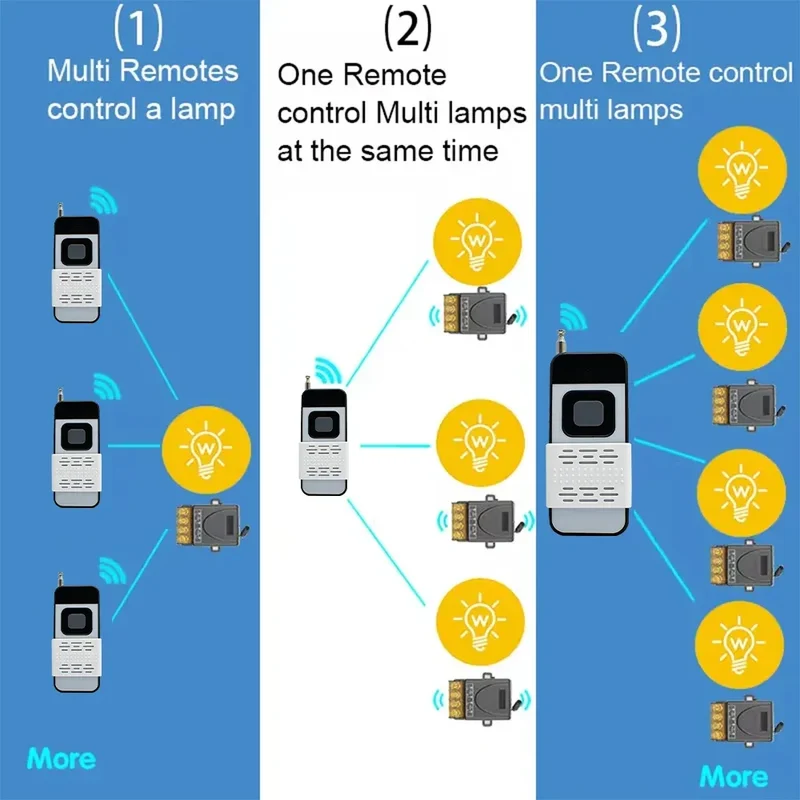

Application example: Light Switch Security Alarm System

Brand Name: Scimagic-RC

Channel: 1

Choice: yes

Encoding Type: Learning code

Frequency: 433 MHz

High-concerned chemical: None

Material: metal and PVC

Model Number: SMG-801 220V

Name: 1CH Remote Control Switch

Operating voltage: AC 85V - 260V

Origin: Mainland China

Package: Yes

RF working mode: superheterodyne

Remote storage: 20pcs

Support APP: No

Support remote type: Learning code (1527)

Switch Type: Remote Control

Use: Universal,Lighting,Electric Door,Automated curtains,Switch

Wireless Communication: RF

semi_Choice: yes

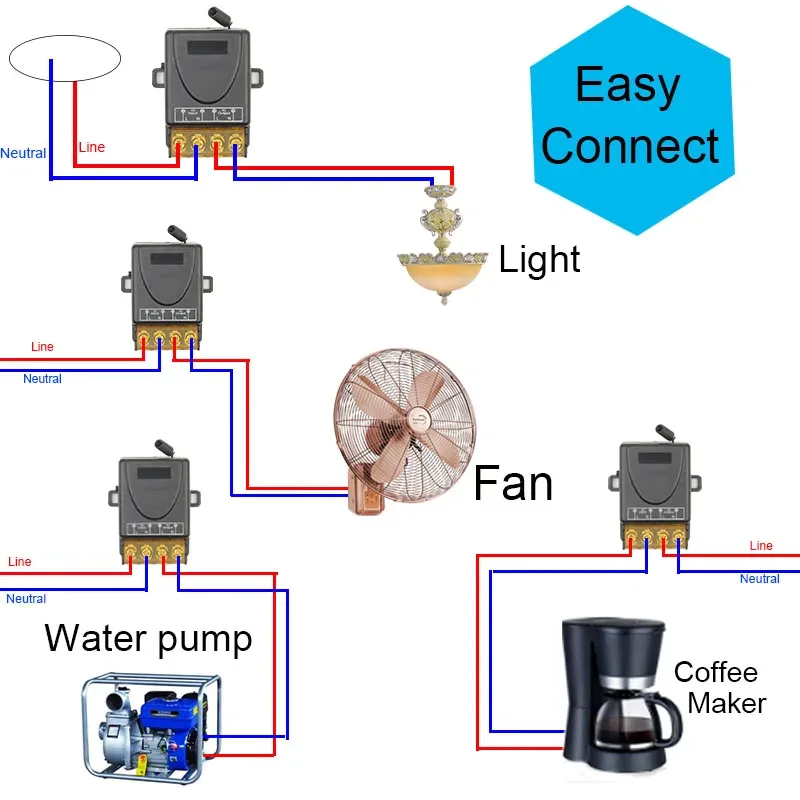

Product Application Area

Factory \ Farm\ Office\ Instrument\ Ventilation \ Pump \ Motor \ Remote control garage door \ Remote control house door \ Remote control Lamp \ Remote control curtains \ Remote control Gate and other remote control device

2000W High-power, Wider Range of Application

Technical Data:

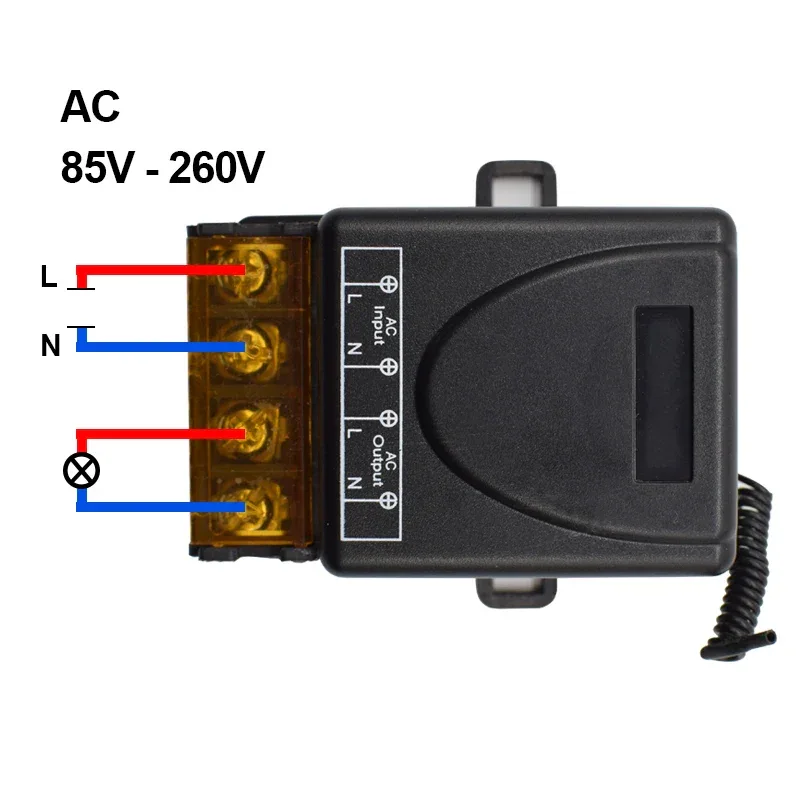

Operating voltage: AC 85V - 260V

Output voltage = Operating voltage

Operating frequency: 433MHz(Same with Remote control)

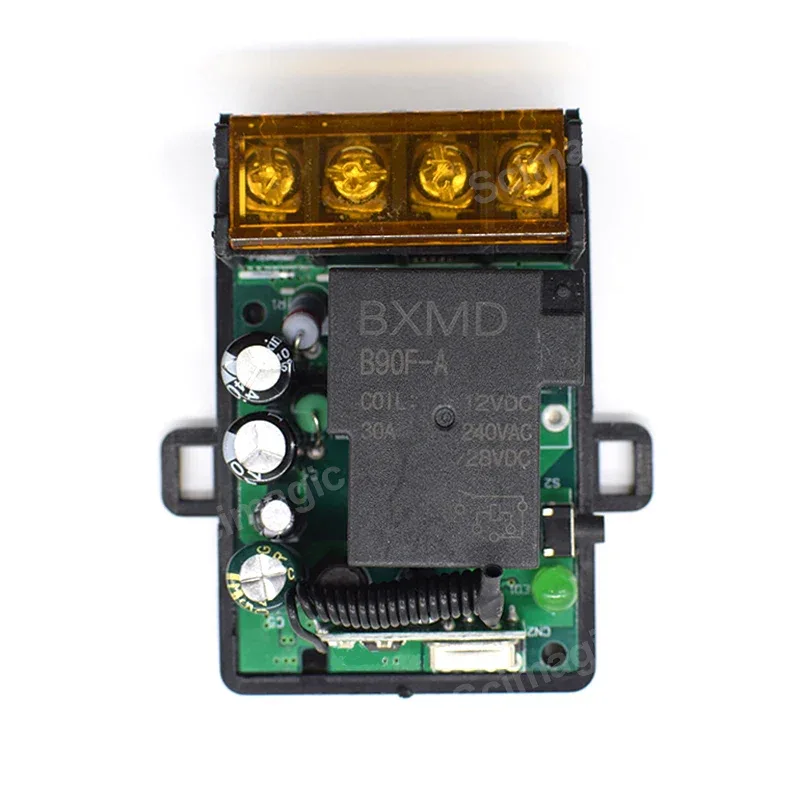

Rated contact current of relay: 15A/240VAC, 15A/110VAC (Please notice that : Although the relay is marked 30A 240VAC. The 30A is for the peak current of your load. The rated current of your load should less than 15A)

Box size: approx 65 x 45 x 28mm

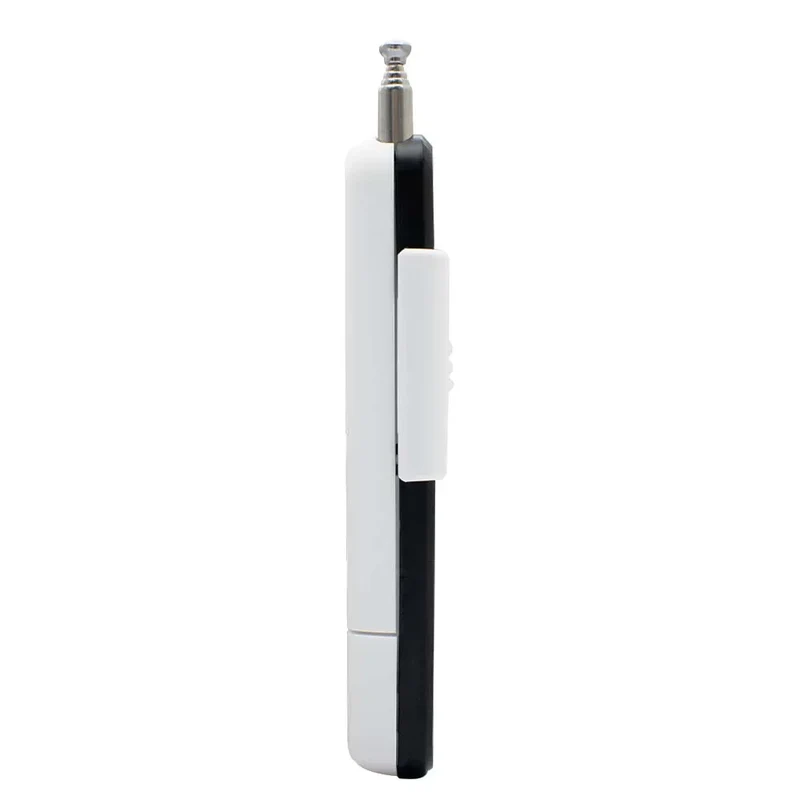

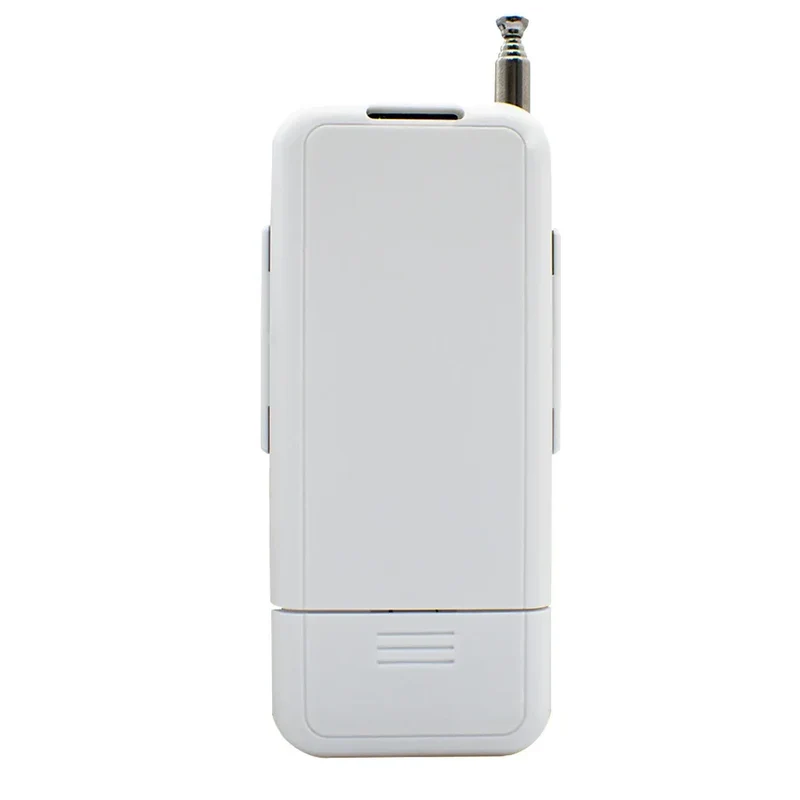

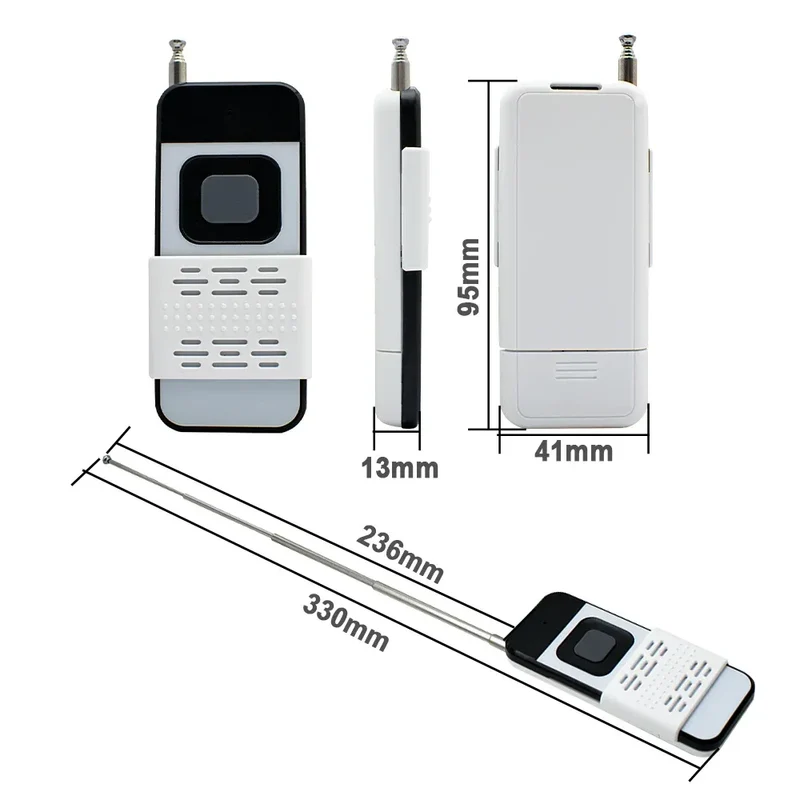

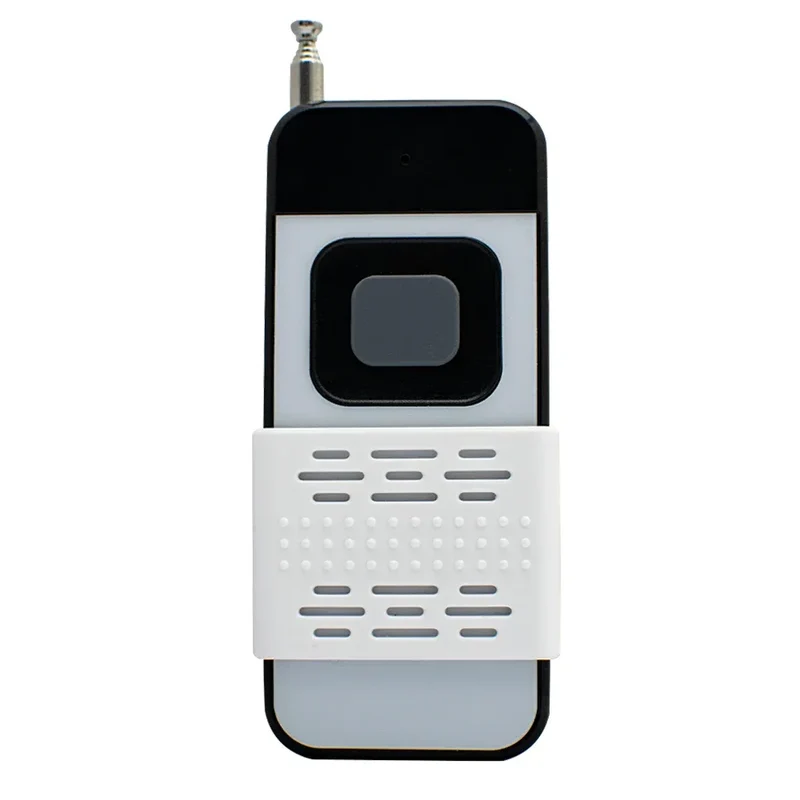

Specifications Of The Remote Control:

Operating voltage: DC12V (23A/12V Battery not included)

Transmitting frequency: 433MHz

Encoding Type: Fixed code

Receiver sensitivity: > -105dB

Notice:

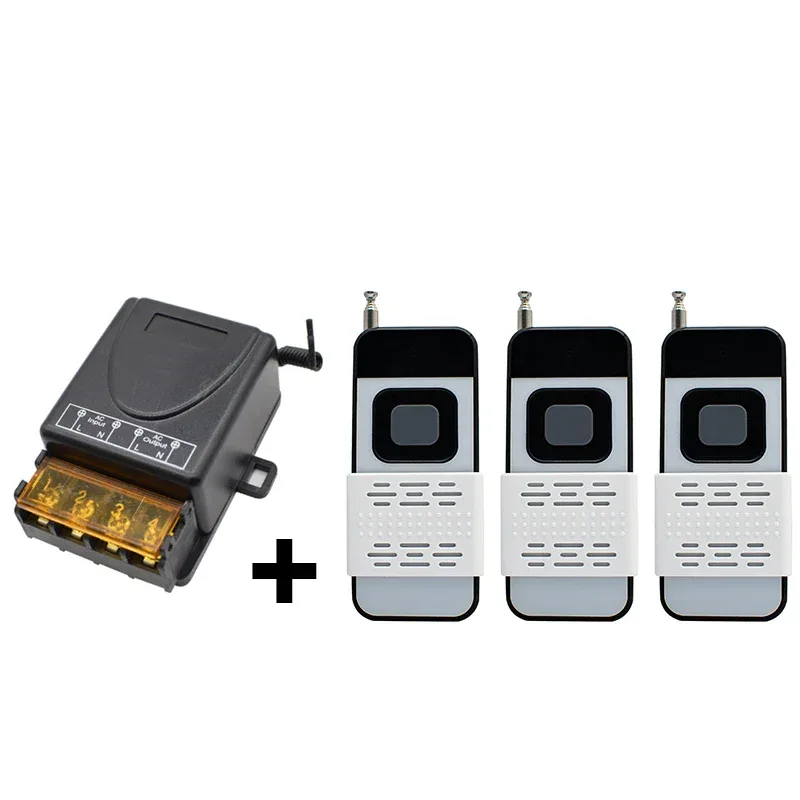

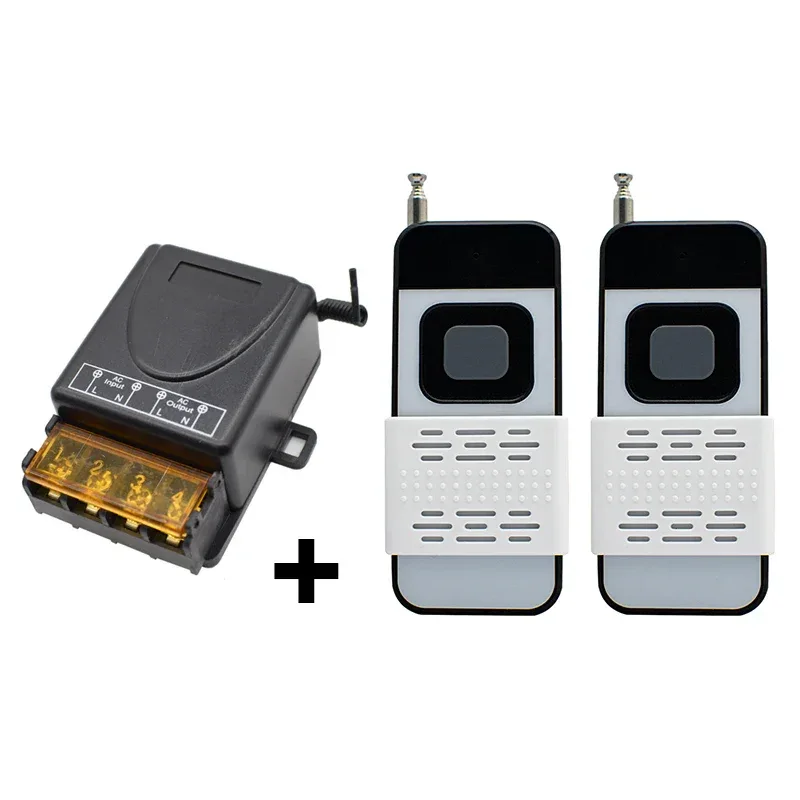

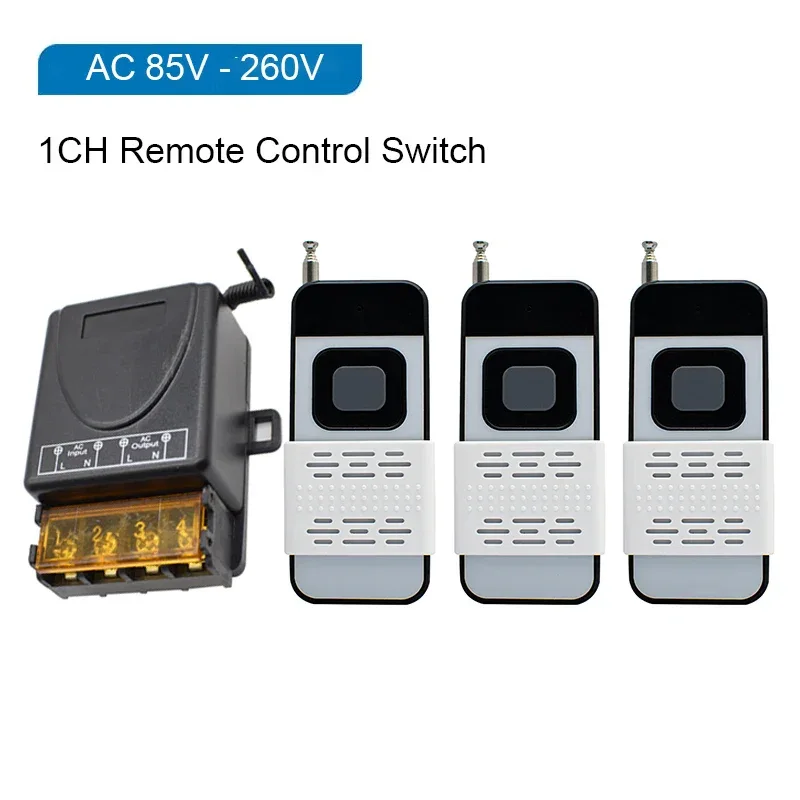

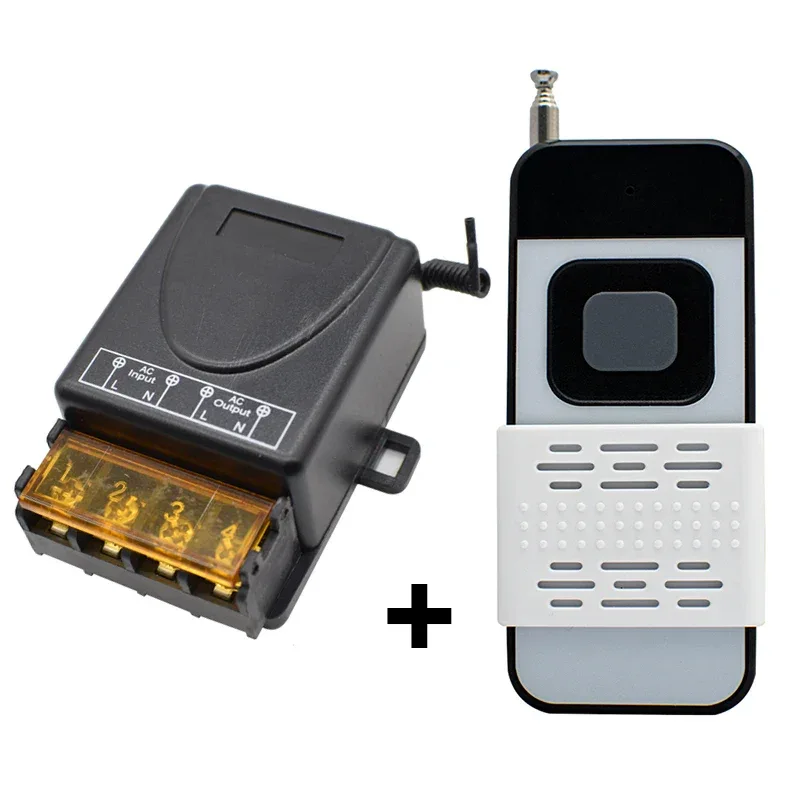

Different options include different packages:

Package 1 Included:

Package 2 Included:

Package 3 Included:

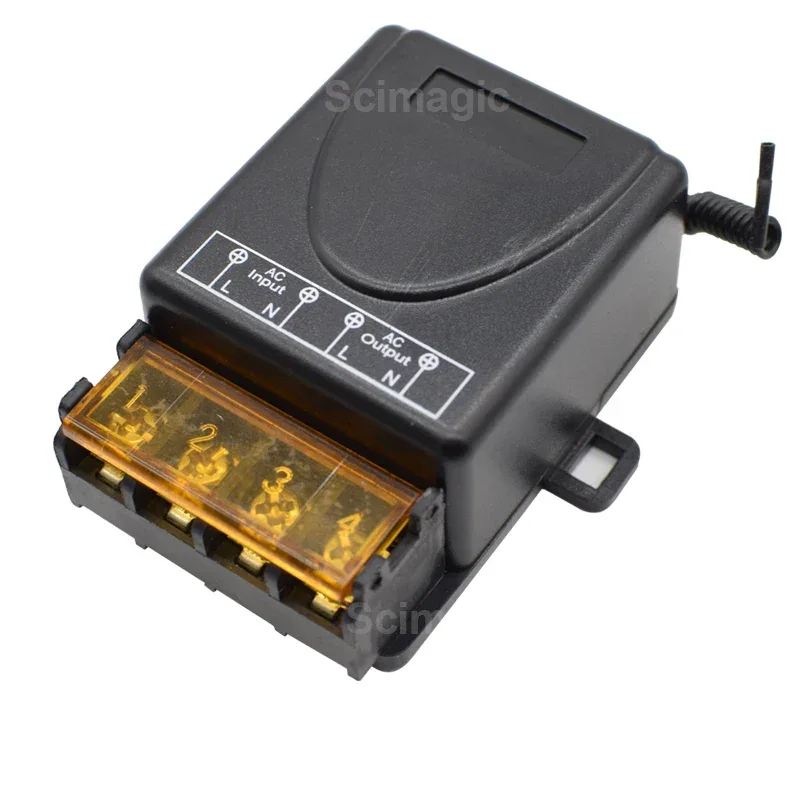

433MHz Receiver Product Pictures:

About Working mode:

Momentary:Push the remote button , the relay connects, release the remote button , the relay dis-connects.

Toggle:Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects .

Latching:Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.

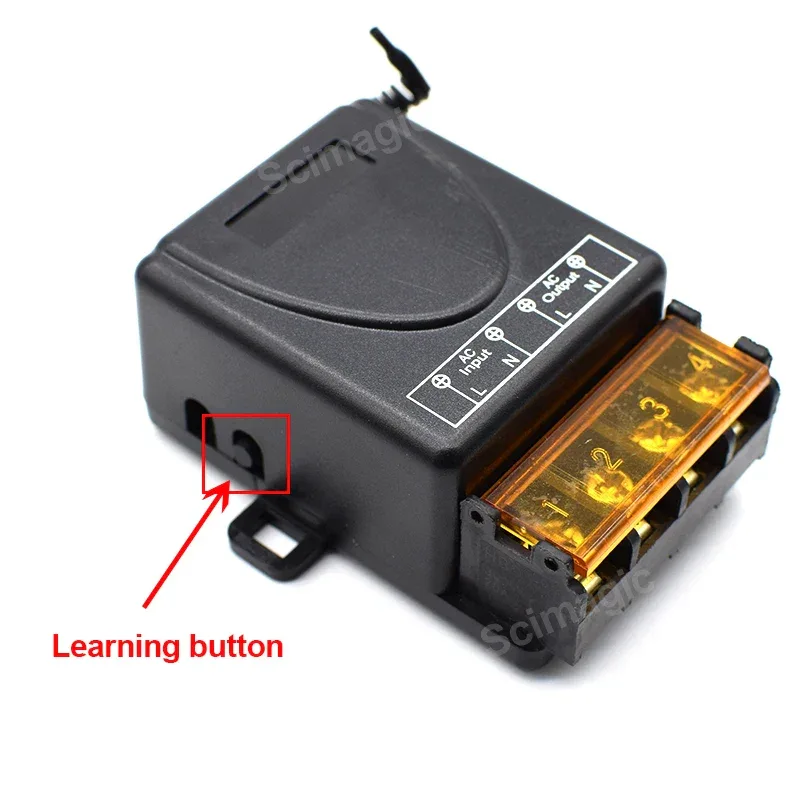

Clearing the code :

Method 1：

Push the learning button on the receivers for 8 times , the codes will be cleaned;

Method 2：

Keeping press the Learning Button on the receiver until the LED indicator ON and then flash,until it flash for 8 times. it mean the code have been cleared successfully;
