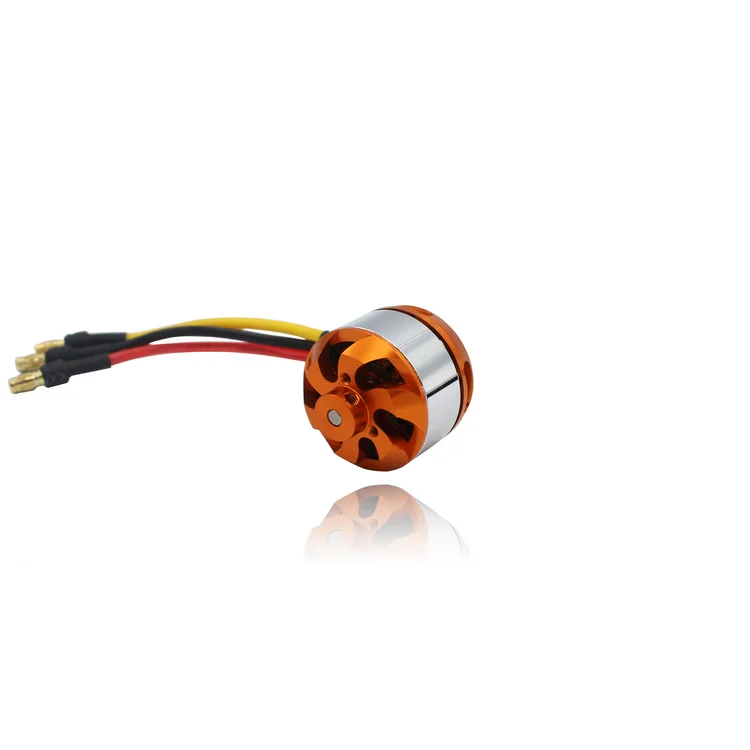

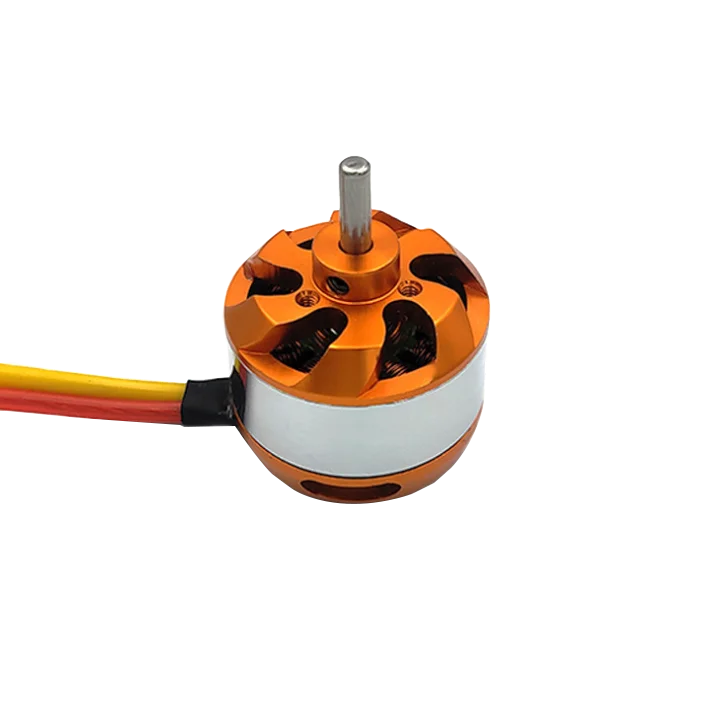

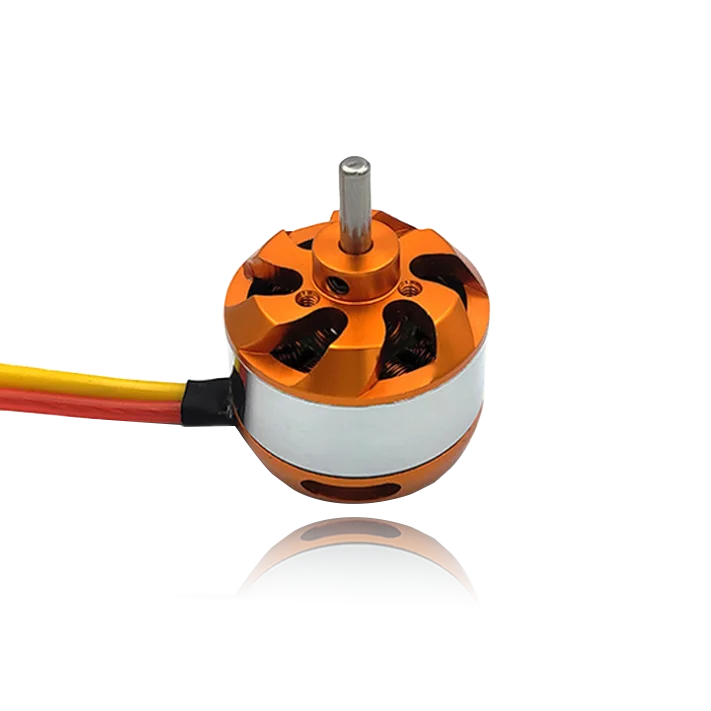

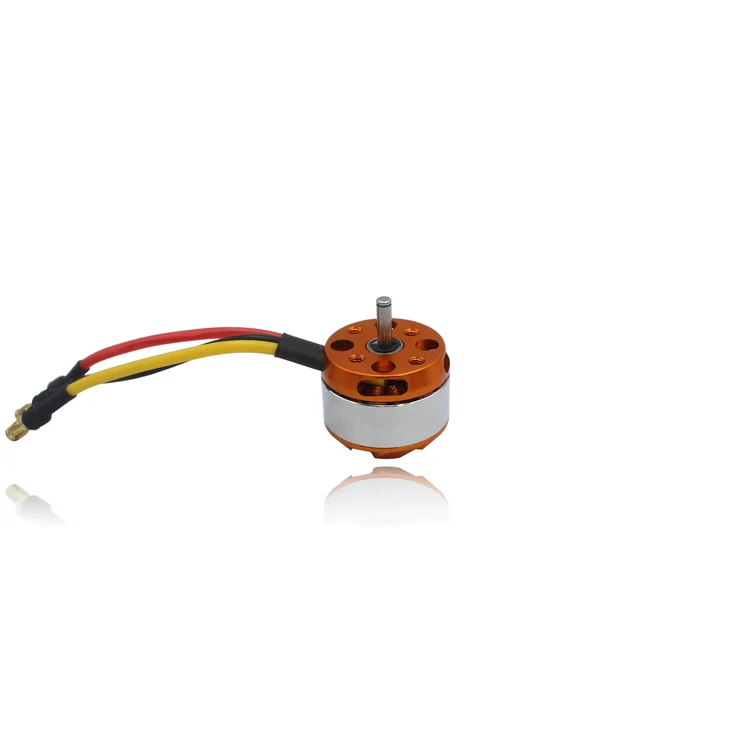

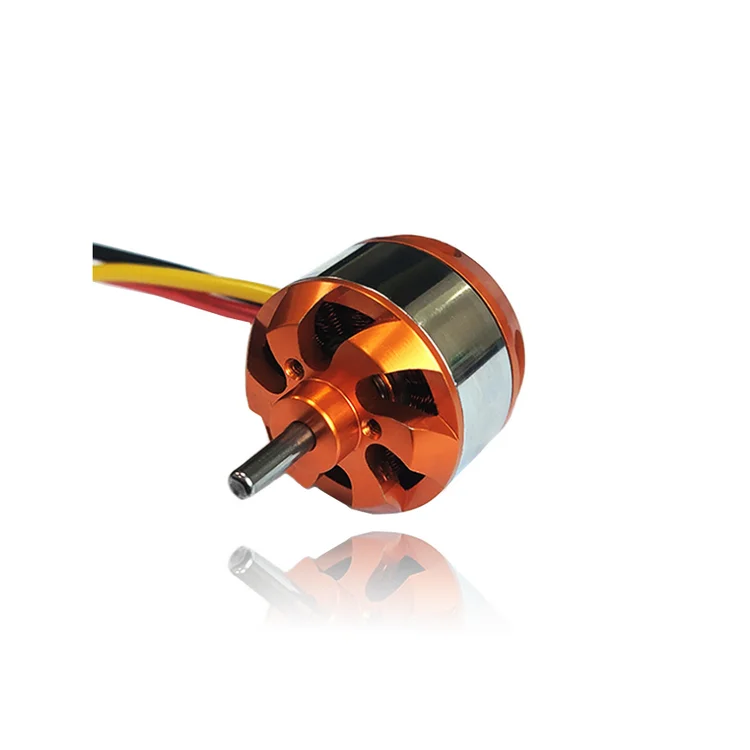

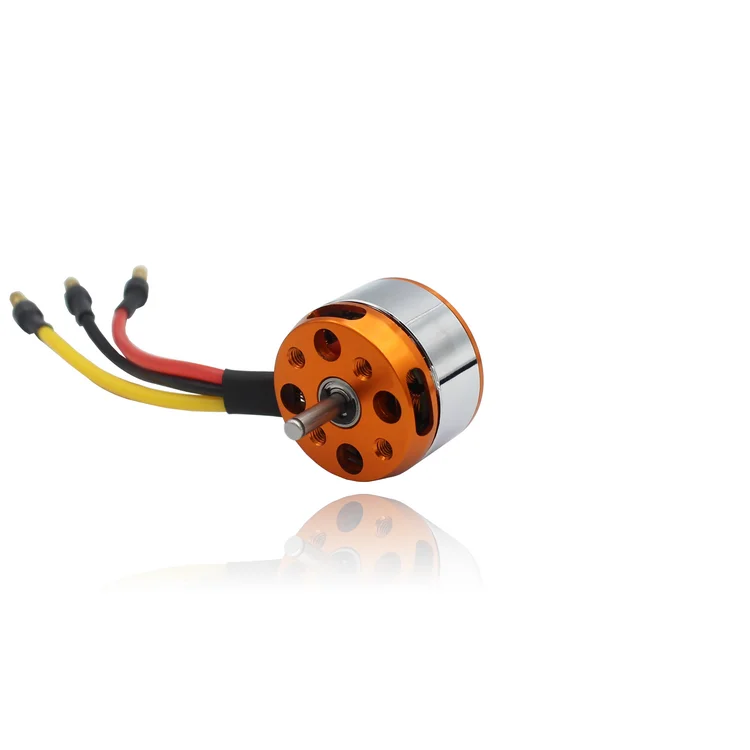

RC Model Airplane Brushless Outrunner Motor 2822 Brushless Motor

SPECIFICATIONS

Brand Name: Technomotor

Certification: ce ROHS

Color: Purple

Commutation: Brushless

Construction: Permanent Magnet

Continuous Current(A): 36.4A

Efficiency: IE3

Max. Power(60s): 393

Model Number: BD2822

Motor Dimensions: 28*30mm

Place of Origin: Guangdong, China

Product Name: BD2822

Protect Feature: Other

Rated Voltage: 2-3S

Shaft diameter: 3.17mm

Speed(RPM): 2600KV 1800KV 1450KV 1100KV

Torque: NONE

Type: Brushless Motor

Usage: Boat,Car,Fan,Home Appliance,FPV Drone

Warranty: Other

Weight: 38

Products Description

Model

Volts

KV（rpm/V）

Max Pull

Weight

Motor size

Saft size

Max Power

ESC

Battery/prop

BA2822-8

7.4~11.1V

2600

850g

38g

Φ28x22mm

Φ3.175x33mm

260watt

30A

LiPoх2/7х3

LiPoх3//6х4

BA2822-12

1800

660g

180watt

LiPoх2/8х4

LiPoх3/7х3

BA2822-14

1450

550g

160watt

LiPoх2/8х6

LiPoх3/7х4.5

BA2822-17

1100

520g

102watt

LiPoх2/8х6

LiPoх3/7х4
