Popular Gold Separator Trommel Screen with Sluice Box Gold Mat and Water Pump

6.993,92 €~~11.580,73 €~~39% OFF

9 in den letzten 5 Stunden verkauft

Noch 50,00 € bis zum kostenlosen Versand

Voraussichtliche Lieferzeit : 6. Oktober - 8. Oktober.

Garantiert sicher bezahlen

Beschreibung

SPECIFICATIONS

After sale service: Online support,Field installation,Commissioning,training

Applicable Industries: Energy & Mining

Application: Mineral Processing

Brand Name: Gelin

Condition: New

Core Components: Main Parts

Dimension(L*W*H): different models

Feeding size: 0-400mm

Key Selling Points: Easy To Operate

Machinery Test Report: Provided

Marketing Type: NEW

Material: Steel,PU,etc.

Place of Origin: China

Production Capacity: 90%

Showroom Location: Chile

Type: Gravity Separator

Video outgoing-inspection: Provided

Voltage: 380V

Warranty: 2 Years

Warranty of core components: 2 years

Weight: 1200 KG

Products Description Popular gold separator trommel screen with sluice box and water pump

Trommel screen also known as rotary screen, is a kind of mechanical screen machine for separating mineral ore material, mainly used in the gold wash plant and solid waste treatment industry. The trommel controls the mineral separation by the size of the particles, and the separation precision is high.

Features:
1.Custom Built Design,and high performance: hopper, diesel engine or electric motor,screen size etc.are available to choose. 2.Large capacity range. 3.Easy move around,operation,and maintenance 4.Low investment,long service life 5.At least 1 year warranty and 24 hours online service.

Gelin Provide different types trommel screen with Stationary and Mobile Style; Sieve size, Layer quantity, Power, Wheel type... can be available customization.

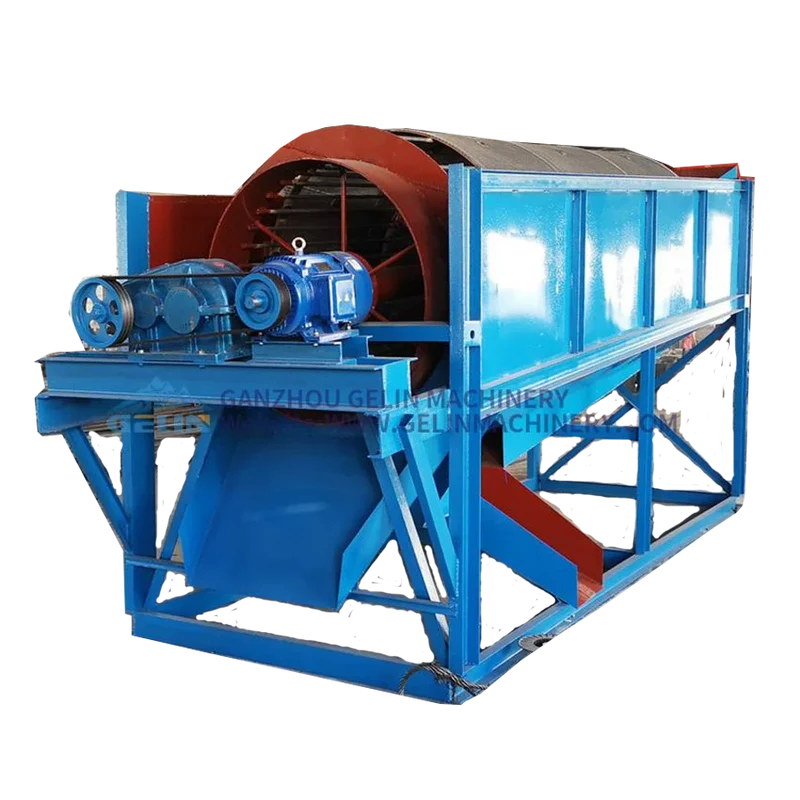

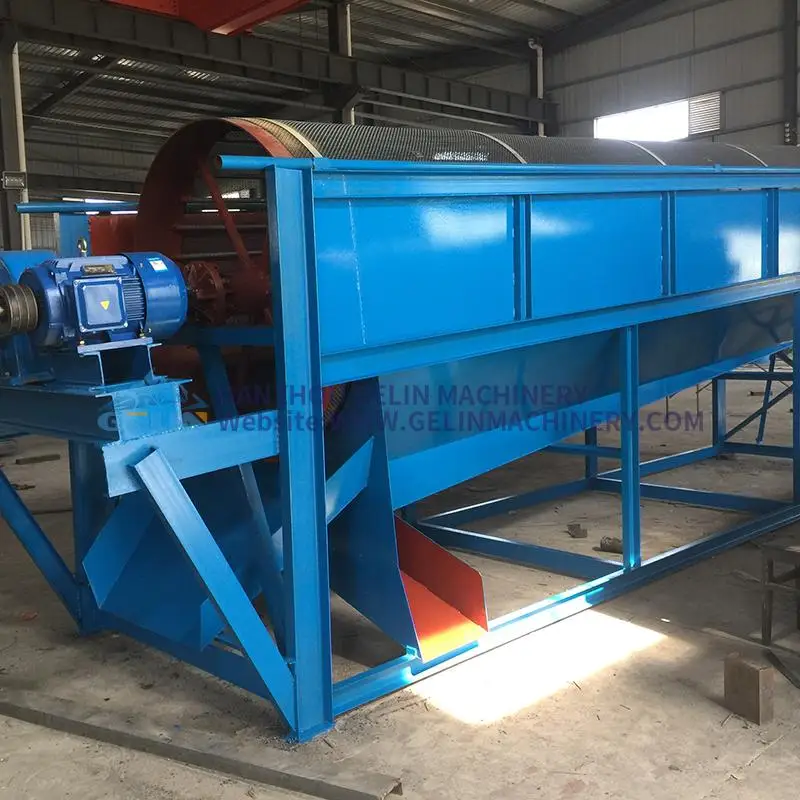

Stationary type as below:

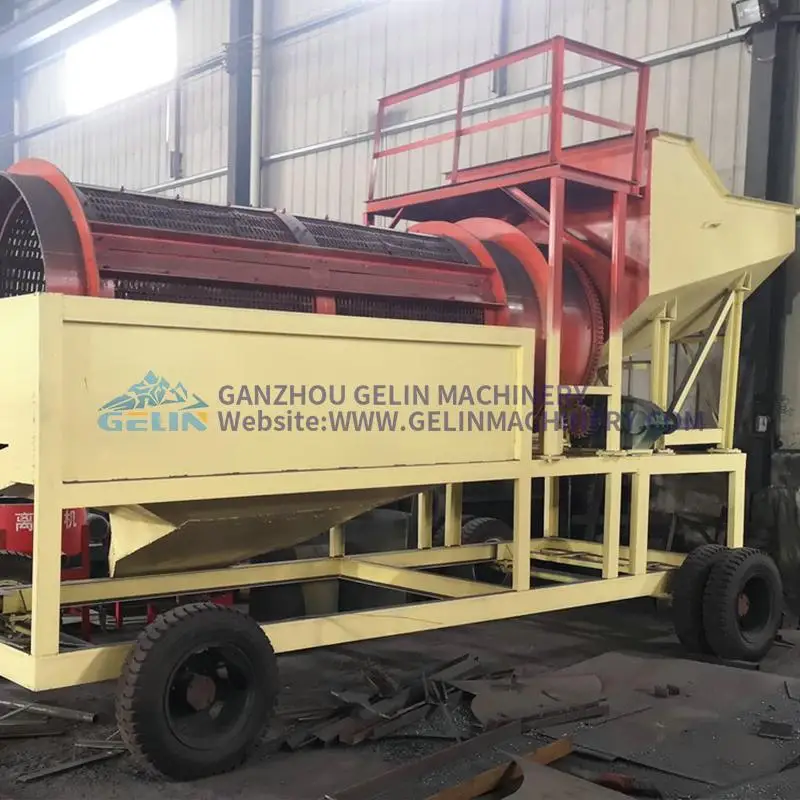

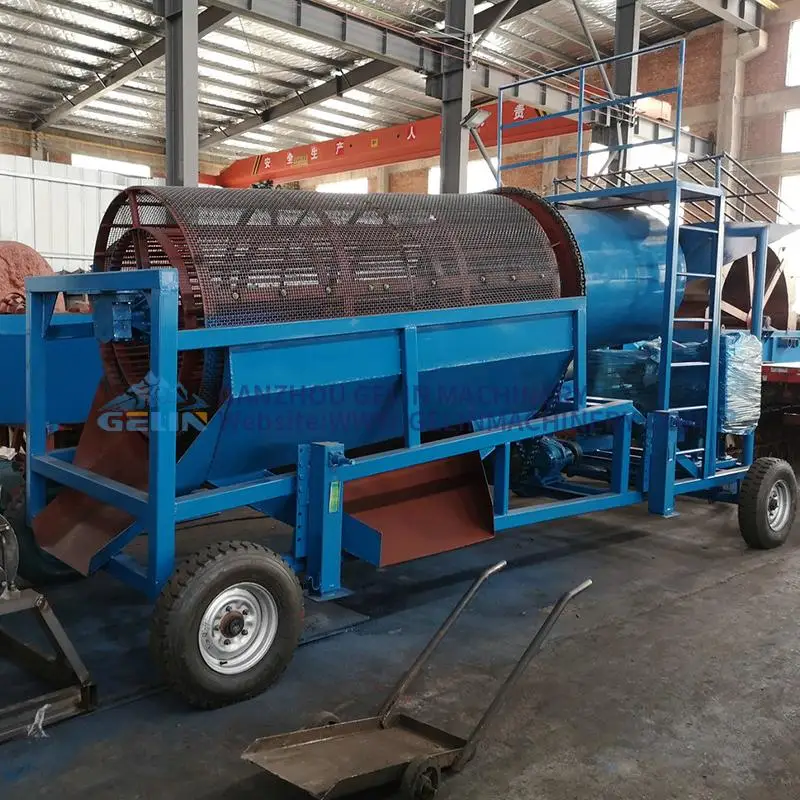

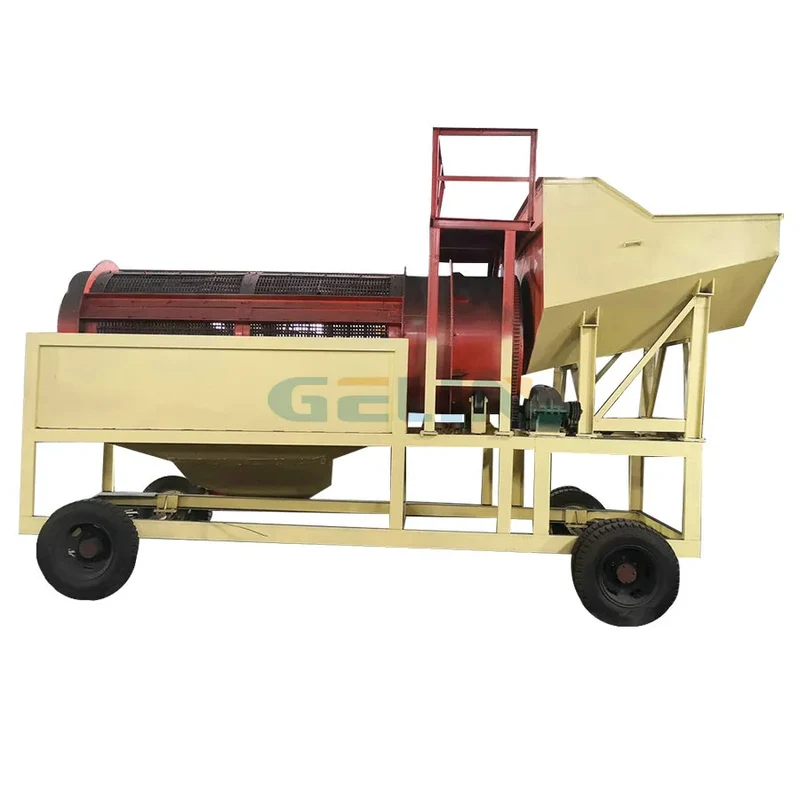

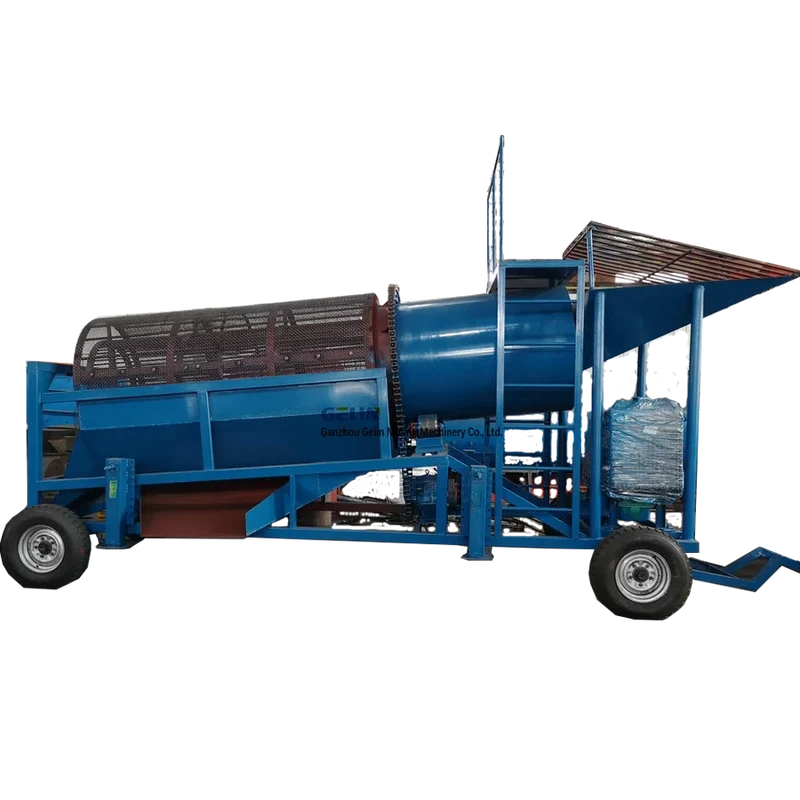

Mobile type as below:

Working Principle: The cylinder of the drum screen is generally divided into several sections, depending on the specific circumstances, the screen holes from small to large arrangements, each section on the same size of the screen hole. The trommel screen mainly comprises a motor, a reducer, a roller device, a machine frame, a sealing cover and an inlet and outlet.
When feeding ore material into the drum, the material begins to rotate and tumble inside the drum before calming down intermittently. This revolution is completed along the length of the drum. Hence, the larger ones tumble to their exit through the rear end of the drum while the finer materials pass through the screen openings and then pass to the downstream process equipment, which can be in various forms, such as gold concentrator, spiral chutes, jig machines,Sluice box with carpet etc.Separation of different materials is done efficiently. Product Parameter

Fixed Type Washing Trommel Machine
Model	Capacity (t/h)	Power(kw)	Screen Diameter (mm)	Screen Length(mm)	Input Size (mm)	Output Size (mm)	Dimension (LWH)(mm)	Weight (kg)
TW1015	50	3	1000	1500	≤300	0-100	2600×1400×1700	2200
TW1020	100	4	1000	2000					3390×1400×2140	2800
TW1225	160	5.5	1200	2500					4146×1600×2680	4200
TW1530	250	7.5	1500	3000					4460×1900×2820	5100
TW1545	350	11	1500	4500	≤400			5960×1900×3080	6000
TW1848	450	15	1800	4800				6500×2350×4000		7500
TW2055	600	22	2000	5500				7500×2550×4800		9600
TW2265	800	30	2200	6500				8500×2750×5000		12800

Mobile Type Washing Trommel Machine
Model	Capacity (t/h)	Wheel	Water pump	Diesel engine/Electric Motor	Drum Dia. (mm)	Drum Length. (mm)	Screen size (mm)	Weight
GL510	5-15	4	include	Alternative	500	1300	<3-20	1200
GL615	10-20	4	include	Alternative	600	1500	<3-20	1500
GL715	20-30	4	include	Alternative	600	1500	<3-20	1500
GL815	30-40	4	include	Alternative	600	1500	<3-20	1500
GL1020	40-100	4	include	Alternative	1000	2000	<3-20	2300
GL1225	100-160	4	include	Alternative	1200	2500	<3-20	3000
GL1530	150-200	4-6	include	Alternative	1500	3000	<3-20	4000
GL1545	200-300	4-6	include	Alternative	1500	4500	<3-20	4500
GL1848	300-450	4-6	include	Alternative	1800	4800	<3-20	6000
GL2055	400-500	4-6	include	Alternative	2000	5500	<2-20	9000
GL2265	500-700	4-6	include	Alternative	2200	6500	<2-20	12000

Application&Successful Case - gold mining plant for alluvial gold, placer, gold sand- gold processing plant for river dirt gold with clay The basically main machines matching are as below according to different mining condition:
a). Washing trommel+Centrifugal concentrator+Shaking table;
b). Washing trommel+Jig machine(Jigger)+Shaking table;
c). Washing trommel+Sluice box with grass mat(carpet).

Packing & Delivery

Packing Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: 1. Nude packing. 2. Bundle packing. 3. Grass rope packing. 4. Water proof packing. 5. Wooden pallets packing. 6.Wooden box or carton box packing. Delivery Usually the equipments are delivered aboard by tracks,trains,or container(sea transportation). and some spare parts or very small goods also support to send by express, our company have built good relationships with large cargo agent and shipping companies which guarantee our products delivered safely and promptly.Sea transportation includes three delivery ways as below: 1.40HQ container: used for goods without overlength, overheight and overweight; 2.FR(Flat Rack) container:suitable for large equipments with overlength,overheight like ball mill,excavator,etc. 3.Bulk cargo shipment (LCL): used for some goods without loading in full container,normally it requires good packing with marks for safety and easy to be trackable. About Company Ganzhou Gelin Mining Machinery Co., Ltd is an over 30 years professional manufacturer and exporter of mining machinery for crushing, screening, grinding, flotation, separation etc. in China. Gelin have a complete service system which can provide customer full service in mining field and after sales service.By now, Gelin’s equipments and services are exported to over 60 countries,include America, Russia, India, Africa, Brazil, Chile,South Africa,Zambia etc. Sincerely welcome customers to visit our factory.

Our Services One Stop solution for beneficiation plant service: 1.Engineering consulting available,it makes clients have a comprehensive understanding of beneficiation plant,including mine value,useful elements,mineral processing technology,plant scale,essential equipments,etc.
2.Arrange mineral beneficiation experiment after received the material sample and beneficiation test report will be done after test.
3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection, project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings. 4.Manufacturing the necessary equipments and arrange the shipment.
5.Complete services for Installation and commissioning and technical training(operating training,common problem solving training).
After-sale Service Regularly visit customers to provide after- sale technical supports and to solve problems of beneficiation plant. For equipments supplied,we could provide one-year warranty and provide spare parts with preferential price in the long term and be responsible for any problems with the them. FAQ Q: Are you a trading company or a factory? A: We are a factory at Shicheng county with 110 workers,6 workshops covered 17,000㎡ and office covered 2,500㎡. Welcome to visit our factory at anytime.
Q: What is your payment terms?
A: By TT(Telegraphic Transfer), 100% or 40% Deposit before production and 60% balance payment will be paid off after sending product pictures and before loading from factory.

Q: How long is the guarantee period of your products? A: The guarantee period is 1-2 years, pls ask staff for more details. And we will supply lifelong technical support service and the spare parts at lowest cost.
Q: Is it possible to produce customized products ?
A: Yes, most of our products are produced as required.
Q: Is it possible to provide sample for your factory to do ore-dressing experiment?
A: Yes, engineering consulting is available and we’d like to arrange mineral beneficiation experiment after received your sample and provide the test report.
