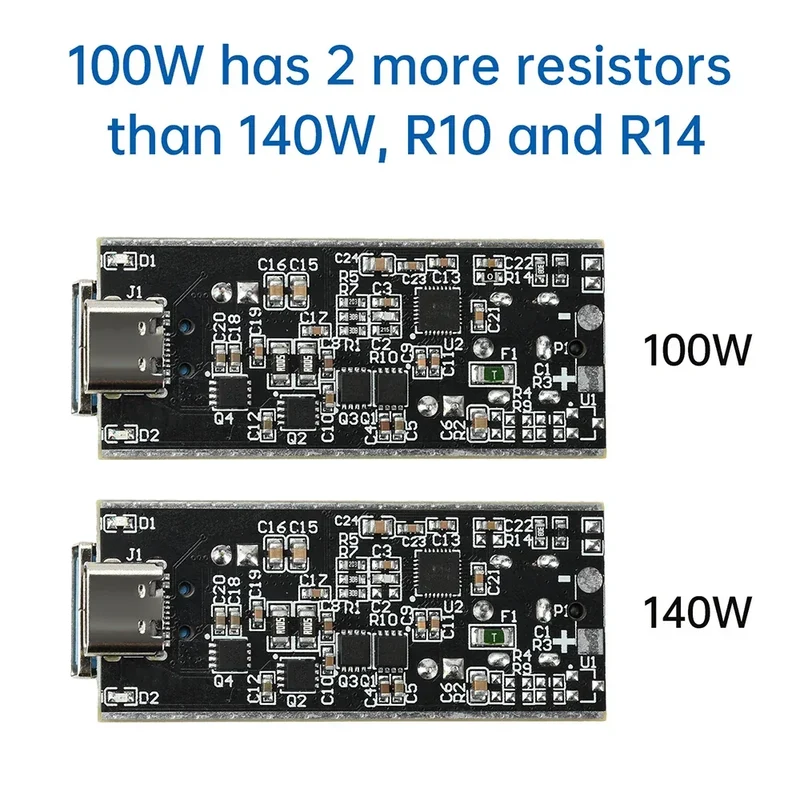

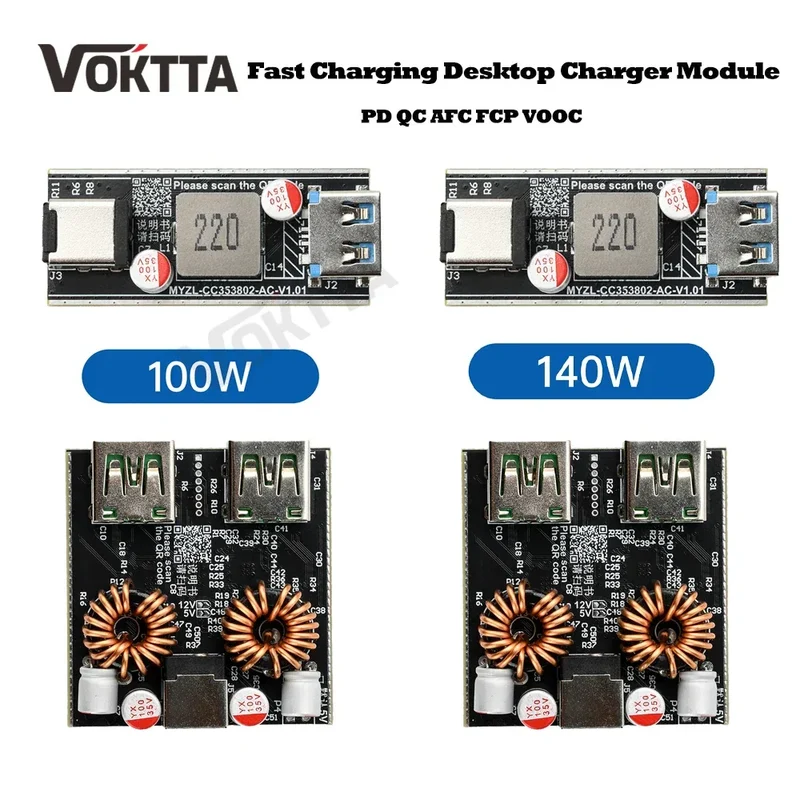

PD140W/PD100W Fast Charging Desktop Charger Module Full Protocol DIY Motherboard Single-Channel Dual-Channel Charger Module

SPECIFICATIONS

Brand Name: Voktta

Choice: yes

Condition: New

High-concerned chemical: None

Origin: Mainland China

Package: TQFP

Quantity: 1

Type: Voltage Regulator

is_customized: Yes

Features

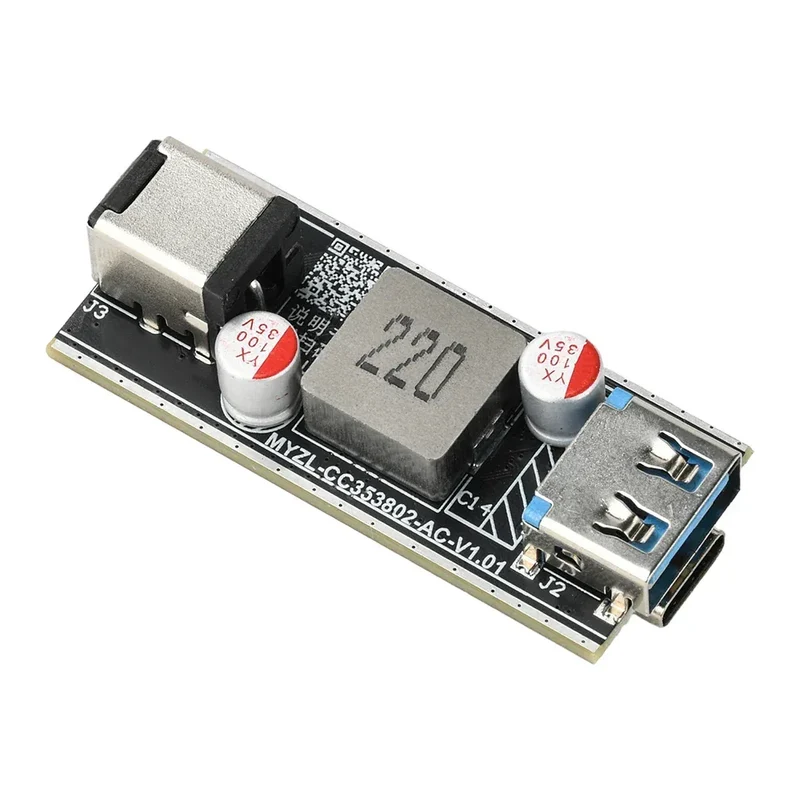

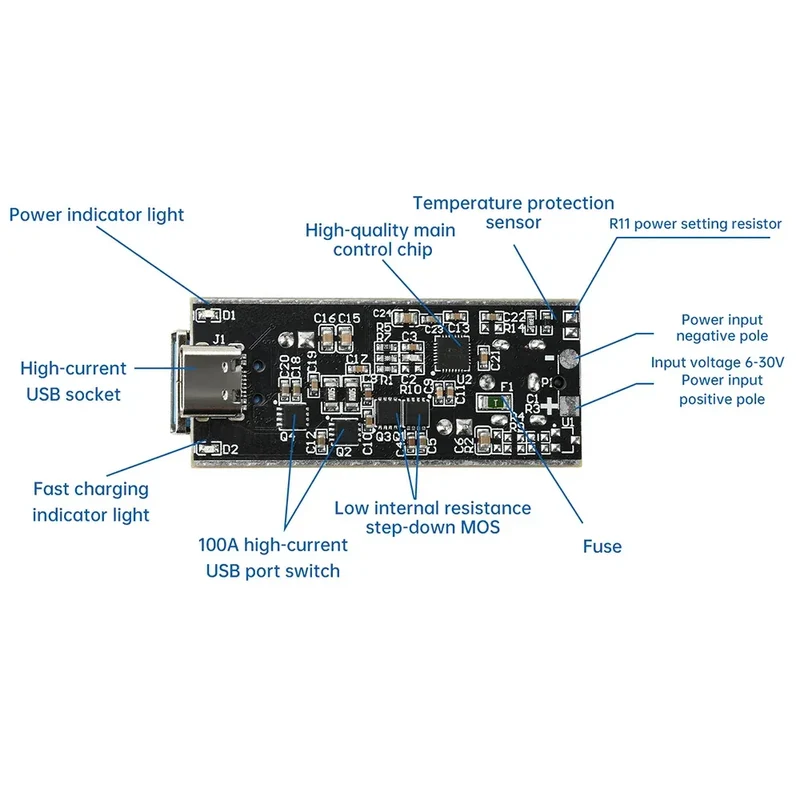

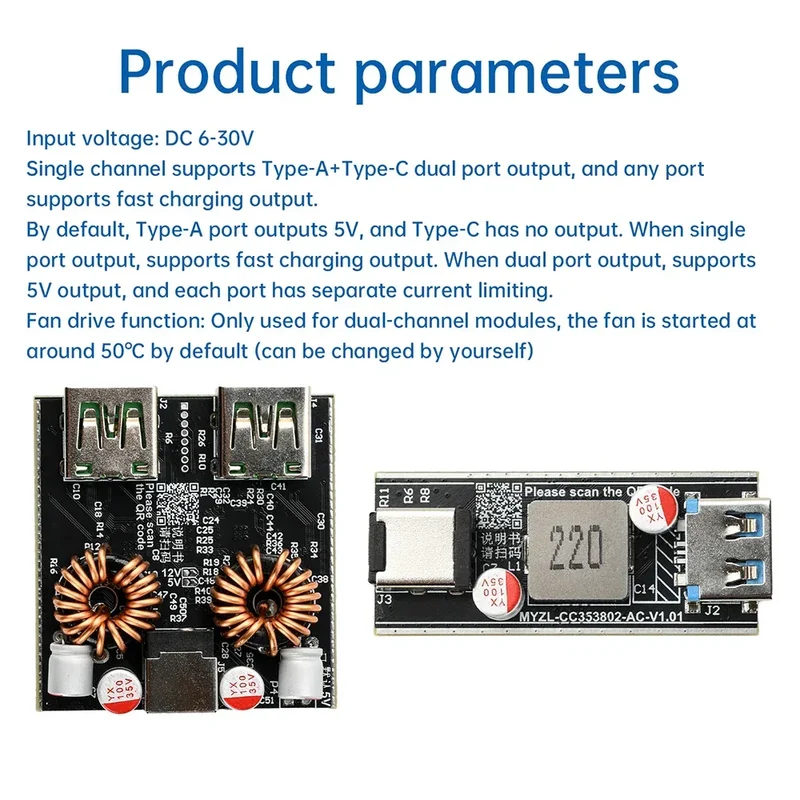

Input Voltage: DC 6-30V Single-port supports Type-A + Type-C dual-port output, with either port supporting fast charging output. By default, the Type-A port outputs 5V, while the Type-C port has no output. When using a single port, fast charging output is supported.
When using dual-port output, it supports 5V output, with each port having independent current limiting.

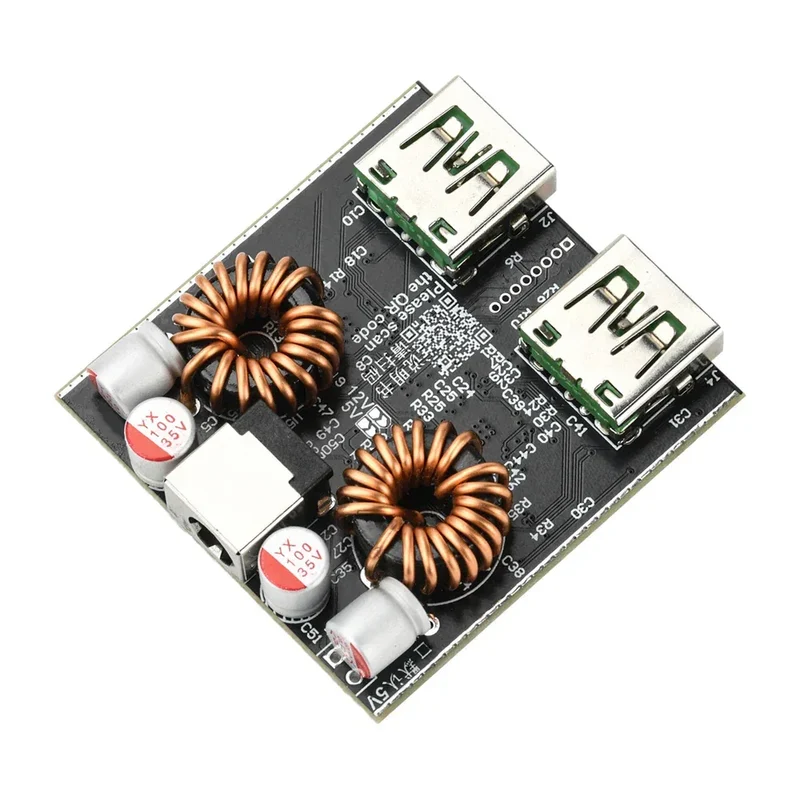

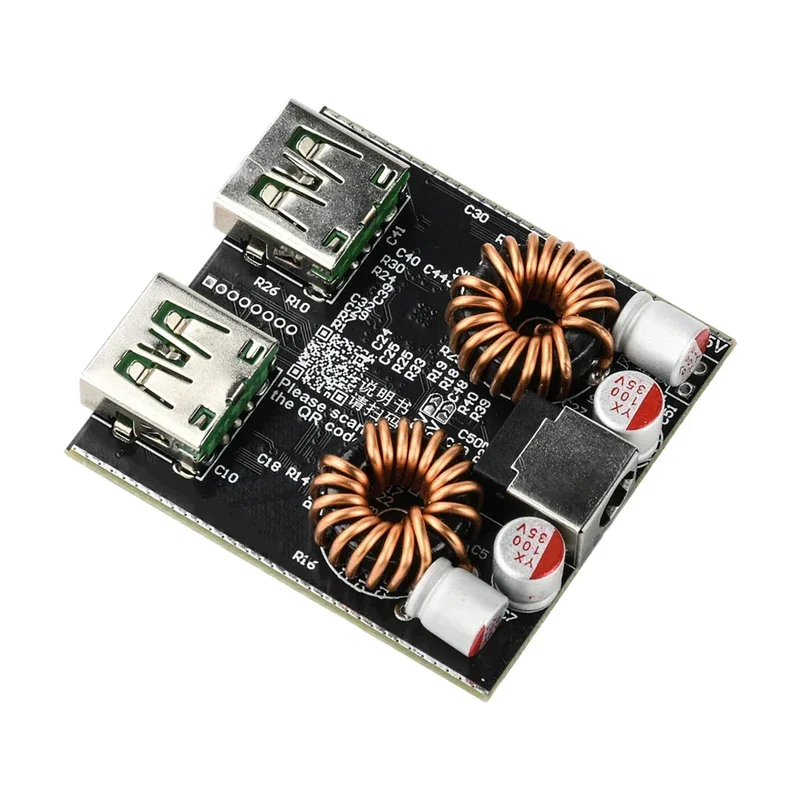

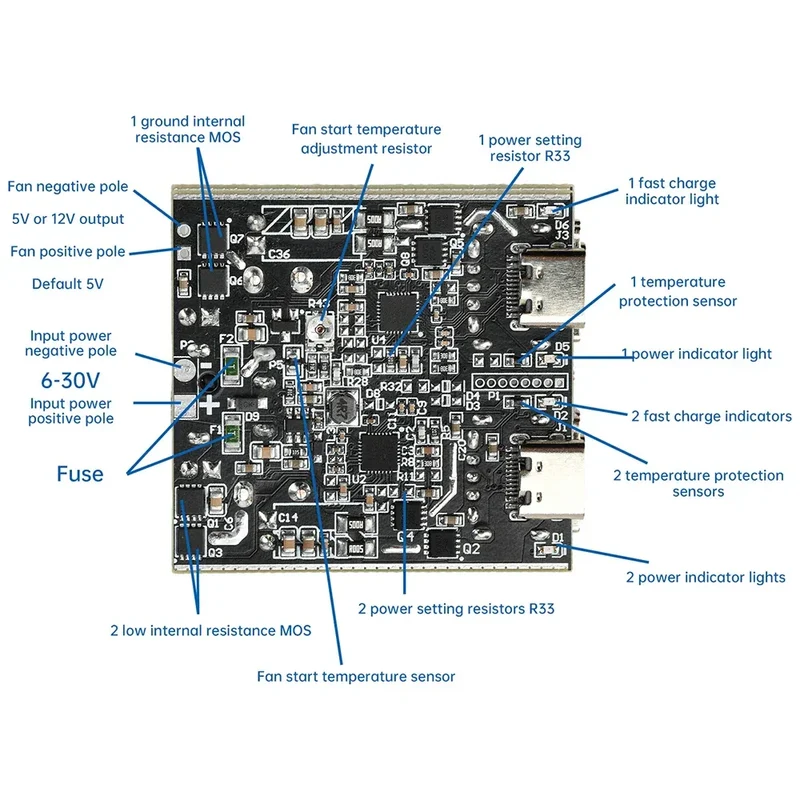

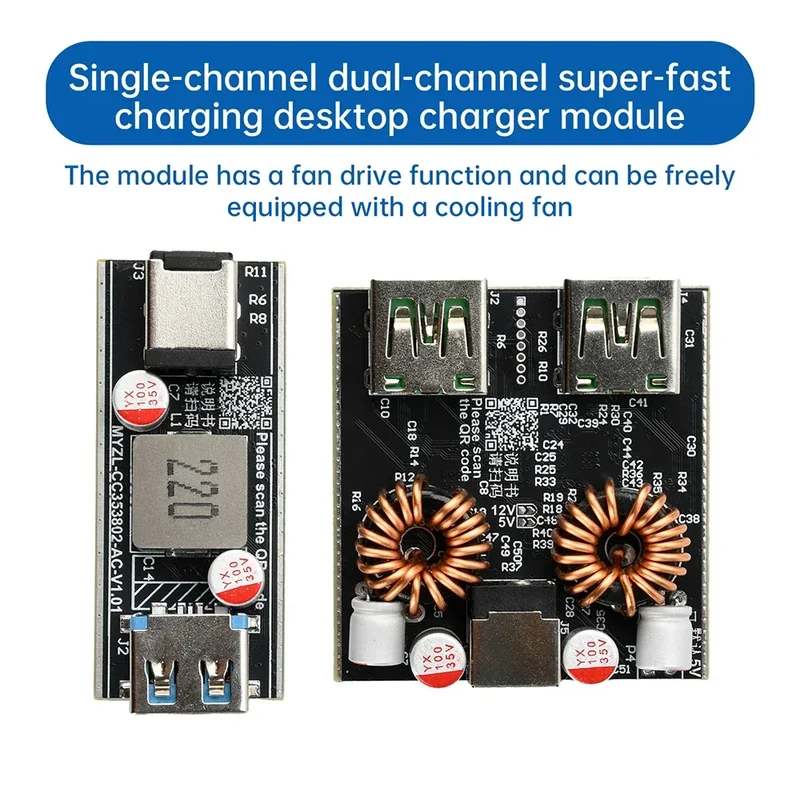

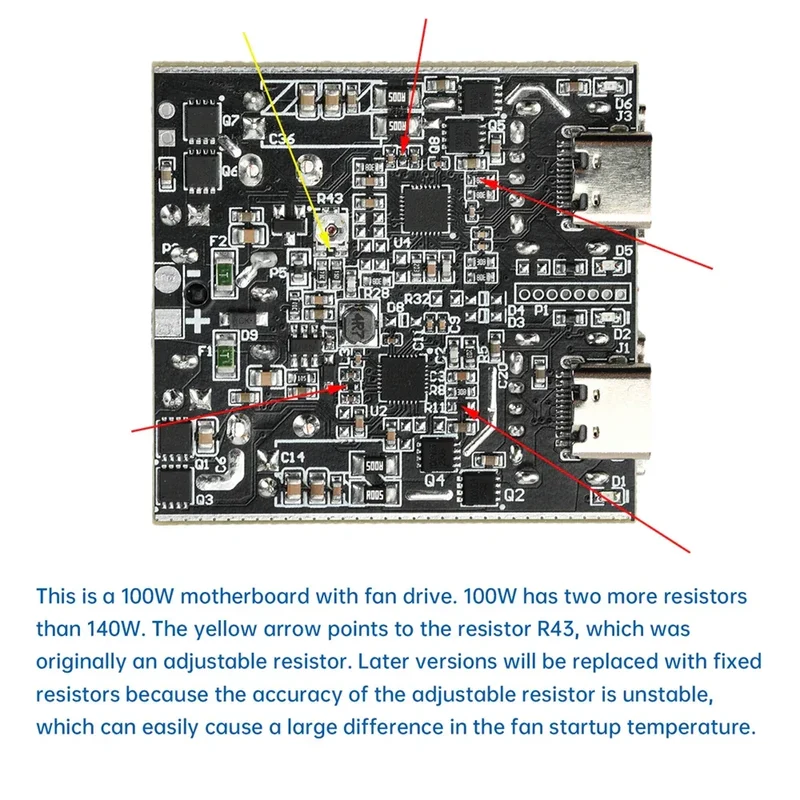

Fan drive function: Only available for dual-port modules, with the fan automatically starting at around 50°C (can be adjusted manually)

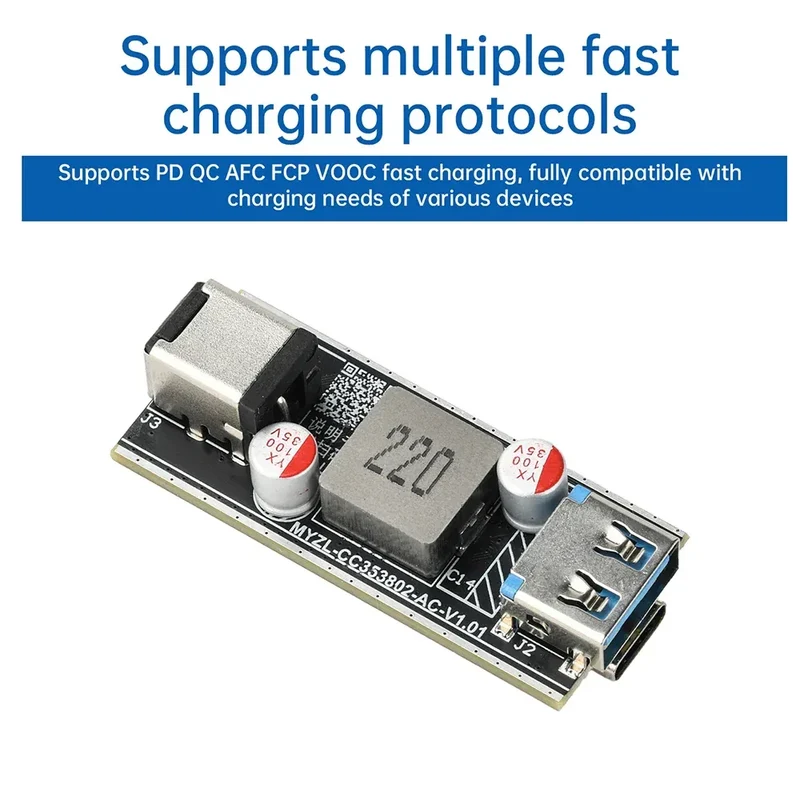

Fast charging protocols:

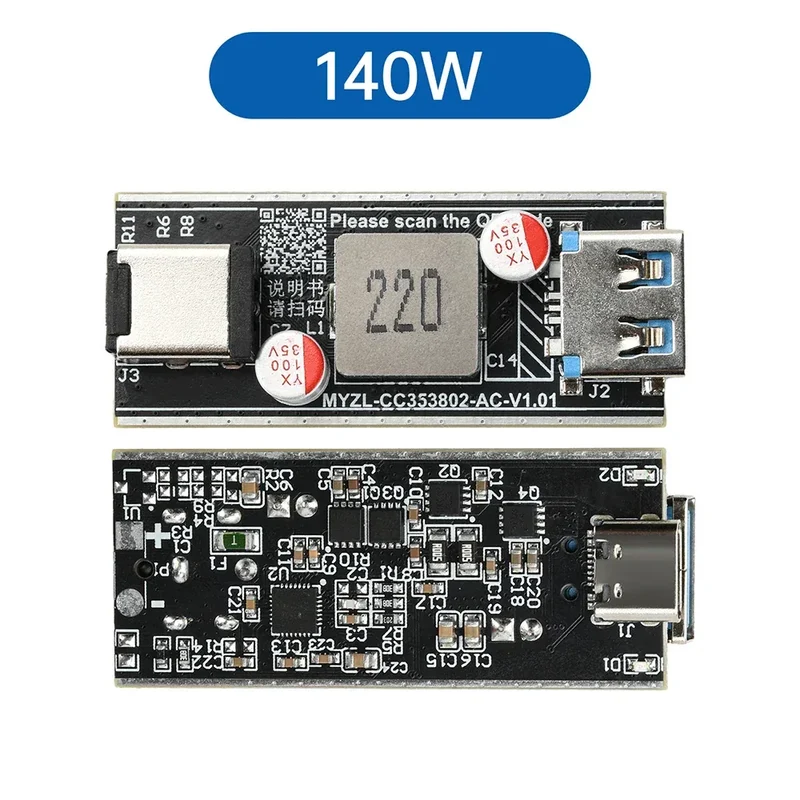

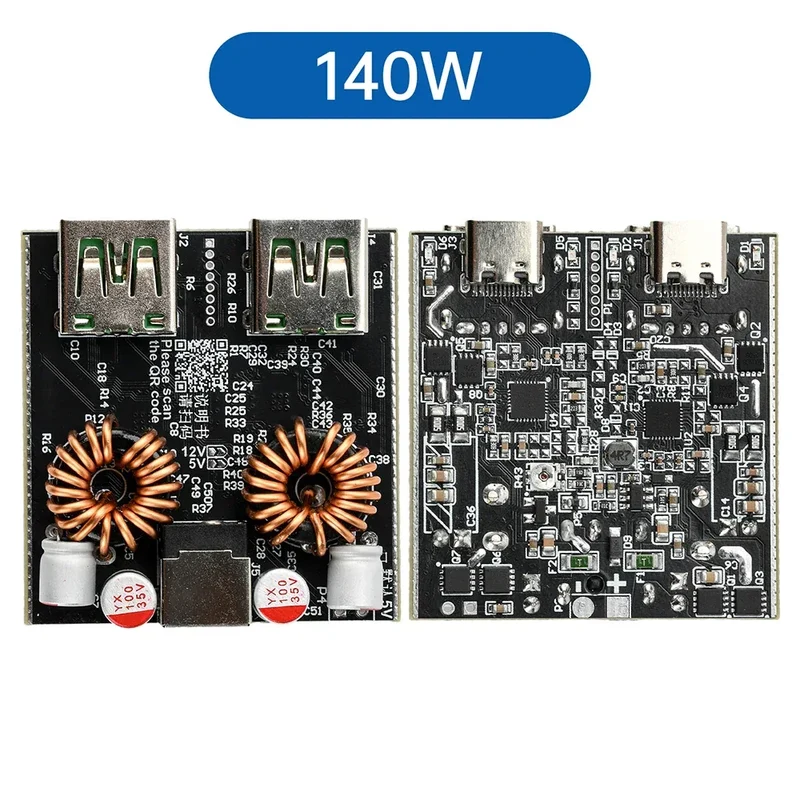

PPS/PD3.0/PD2.0: PPS output supports a maximum of 3.3–21V, while PD3.0/PD2.0 output supports a maximum of 5V/9V/12V/15V/20V, with a maximum output power of 140W (20V@7A). QC5/QC4+/QC3+/QC3.0/QC2.0: QC2.0 output supports 5V/9V/12V/20V, and QC3.0 output supports 3.6V to 20V.
AFC: Output supports 5V, 9V, and 12V.
FCP: Output supports 5V, 9V, and 12V.
SFCP: Output supports 5V, 9V, and 12V.
SCP: Supports low-voltage SCP and high-voltage SCP, with 低压SCP支持[email protected] and 4.5V@5A for low-voltage SCP, and 10V@2A for high-voltage SCP.
PE2.0/PE1.1: PE2.0 output supports 5V to 20V, PE1.1 output supports 5V/7V/9V/12V.
TFCP Fast Charging: Output supports four power curves: 25W, 33W, 45W, and 65W.
VOOC: VOOC1.0输出支持[email protected], VOOC4.0 output supports 5V@6A.
BC1.2 Function: Includes a USB Smart Adaptive Function Module, which not only supports BC1.2 functionality and Chinese smartphone charger standards but also seamlessly integrates with Apple and Samsung's high-current output recognition.

Package include
Fast Charging Module x1
