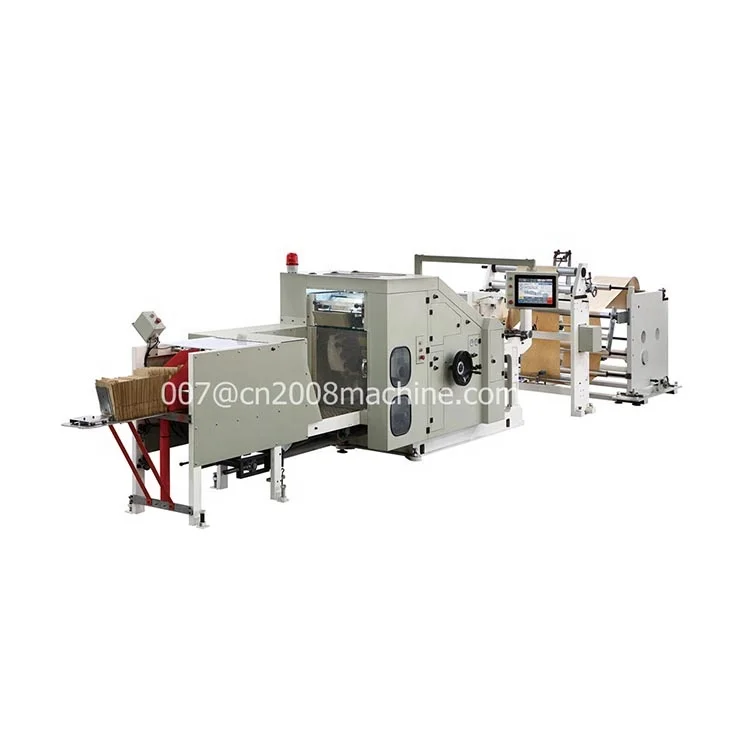

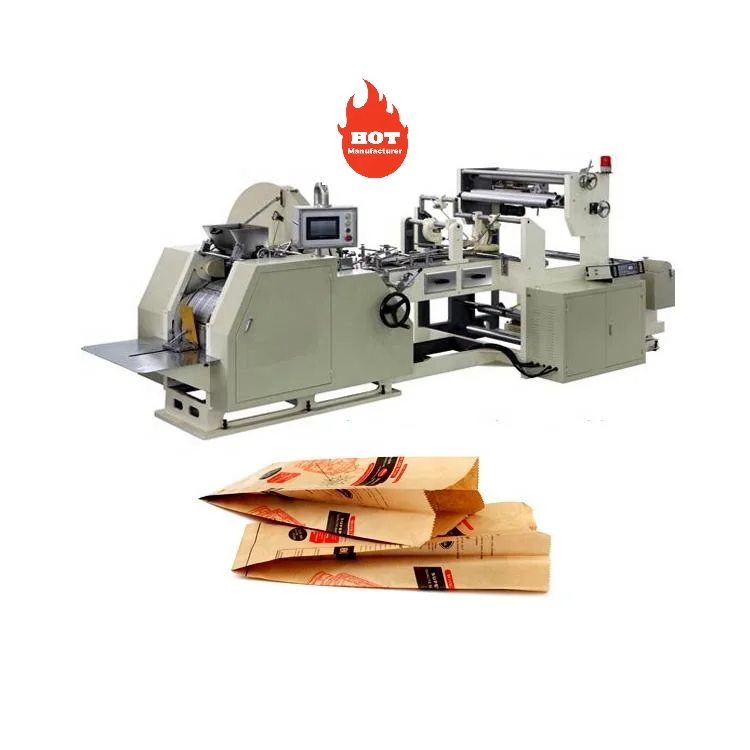

Paper Bag Making Machine Fully Automatic Food Brown Craft Paper Bag Machine

Paper weight	40-80gsm
bag length	160-450mm
bag width	70-260mm
speed	100-300pcs/min
power	10kw
total weight	2500kg
machine dimension	4000*2100*1900mm

1)Paper bag making machine part:
Max bag size: L*W 420*260mm
Min bag size: L*W 160*70mm
Paper weight: 40-80 gsm
Performance and Characteristics:
Suited for 40-80gsm paper.
controls bag length through the human-machine interface.
PLC system for calculating parameters.
Equipped with an accurate photocell system.
Operating together with printing machine

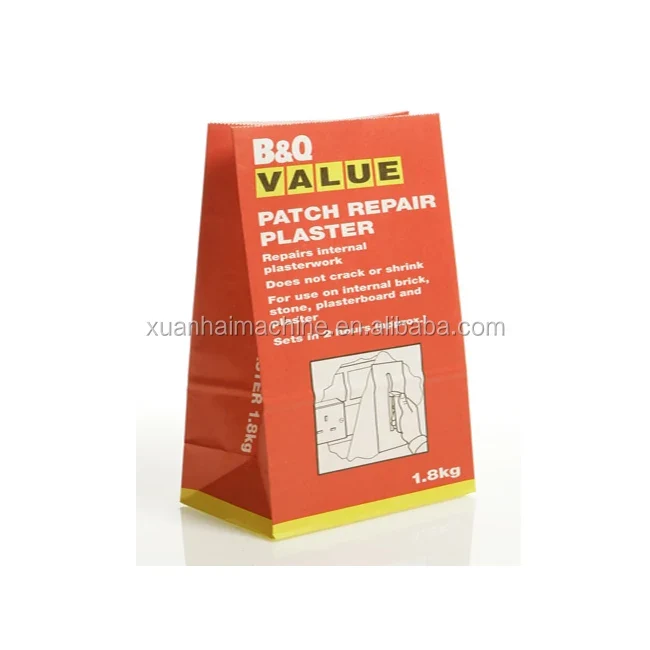

Bags can make:

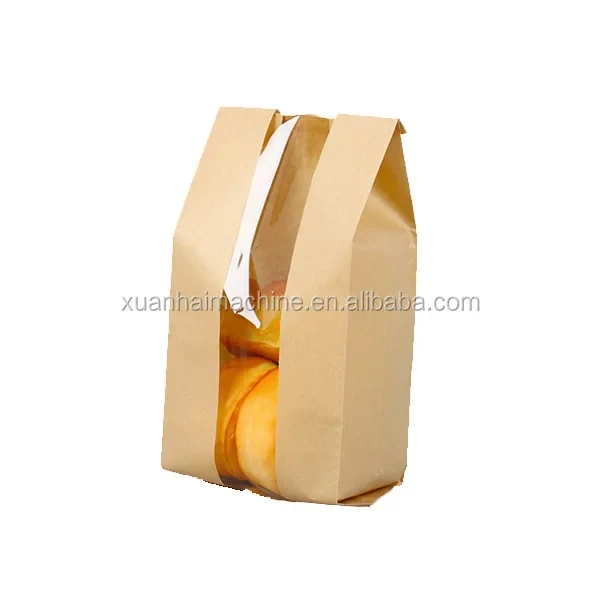

Sharp Bottom food bags like bread bags, KFC bags and Mcdonald's bags with or without pp window

Advantage:
Suited for 40-80gsm paper.
controls bag length through the human-machine interface.
PLC system for calculating parameters.
Equipped with an accurate photocell system.

Device:
Japanese YASKAWA Servo motor (two sets)
Taiwan PLC
Taiwan Touch Screen
Germany Photo-cell (two pieces)
Automatic Counter
Automatic Tension controller
One set Frequency converter(inverter)
Pneumatic shaft
Magnetic powder brake

Features:
This machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag
Easy operation, low power consumption, high efficiency.
It is an ideal machine for producing food bags like bread bags, KFC bags and Mcdonald's bags.

More Detail:
YT2800 two colors flexographic printing machine part:
Model No. YT-2800
Max.Web Width 800mm
Max.Effective Printing Width 760mm
Range of Repeat Printing Length 191~914mm
Max.Diameter of Roll Material 1000mm
Printing Speed 5-50m/min
Plate Thickness(Both side adhesive tape included) 2.38mm
Total Power 8kw
Weight of Machine 1800kg
Machine Dimension 2300×1700×2500mm

YT4800 four colors flexographic printing machine part:
Model No. YT-4800
Max.Web Width 800mm
Max.Effective Printing Width 760mm
Range of Repeat Printing Length 191~914mm
Max.Diameter of Roll Material 1000mm
Printing Speed 5-50m/min
Plate Thickness(Both side adhesive tape included) 2.38mm
Total Power 12.5kw
Weight of Machine 3500kg
Machine Dimension 4200*1800*2400mm
