OVA Gps Compass International Shipping Marine Ship Compass Satellite Direction Compass

Product Description

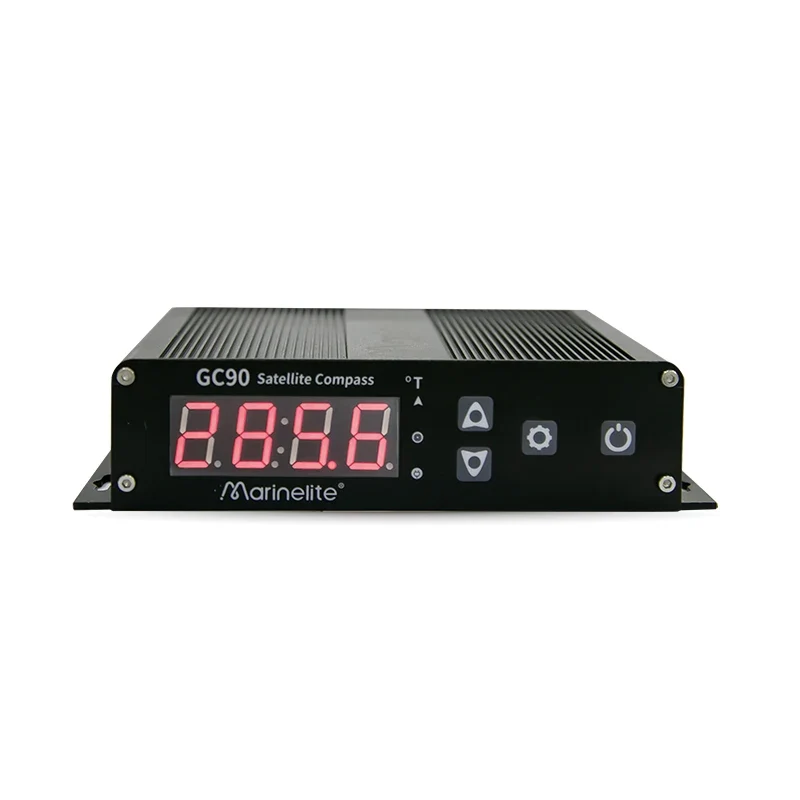

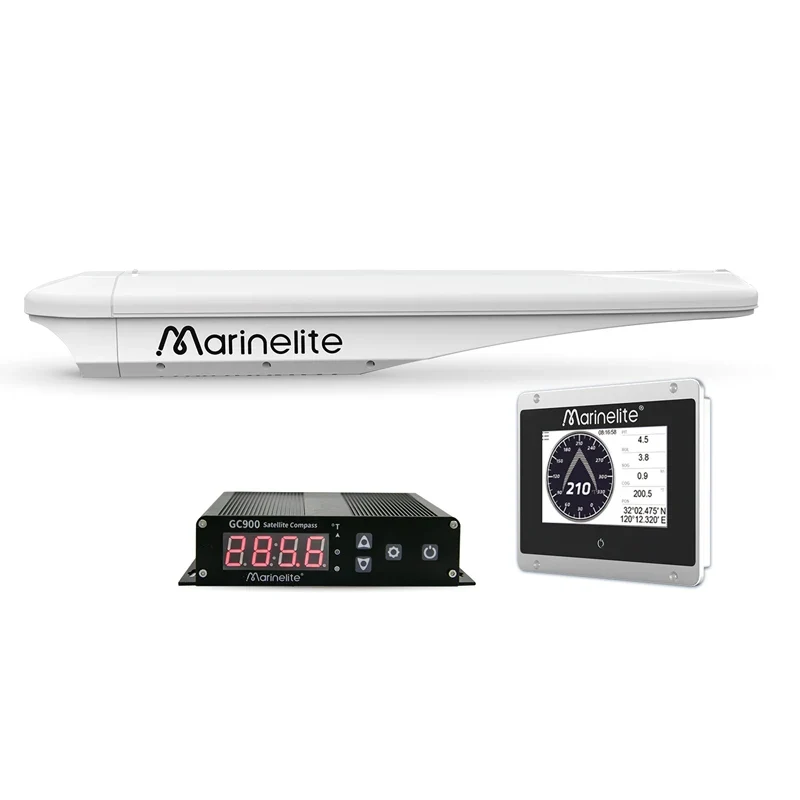

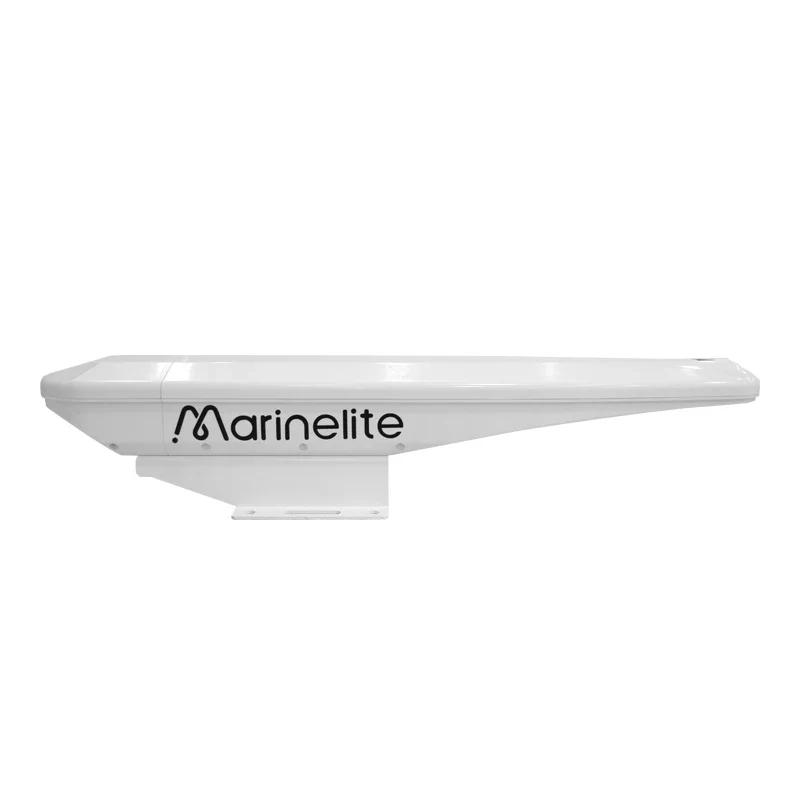

GPS COMPASS

GNSS-powered high accuracy compass
High precision and accurate heading of 0.4°
Perfect for Radar, ECDIS, AIS, Doppler Sonar and Autopilots
Features:
SC90 provides a high system accuracy for the heading of the ship, 0.4°
Provides highly accurate heading data for Autopilot, Radar, ARPA, Scanning Sonar, Current Indicator, Chart Plotter, ECDIS and Autopilot.

Front-loaded carrier phase decoding technology, more accurate orientationFront-loaded carrier phase decoding technology, more accurate orientation; Multi-star system, with faster directional speedMulti-star system, with faster directional speed; Advanced speed and course filtering technology to make the data more stable; Built-in gyro compensation system has better performance; Built-in high-precision inertial navigation module, when the satellite navigation signal is weak or temporarily lost, the heading can keep 1min of compensation output without interruption; It has the characteristics of fast start, signal recapture, heading update up to 20 times per second, and can operate at a continuous turning rate of up to 90° per second; The display instrument is light-weight design, partial to installation, and multiple display modes are available; Compared with gyro compass, basically no maintenance; Multi-channel standard NMEA0183 output, which can be connected to multiple different navigation systems such as radar and AIS.

Specification

General	GC90
Frequency	B1, L1, G1

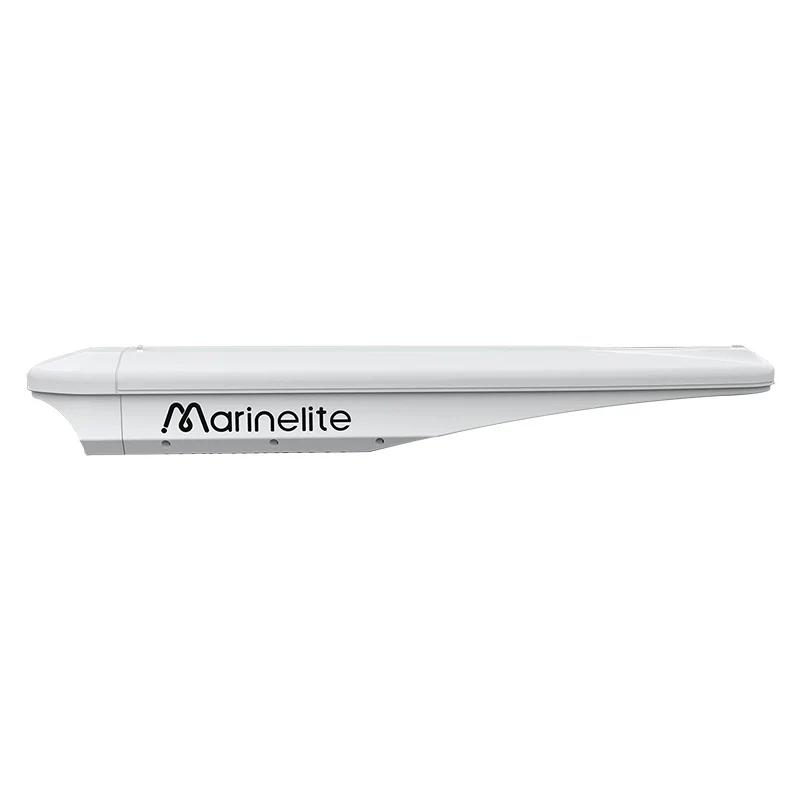

Baseline length	60cm
Heading Accuracy	0.4°RMS
Attitude accuracy	Pitch/ Roll: 0.4° RMS
Cold start	Less than 2 min
Position Accuracy	2.5m
First Positioning time	Cold start: ≤32s Hot start: ≤1s Recapture: ≤1s
Speed measurement accuracy	GPS+BDS : 0.1m/s

Interface
Number of ports	NMEA data interface GNSS output ×2, baud rate 9600bps； HDT output ×2, the baud rate can be selected by yourself, the default is 4800bps；  HDT and GNSS output × 2, the baud rate can be selected by yourself, the default is 38400bps；  AD-10 ×1  Display unit ×1 CAN preset ×1
Data sentences	RMC, VTG, GGA, GSA, GSV, GLL, ZDA, GST, TXT, GBS, GNS, GRS, HDT, ROT

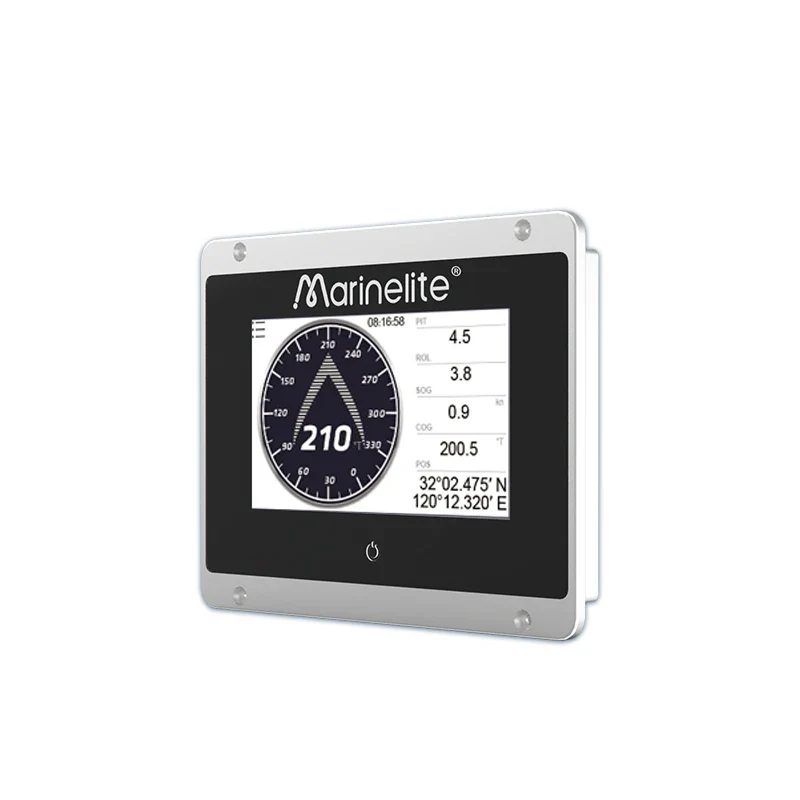

Display unit (Optional)
Screen	5"
Resolution	854*480
Display mode	Compass + data, heading mode, positioning data mode, ROT mode

Power Supply	11～35V
Temperature	-30℃～+70℃ Antenna unit IP56
Degree of protection	Junction box IP20
Vibration	IEC60945
