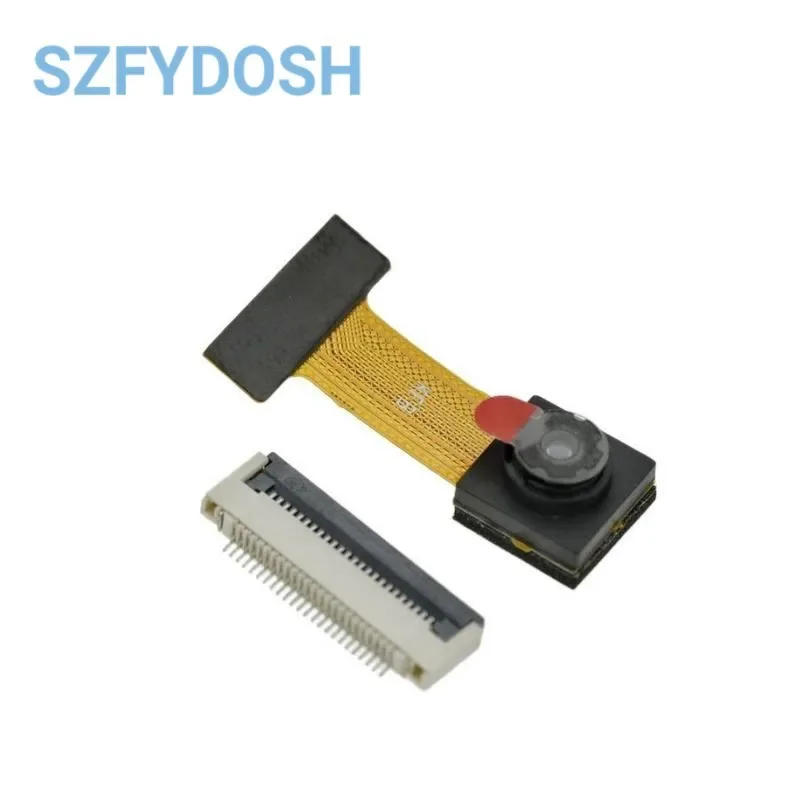

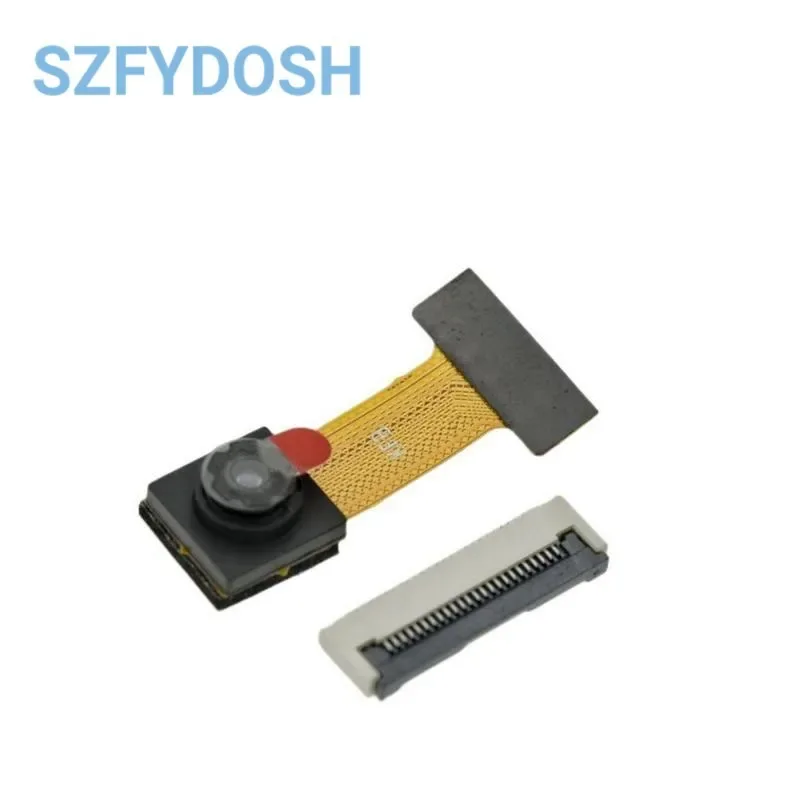

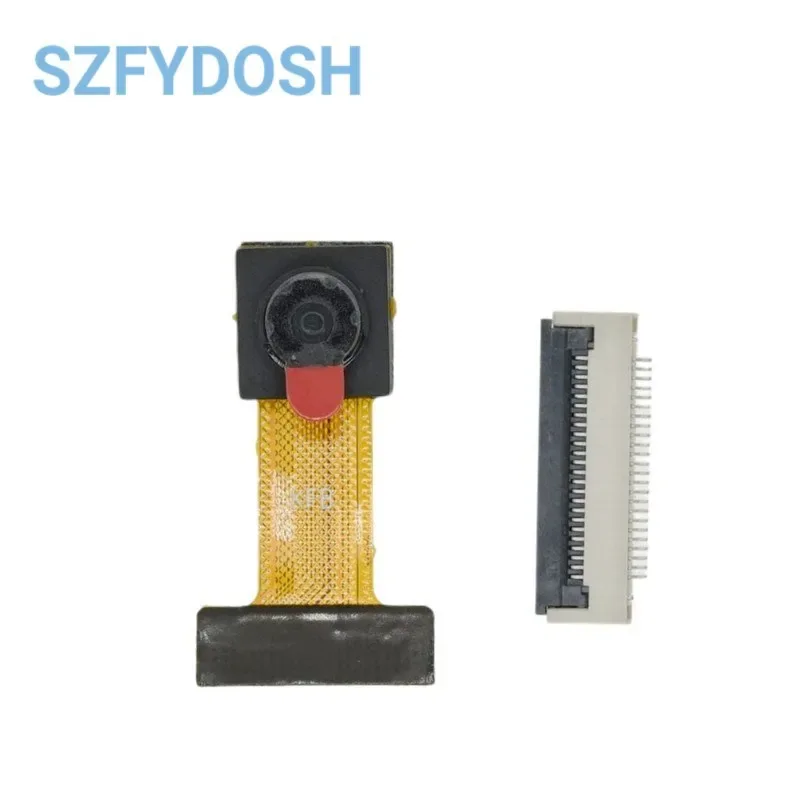

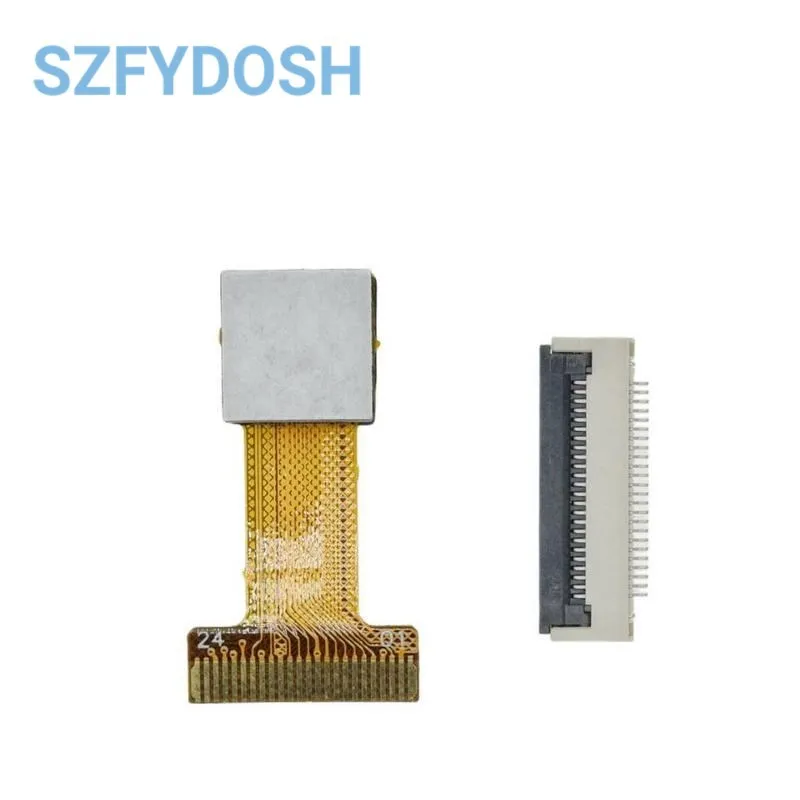

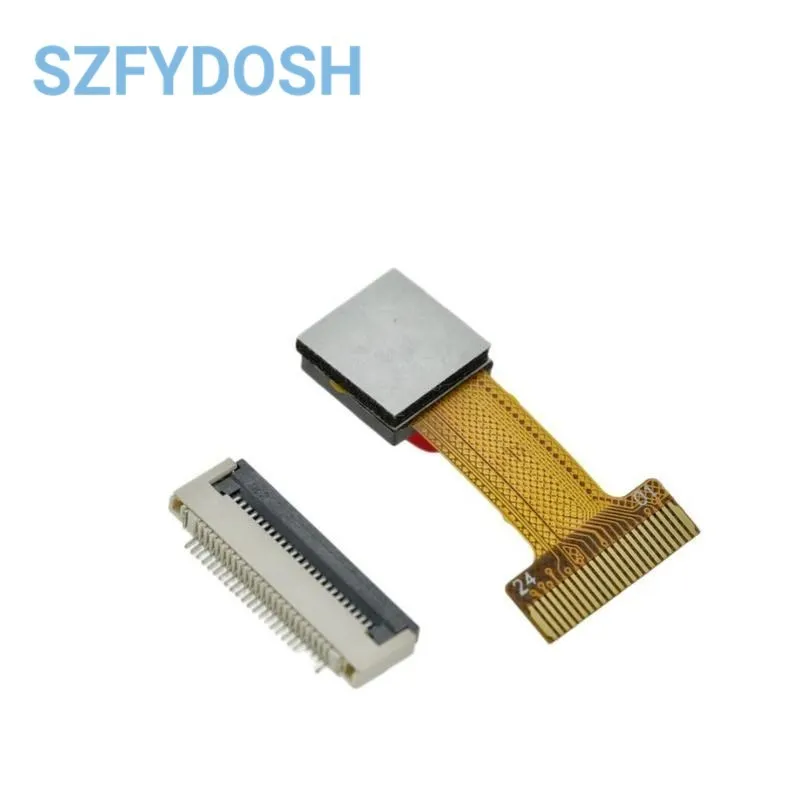

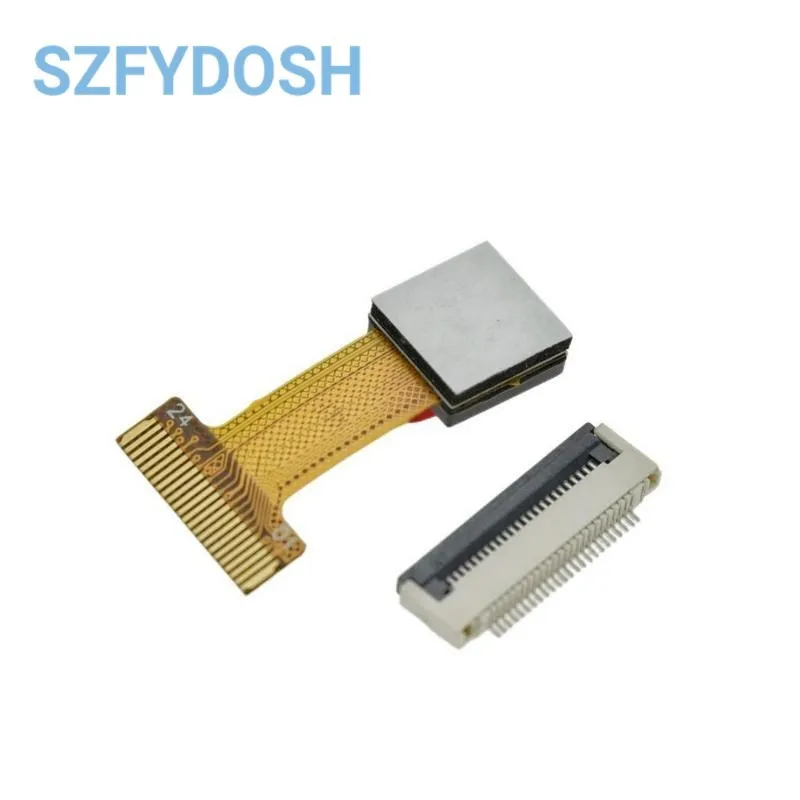

OV7670 camera module 62 degree 24P 30W pixel OV7670 camera module send pin socket

SPECIFICATIONS

Application: Computer

Brand Name: SZFYDOSH

Choice: yes

Condition: New

Dissipation Power: n/a

Model Number: OV7670

Operating Temperature: n/a

Origin: Mainland China

Package: Other

Supply Voltage: n/a

Type: Module

is_customized: Yes

semi_Choice: yes

30W pixel OV7670 camera module Send super good quality seat diy

Photosensitive array 640X480
IO voltage 2.5V to 3.0V (internal LDO supplies 1.8V to the core)
Power consumption 60mW/15fpsVGAYUV
Sleep
Temperature operation -30 ° C to 70 ° C
Stable operation 0 ° C to 50 ° C
Output format (8-bit) ? YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data
Optical size 1/6"
Field of view 67°
Maximum conversion rate 30fps VGA
Sensitivity 1.3V/(Lux-sec)
Signal to noise ratio 46 dB
Dynamic range 52 dB
Browse mode line by line
Electronic exposure 1 line to 510 lines
Pixel area 3.6 μm x 3.6 μm
Dark current 12 mV/s at 60 °C
