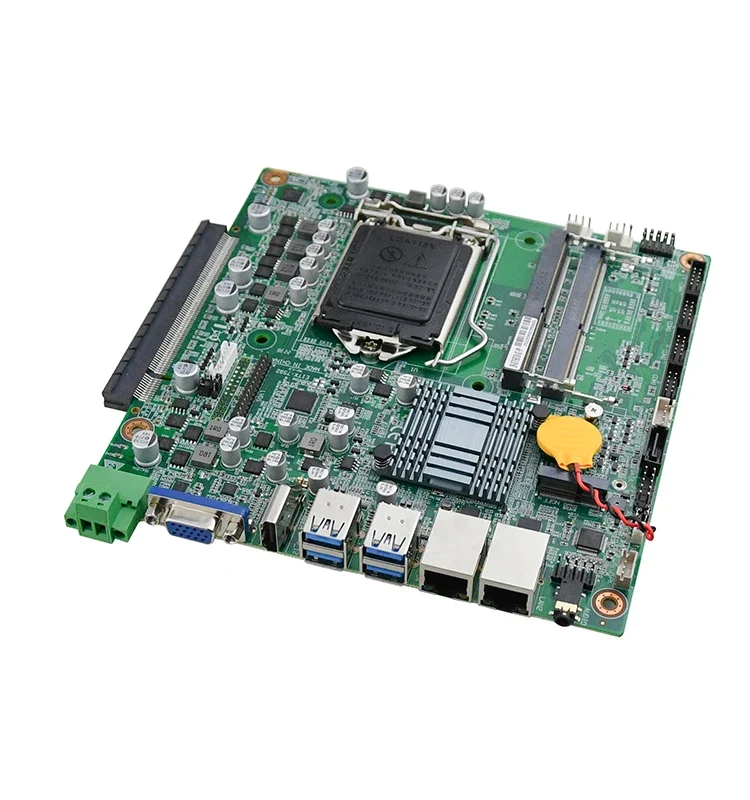

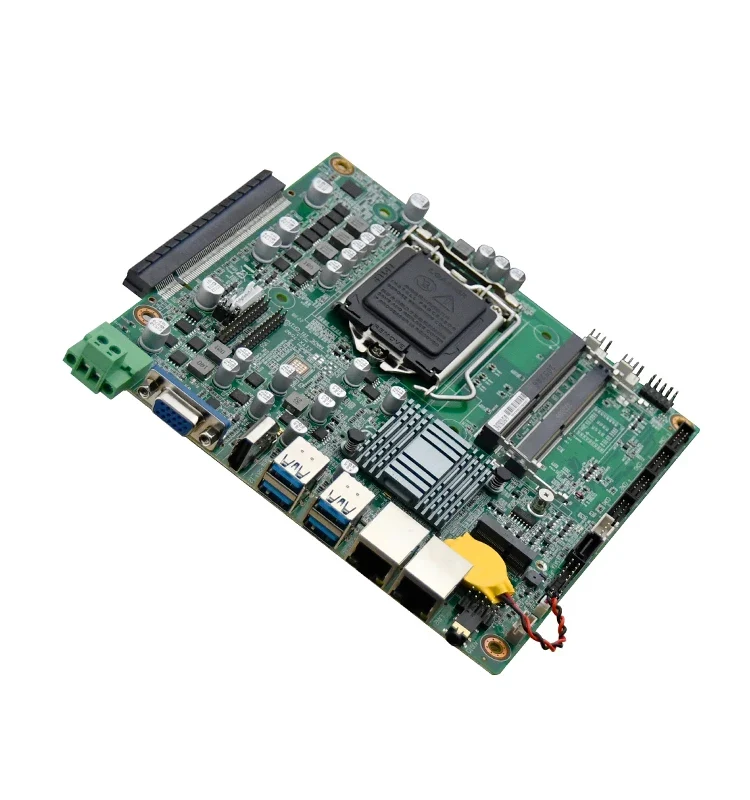

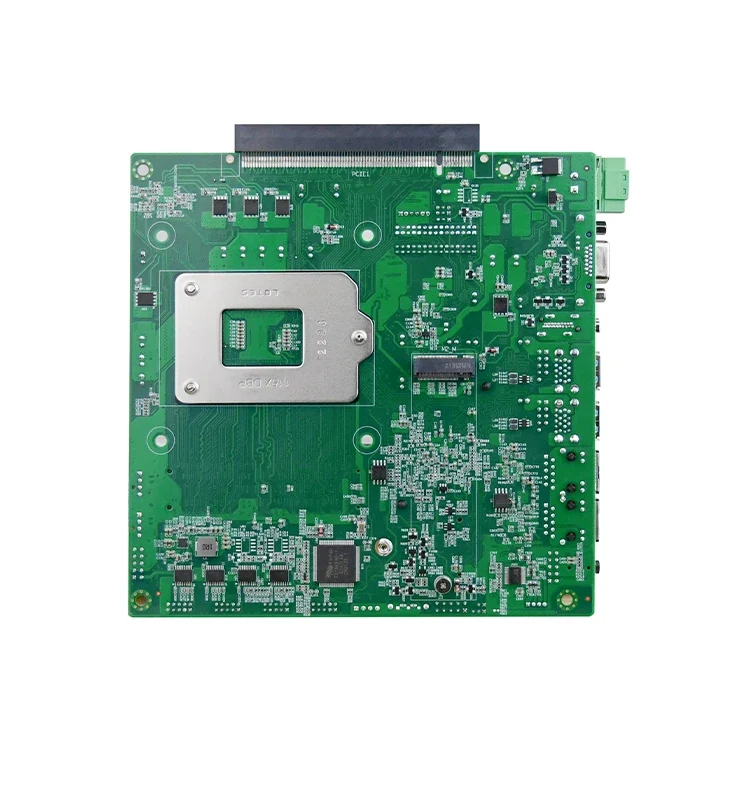

New Mini ITX Motherboard LGA1151 Intel 8th 9th Gen I7 I5 I3 DDR4 PCIEX16 Double Embedded Server Industrial X86

SPECIFICATIONS

application: Server/Workstation

chipset: Intel H310

chipset manufacturer: Intel

cpu type: Core I7/Core I5/Core I3/Pentium/Celeron

form factor: Mini-ITX

graphics card type: Integrated-need CPU support

hard drive interface: SATA

item condition: New

maximum ram capacity: 32 GB

memory bank: 2 DDR4 DIMM

memory channel: Double

memory type: DDR4

package: Yes

place of origin: Guangdong, China

ports: SATA,VGA ,PCI-Express X16,USB 2.0,PS2,Usb3.1,HDMI

products status: New

socket type: LGA 1151

with cpu: No

Company Profile Product Paramenters

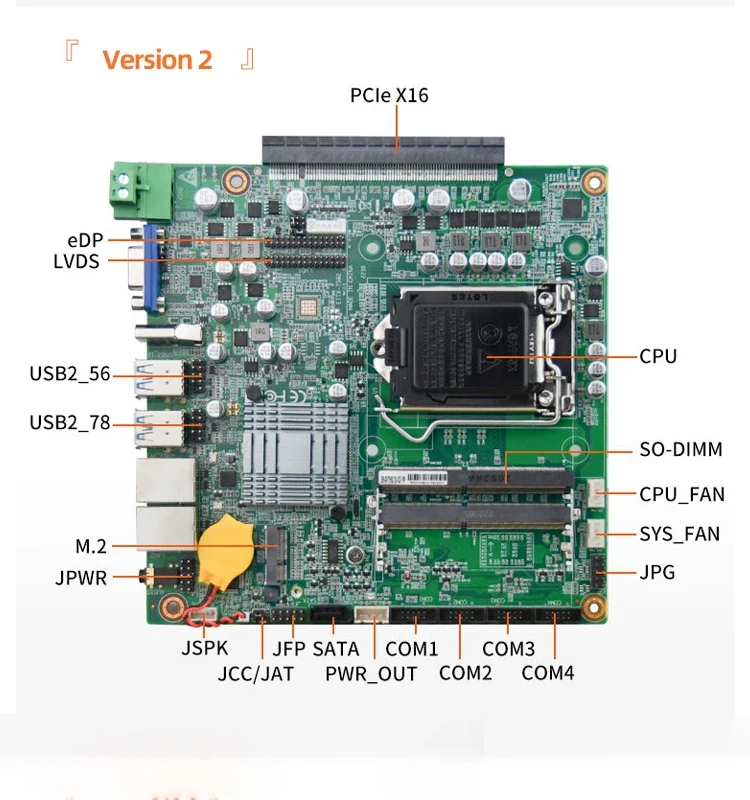

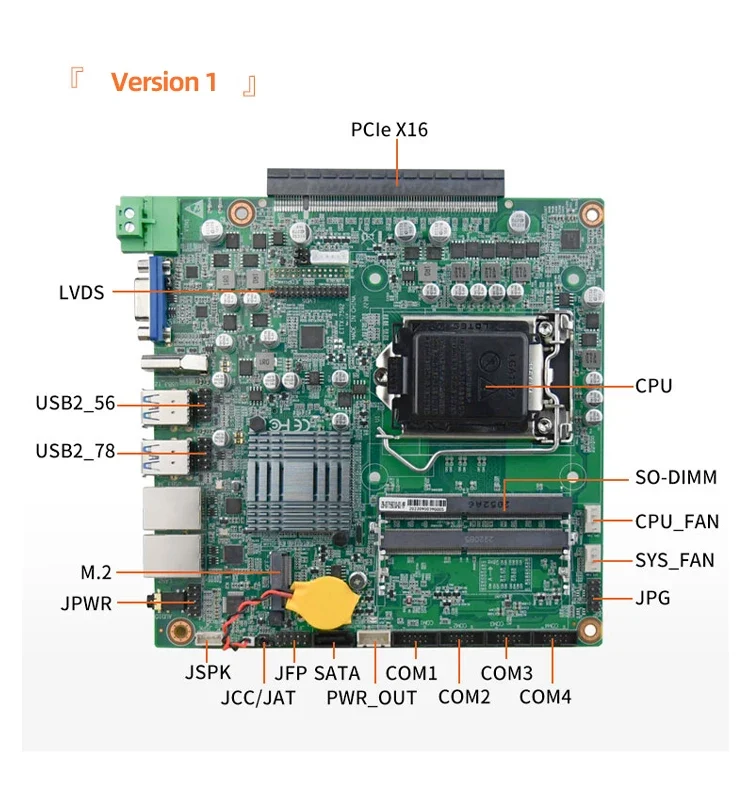

Product model	MINl-TX Embedded Motherboard
CPU	Intel 8th and 9th Generation CoreTM i3/i5/i7 (with low-power CPU),Pentium, Celeron CPU, LGA1151
Chipset	Intel H310, TDP 6W
Memory	2 S0-DIMM, DDR4-2400/2666, up to 32 GB
BIOS	AMI EF BIOS
super l/o	Fintek F81866AD
Ethernet	2 LAN (1xintel1225-V/i226-V+1xintel 1219-V)
Graphic control	intel HD Graphics
Display interface	1 HDMl: HDMl supports a maximum resolution of 4096* 2160@24HZ1 VGA: VGA supports a maximum resolution of 1920x1200@60HZ 1 LVDS/eDP:  The maximum resolution supported by LvDS is 1920x1200@60Hz Supports single, dual 18bits, and 24bits EDP supports a maximum resolution of 4096* 2160@60Hz
Storage interface	Support independent 3D graphics
audio frequency	Realtek ALC662 HD AudioLine out/MlC in (rear 10 panel, 2-in-1 quad core) Built in Line out2/Line in audio pins 1x4Pin 2.5W amplifier function
GPIO	8-bit programmable digital l/0 pin
Expansion interface	2 M.2 interfaces (1 supports NVMe protocol M.2 hard drive, 1 supports WiFl/BT funcion)1 standard PClE x16 slot (clamp type crossbar)
Fan interface	1x 4Pin CPU fan interface, 1x 4Pin SYs fan interface
watchdog	255 level timer, resettable
Power type	1x2 green phoenix terminal+12V DC input
temperature	Working temperature: -10 °C~60 °CStorage temperature: -40°C~80 °C
humidity	5%~95% relative humidity,no condensation

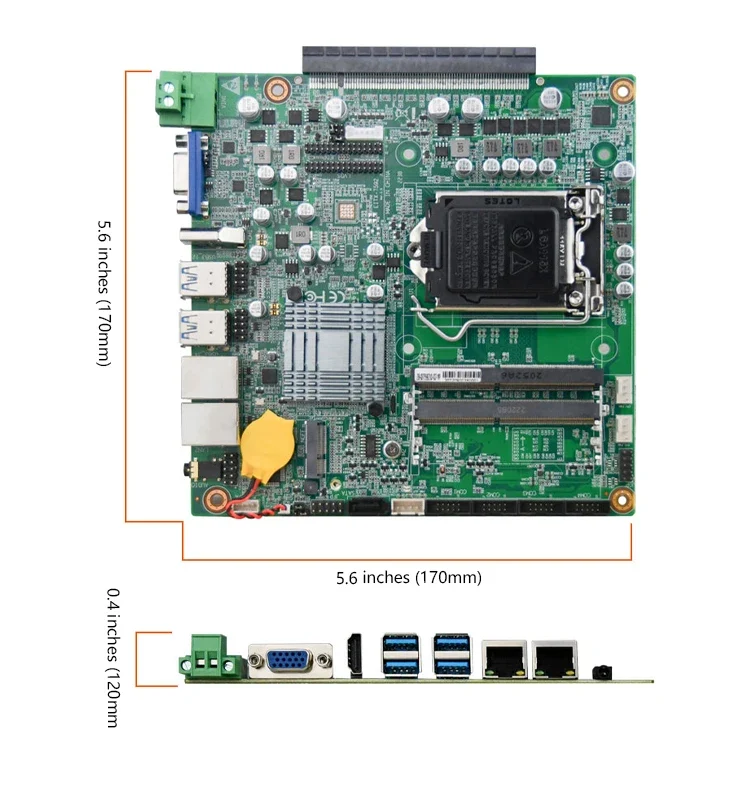

size	170mmx170mm

FAQ

Q1: What is the Warranty for your pc? A1: For the pc, we have 1 years warranty.
Q2: Are you a manufacturer?
A2: Yes, we are ODM and OEM and we have our own factory and professional engineers to meet your any requirements. Welcome to visit our factory.
Q3:What kind of payment do you support?
A3: T/T West union paypal Q4: Can we get support if we have our own market position?
A4:Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q5: Is there any cheap shipping cost to import to our country?
A5:Cheaper Express: Postal parcel for small samples Faster Express: DHL TNT UPS by air for samples and middle order Reasonable Express: delivery by sea for large order
Q6: How many days will samples be finished? And how about the mass production?
A6: Generally 3-5Working days after payment for samples. The leading time of mass production will depend on the quantity.
