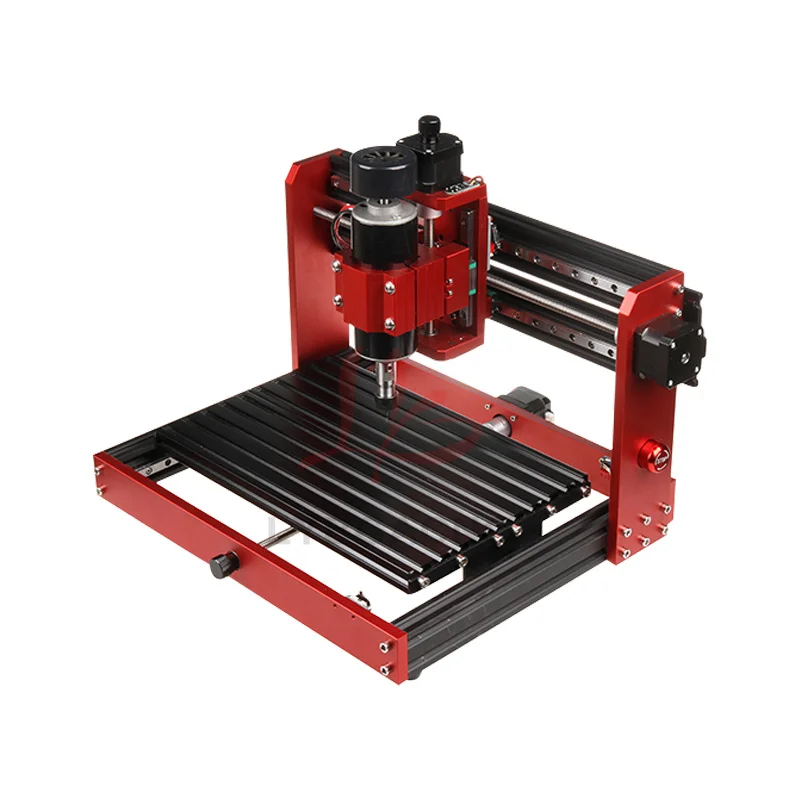

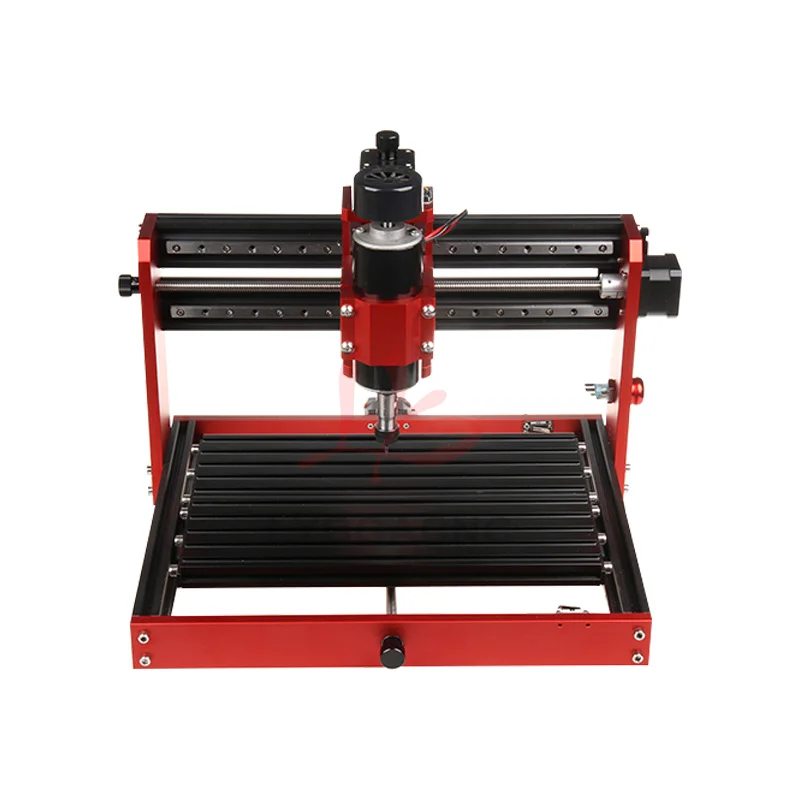

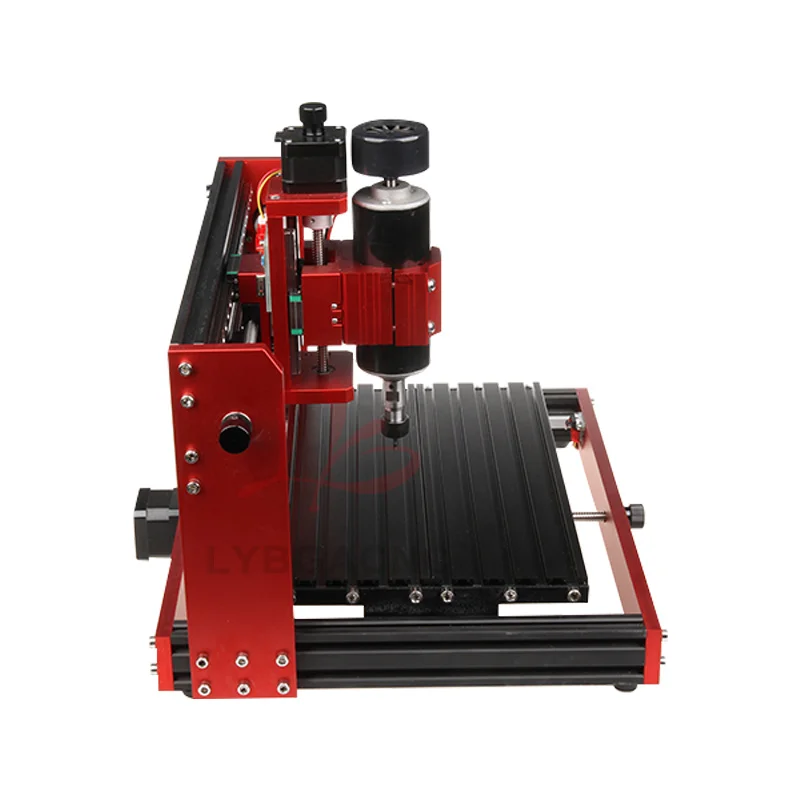

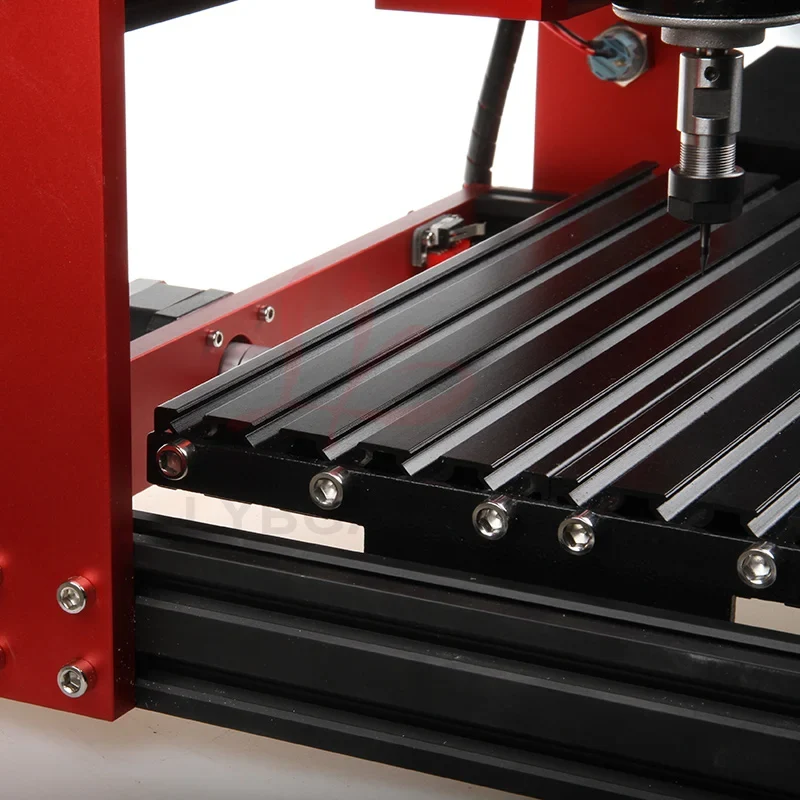

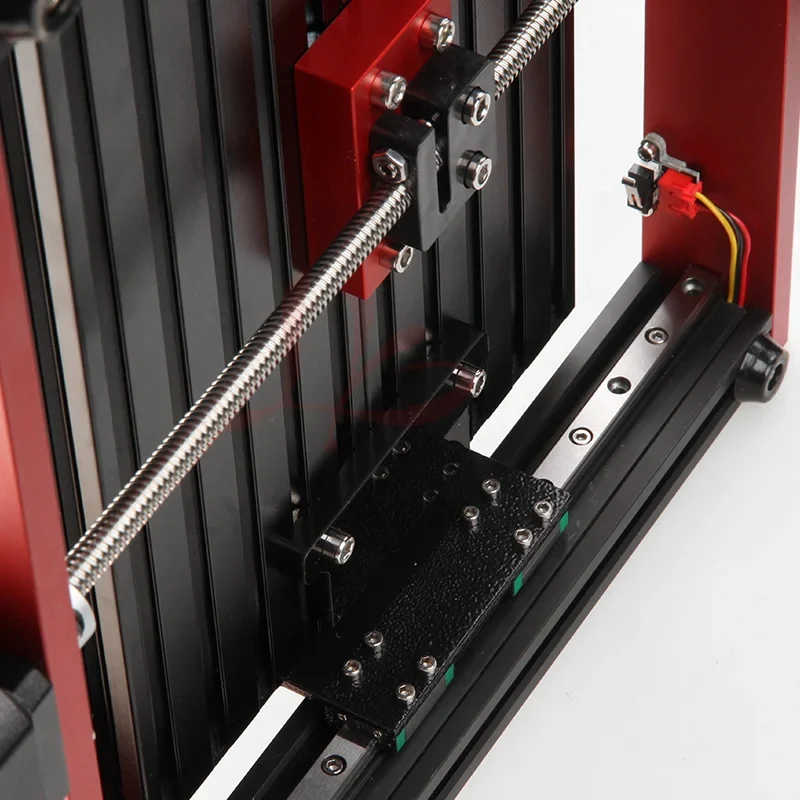

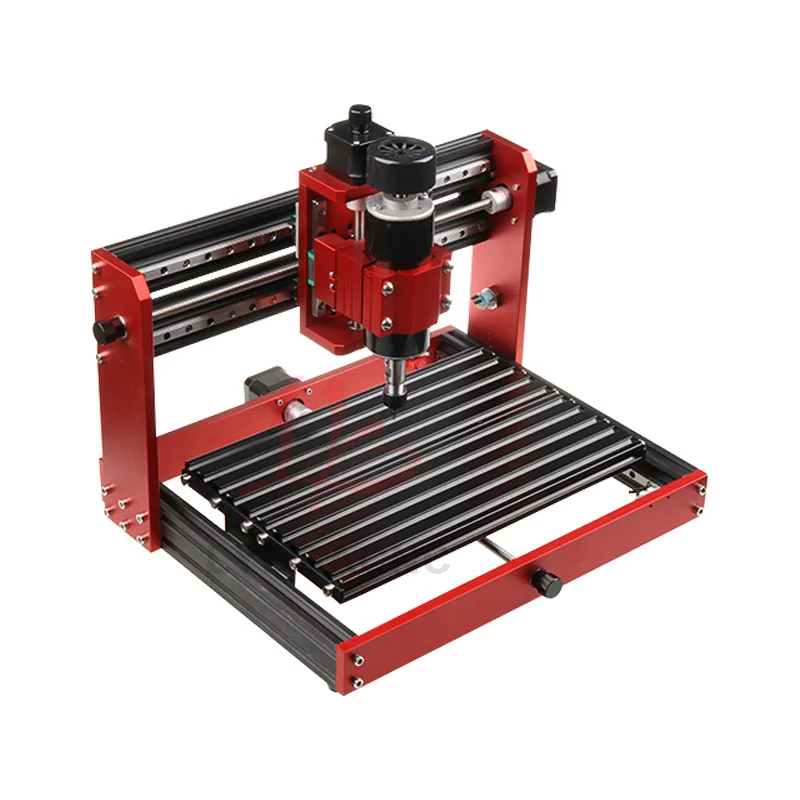

Mini CNC Engraving Cutting Machine 3020 500W Square Rails Full Metal Wood Router with Offline Controller Support Laser Module

SPECIFICATIONS

Body Material: All Aluminum Alloy

Control software: standard GRBL

No. of Spindles: Single

Spindle Motor: 500W

Spindle Motor Power (kw): 0.5

brand name: LYBGA

cnc or not: CNC

dimension(l*w*h): 420 x 350 x 280 mm

key selling points: Digital

machine type: CNC Router

machinery test report: Provided

model: L11008-1

number of axes: 3

place of origin: Guangdong, China

positioning accuracy (mm): 0.05

range of spindle speed(r.p.m): 0 - 10000

repeatability (x/y/z) (mm): 0.08

video outgoing-inspection: Provided

voltage: 220v

warranty: 1 Year

weight (kg): 14

LY 3020 Plus Full Metal Desktop CNC Engraving Cutting Machine for Wood PVC Acrylic PCB Laser Module with Offline Controller 220V

Specification: Brand: LY Color: Red / Black / Silver  (The default color is red. Other colors need to be customized and shipped from China. Please leave a message.) Input Power: 220V AC + DC 12V 5A Machine Weight: 13.0 kg Repeat ability: 0.08 mm Tool shank diameter: 3.175 mm ER11 Stepping motor: 42mm 0.5N/m Working stroke: 300x200x60mm Spindle parameters: 48V 500W 10000 rpm Limits: 6 hardware limit switches for three axes Control software: standard GRBL Body Material: All Aluminum Alloy Overall Dimension: 420 x 350 x 280 mm 3020 Plus Advantages: 1.A set of accessories are all metal materials, higher steel, can also be used for processing some soft metal materials. 2.6 sets of 3 groups are industrial line rail structure, processing precision 0.05mm, higher precision. 3. This is a finished machine assembled, with three colors to choose from. 4. Equipped with a separate electronic control box 5. High power motor 500W, higher efficiency. CNC tool processing range: 1.Cutting tool engraving materials: wood, plastic, acrylic, resin, carbon fiber and other non-metallic materials. Aluminum alloy, copper, brass and other soft metals can be engraved. Laser engraving/cutting range: (For use with laser) 1.Laser engraving: wood. Paper, plastic. Leather, bamboo, dark colored pebbles, ceramic pieces, leaves, rubber, PVC, horn, bone, crab shell, ivory, resin, stainless steel and metal painted surfaces and other combustible materials. 2.Laser cutting: 40W l10mm or so: paper/leather/fabric/dark-colored compressed sponge; 2. 8mm or so light wood. l8mm or so: light wood (linden board). l8mm or so dark color opaque acrylic. l8mm or so dark-colored plastic, dark-colored PVC, etc.   Suggested engraving parameters: 1.Tool engraving parameters: feed F value, non-metal 300 ~ 500 mm / min, soft metal 50 ~ 100 mm / min, single undercutting step, non-metal 1 ~ 2 mm, soft metal 0.5 ~ 1 mm 2.Laser engraving parameters: combustible materials, speed 1000 ~ 2000 mm / min, power 30% ~ 100%, non-combustible materials, speed 500 ~ 1000 mm / min, power 70%6 ~ 100%
