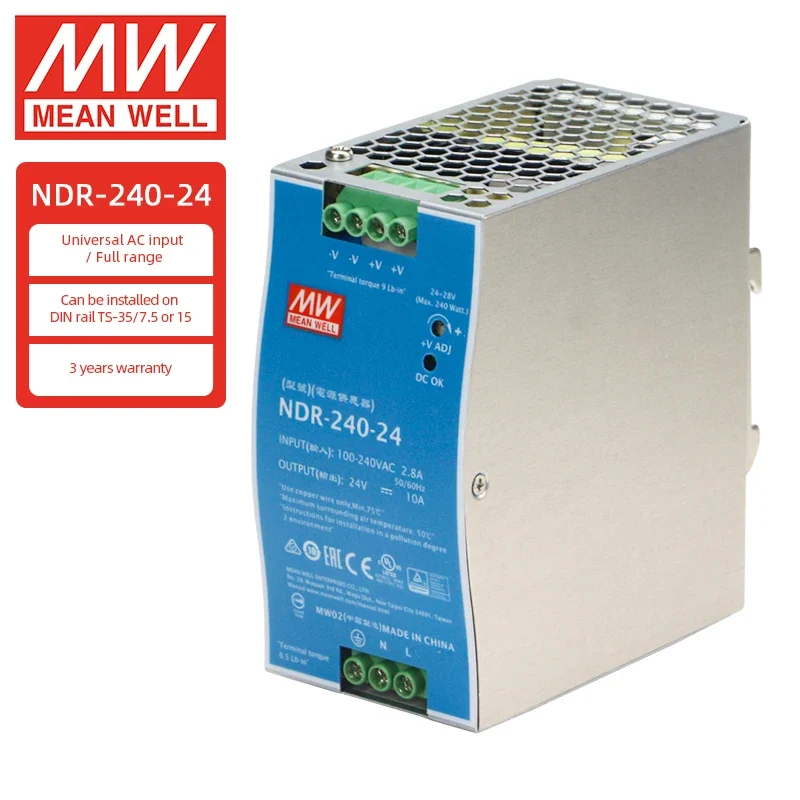

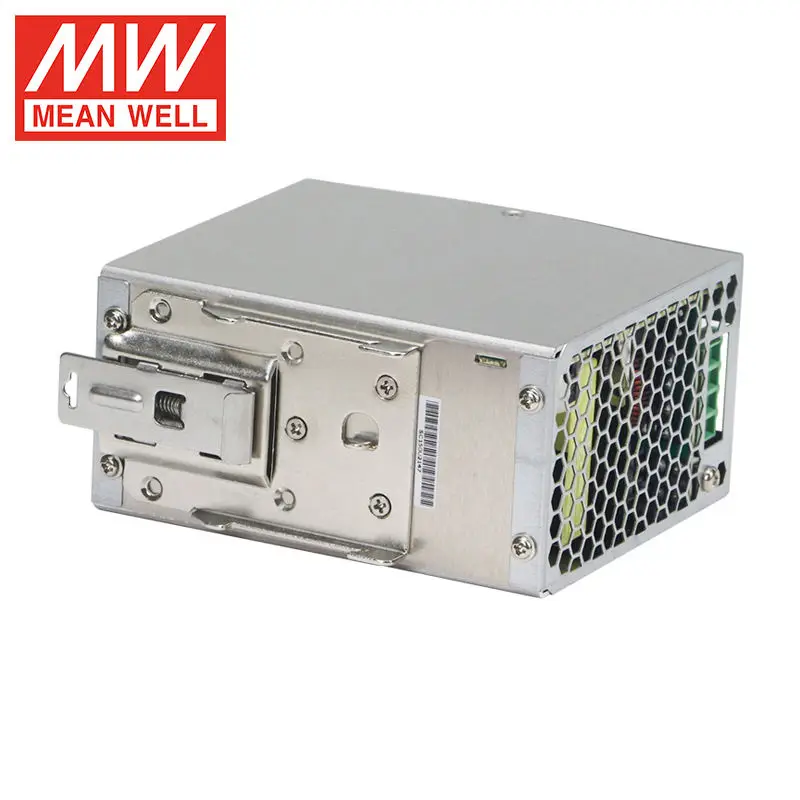

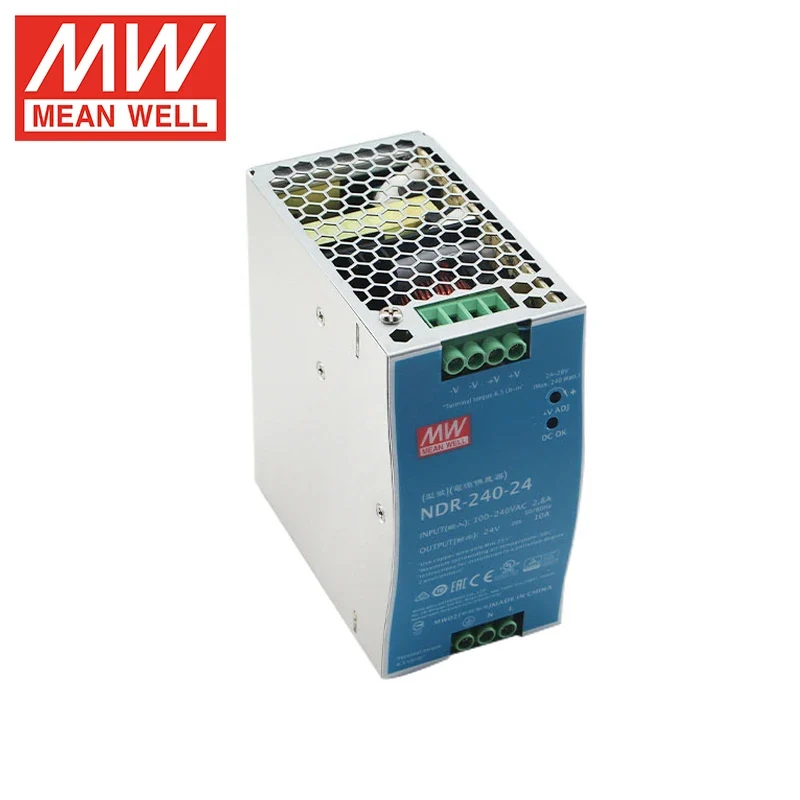

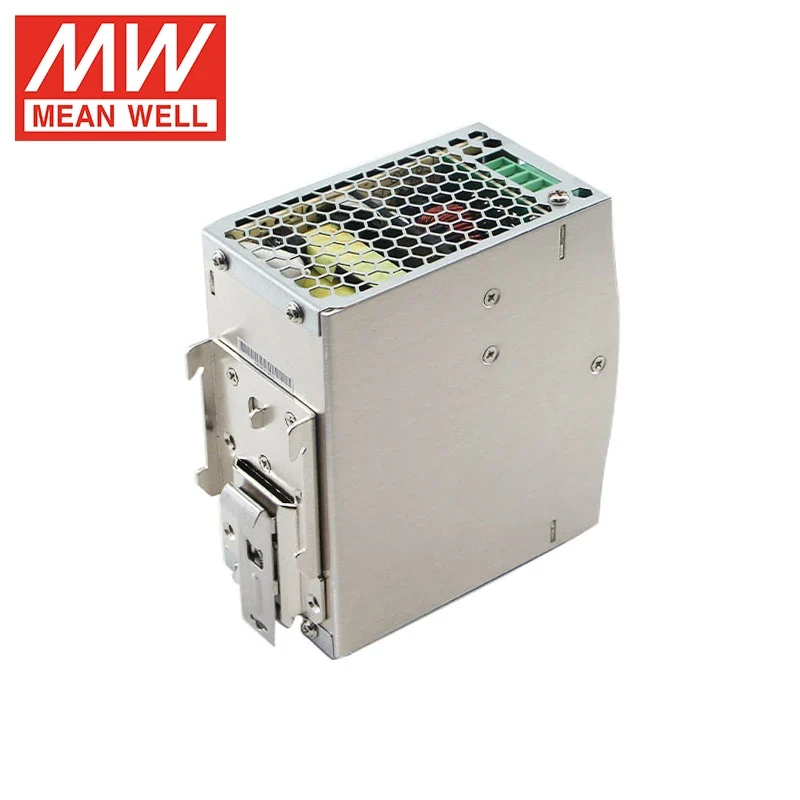

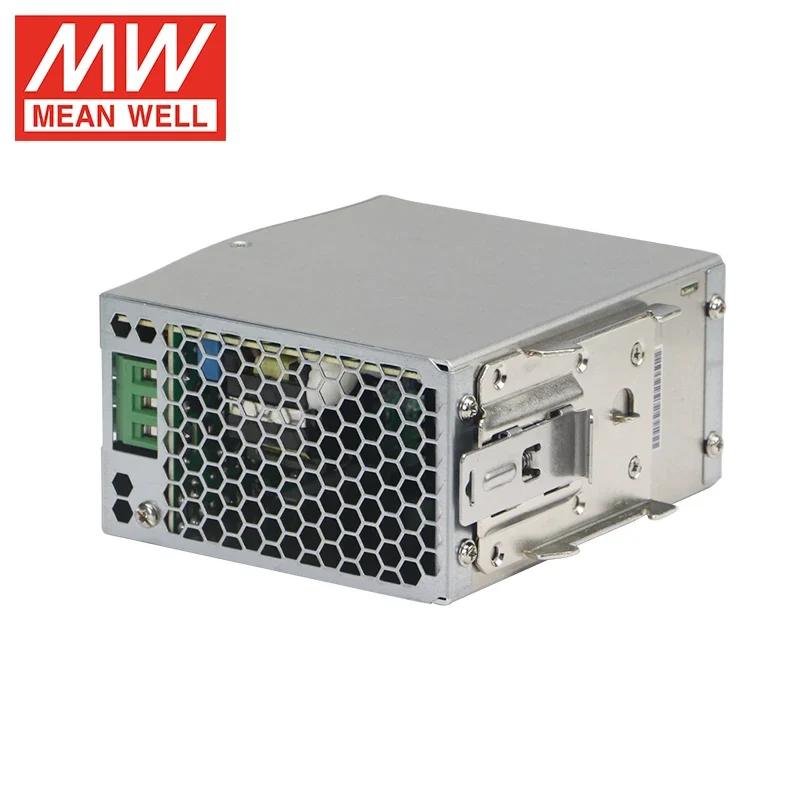

Meanwell 240W SMPS Power Transformer NDR-240-24 Ndr24024 240W 24VDC 10A Din Rail Power Supply

SPECIFICATIONS

Application: CCTV,Laboratory,Industry,Smart Home,Led Lighting,3D Printer,Industrial Equipment,Machines,Battery Charging,Industrial DIN Rail Power Supply

Brand Name: Mean Well

Cooling: By free air convection

Dimension: 63*125.2*113.5mm (L*W*H)

Efficiency: 88.5%,88.5%

Input Voltage: 90~264v,90~264VAC 127~370VDC

Model Number: NDR-240-24

Output Current: 10A

Output Frequency: 47~63Hz

Output Type: Single

Output Voltage: 24VDC

Over Voltage: 29 ~ 33V

Place of Origin: Guangdong, China

Product: Mean Well NDR-240-24 Din Rail Power Supply

Protection: Overloading Protection,Overvoltage Protection,Over Temperature Protection

Protections: Short circuit / Overload / Over voltage / Over temperature

Type: AC-DC

Voltage Adj. Range: 24 ~ 28V

Warranty: 3 Years

Working Temp.: -20 ~ +70°C

MEAN WELL NDR-240-24 Din Rail power supply Feature: NDR-240 is one economical slim 240w Din rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 63mm in width, which allows space saving inside the cabinets.The entire series adopts the full range AC input from 9OVAC to 264VAC and conforms to EN61000-3-2,the norm the European Union regulates for harmonic current. NDR-240 is designed with metal housing that enhances the unit's power dissipation. With working efficiency up to 90%, the entire series can operate at the ambient temperature between -20'c and 70℃ under air convection. lt is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV EN60950-1, and etc.) make NDR-240 a very competitive power supply solution for industrial applications.
