Manufacturer Magnetic Stripe Card Reader with USB or RS232 Interface MSR100 Supports Credit Card Payments Driver Cards

SPECIFICATIONS

About us: Magnetic Card Reader OEM

Brand Name: Unique

Certifications: FCC, CE, ROHS, IP64 etc.

Colour: Black

Feature: Hi/Lo- co magnetic stripe card reader 3 tracks with software

Interface: Usb,RS232, PS2, USB or TTL is available

Operation: Manual Bi-directional swiping

Shell material: High-strength plastics

Superiority: programmable pos magnetic card reader

Swipe speeds: From 3 to 60 inches per second

Weight: 150g

application: POS

card slots: Single

installation: Internal

material: ABS

model number: MSR100

place of origin: Guangdong, China

private mold: Yes

type: CF Card,Memory Stick Card,MMC CARD,Sd Card,SM Card,XD Card

Products Description

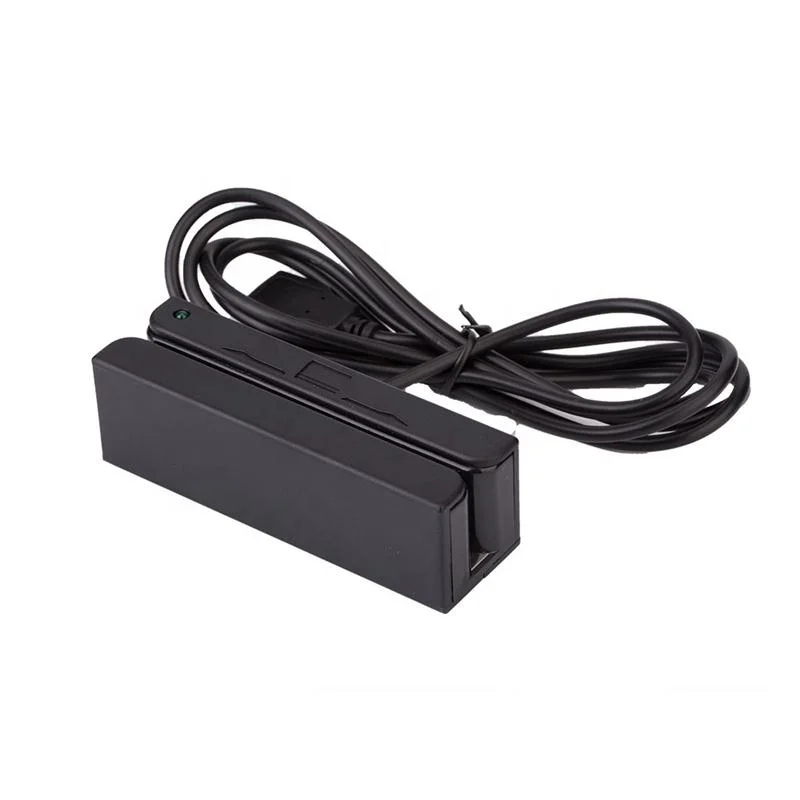

MSR100 Magnetic Card Reader

* Plug and Play: Effon Magnetic card reader is easy to operate. Connect it to your laptop or desktop computer with the provided USB cable, and you're ready to go–no further software or power supply necessary. The light turns green, and it's ready to go.
* Ergonomic design:Simple but effective- The card reader was created with a thorough awareness of the audience's lifestyle as well as customer demands and requirements. It's made of genuine material, so it looks good and works well. This little but powerful machine comes with a unique cable management system to keep your workspace neat and clean. * Compatibility: It works with both Windows and Mac operating systems and may be used on both desktop and laptop computers.
* Capacity: Effon magnetic card reading in directions, improved reading of high jitter, scratched, worn magstripe cards and over 1,000,000 card read of reliability.
* Cost effective: This low-cost card reader is fully configurable and has 3 tracks, allowing it to perform triple duty in your business. Details Images

Technic Details	Recording Density: 201 BPI, 75 BPI or 210 BPI
Recording Capacity	79 Characters, 40 Characters or 107 Characters
Power Supply	+5V DC ±5%
Power Consumption	65mA(max.)
Head Function	Read only 1.5mm
Card Thickness	Plastic 0.76 ± 0.08mm
Operation Speed	10- 150cm/sec
Error Rate	Less than 0.5%
Interface	PS/2, RS232 or USB is available
Dimension	90 x 26 x 28mm
Operation Locus	Indoors only
Cable Length	150cm
Lifetime of Header	800,000 card passes (1 pass : one swipe)
Weight	Appro. 100g

Magnecti Swipe Card Reader MSR100 Magnetic Stripe Card Reader MSR100 can read Track 1, 2 and 3 hi/lo-co magnetic cards in Bi-direction and is designed to offer a card reading solution for ISO 7811/12/13/14 formats.With indication of light.Low power consumption, good compatibility ISO 7811/12/13/14 Easy Programmable Readers can be affixed to most computer keyboards or to any flat surface,Can be connected to any PC or Mac via keyboard wedge or USB interface.
Weight: 100grames
Cable Length: 150cm
Effon Magnetic card reader is easy to operate. Connect it to your laptop or desktop computer with the provided USB cable, and you're ready to go– no further software or power supply necessary. The light turns green, and it's ready to go. Simple but effective The card reader was created with a thorough awareness of the audience's lifestyle as well as customer demands and requirements. It's made of genuine material, so it looks good and works well. This little but powerful machine comes with a unique cable management system to keep your workspace neat and clean. Low cost and Effective This low-cost card reader is fully configurable and has three tracks, allowing it to perform triple duty in your business, accept payments, collect data, limit access, verify identification, and keep track of time using it.

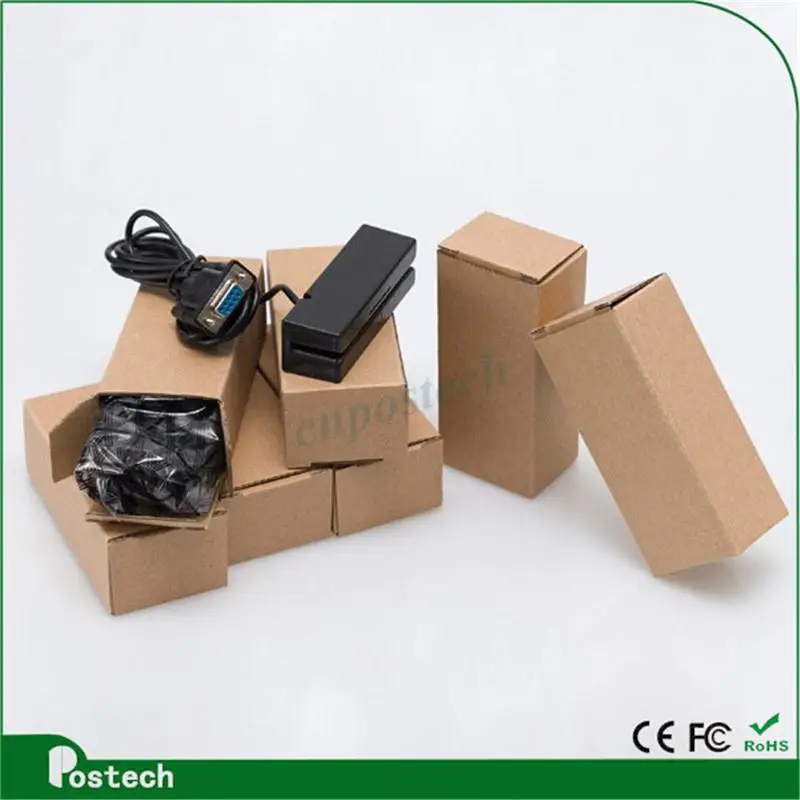

It can be widely used in supermarkets, shopping malls, cosmetic stores, retail industry, postal industry, logistics, banks and medical institutions. MSR100 Set UpWith this MSR100 Tool you afterconnect the reader, you can set up the Buzzer ON OFF, Buzzer time, Card Type , Track 1 Track 2 Track 3 , PREFIX SUFIX, Also you can ask us Set up as your request .  Packing List Company Profile FAQ Recommend Products They Believe In US FAQ 1.Which protocol magnetic reader do you have?
We have USB, RS232 and TTL communication protocol
2.Can You Make Custom of the mag stripe reader?

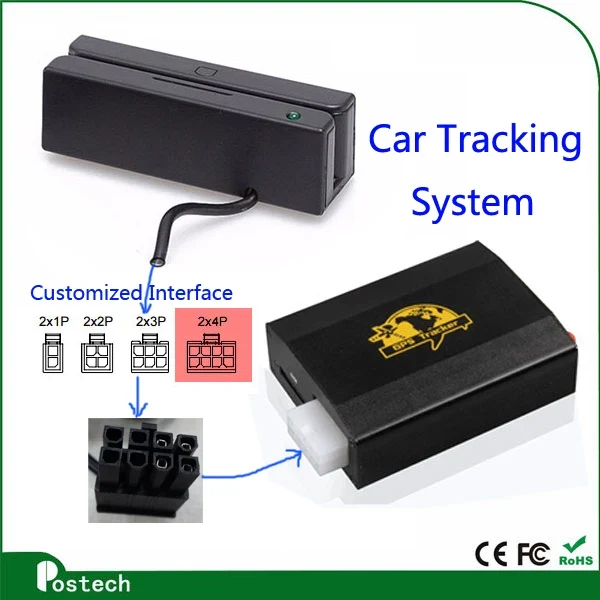

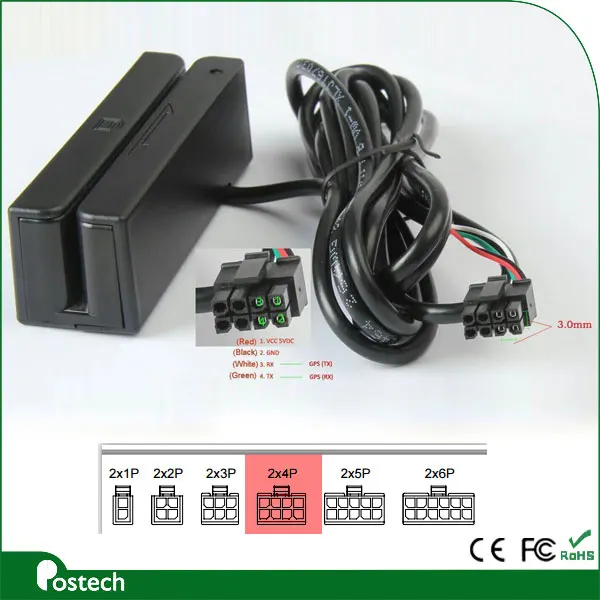

Yes, we can customize different interfaces of the magnetic card reader based on your project. Such as 4pin, 8pin, 14pin and 16pin
etc
3.What is Your MOQ For The Order?
You can order as few as one unit of whichever product you like. We deliver the scanner following your specifications.
4.Can I Get a Sample Before Place The Order?
For projects in Thailand, we can provide two units mag stripe reader that Thai GPS-compatible machines for testing.
5.What kinds of interface of the magnetic reader do you have?

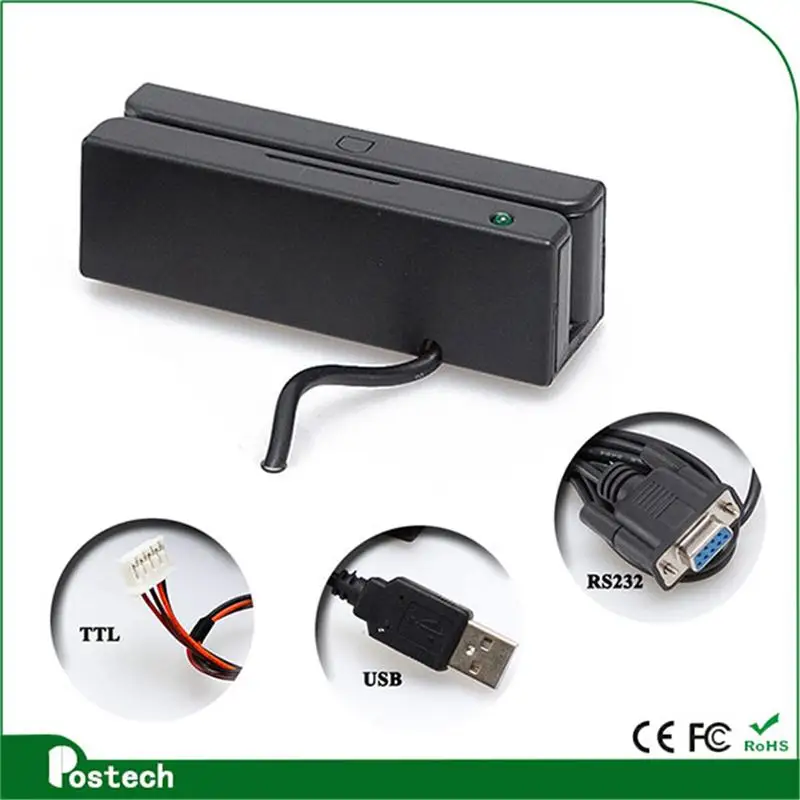

We have USB, RS232, PS2 and TTL interface
6.Is this machine heat resistant?
Yes, it’s got to be, it’s heat resistant up to 90°C;
7.Will you provide us with the Configuration Software?
Yes, Our MSR90 Reader is complemented by user-friendly configuration software, developed to address a wide range of needs. This
software simplifies the customization process, allowing users to easily adjust prefixes and suffixes, and to choose whether to
activate or deactivate tracks 1 and 3, tailoring the device to meet specific operational requirements.
8.The lead time and How long does it take to ship?
Samples we usually have in stock, for bulk orders, it usually takes 7-15 days for production.
