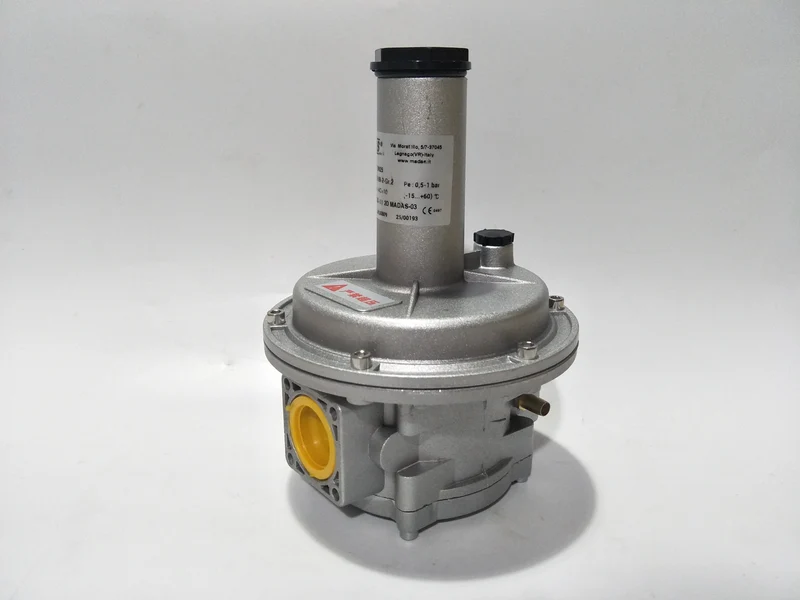

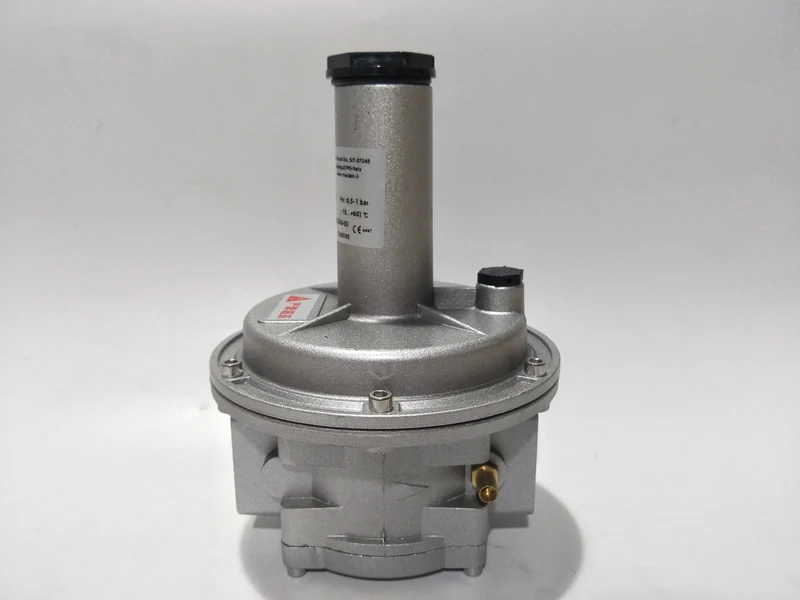

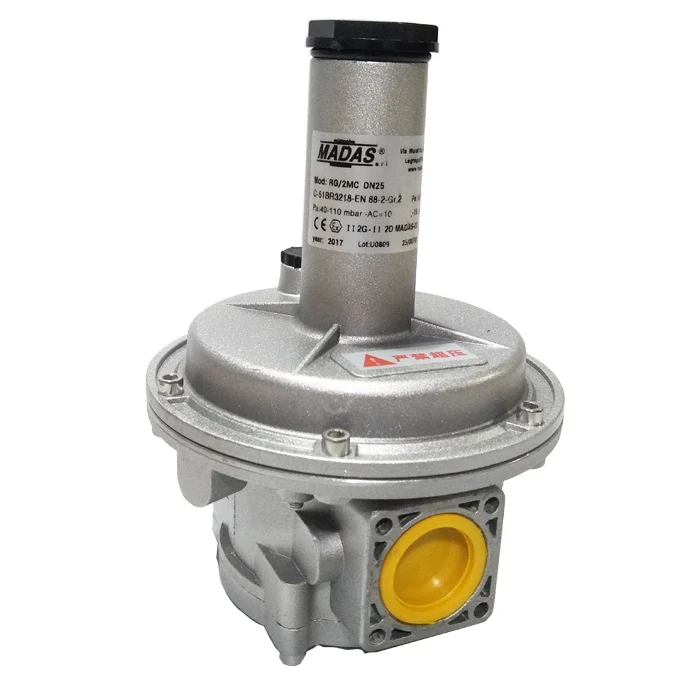

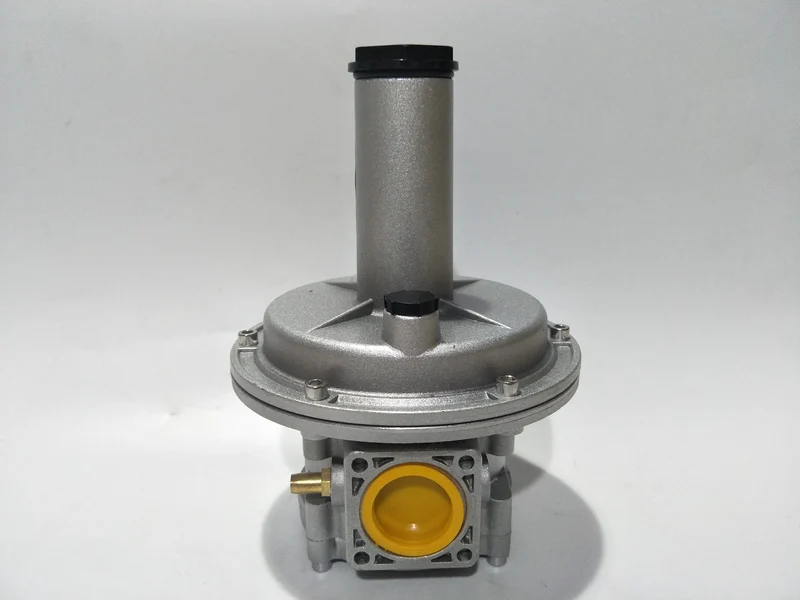

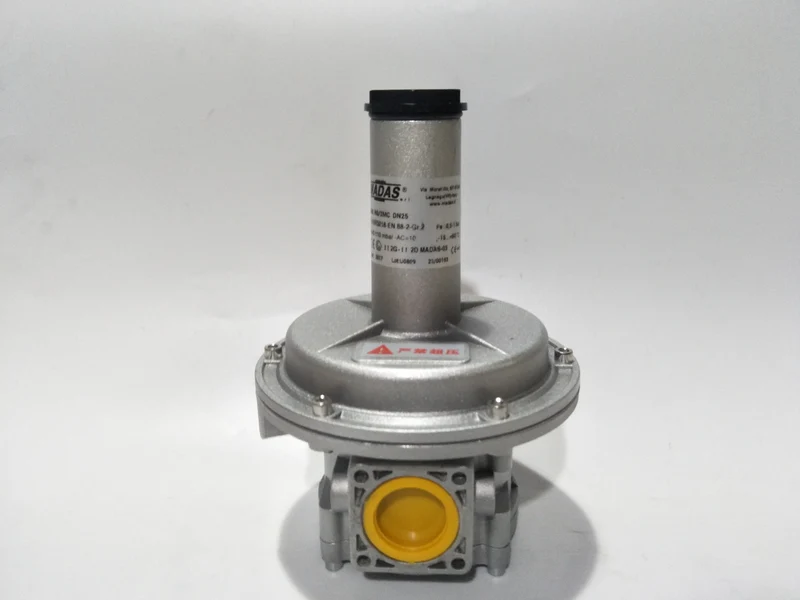

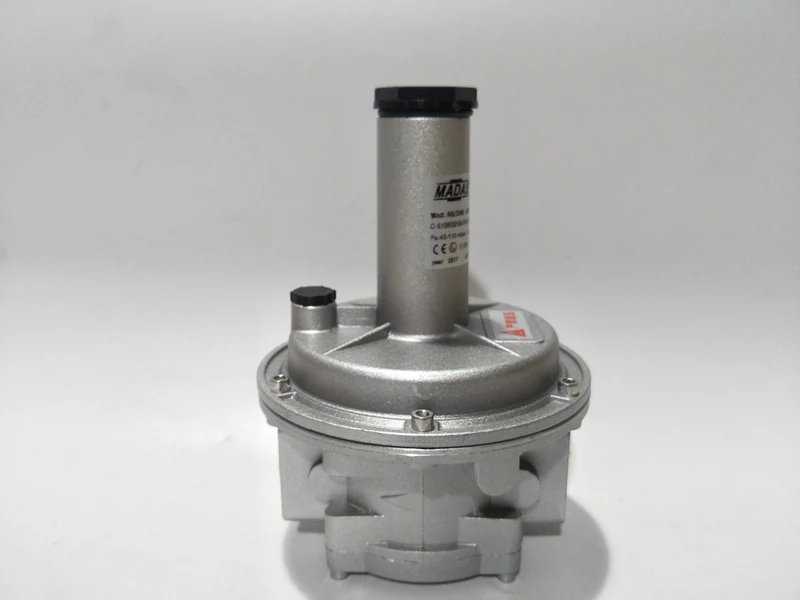

MADAS AG/RG05 Safety Natural Gas Hydraulic Pressure Reducing Valve Class Straight-through Burner Boiler Steam Generator Pressure

SPECIFICATIONS

Brand: MADAS

Function: Voltage regulation

Grade: Class A

Inlet pressure: P1:1bar or 2bar

Nominal diameter: DN32

Outlet pressure: P2:0.8kpa-50kpa(8mbar-500mbar)

Product name: Safety Pressure Reducing Valve

Type (channel position): Straight-through

Warranty: 1 Years

application: Pressure Regulating Valve

brand name: MADAS

customized support: OEM,ODM,OBM

media: Gas

model number: AG05,AG/RG05

place of origin: Guangdong, China

port size: 3/4in

power: Hydraulic

structure: Pressure Reducing

temperature of media: Normal Temperature

warranty: 1 year

1. Inlet pressure: P1:1bar or 2bar

2.Outlet pressure: P2:0.8kpa-50kpa(8mbar-500mbar)

3.Grade: Class A (in accordance with European BS EN88 standard)

4.Applicable medium: gas, natural gas, liquefied petroleum gas and other non-corrosive gases.

5. Material: die-casting alloy aluminium, stainless steel and brass, diaphragm, valve gasket and other rubber parts, the use of corrosion-resistant nitrile rubber, and reinforced with synthetic fibres.

6. Connection: Threaded interface (DN15~DN50) conforms to EN10226 standard.

Flange connection (DN65~DN100) conforms to ISO7005 standard.

7.Adaptable temperature: -15℃--+60
