Luckfox PicoKVM Lightweight IP KVM Remote Management Tool,Supports 1920x1080@60fps HDMI Video Input And HID Signal Output For

SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: None

Origin: Mainland China

SKU:32220
Part No.:Luckfox PicoKVM Base
Brand:LUCKFOX

SKU:30583
Part No.:Luckfox PicoKVM
Brand:LUCKFOX

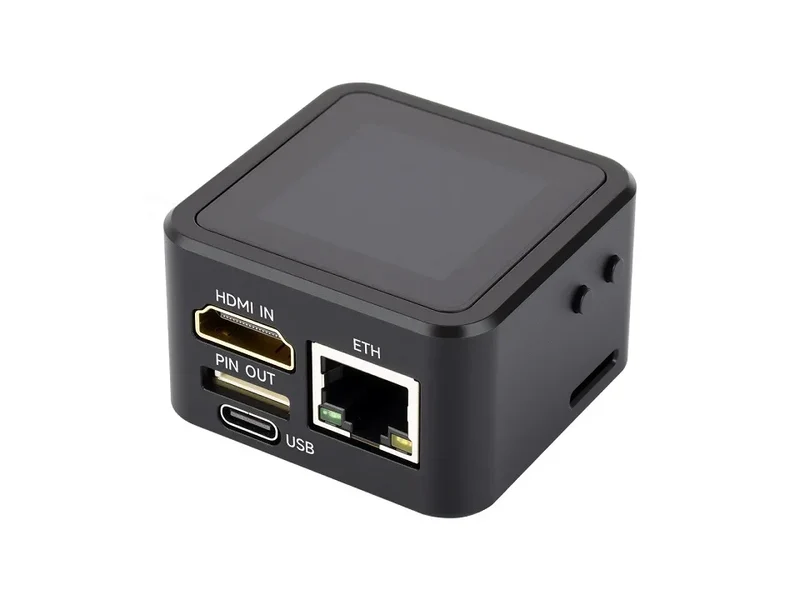

Luckfox PicoKVM

Luckfox PicoKVM x1

Luckfox PicoKVM Base

Luckfox PicoKVM Base x1

Weight: 0.073 kg

Luckfox PicoKVM Lightweight IP KVM Remote Management Tool, Supports 1920 × 1080@60fps HDMI Video Input and HID Signal Output for Device Control Luckfox PicoKVM   Version options

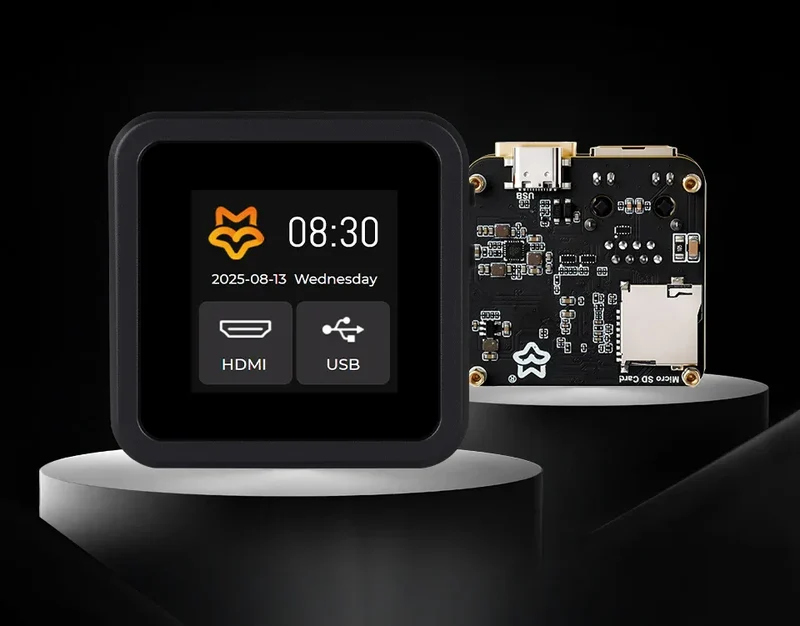

Luckfox PicoKVM
Full version
(with metal case and 1.54inch touch display)

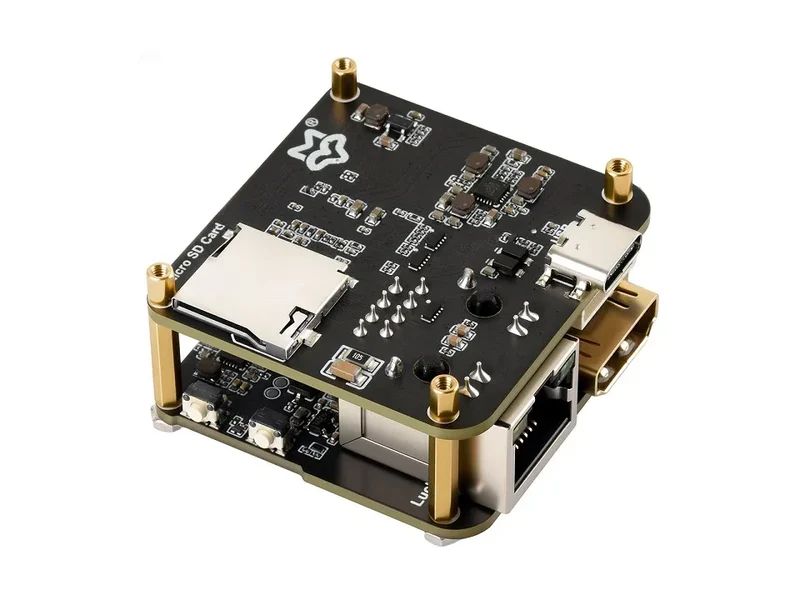

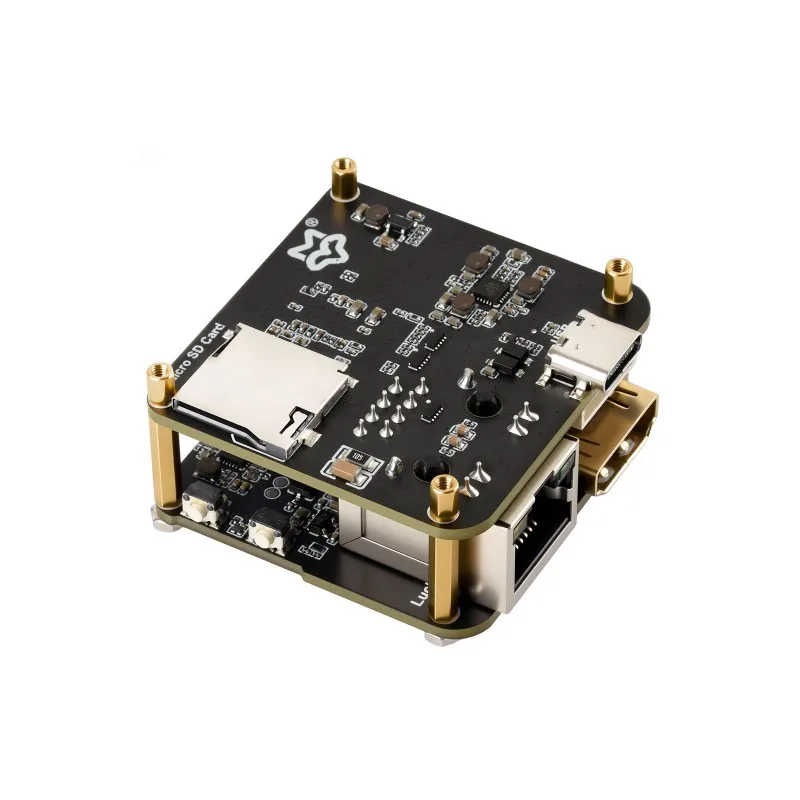

Luckfox PicoKVM Base
Basic version

Features

The Luckfox PicoKVM is a lightweight IP KVM management tool, supports real-time video capture and HID input simulation over the network, enabling touch-free operation of development boards, PCs, and servers. This product offers stable, low-latency video capture and remote control capabilities, widely suitable for scenarios such as remote PC control and server maintenance.

Key Features:

• Onboard HDMI input interface: recognized by PC as a display for video capture

• Onboard USB port: Supports simulation of mouse, keyboard, and USB storage devices

• Onboard 100Mbps Ethernet port: for video and control signal transmission

• 1.54inch touch display: for displaying IP address, connection status, and system operating status

• TF card slot: supports storage expansion

• I/O expansion interface: for host power ON/OFF control

Specifications

Product	Luckfox PicoKVM
Processor	RV1106G3
Core	1 × [email protected]
Memory	256M DDR3
Storage	8G eMMC
System	PicoKVM
Resolution	1080P@60fps
Video Encoding	H264
Video Latency	80ms ~ 200ms
Audio Transmission	√
UEFI / BIOS Support	√
USB Keyboard & Mouse Emulation	√
USB Storage Emulation	√
UEFI / BIOS Scope	√
Wake-on-LAN (WOL)	√
Web Terminal	√
Custom Script	√
Serial Terminal	1-Ch
Storage Expansion	TF card
Power Control	GPIO control
Ethernet	100Mbps
LCD Display	1.54inch 240 × 240 touch display (Only included in the Luckfox PicoKVM full version)
Power Input	Type-C

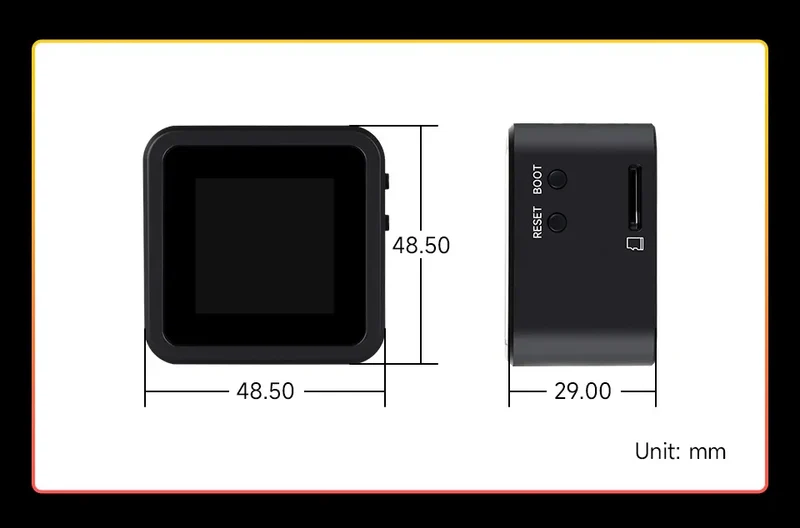

Outline Dimension	Luckfox PicoKVM: 48.50 × 48.50 × 29.00 (mm)
	Luckfox PicoKVM Base: 44.00 × 42.00 × 23.60 (mm)

Comparison with Commercial Remote Control Software

* for reference only, the above host boards are NOT included.

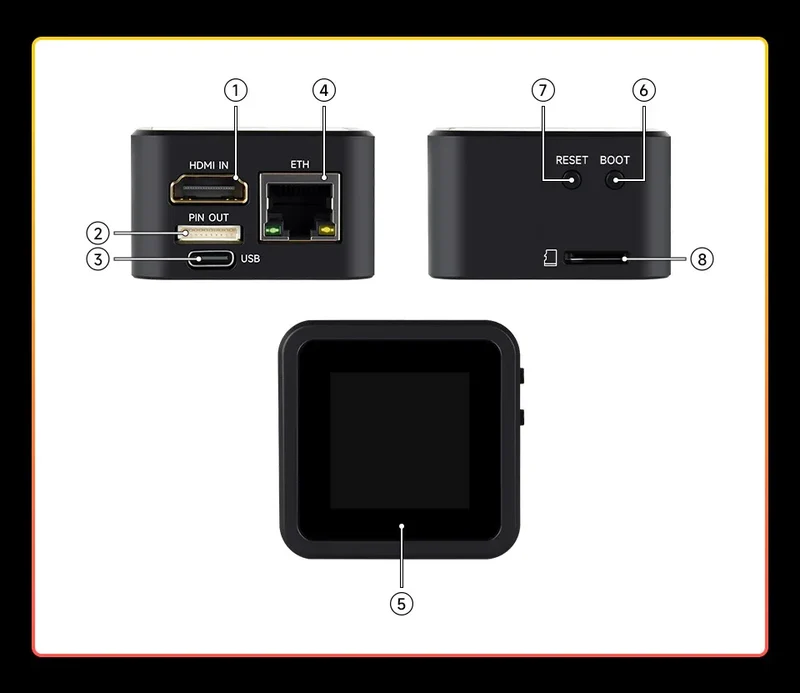

Function Demonstrations   What's On Board

1. HDMI IN interface
   for connecting to the HDMI output interface of the controlled host

2. I/O expansion interface


3. USB Type-C port
   for power supply, simulating HID/UMS devices, and programming

4. 10/100Mbps RJ45 Ethernet port with indicator




1. 1.54inch touch LCD


2. BOOT button
   press it when powering on or resetting to enter download mode

3. RESET button


4. TF card slot

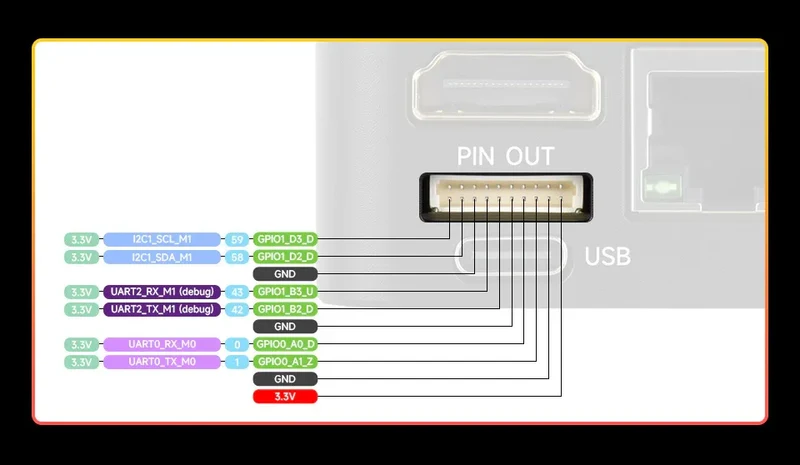

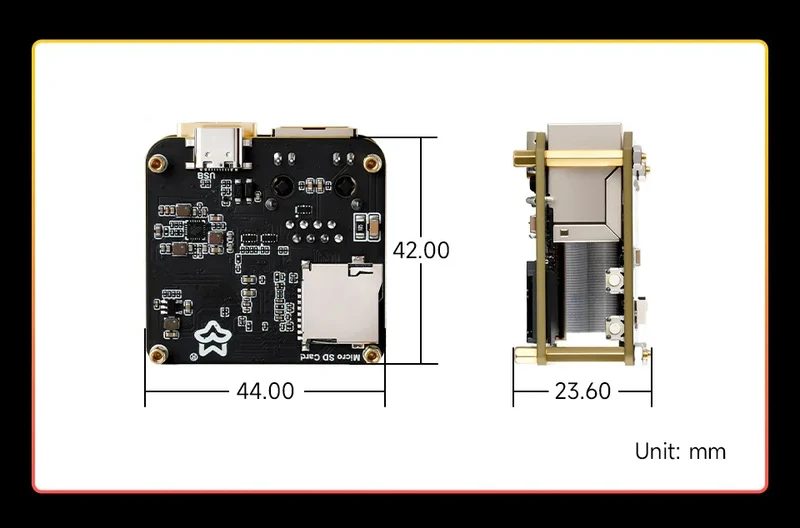

Pin definition outline dimensions

Luckfox PicoKVM



Luckfox PicoKVM Base
