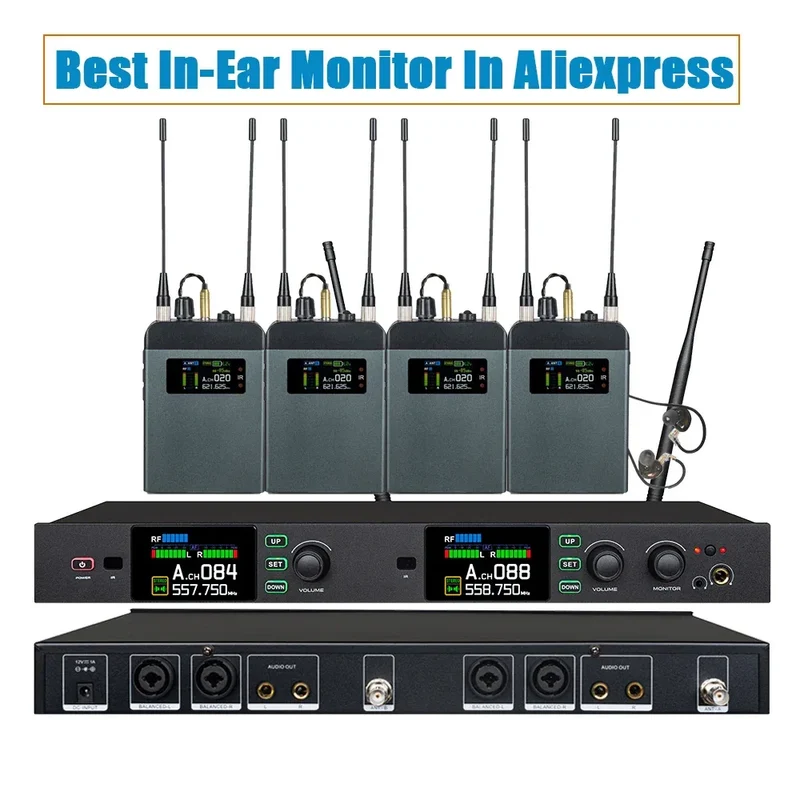

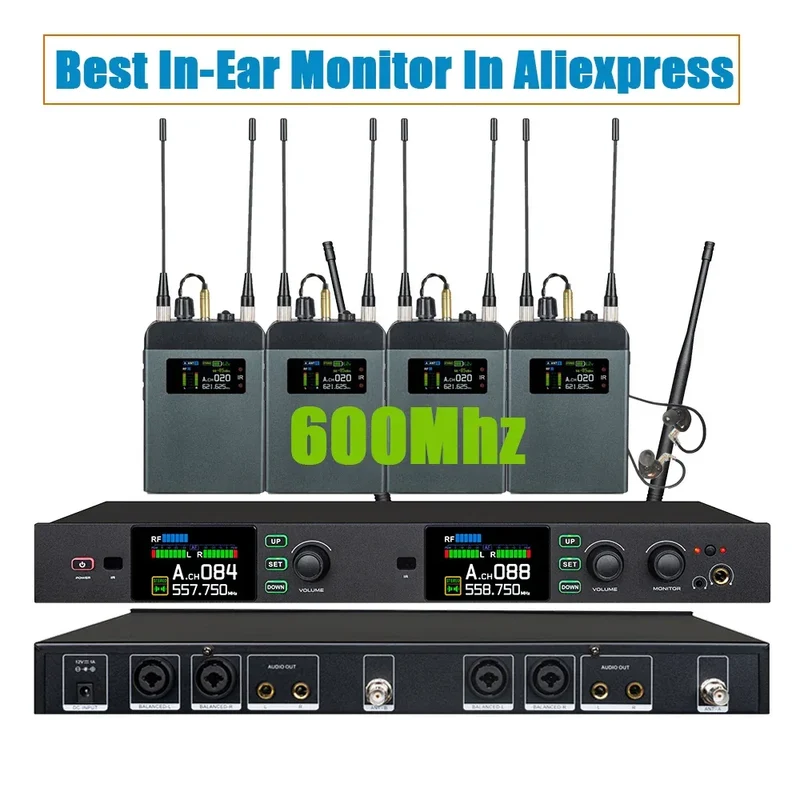

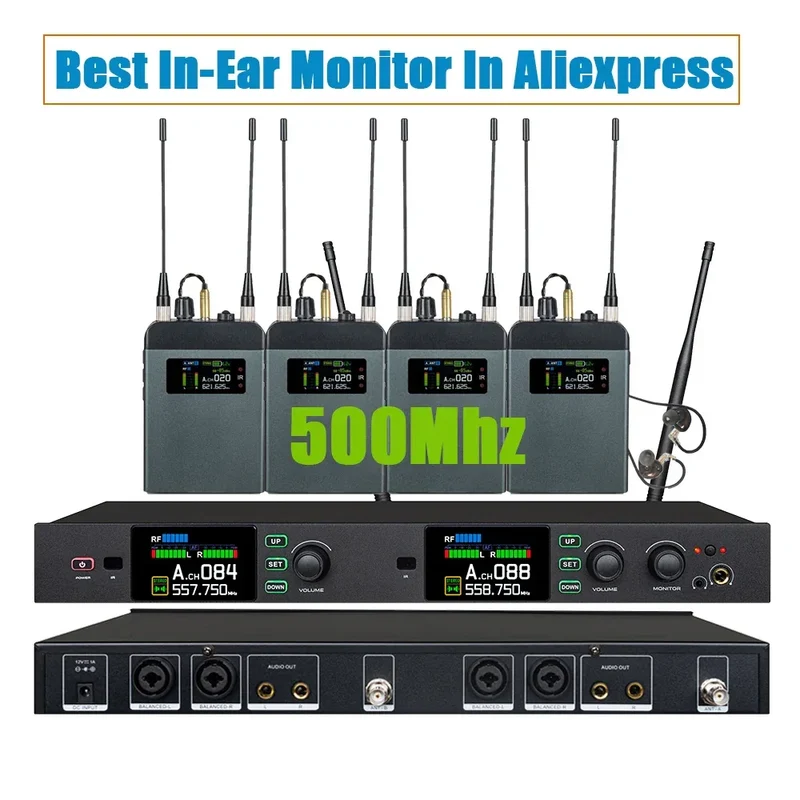

Leicozic Best Stereo In-Ear Monitor PM20 2Channel Wireless Ear Monitoring System Rack-Mount True Diversity 4 Receiver 500/600Mhz

SPECIFICATIONS

Band Width: 32MHz

Battery: AA Battery 1.5V X 2

Brand Name: Leicozic

Built-in Battery: No

Certification: CE

Frequency: 612-698Mhz / 537.561.75Mhz

High-concerned chemical: None

Inbox adaptor: Yes

Model Number: PM20

Origin: Mainland China

Oscillation Mode: PLL Synthesized

Power Source: Ac,Ac

Rack-mount: Yes

Receiver: 4

Receiver Output Power: 2 X 150mW

Receiving method: True diversity receiving

Transmitter: 1

Type: In-Ear Monitoring

Voltage range: High voltage (50-1000V DC, 75-1000V AC)

Leicozic Best Stereo In-Ear Monitor PM20 2Channel Wireless Ear Monitoring System Rack-Mount True Diversity 4 Receiver 500/600Mhz

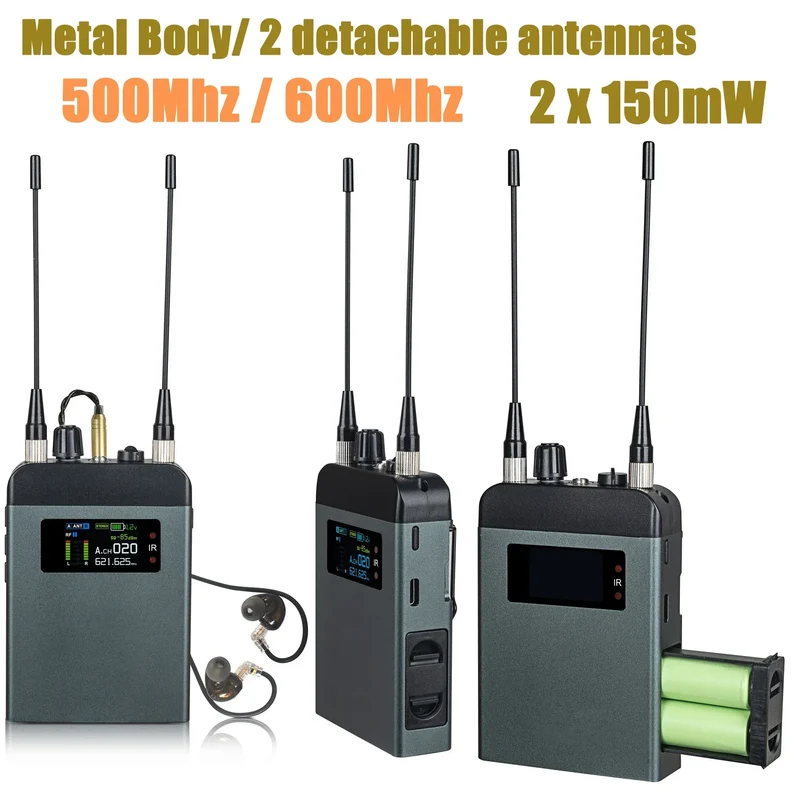

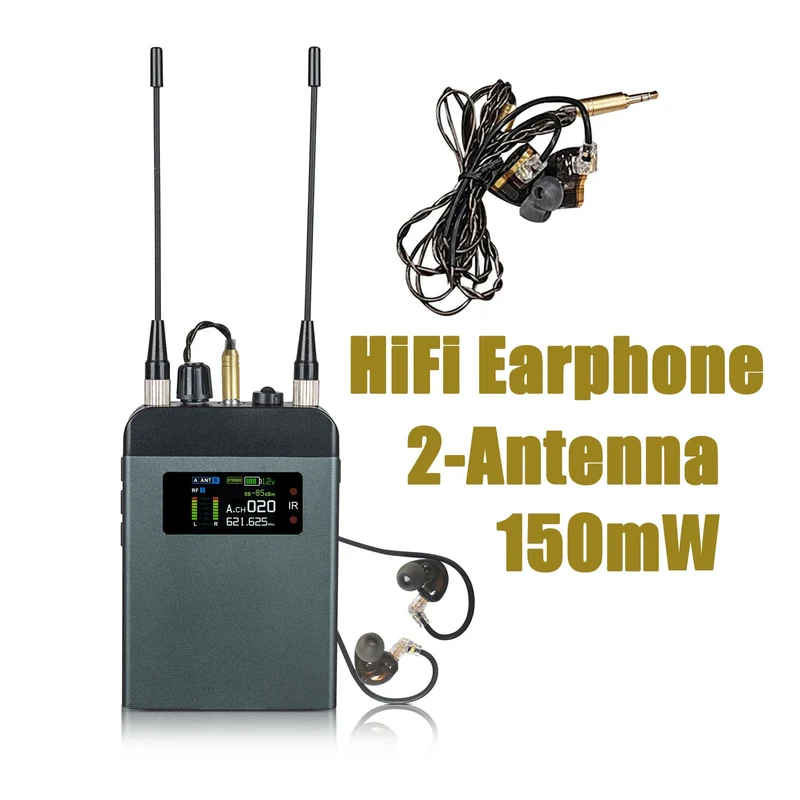

PM20R Receiver

Receiving method: True diversity receiving

Number of channel groups: single channel

Channel Group: double channel

Comprehensive T H. D: ＜ 0.9% @ 1KHz

Battery:AA Battery 1.5V × 2

High frequency boost:+8dB, at 10KHz

Frequency Stability: ± 0.005%

Working Distance: About 150 meters

Output Power: 2 x 150mW@1KHz (T.H.D: 3%)

Sensitivity: Deviation=25KHz/6dBuV,S/N>60dB

Band Width: 19-24MHz

Carrier Frequency: 612-698Mhz / 537-561Mhz

Modulation Mode: FM MPX

Stereo Isolation: ≥ 55dB (1KHz)

Current Consumption: 180mA

Max Deviation: ± 48KHz

S/N Ratio: ＞ 100dB

Frequency Response: 25Hz-15KHz ± 3dB

Battery Life: About 8 hours

Limited: 6dB each step, it can close

Oscillation Mode: PLL Synthesized

Output socket: 3.5mm

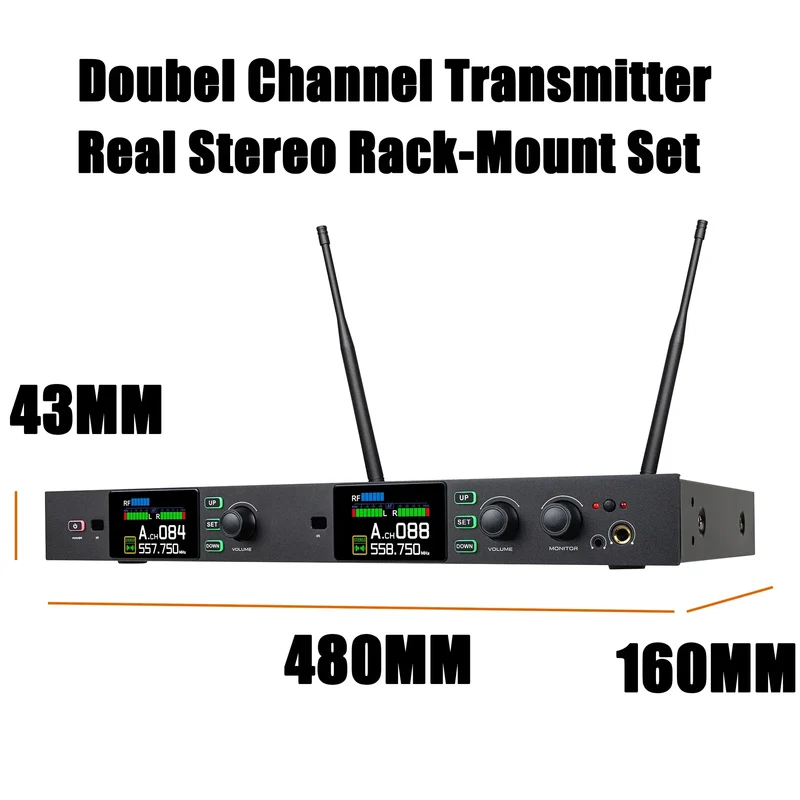

PM20T transmitter

Chassis Specification: 1U

Carrier Frequency: 612-698Mhz / 537-561.75Mhz

The 600Mhz Frequency Is One Of the Belowing,It is Random Frequency

BAND1 612-631.6Mhz  BAND2 634.025-653.625Mhz BAND3 656.05-675.65Mhz BAND4 678.35-697.95Mhz

Max Deviation: ± 50KHz

Number of channel groups: single channel

Channel Group: Single channel

Modulation Mode: FM   MPX (Stereo)

S/N Ratio:>100dB

T. H.D:<0.9% @ 1KHz

Band Width: 19-24MHz

Frequency Response: 25Hz-15KHz ± 3dB

Output Power: 10mW-100 mW adjustable

Current Consumption: 190mA (typical)

Power Supply: DC 12V

Frequency Stability: ± 0.005%   (0-50° C)

Oscillation Mode: PLL Synthesized

Harmonic Emission: Above 60dB lower than main wave

Audio output: φ 6.3mm Balanced Socketx2

MPX Control: Frequency: 19KHz, Deviation: ±5KHz
