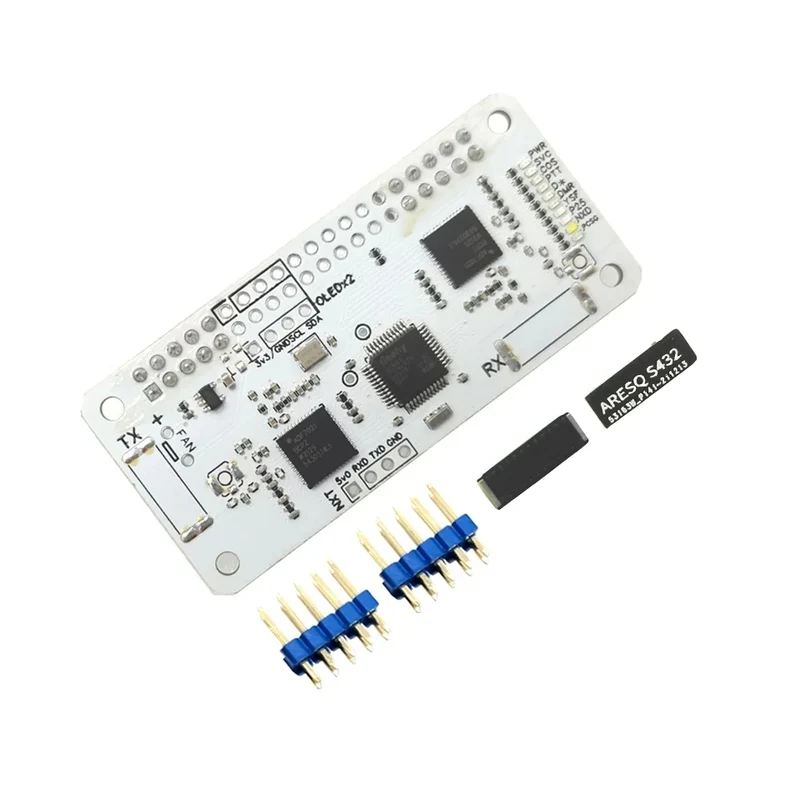

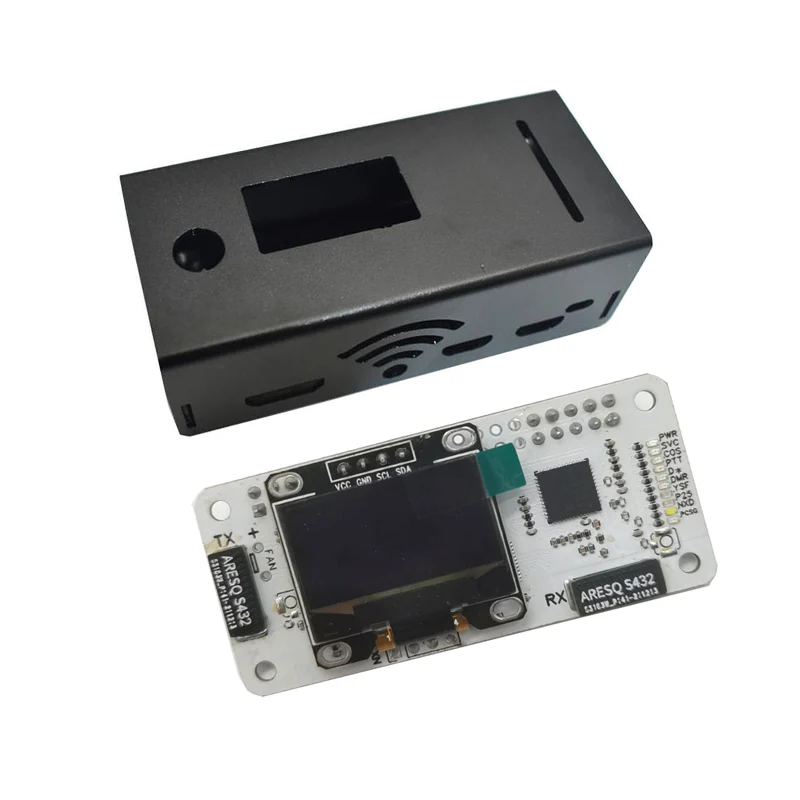

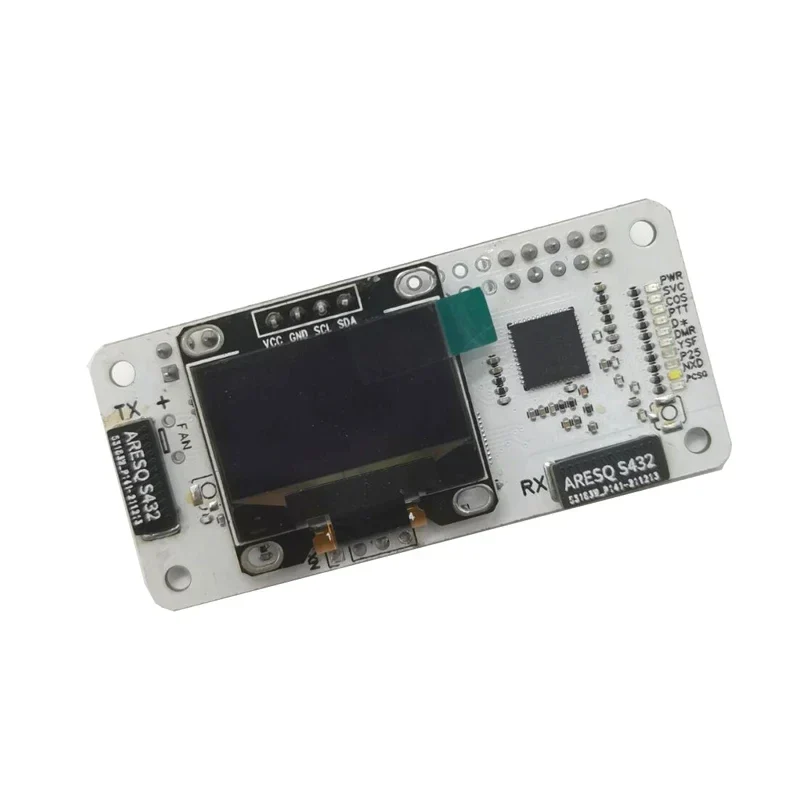

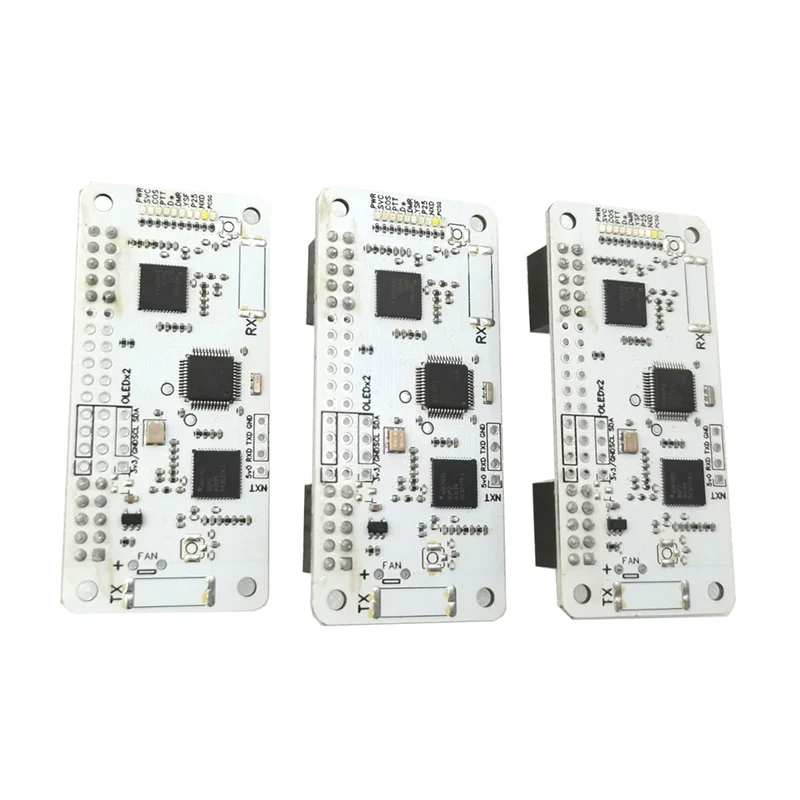

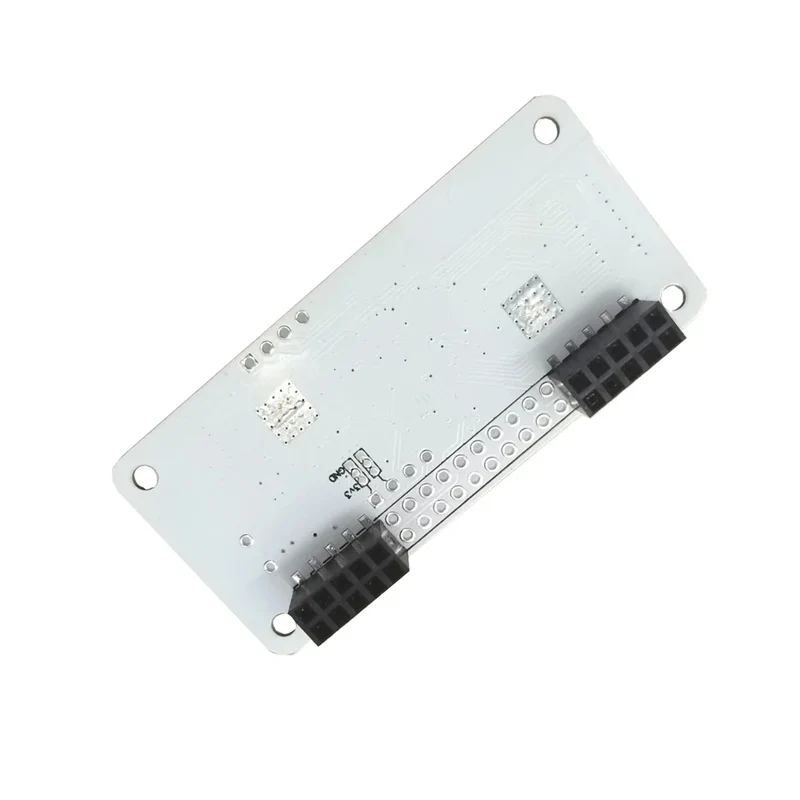

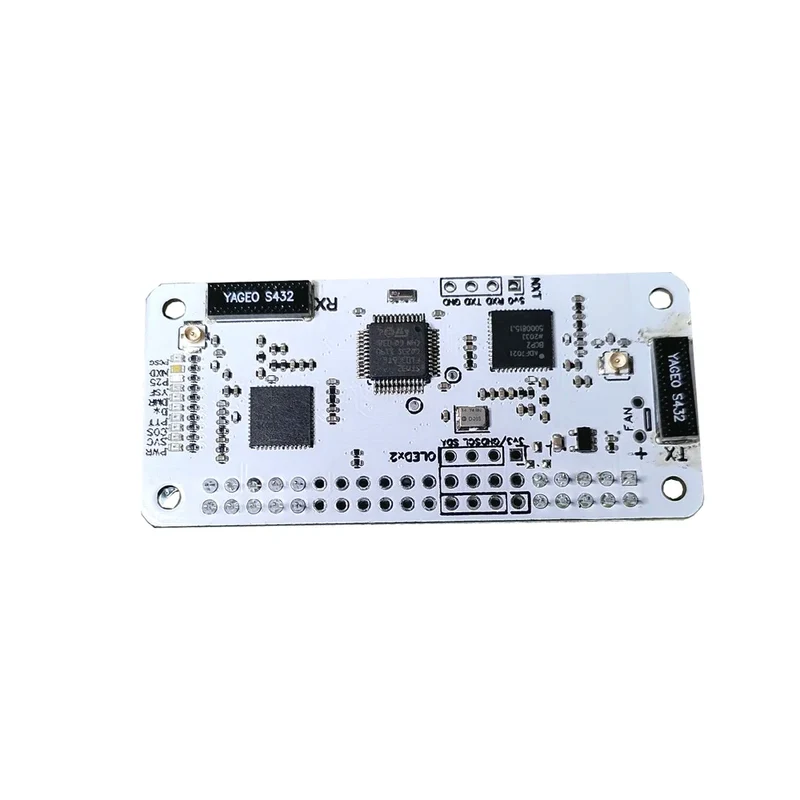

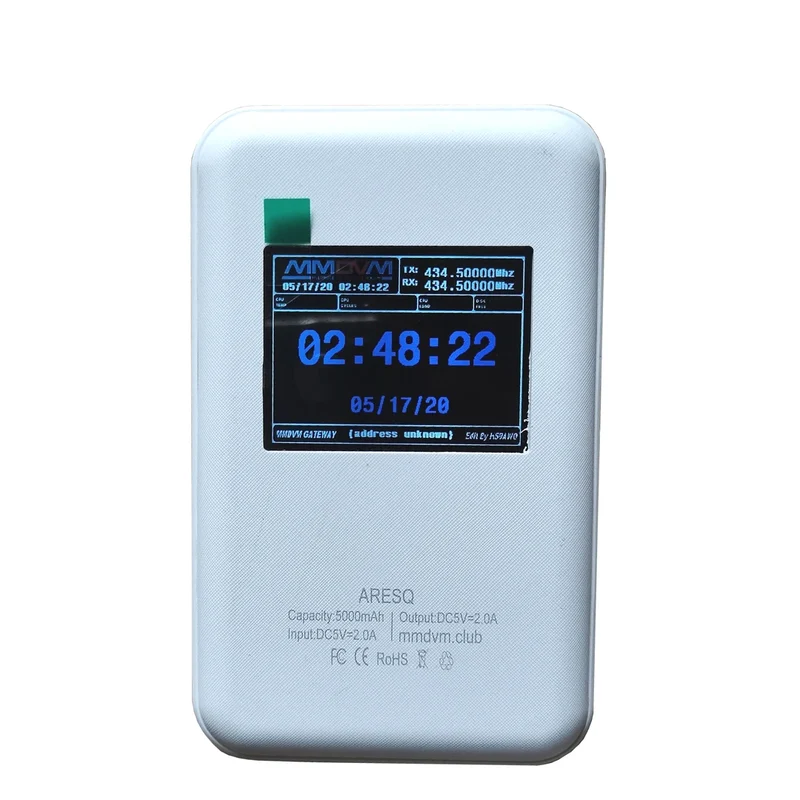

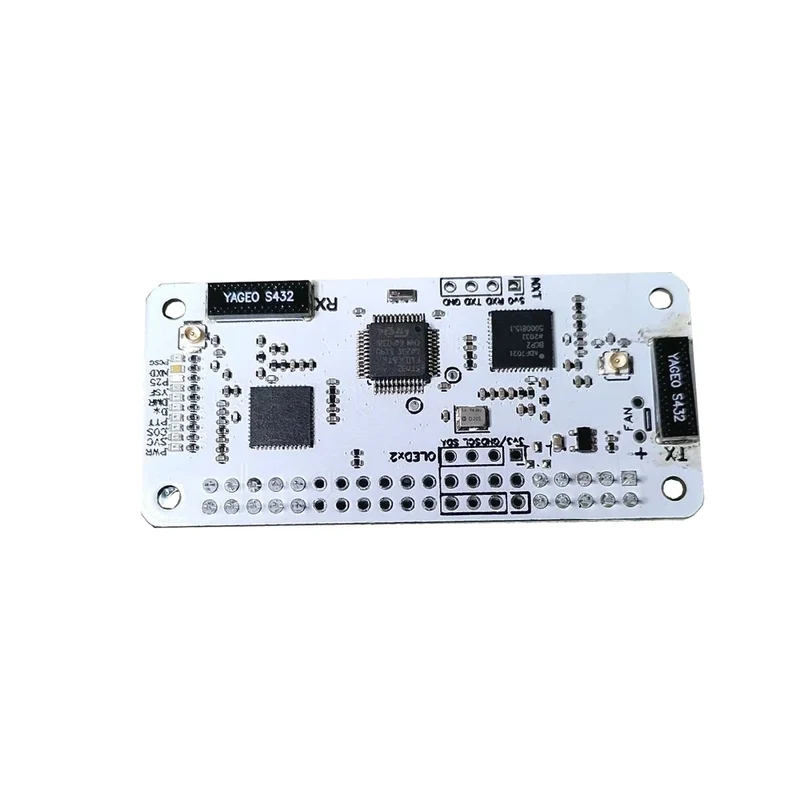

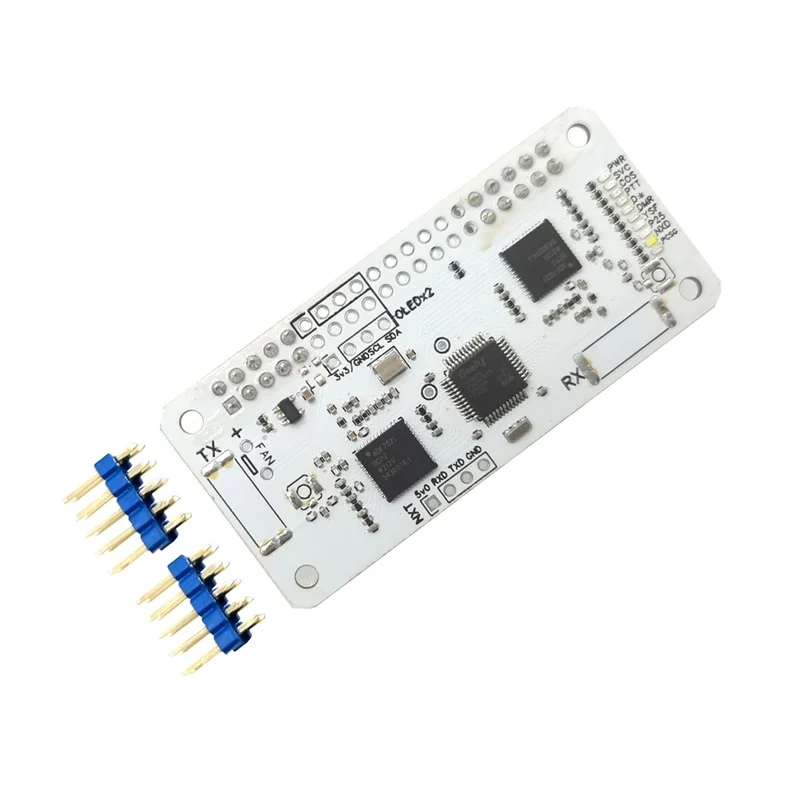

jumbospot White MMDVM HS Dual Hat Duplex RX TX UHF VHF Hotspot Board With Oled Display And Case For Raspberry Pi

SPECIFICATIONS

Accessories Type: Spring

Brand Name: LUSYA

Choice: yes

Compatible Brand/Model: None

Electric: No

High-concerned chemical: None

Model Number: WMMDVM01

Origin: Mainland China

With USB: no

Setting For Pi-star software and raspberry hardware (rpi 0-3) new pi4b need remove Right Socket

Pi-star General Configuration for MMDVM_DUPLEX

Set Controller Mode:Duplex Repeater or Simple

Radio Frequency : Freq:144-148,219-225,(Main Band)420-475,842-950

Duplex Mode:Example:RX:438.000000 TX:433.000000

Duplex Mode:Example:RX:145.000000 TX:433.000000

Simple Mode:Example:RX:438.000000 TX:438.000000

Radio/Modem Type:STM32-DVM/MMDVM_HS-Raspberry pi Hat(GPIO) or any other (GPIO board)

option:(don't need now, some old board need set)

Admin->Expert->Edit MMDVMHOST->RXOFFSET=0 TXOFFSET=0 (default value in pistar)

(update:2019/2 new 3225 TCXO so offset is 0 )

update new FW: (pi-star / expert / ssh access / user :pi-star pass:raspberry)

sudo pistar-mmdvmhshatflash hs_dual_hat
The default bit error rate is less than 5%, and the default offset is 0. If the bit error rate is more than 5%, as long as the signal can be received, it can be corrected by offset.
