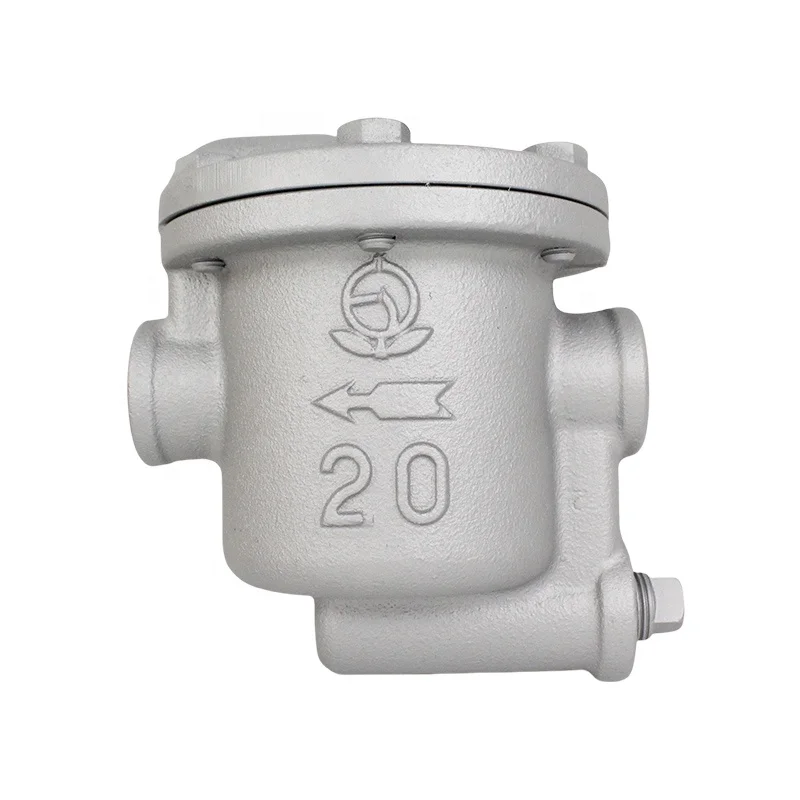

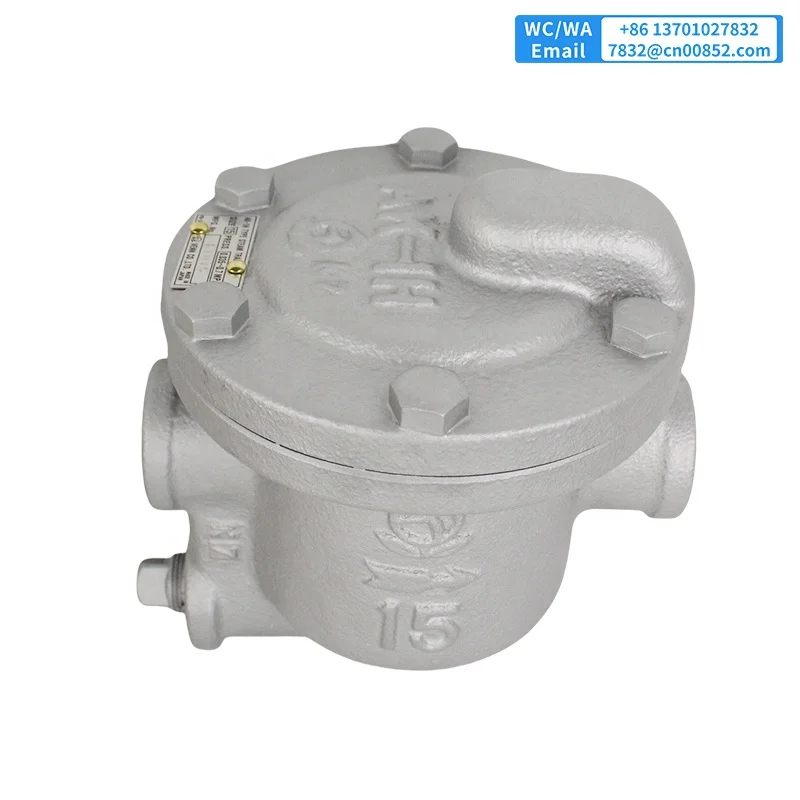

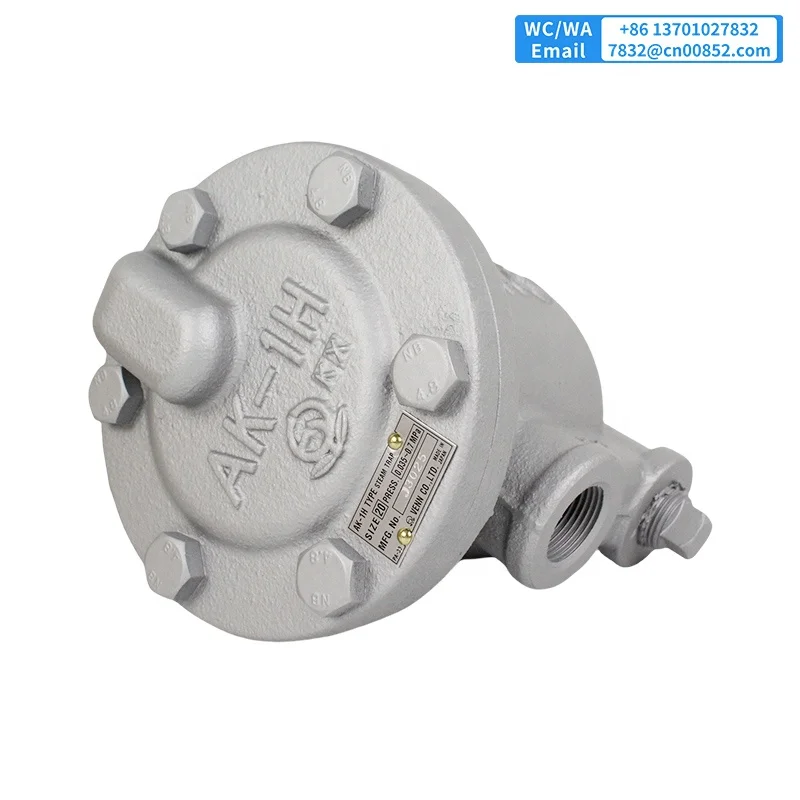

Japan Original Venn AK-1H DN15 DN20 DN25 Steam Trap for Steam Pipe

SPECIFICATIONS

End connection: Screwed JIS Rc

Fluid temperature: Max.184℃

Materials: Body(Cast iron), Disc & Seat(Stainless steel), Bucket(Stainless steel)

Product name: AK-1H

Type: Steam trap

Valve body pressure test: Hydraulic 1.5MPa

application: General

brand name: Venn

customized support: OEM

media: Steam

model number: AK-1H

place of origin: Japan

port size: DN15-DN25

power: Hydraulic

structure: Ball

temperature of media: Medium Temperature

type: Steam trap

AK-1H Type Steam Trap

General purpose trap that can be used as drain discharge trap for pipeline, header etc. All functions set in the top cover, so that allow easy maintenance.

Features

1.Simple internal structure makes maintenance work easier. 2.With strainer embedded.

Type	0.7MPa	1.0MPa
Model name	AK-1H
Code name	AK1H-GL	AK1H-GH
Applicable pressure	0.035~0.7MPa	0.035~1.0MPa
Applicable fluid	Steam
Fluid temperature	Max.184℃
End connection	Screwed JIS Rc
Materials	Body(Cast iron), Disc & Seat(Stainless steel), Bucket(Stainless steel)
Valve body pressure test	Hydraulic 1.5MPa

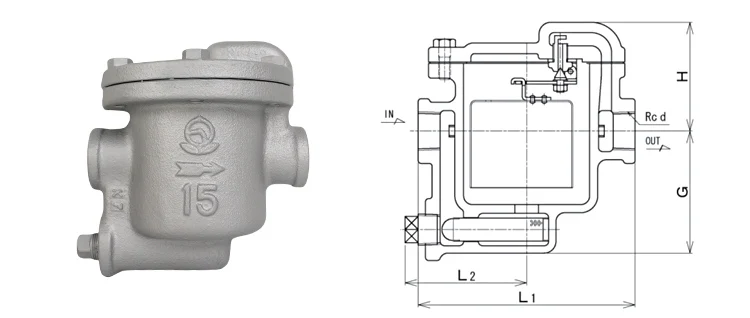

Size	d1	L1	L2	G	H	Mass(kg)
15	1/2''	130	76	72.5	68.5	2.7
20	3/4''	148	87	88	74	4.4
25	1''	184	94	98	81	5.8
