HTRC Smart Charger 48V/13A for 36Volt Golf Cart PB LiFePO4 Lead-Acid Battery & Electric Automatic Motorcycle 36V/18A AC Port

SPECIFICATIONS

brand name: HTRC

function: QC2.0

input: 100-240V/10A

material: PC Fireproof Material

model number: P3648

output: 36V/18A 48V/13A

output power: 470W

place of origin: Guangdong, China

port: AC

protection: Short Circuit Protection,Over-charging,Overcurrent,Overvoltage

type: Electric

usage: Motorcycle / Scooter

Product Description Features AC input: 100-240 V 50/60Hz
Output voltage :36 V / 48 V
Output current :Max 18A(36V),Max 13A(48V)
Minimum Start Volt :26V
Power and load :MAX 650W
Size :approx.230x125x70mm

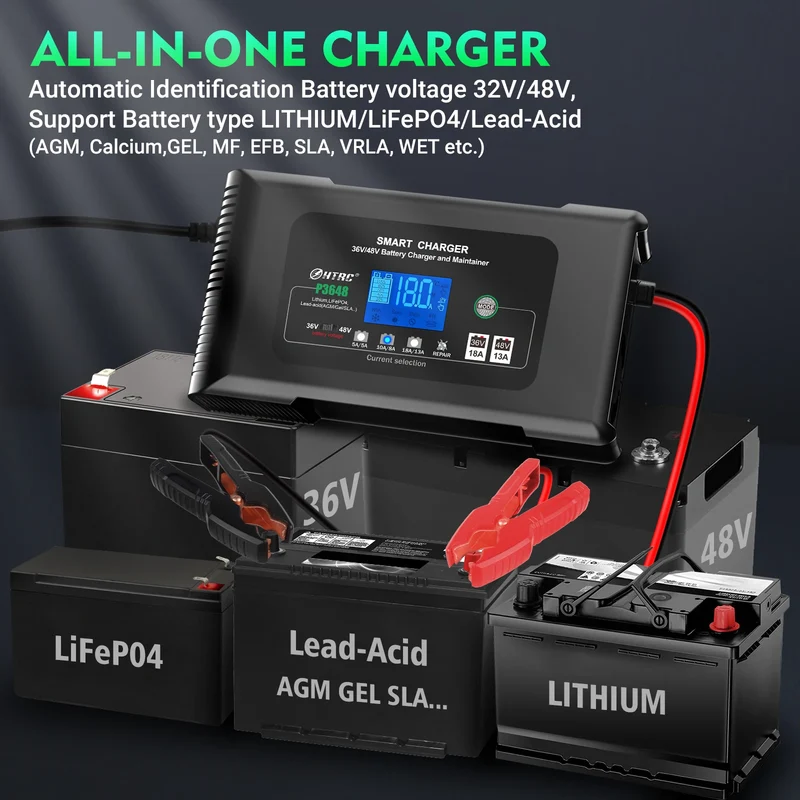

Suit for :Lithium/LiFePO4/Lead-Acid (AGM,GEL,EFB, MF, FLOODED, VRLA, SLA and Wet batteries..) 18Amp charging current can quickly fill your golf cart, manually select 36/48V battery, quick charging, 36V18Amp, 48V 13Amp ultra-high power, deep cycle battery charging, do not damage the battery. Lithium, LifePO4, Lead acid(AGM/GEL/EFB, MF, Flooded battery, VRLA, SLA, wet battery..)
Suitable for Golf cart EZGO TXT,cars, trucks, agricultural vehicles, ships, motorboats Lawn,Mower, Motorcycle, Boat, SUV and More…9level fast intelligent charger, temperature compensation, cooling system, over current, over voltage, short circuit and reverse connection protection, no spark, refractory material, multiple protection, safe and reliable.Input voltage :100-240V 50/60Hz, Max output voltage/current :36V 18A, 48 V 13A. Minimum starting voltage :26V.Automatically and intelligently adjust charging current to prolong battery life.It can't activate a depleted battery Specification

Brand Name	HTRC
Model Number	P3648
Minimum Start Volt	26V
Size	approx.230*125*70mm

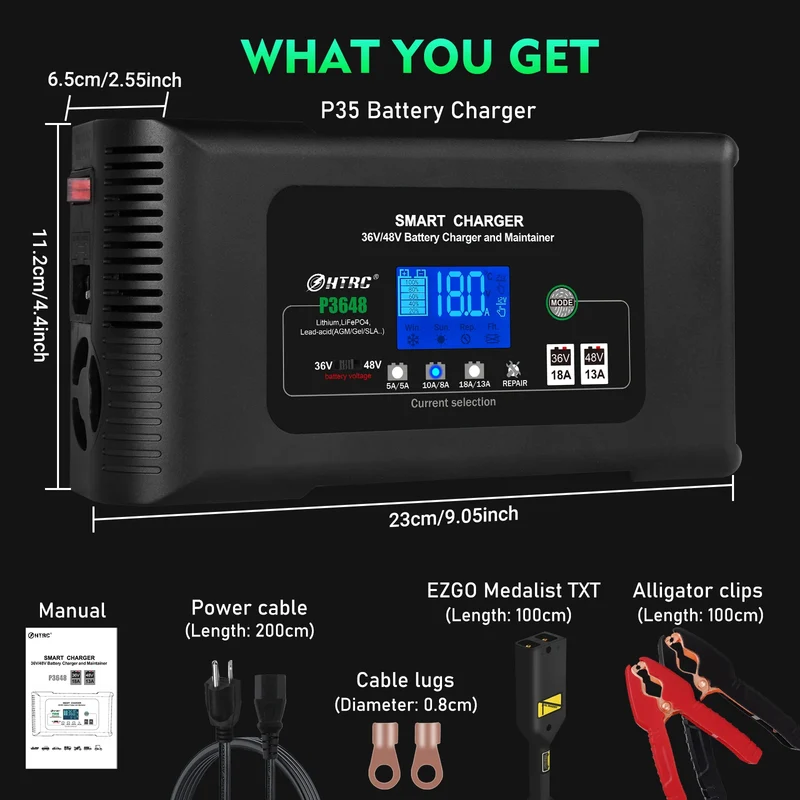

Packing & Delivery

Packing

1X 36V/48V Car Battery Charger
1x 2M Extension Power Cord(Please note the AU Plug cables line length is only 120cm)
1x Cable Clip
1x 100cm EZGO Medalist TXT(Of you choose)
1x Manual
1x Retail Box FAQ 1: Can't reach the maximum charging current ?
To protect the battery, the system automatically identifies the battery voltage and selects the most appropriate current to charge the battery. When the battery voltage is low (for example, the 36V battery voltage is less than 30V), the system automatically charges the battery at the maximum current. (3 gears can adjust charging current, large current, fast charging)
2: The LiFePO4 battery is not fully charged ?
When the battery is fully charged, it has a callback function, reducing the charge by about 1V-4V, which is normal. Added a small current after full charge uninterrupted charging.
3: Fan noise?- It is normal that the fan has wind to cool down the charging temperature.
4. It is safety during charging ?
Built-in multiple detection, temperature protection, low voltage protection, overvoltage protection, short circuit protection,
overcurrent protection.electrostatic spark protection.
