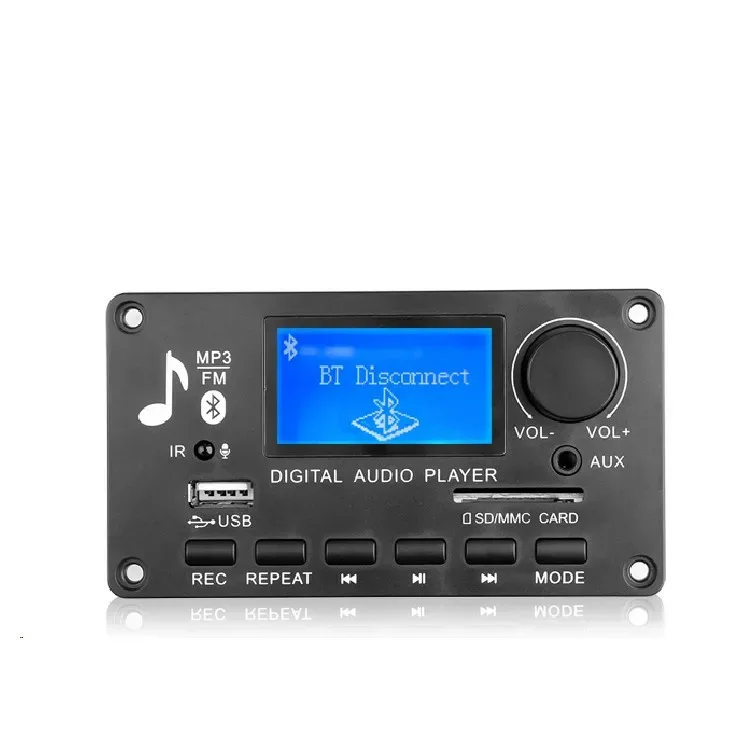

High Quality Digital Audio Player Module MP3 Decoder Board USB SD BT Music Player Board Record FM Link in

SPECIFICATIONS

Brand Name: WUHUAMA

Item Type: Speaker Accessories Kits

Material: Plastic

Model Number: 006B

Origin: Mainland China

Package: Yes

ITEM DESCRIPTION

High Quality Digital Audio Player Module MP3 Decoder Board USB SD BT Music Player Board Record FM Link in

Product information:
Main control IC: AC6921
Bluetooth IC: AC6921 Bluetooth version is 5.0
Music format: MP3 / WMA / WAV / FLAC / APE lossless format
Bluetooth call function
recording function
Folder switching function
Radio FM frequency: 87.5-107.5 MHZ

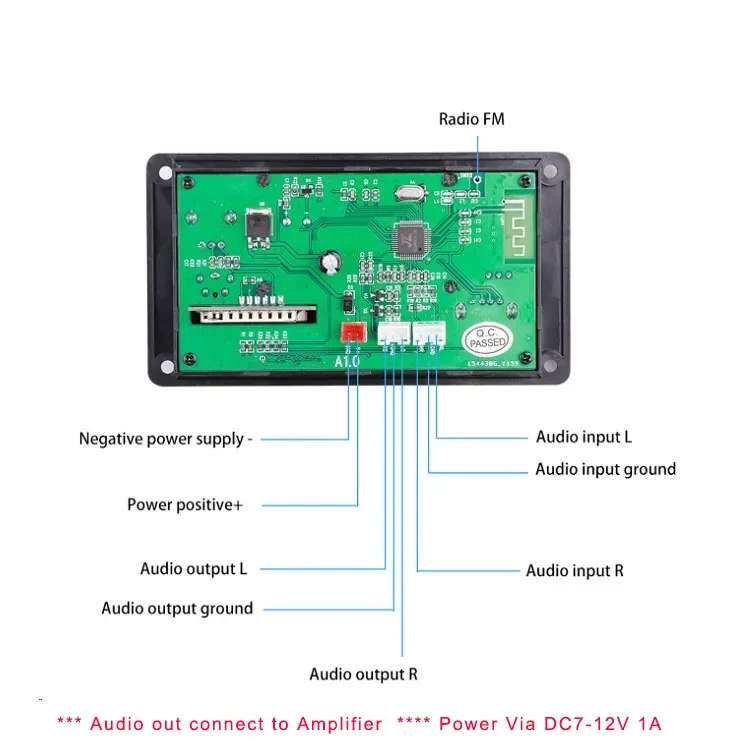

Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control connection / DC 12V

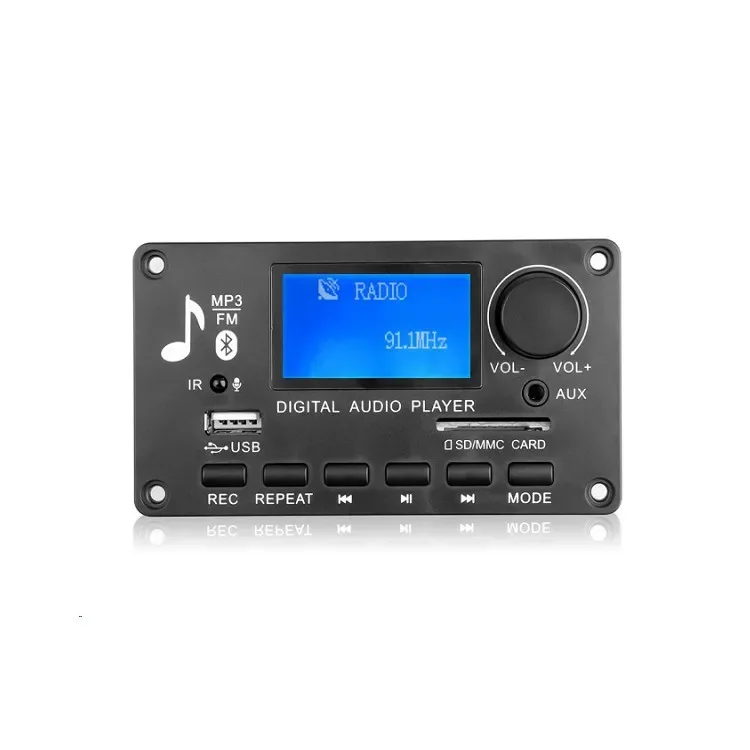

About the structure: Panel size: length 112 * width 62 MM, the panel is surrounded by screw holes, and the depth of the panel is 22MM

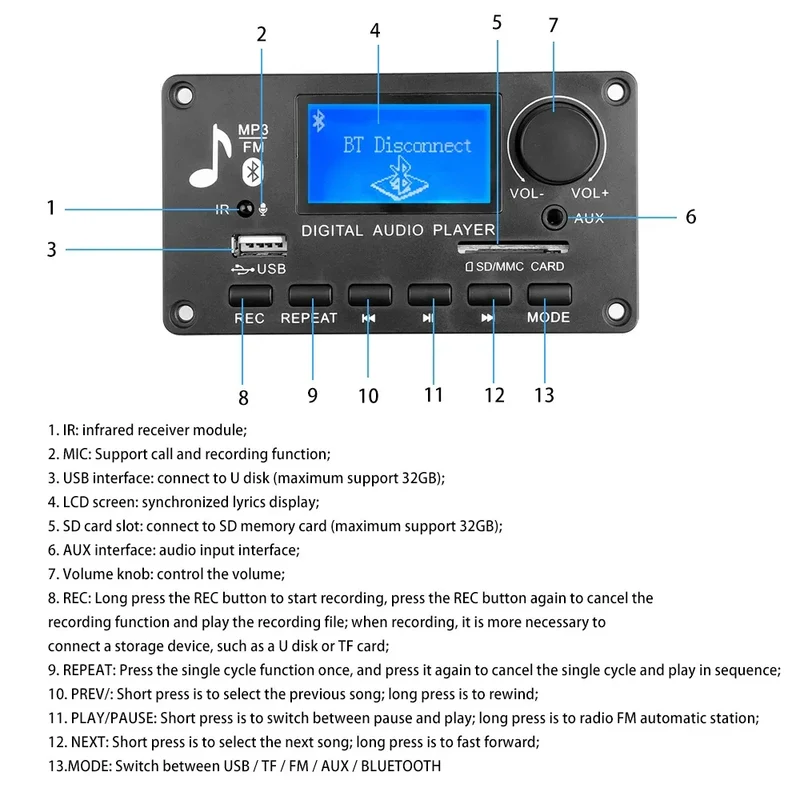

1. Buttons and interface functions
1. IR: infrared receiver module;
2. MIC: Support call and recording function;
3. USB interface: connect to U disk (maximum support 32GB);
4. LCD screen:
5. SD card slot: connect to SD memory card (maximum support 32GB);
6. AUX interface: audio input interface;
7. Volume knob: control the volume;

8. REC: Long press the REC button to start recording, press the REC button again to cancel the recording function and play the recording file; when recording, it is more necessary to connect a storage device, such as a U disk or TF card;
9. REPEAT: Press the single cycle function once, and press it again to cancel the single cycle and play in sequence;
10. PREV/: Short press is to select the previous song; long press is to rewind;
11. PLAY/PAUSE: Short press is to switch between pause and play; long press is to radio FM automatic station;
12. NEXT: Short press is to select the next song;long press is to fast forward;
13. MODE: Switch between USB / TF / FM / AUX / BLUETOOTH

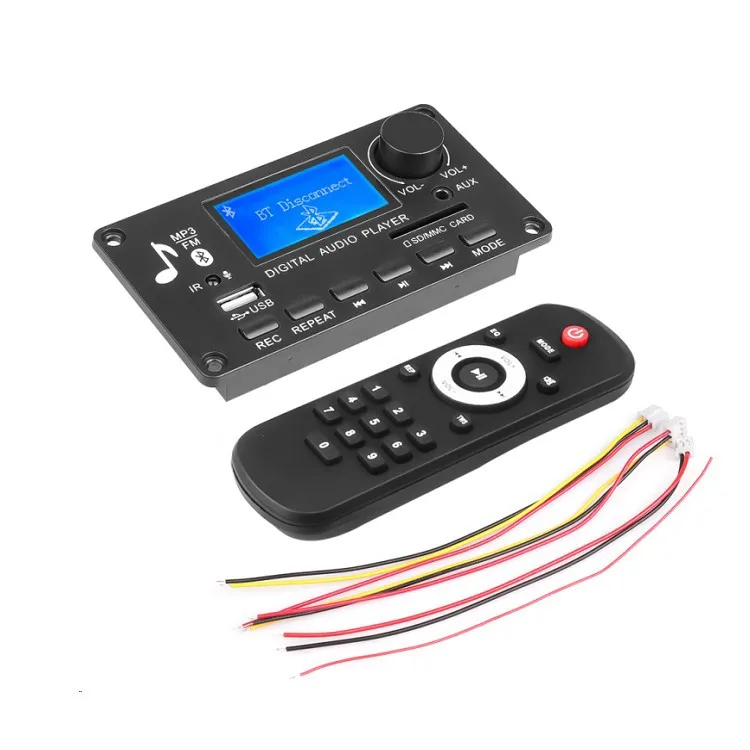

PACKING LIST

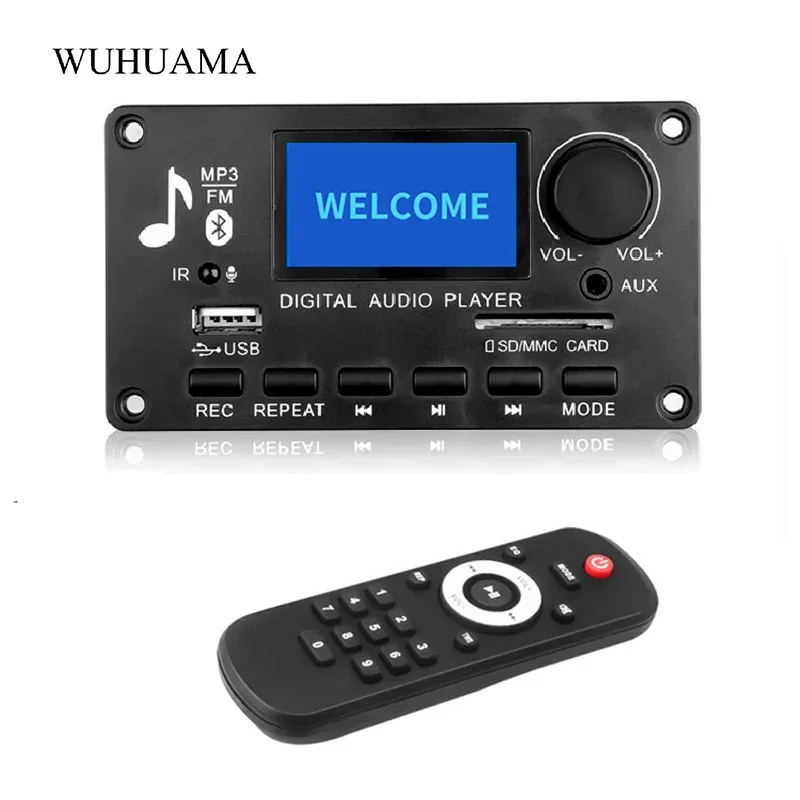

1PC* MP3 Bluetooth Module

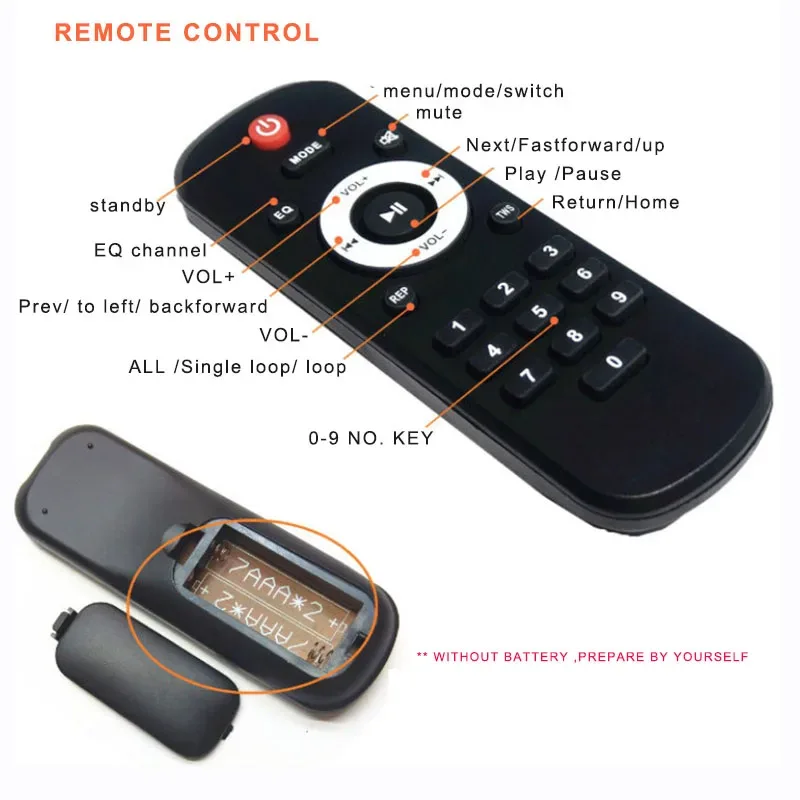

1PC* Remote ( without battery)
3PC* Connect cables
