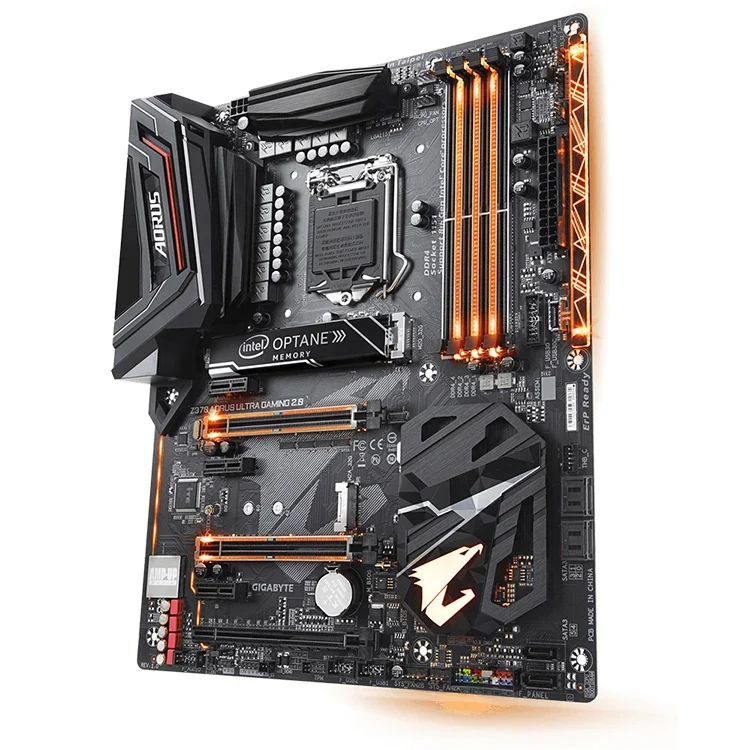

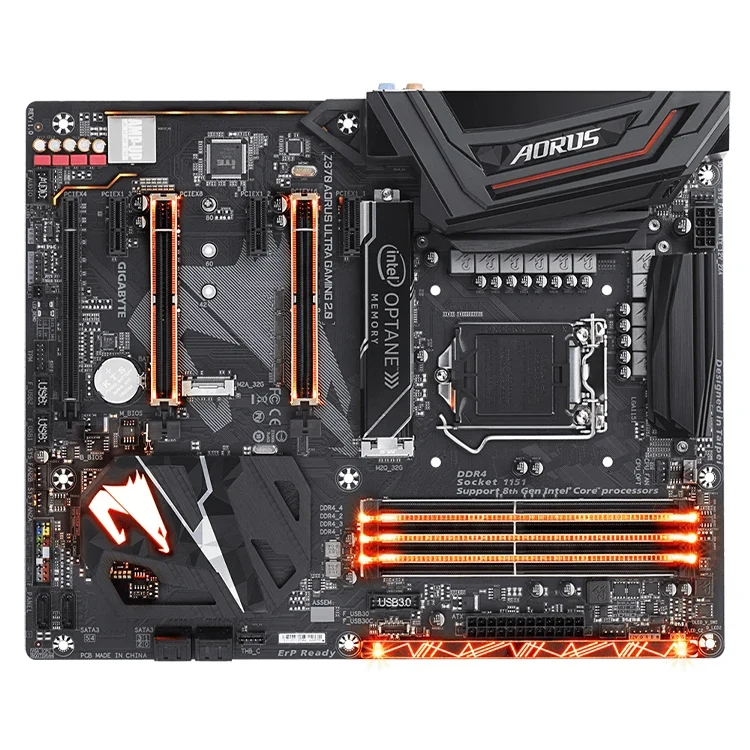

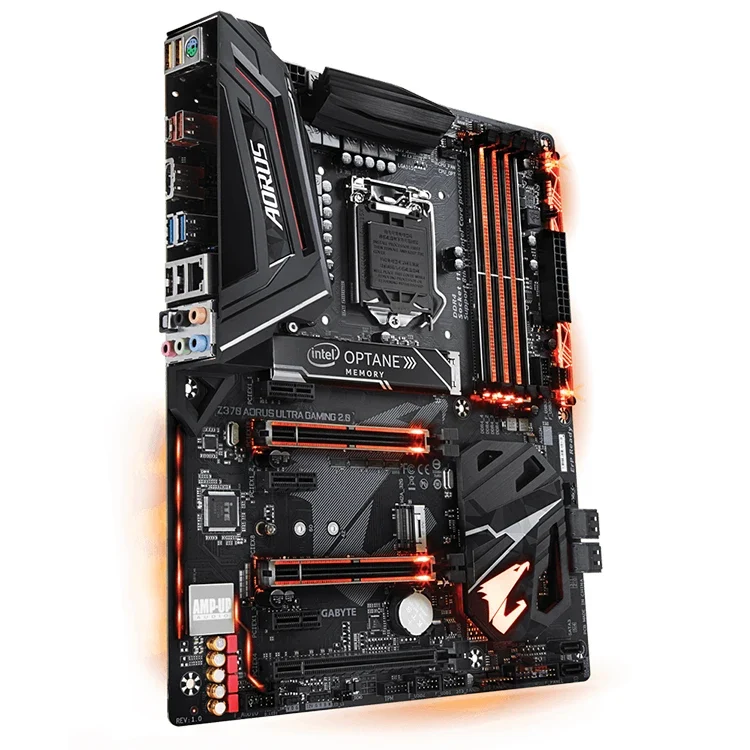

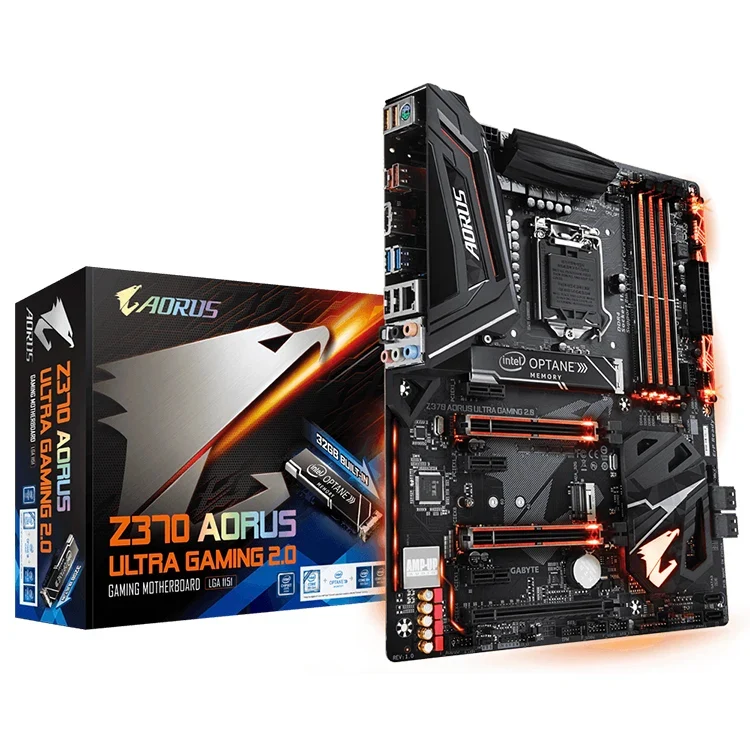

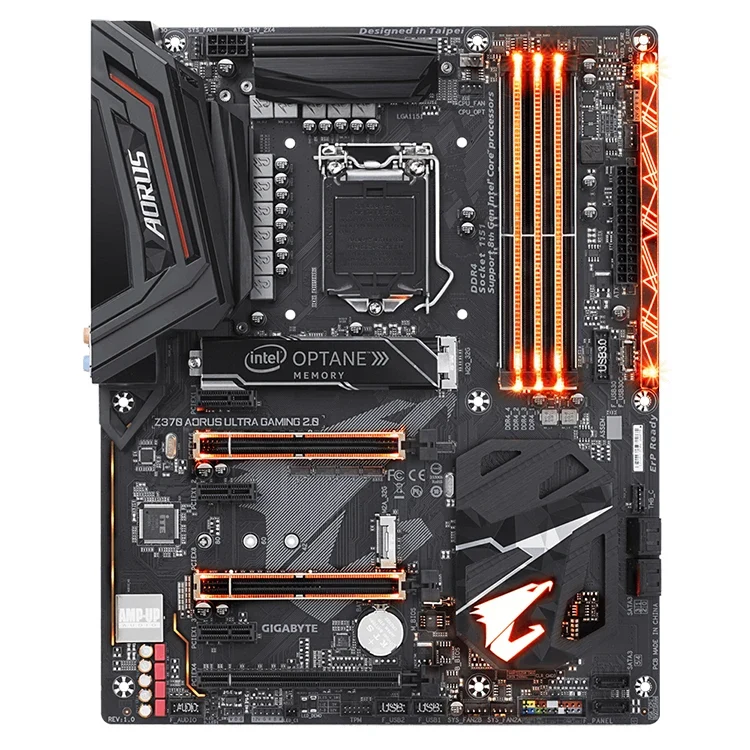

GIGABYTE Z370 AORUS ULTRA GAMING 2.0-OP Motherboard with Optane Memory Intel Z370 Chipset Supports 8th Gen Intel Core Processors

SPECIFICATIONS

Audio: Realtek ALC1220 codec

Bundled Software: Norton Internet Security (OEM version)

Chipset: Intel Z370 Express Chipset

DIMM sockets: 4 x DDR4 DIMM sockets

Form Factor: ATX Form Factor; 30.5cm x 24.4cm

I/O Controller: iTE I/O Controller Chip

Onboard Graphics: Integrated Graphics Processor-Intel HD Graphics support

Operating System: Support for Windows 10 64-bit

Processor (CPU) Model Socket: LGA 1151

Unique Features: Support for Q-Flash

application: Desktop

brand name: GIGABYTE

chipset: Z370

chipset manufacturer: Intel

cpu type: Core I7/Core I5/Core I3

form factor: ATX

fsb / ht: 1333Mhz

graphics card type: Integrated

hard drive interface: SATA,M.2

item condition: Used

maximum ram capacity: 64 GB

memory bank: 4 DDR4

memory channel: Double

memory type: DDR4

package: Yes

place of origin: Guangdong, China

ports: SATA,PCI-Express X16,PCI-Express X8,PCI-Express X4,USB 2.0,Display Port,Ethernet,M.2,USB 3.0,Usb3.1,PCI-E 3.0,PCI-Express X1,HDMI

private mold: Yes

products status: Used

socket type: LGA 1151

with cpu: No

GIGABYTE Z370 AORUS ULTRA GAMING 2.0-OP Motherboard with Optane Memory Intel Z370 Chipset Supports 8th Gen Intel Core Processors

Ready for Intel® Core™ i7+/i5+ platforms, Intel Z370 Gaming motherboard with Intel Optane Memory accelerated, RGB Fusion, Digital LED support, Dual M.2, 120dB SNR ALC1220, Intel Gaming LAN, Front USB 3.1 Gen 1 Type-C & Rear USB 3.1 Gen 2 Type-C, Smart Fan 5, Anti-Sulfur Resistors

• Supports 8th Gen Intel® Core™ Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Built-in 32GB Intel® Optane™ Memory, the ultimate storage performance enhancer
• ASMedia 3142 USB 3.1 Gen 2 with USB Type-C™ and Type-A
• Front USB 3.1 Gen 1 Type-C™ Header
• Multi-Way Graphics Support with Dual Armor and Ultra Durable™ Design
• ALC1220 120dB SNR HD Audio with Smart Headphone AMP and WIMA audio capacitors
• Intel GbE LAN Gaming Network with cFosSpeed Internet Accelerator Software
• RGB FUSION with Multi-Zone Digital LED Light Show design, support digital LED & RGB LED strips
• Swappable Overlay for Accent LED
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• Dual Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
• USB DAC-UP 2 with Adjustable Voltage
• Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
• Lightning-Fast Intel® Thunderbolt™ 3 AIC Support

• CPU
1. Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors in the LGA1151 package
2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

• Chipset
1. Intel® Z370 Express Chipset
• Memory
1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
2. Dual channel memory architecture
3. Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

• Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
   * Support for HDMI 1.4 version and HDCP 2.2.

Maximum shared memory of 1 GB

• Audio
1. Realtek® ALC1220 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out
• LAN
1. Intel® GbE LAN chip (10/100/1000 Mbit)
• Expansion Slots
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
   * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
   * The PCIEX4 slot shares bandwidth with the PCIEX1_2 and PCIEX1_3 slots. When the PCIEX1_2 or PCIEX1_3 slot is populated, the PCIEX4 slot operates at up to x1 mode.
4. 3 x PCI Express x1 slots
   (All of the PCI Express slots conform to PCI Express 3.0 standard.)
• Multi-Graphics Technology
1. Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
2. Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies
• Storage Interface

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_32G)
2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_32G)
3. 32 GB Intel® Optane™ Memory pre-installed (M2Q_32G)
4. 6 x SATA 6Gb/s connectors
5. Support for RAID 0, RAID 1, RAID 5, and RAID 10
   * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel® Optane™ Memory Ready

• USB

Chipset+ASMedia® USB 3.1 Gen 2 Controller:

1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel

Chipset:

1. 1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header
2. 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
3. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 3 x system fan headers
6. 1 x system fan/water cooling pump header
7. 2 x digital LED strip headers
8. 2 x digital LED strip power select jumpers
9. 2 x RGB (RGBW) LED strip headers
10. 6 x SATA 6Gb/s connectors
11. 2 x M.2 Socket 3 connectorsv
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x S/PDIF Out header
15. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
16. 1 x USB 3.1 Gen 1 header
17. 2 x USB 2.0/1.1 headers
18. 1 x Thunderbolt™ add-in card connector
19. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
20. 1 x Clear CMOS jumper

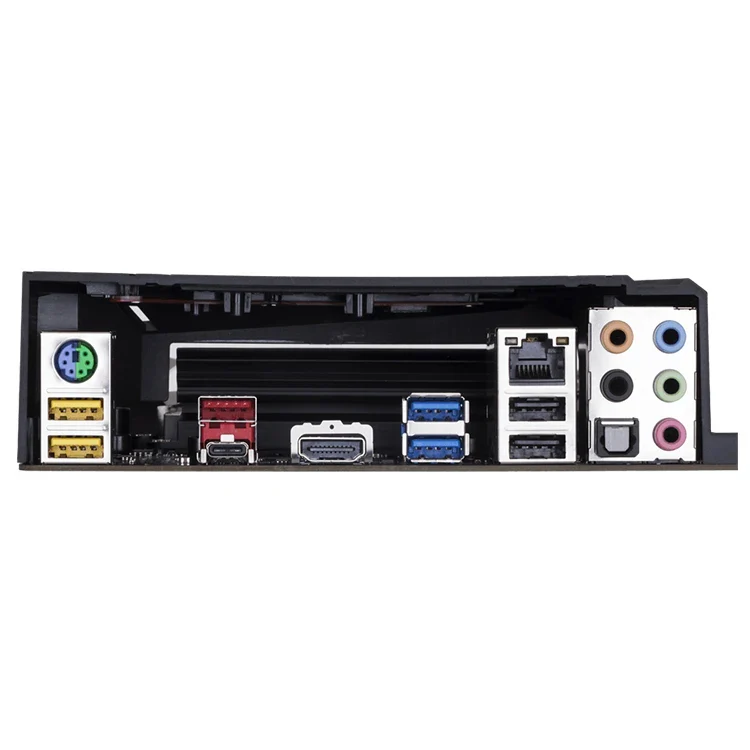

• Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
3. 1 x USB 3.1 Gen 2 Type-A port (red)
4. 1 x HDMI port
5. 4 x USB 3.1 Gen 1 ports
6. 2 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 1 x optical S/PDIF Out connector
9. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
• I/O Controller
1. iTE® Controller Chip
• H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
   * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• BIOS
1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   3D OSD
   @BIOS
   AutoGreen
   BIOS Setup
   Color Temperature
   Cloud Station
   EasyTune
   Easy RAID
   Fast Boot
   Game Boost
   ON/OFF Charge
   Platform Power Management
   RGB Fusion
   Smart Backup
   Smart Keyboard
   Smart TimeLock
   Smart HUD
   System Information Viewer
   USB Blocker
   V-Tuner
2. Support for Q-Flash
3. Support for Xpress Install
• Bundled Software
1. Norton® Internet Security (OEM version)
2. cFosSpeed
• Operating System
1. Support for Windows 10 64-bit
• Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm
• Remark
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
