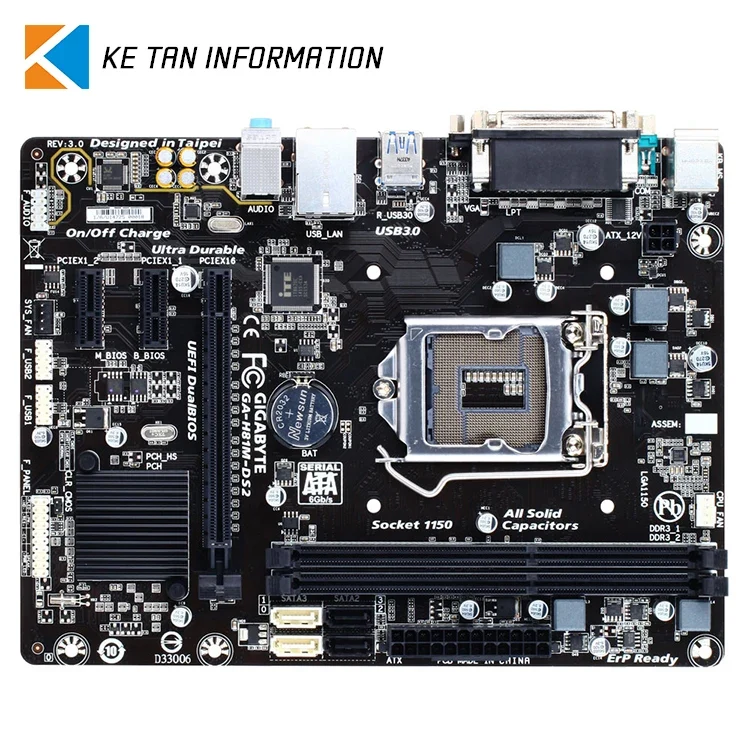

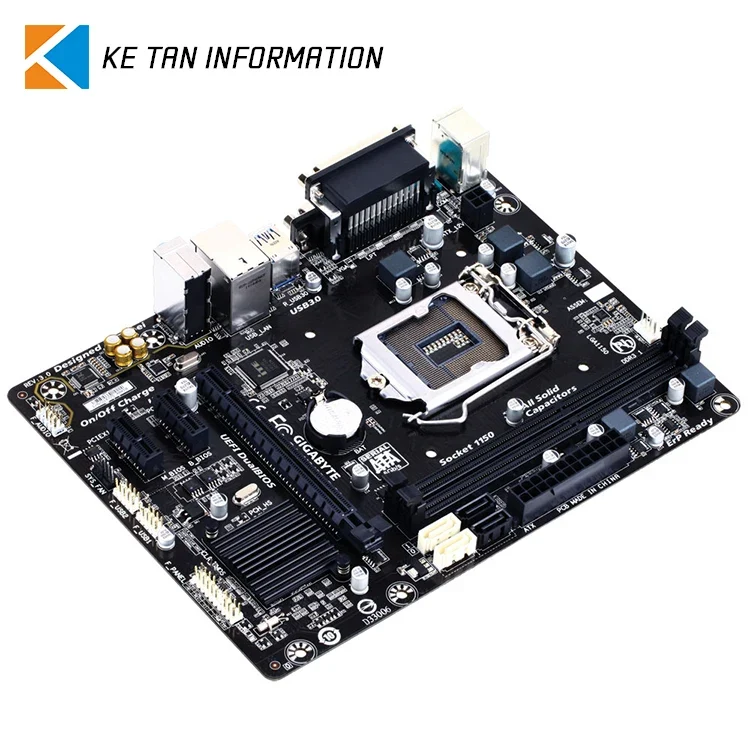

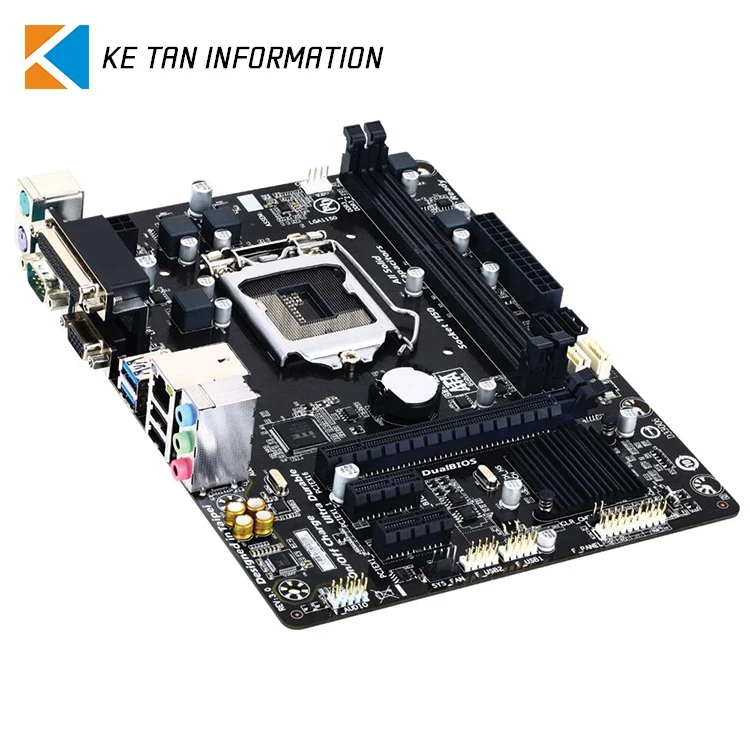

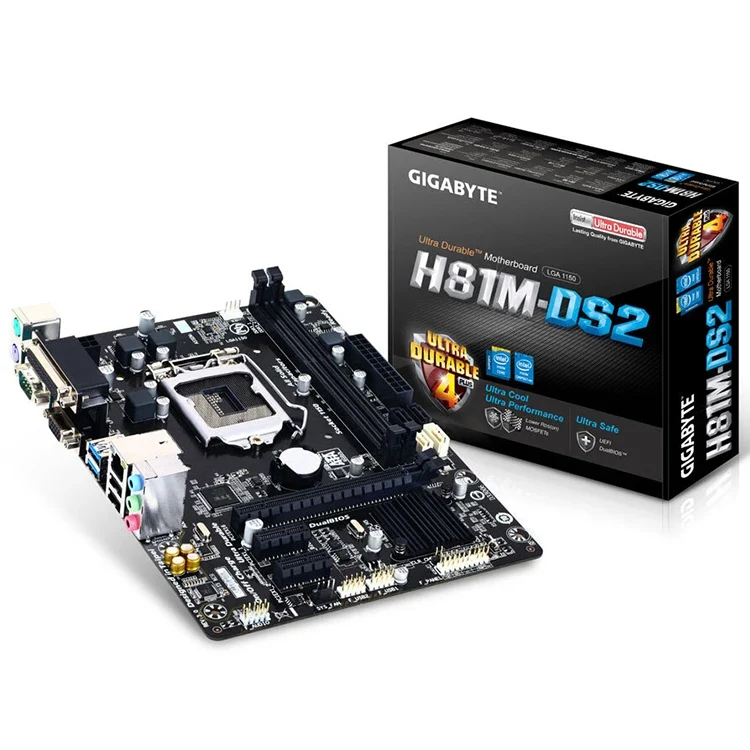

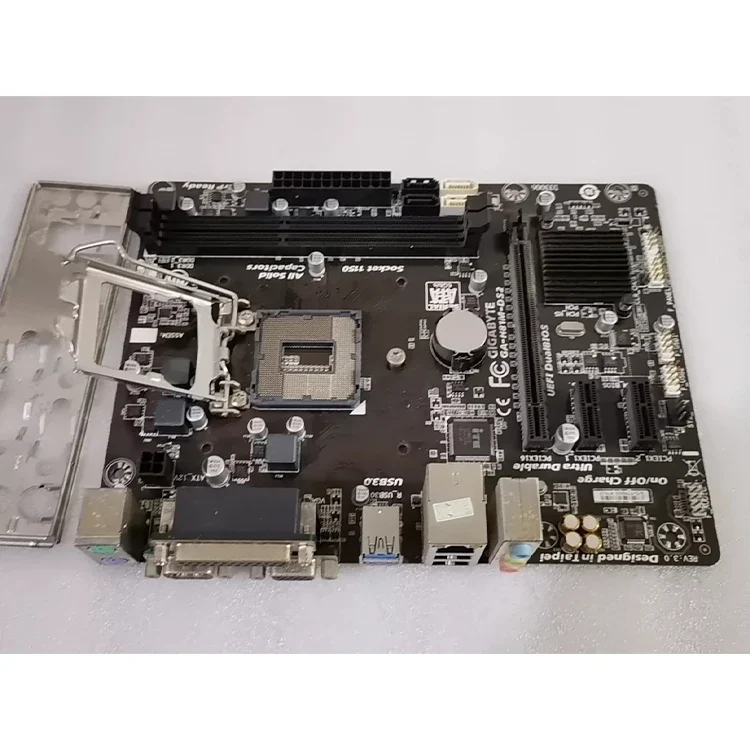

GIGABYTE H81M DS2 Supports 3th 4th Intel Core Processors with Intel H81 Express Chipset Supports DDR3 Memory Used Motherboard

SPECIFICATIONS

Audio: Realtek Audio CODEC

BRAND: GIGABYTE

CPU: Inter

Chipset: Intel H81 Express Chipset

DIMM sockets: DDR3

Form Factor: Micro ATX Form Factor; 22.6cm x 17cm

I/O Controller: iTE I/O Controller Chip

Onboard Graphics: Integrated Graphics Processor

Storage Interface: 2 x SATA 6Gb/s connectors

USB: 4 x USB 3.0/2.0,6 x USB 2.0/1.1

application: Desktop

brand name: GIGABYTE

chipset: Intel H81

chipset manufacturer: Intel

cpu type: Intel

form factor: Micro-ATX

fsb / ht: 1333Mhz

graphics card type: Integrated

hard drive interface: SATA

item condition: Used

maximum ram capacity: 32 GB

memory channel: Double

memory type: DDR3

package: Yes

place of origin: Guangdong, China

ports: Ethernet,PCI-E 3.0,PCI-Express X1,PCI-Express X16,PS2,SATA,USB 2.0,USB 3.0

private mold: Yes

products status: Used

socket type: LGA 1151

with cpu: No

Product Description

GIGABYTE H81M DS2 Supports 3th 4th Intel Core Processors with Intel H81 Express Chipset Supports DDR3 Memory Used Motherboard

• Supports 4th Generation Intel® Core™ processors
• GIGABYTE Ultra Durable™ 4 Plus Technology
• Audio Noise Guard with High Quality Audio Capacitors
• GIGABYTE UEFI DualBIOS™
• GIGABYTE On/Off Charge™ for USB devices
• LAN with high ESD Protection
• LPT, COM, D-SUB port on rear panel
• All solid capacitors design

• CPU
1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

• Chipset
1. Intel® H81 Express Chipset
• Memory
1. 2 x DDR3 DIMM sockets supporting up to 16 GB of system memory
   * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR3 1600/1333 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

• Onboard Graphics

Integrated Graphics Processor - Intel® HD Graphics support:

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
2. Maximum shared memory of 1 GB
• Audio
1. Realtek® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• LAN
1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)
• Expansion Slots
1. 1 x PCI Express x16 slot, running at x16
2. 2 x PCI Express x1 slots
   (The PCI Express slots conform to PCI Express 2.0 standard.)
• Storage Interface

Chipset:

1. 2 x SATA 6Gb/s connectors (SATA3 0/1)
2. 2 x SATA 3Gb/s connectors (SATA2 2/3)
• USB

Chipset:

1. 2 x USB 3.0/2.0 ports on the back panel
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 2 x SATA 6Gb/s connectors
4. 2 x SATA 3Gb/s connectors
5. 1 x CPU fan header
6. 1 x system fan header
7. 1 x front panel header
8. 1 x front panel audio header
9. 2 x USB 2.0/1.1 headers
10. 1 x Clear CMOS jumper

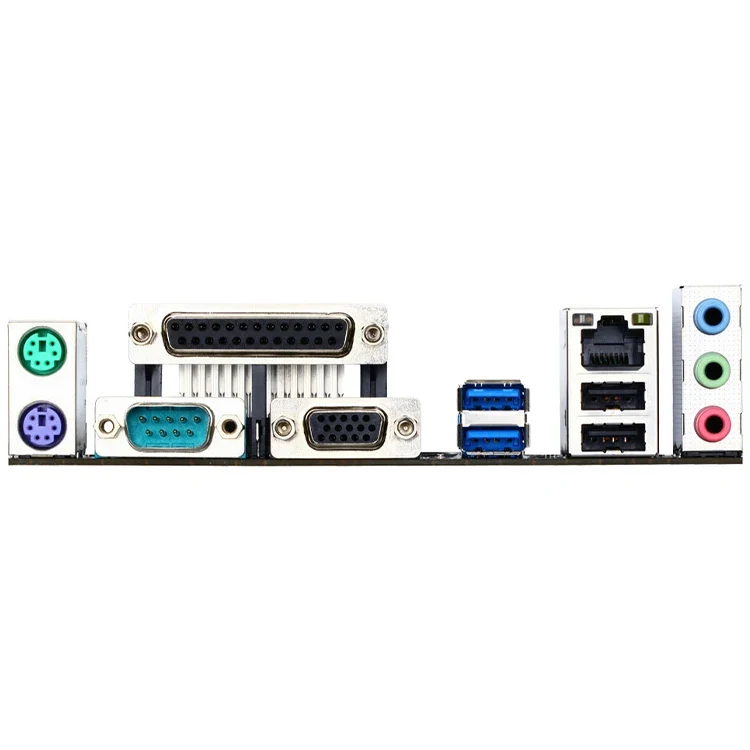

• Back Panel Connectors
1. 1 x PS/2 mouse port
2. 1 x PS/2 Keyboard port
3. 1 x parallel port
4. 1 x serial port
5. 1 x D-Sub port
6. 2 x USB 3.0/2.0 ports
7. 2 x USB 2.0/1.1 ports
8. 1 x RJ-45 port
9. 3 x audio jacks
• I/O Controller
1. iTE® I/O Controller Chip
• H/W Monitoring
1. System voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
1. 2 x 32 Mbit flash
2. Use of licensed AMI EFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
• Unique Features
1. Support for Q-Flash
2. Support for APP Center
   * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
   @BIOS
   EasyTune
   EZ Setup
   USB Blocker
   Smart TimeLock
   Smart Recovery 2
3. Support for ON/OFF Charge
• Bundled Software
1. Norton® Internet Security (OEM version)
2. LAN bandwidth management software
• Operating System
1. Support for Windows 10/7
• Form Factor
1. Micro ATX Form Factor; 22.6cm x 17cm
