GAMX-2011 Electronic Positioner Intelligent Control Module

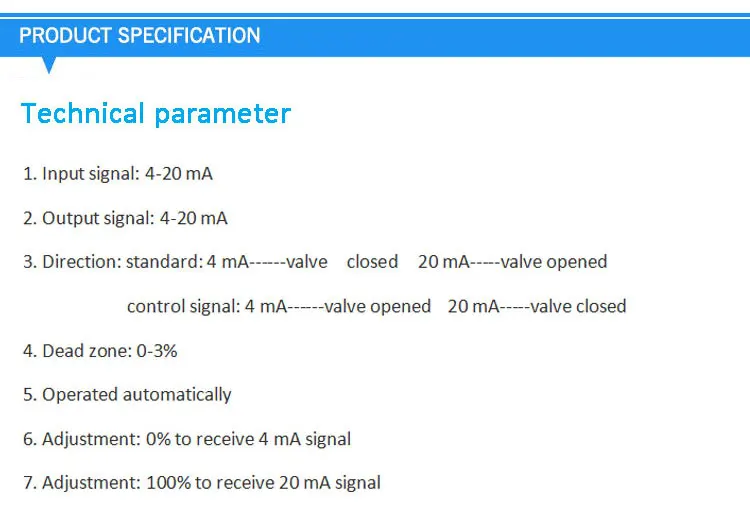

SPECIFICATIONS

0% adjustment: locator 0%, makes the actuator receive 4mA close command.

Certificate: CE

Color: Blue

Dead zone: 0-3%

Input signal: 4-20mA

Shipping: TNT

Standard or Nonstandard: Standard

Valve type: Butterfly Valve,Ball Valve

Voltage: AC 220V 380V

brand name: fry

customized support: ODM,OEM

model number: GAMX-2011

place of origin: Tianjin, China

warranty: 1 year

Control Board

GAMX-2011

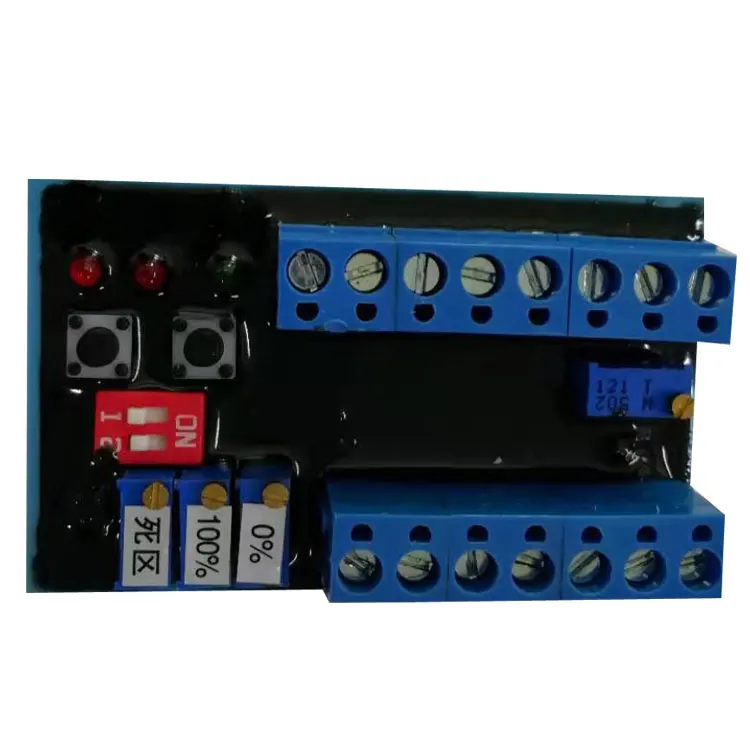

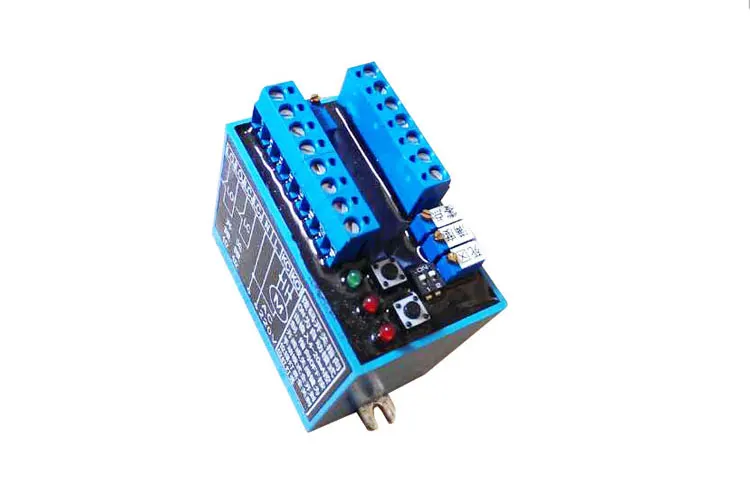

Features of  actuator module card GAMX-2011 local control board:

1.Input current 4-20madc input impedance 250 ohms

2.Output current 4-20madc output load 270 ohms

3.Built - in electronic brake, prevent mechanical sloth

4.Input break-signal actuator in place (open or close the valve as required)

5.Contactless power output AC220V

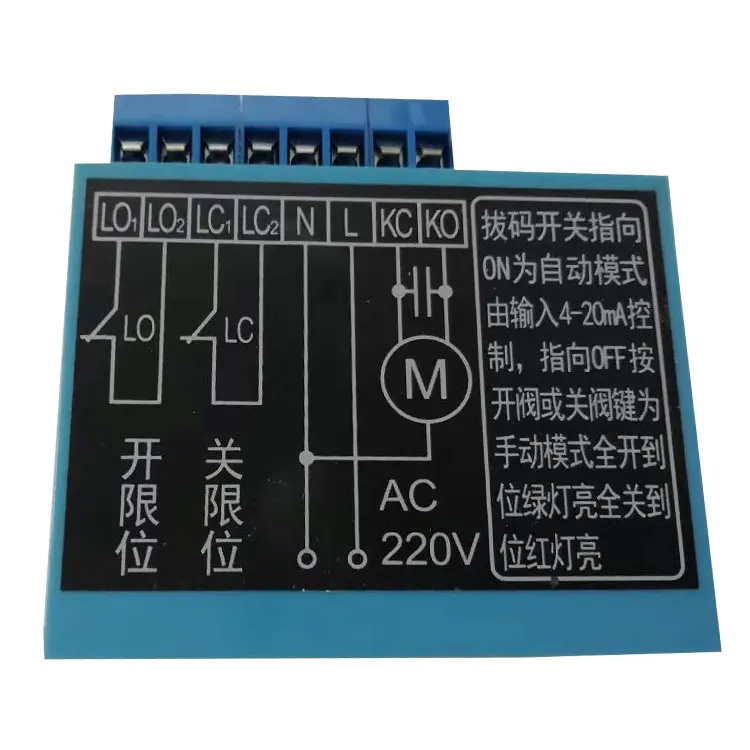

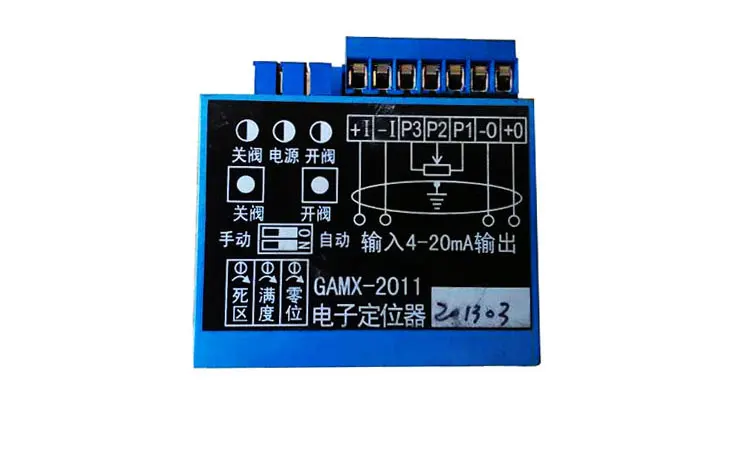

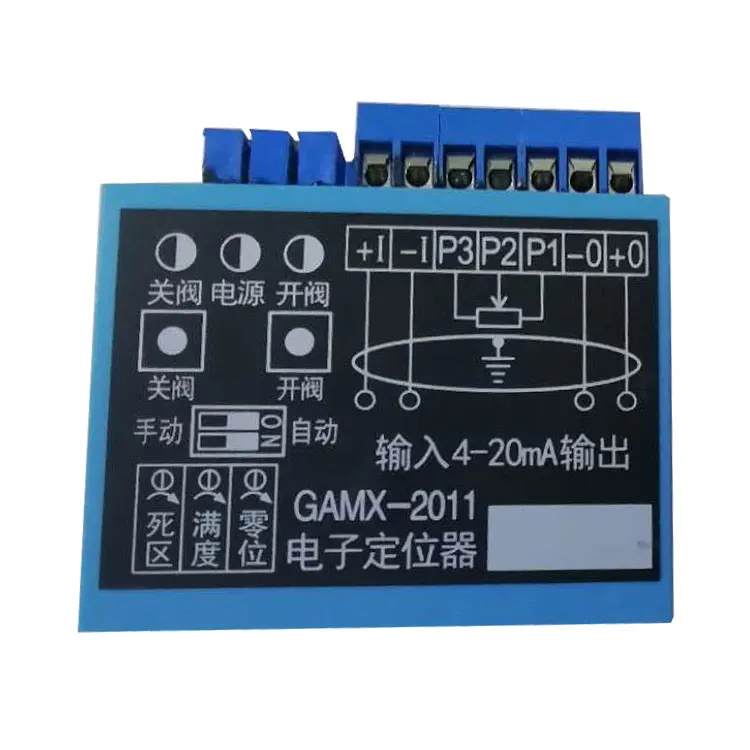

Gamx-2011 electronic locator leads terminal diagram

Debugging methods

 Connect the locator and the actuator according to the circuit diagram, and confirm the correctness. Turn on the 220V power supply and the indicator light of the positioner is on. Dial the two dial codes to OFF (manual) and turn into manual operation. Press the button of the valve to run towards the close.Press the button actuator to open and run. When fully open, rotate the full potentiometer to make the valve position output 20mA.Again repeatedly run actuator fitted and fully open and adjust the zero and full potentiometer, until the corresponding fitted valve position output 4 ma, fully open output corresponding to the valve position 20 ma, manual debugging over, finally put two dial the code switch to ON (to be automatic), the locator to automatic state, potentiometer to track the input signal, if there is turbulence can be appropriately adjusting dead zone potentiometer.

Supply a variety of control panels

C12701 GAMK JDIDL-A GAMX-2004 GAMX-2005 GAMX-2007 GAMX-2007

GAMX-2010N GAMX-2010N-3P GAMX-20141H GAMX-2015H S518-380-SA7

GAMX-C GAMX-d GAMX-D GAMX-S GAMX-2k GAMX-2KP GAMX-S518S

GAMX-TD518S GAMX-L1840 PM2 PM3 ST-2DF ST-3D-B SDM-S220
