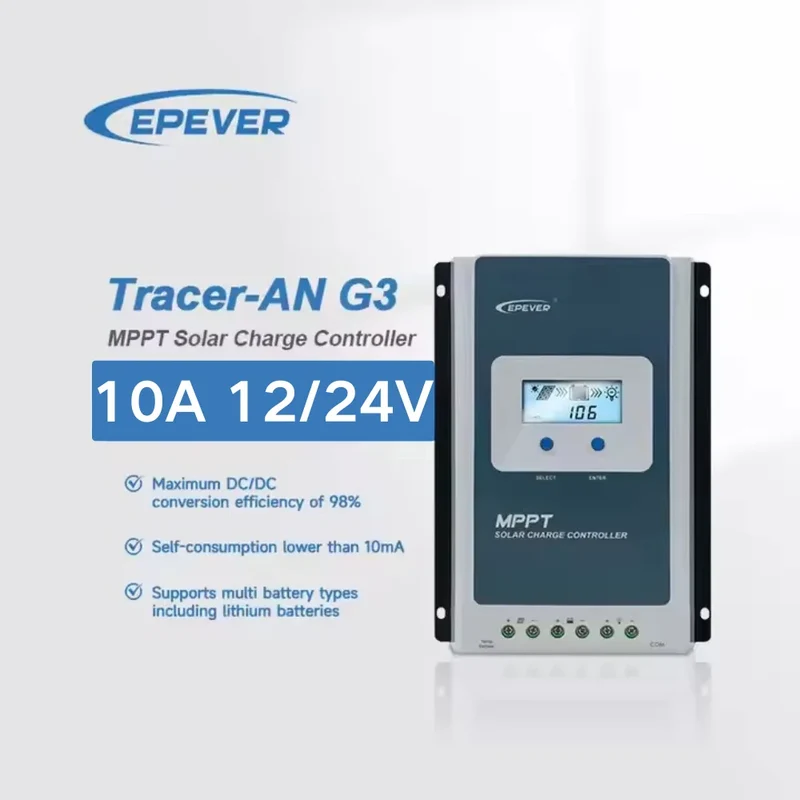

For Epever 10A Mini Solar Power Battery Storage System Home Use MPPT Solar Charger Control 12V 24V Solar Charge Controller

SPECIFICATIONS

Application: Solar System Controller

Brand Name: EPEVER

Certificate: CE

Dimension: 172*139 * 44mm

Enclosure: IP30

Grounding Type: Common negative

Max PV Power: 260W

Max PV Voltage: -

Model Number: Tracer1210AN G3

Place of Origin: Guangdong, China

Product name: MPPT Solar Controller

RS485 Port: 5VDC/200mA(RJ45)

Rated charge current: 10A

System voltage: 12/24VDC Auto-recognition

Type: MPPT

Warranty: 1 years

Work Time (h): 24

Working Temperature(℃): -20 ~ +70

Product Description Product Parameter

Parameter

Tracer 1206AN G3

Tracer 2206AN G3

Tracer 1210AN G3

Tracer 2210AN G3

Tracer 3210AN G3

Tracer 4210AN G3

Electrical Parameters

Battery Rated Voltage

12/24VDC Auto-recognition

Rated Charging Current

10A

20A

10A

20A

30A

40A

Rated Discharge Current

10A

20A

10A

20A

30A

40A

Controller Work Voltage Range

8~31V

PV Max.Open-circuit Voltage

60V

100V

46V

92V

MPPT Voltage Range

(Battery voltage +2V)~36V

(Battery voltage +2V)~72V

Rated Charging Power

130W/12V

260W/12V

130W/12V

260W/12V

390W/12V

520W/12V

260W/24V

520W/24V

260W/24V

520W/24V

780W/24V

1040W/24V

Static Losses

≤8mA(12V)

≤5mA(24V)

Discharge-circuit Voltage Drop

≤0.23V

Temperature Compensation

-3mV/℃/2V (Default)

Grounding Type

Common negative

RS485 Port

5VDC/200mA(RJ45)

LCD Backlight Time

Default:60S, Range:0~999S (0 seconds: the backlight is ON all the time)

Environmental parameters

Work Temperature Range

-25℃~+45℃(100% loads working)

Storage Temperature Range

-20℃~+70℃

Relative Humidity

< 95% (N.C.)

Enclosure

IP30

Dimension (L x W x H)

172x139x44mm

220x154x52mm

172x139x44mm

220x154x52mm

228x164x55mm

252x180x63mm

Mounting Size (L x W)

124x130mm

170x145mm

124x130mm

170x145mm

170x155mm

204x171mm

Mounting Hole Size

Φ5mm

Terminal

12AWG

6AWG (16mm2)

12AWG

6AWG (16mm2)

6AWG (16mm2)

6AWG (16mm2)

(4mm2)

(4mm2)

Recommended Wire Size

12AWG

10AWG

12AWG

10AWG

8AWG (10mm2)

6AWG (16mm2)

(4mm2)

(6mm2)

(4mm2)

(6mm2)

Net Weight

0.57kg

0.94kg

0.57kg

0.94kg

1.26kg

1.65kg
