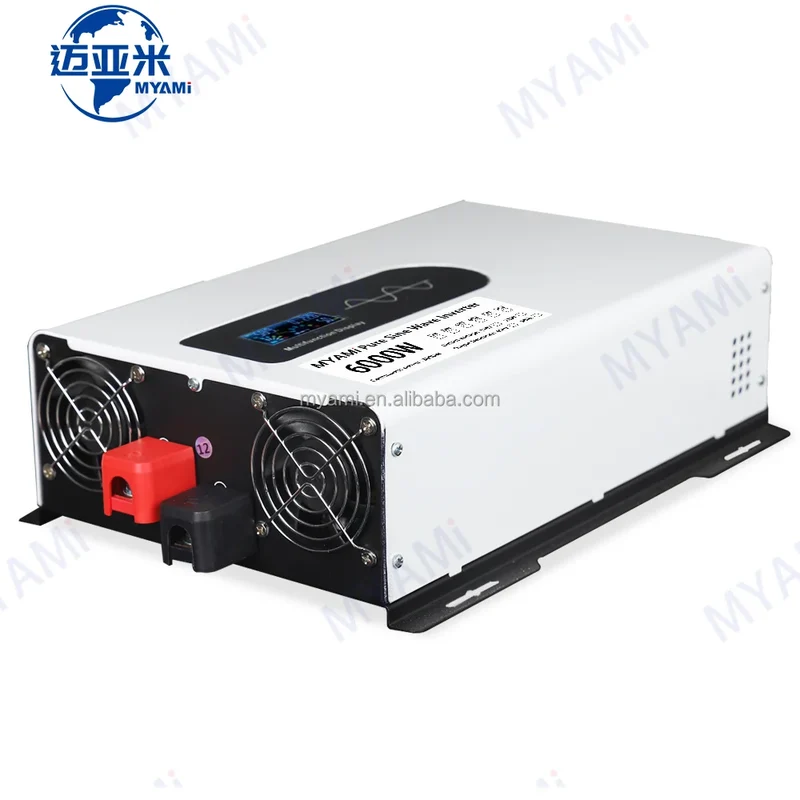

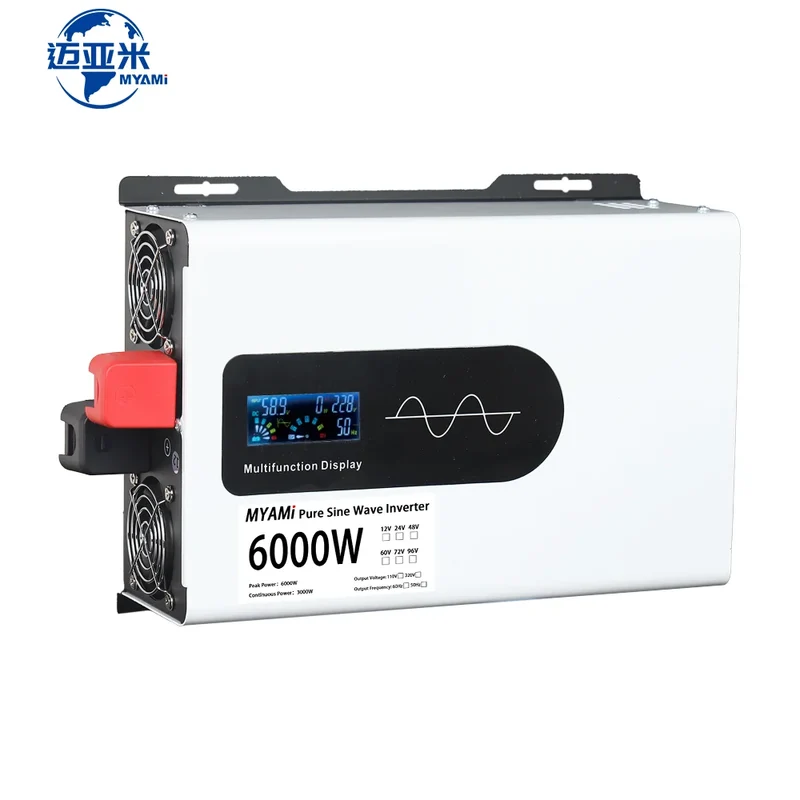

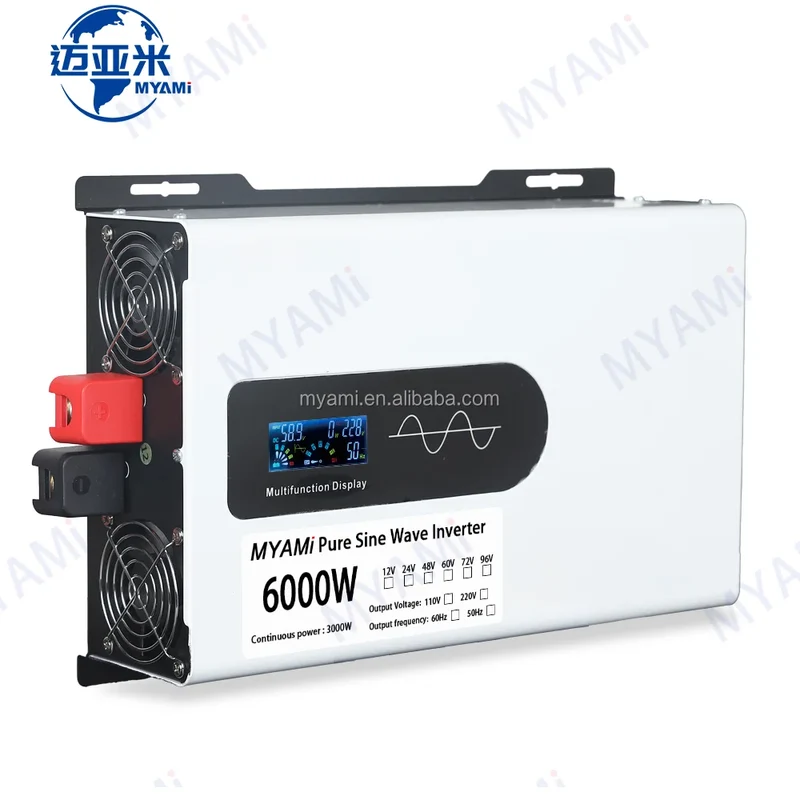

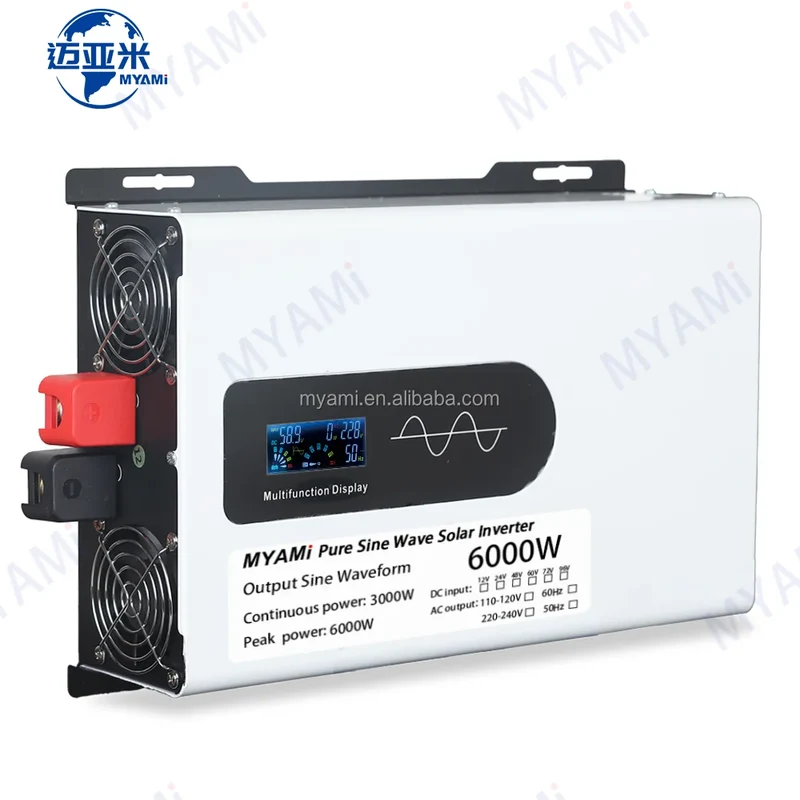

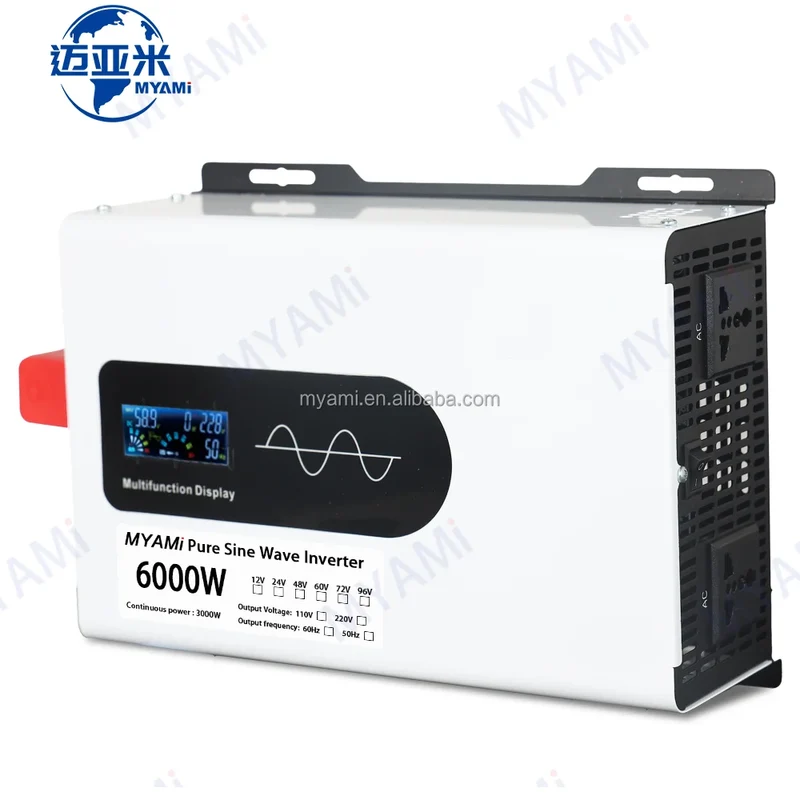

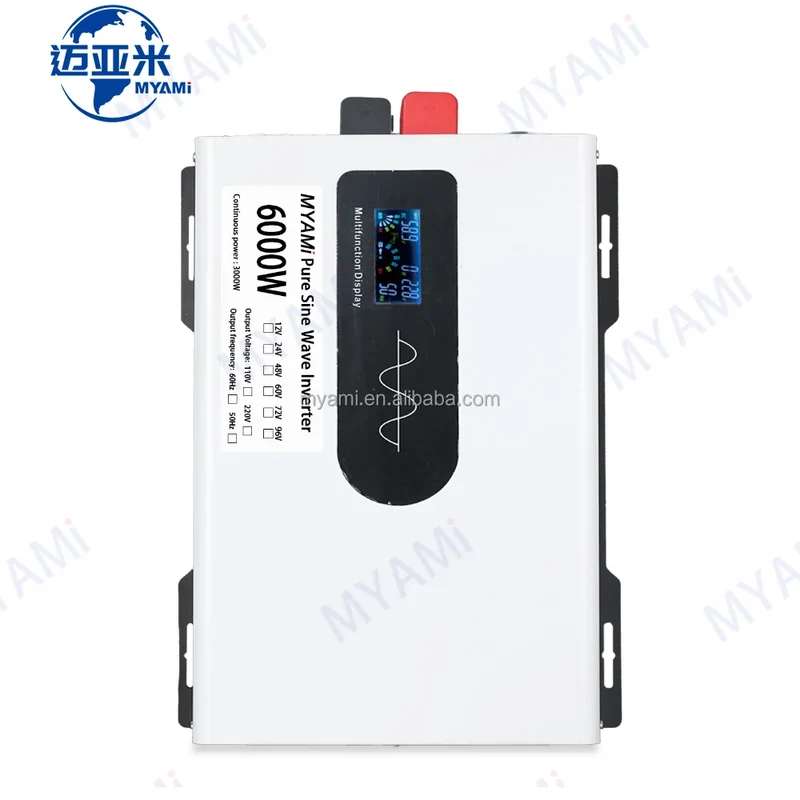

For Dual Output 3000W 12-96V DC Input Grid LCD Display Solar AC 220V Inverter Pure Sine Wave Low-Frequency Air Conditioner

SPECIFICATIONS

Application: Industrial,Home,Air Conditioner,Home Appliance,Home Appliance

Brand Name: MYAMi

Display: LCD Display

Efficiency: 90%

Input Voltage: 12-96V

Inverter type: Low Freqnency Transformer Inverter

Keyword: Inverter Converter

Model Number: MY-E3000N

Network: SDK,None

Output Current: According to power

Output Frequency: 50Hz/60Hz

Output Type: Multiple

Output waveform: Pure Sine Wave Output

Peak power: 6KW

Phase: Single Phase

Place of Origin: Guangdong, China

Product name: AC Power Inverter

Protection: Short Circuit Overload Overvolt Overtemp

Rated power: 3KW

Size: According to power

Type: DC/AC Inverters

Weight: According to power

Products Description Product Parameters

Model	MY-E3000N
Input working DC voltage	12V	24V	48V	60V	72V	96V
Input DC voltage range	10～15.8V	20～31.5 V	40～63V	50-77V	60～92V	80～125V
Alarm DC protection	10V±0.3V	20V±0.3V	40V±0.3V	50V±0.3V	60V±0.3V	80V±0.3V
Low pressure shutdown protection	10V±0.3V	20V±0.3V	40V±0.4V	50V±0.3V	60V±0.3V	80V±0.3V
Overvoltage shutdown protection	15.8V	31.5V	63V	77V	92V	125V
Continuous power	3000Watt
Peak power	6000Watt
Output waveform	Pure sine wave Distortion rate ≤ 3%
Output frequency	50Hz±0.1% or 60Hz±0.1% (optional)
Output voltage	100～120VAC / 200～240VAC (optional)
Standard efficiency	90%(Full Load)
Maximum efficiency	92%(3/1 Load)
No load current	<0.4A
Working temperature range	0℃ to +40℃
Working humidity range	20%～90%
Storage temperature range	-30℃ to +70℃
Cooling method	Intelligent temperature controlled air cooling
Display	Digital or LCD screen display
Product size	38x25x10.4cm			38x21x10.4cm
Net weight	4.1kg			3.6kg
Package size	47x31x19cm
Package weight	6kg
PCS/box	1PCS/Box
Protection function	Overload protection, high and low voltage protection, over temperature protection, short circuit protection
