Fanless Mini PC IPC Intel J1900 J2900 I5-5200U 2xEthernet 2x COM DB9 HDMI VGA MPICE Expansion WiFi 4G LTE Support Windows Linux

155,73 €244,89 €36% OFF

8 in den letzten 5 Stunden verkauft

Color: i3-5005U RS232
Bundle: 8G RAM 256G SSD WiFi
Menge

Noch 50,00 € bis zum kostenlosen Versand

Voraussichtliche Lieferzeit : 8. Oktober - 10. Oktober.

Garantiert sicher bezahlen

Beschreibung
SPECIFICATIONS

Audio Output: Audio combo jack 3.5mm

Brand Name: YCSD

COM Ports: 2x RS232

Certification: CE,FCC,RoHS

Construction: Fanless aluminum case cooling

Dimension: 136x126x39mm

Graphics: Intel HD Graphics

Graphics Card Type: Integrated Card

Hard Drive Capacity: 120GB

High-concerned chemical: None

Memory Capacity: ≥ 4GB

Model Number: X30G

Network Interfaces: Realtek 8111H Gigabit Ethernet

Origin: Mainland China

Power Adapter: AC100-240V to DC12V-3A

Processor Brand: Intel

Processor Main Frequency: 2.0GHz

Processor Model: Celeron J1900, 2955U, Pentium J2900, i3-5005U, i5-52000U

RAM: SODIMM DDR3L,DDR4

Storage: mSATA SSD

Support OS: Windows 7, Windows 8, Windows 10, Linux, Ubuntu

Type: Mini Desktop,Mini PC

USB Ports: 2x USB3.0, 2x USB2.0

Use: Commercial

Video Output: HDMI, VGA

WiFi: 300Mbps



Processors

Intel Pentium J2900, 4 cores 4 threads, 2.41GHz, up to 2.66GHz

Intel Celeron 2955U, 2 cores 2 threads, 1.40GHz

Intel Celeron N2840, 2 cores 2 threads, 2.16GHz, up to 2.58GHZ

Intel Pentium 3805U, 2 cores 2 threads, 1.90GHz

Intel Core i3-4005U, 2 cores 4 threads, 1.70GHz

Intel Core i3-5005U, 2 cores 4 threads, 2.00GHz

Memory Types

use SODIMM DDR3L RAM 1333/1600MHz

max support to 8GB

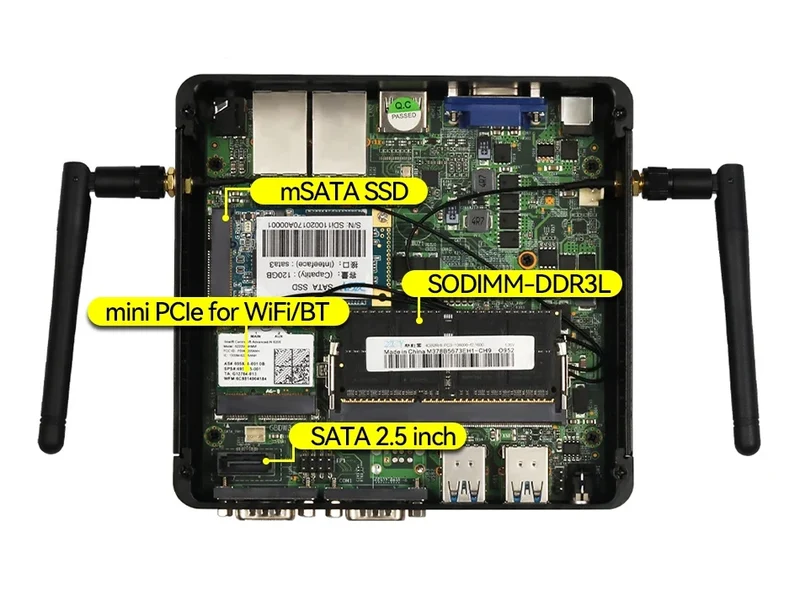

Storage

mSATA SSD, support extra 1x 2.5 inch SSD/HDD

Graphics

Intel HD Graphics

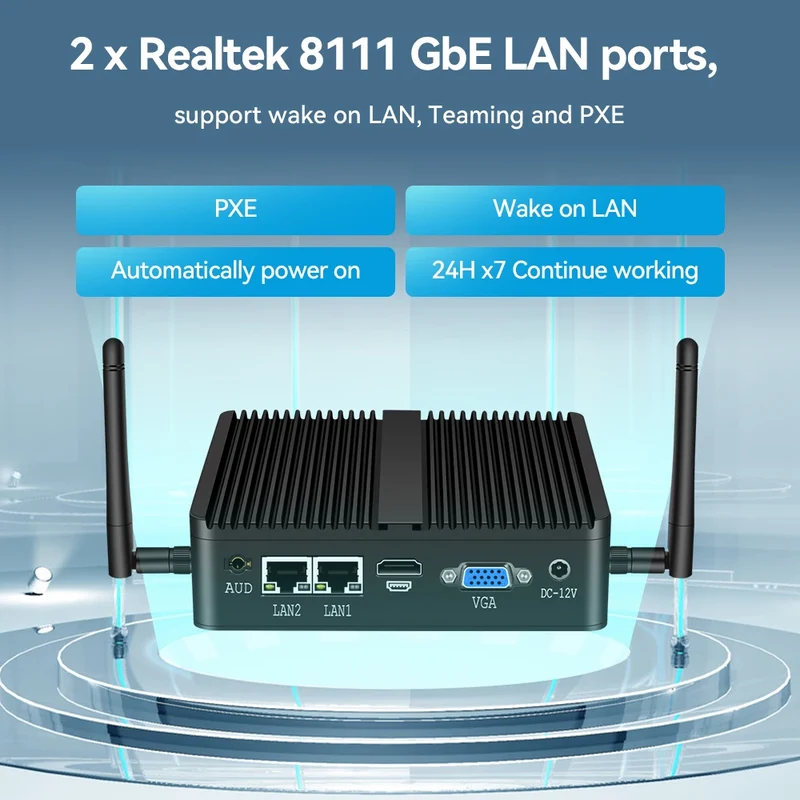

Network Interfaces

2x GbE RJ45 Realtek 8111H,supports wake on LAN,PXE

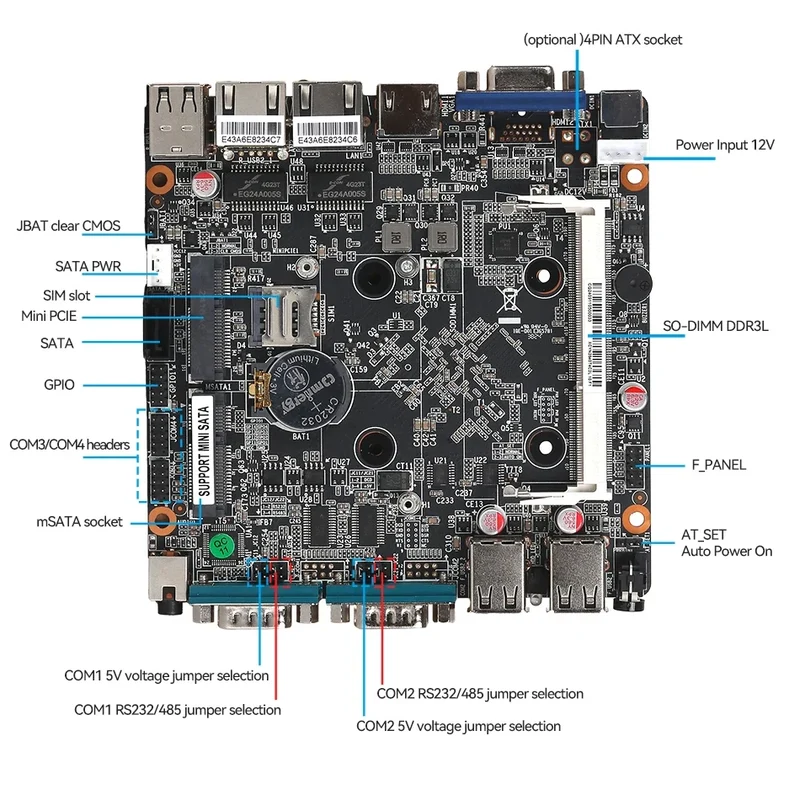

Expansion

1x Mini PCI-E for WiFi/Bluetooth/4G module

J2900/J1900/N2840 has 1x SIM lot on motherboard, other CPUs without SIM slot

OS Support

Windows 7/8.1/10

Windows 10 ioT

Windows 10 Embedded

Linux, Ubuntu

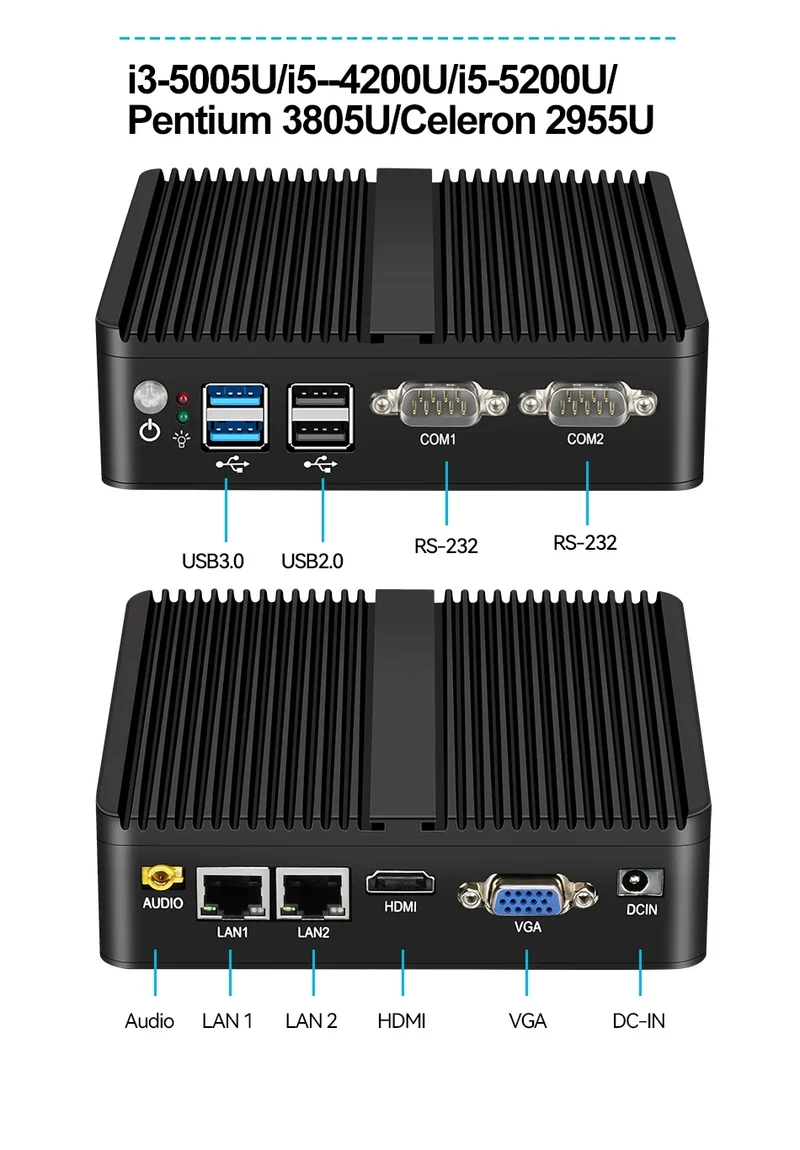

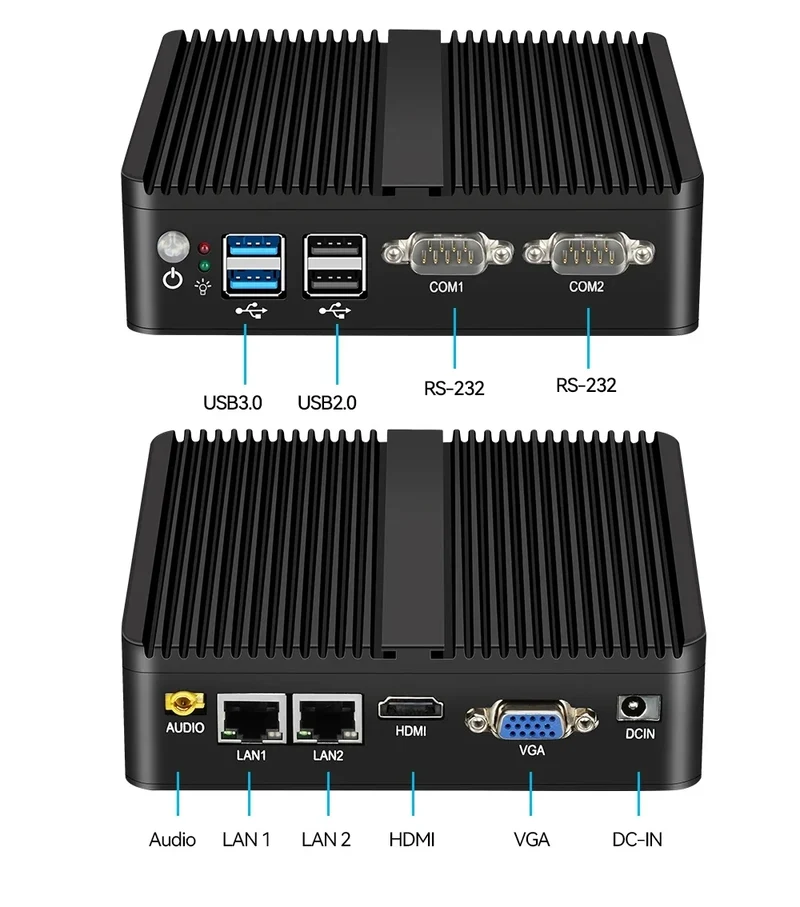

USB Ports

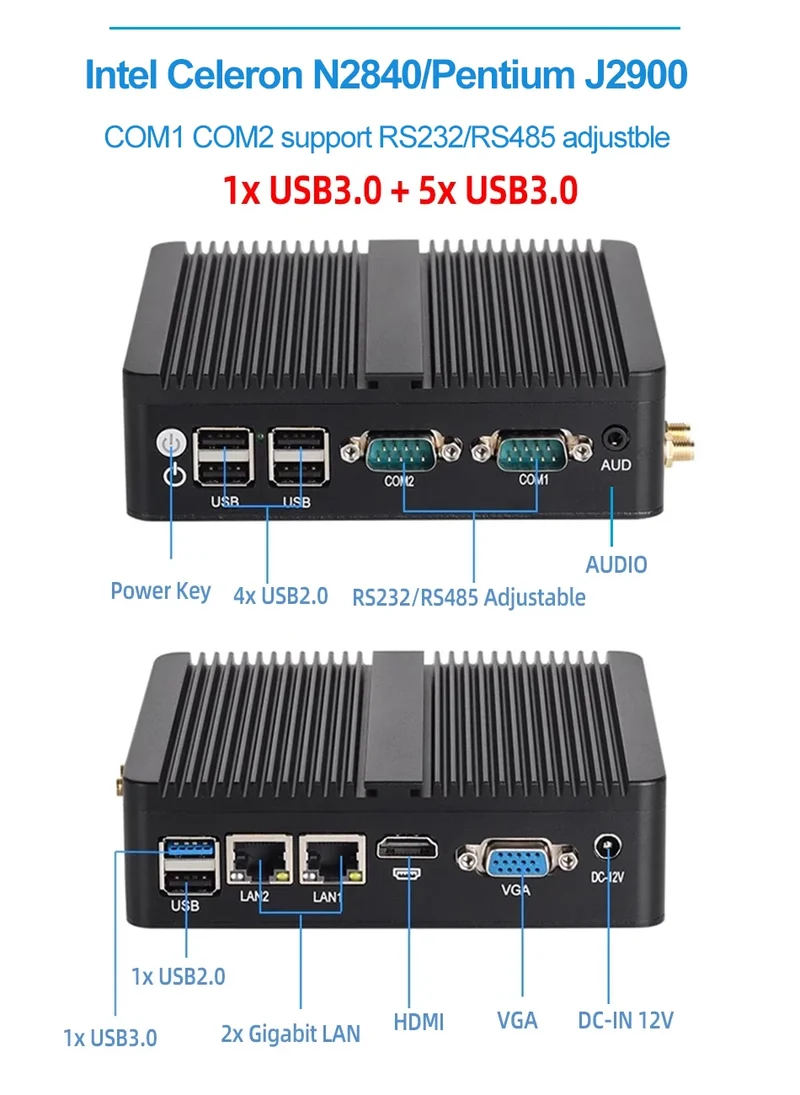

J1900/J2900/N2840: 1xUSB3.0, 5x USB2.0

Other CPUs: 2x USB3.0 2x USB2.0

Wake on LAN

Yes, support

Restore AC power loss

Yes, support

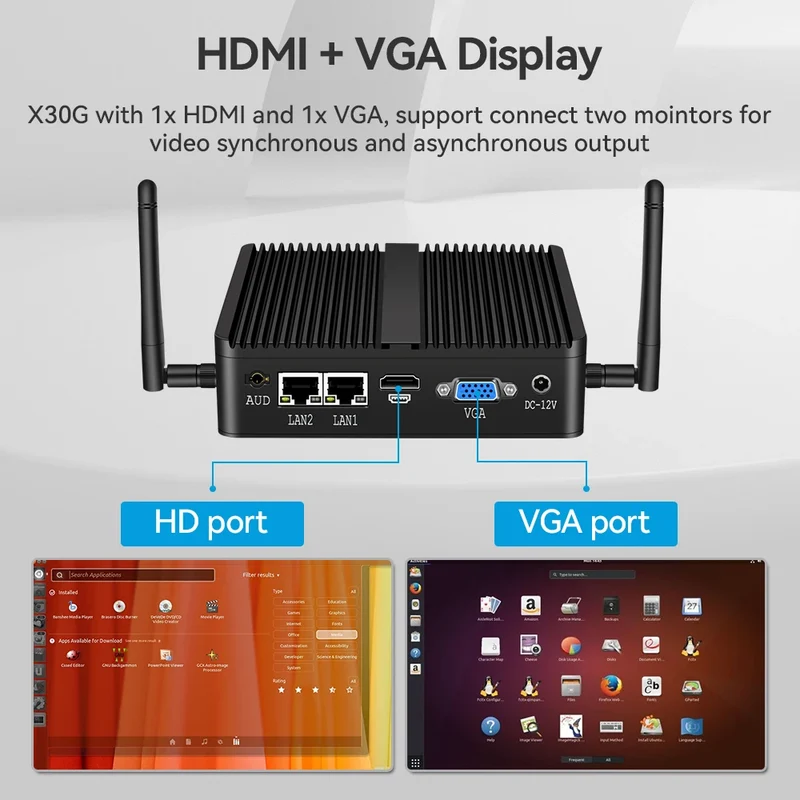

Display Port

1x VGA, 1x HDMI, support dual monitors independently video output

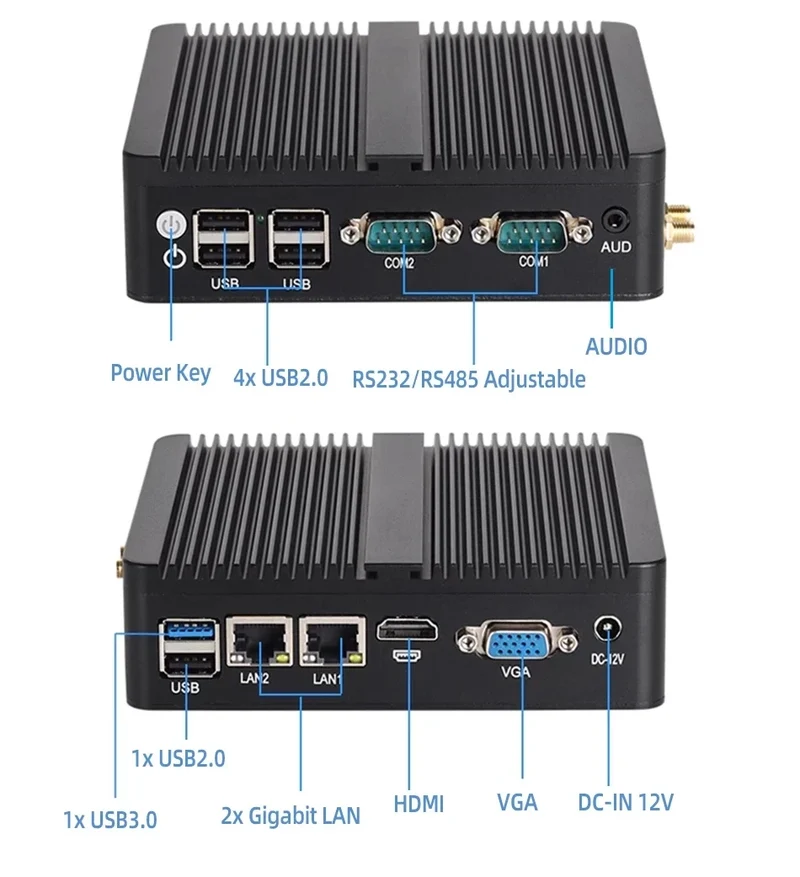

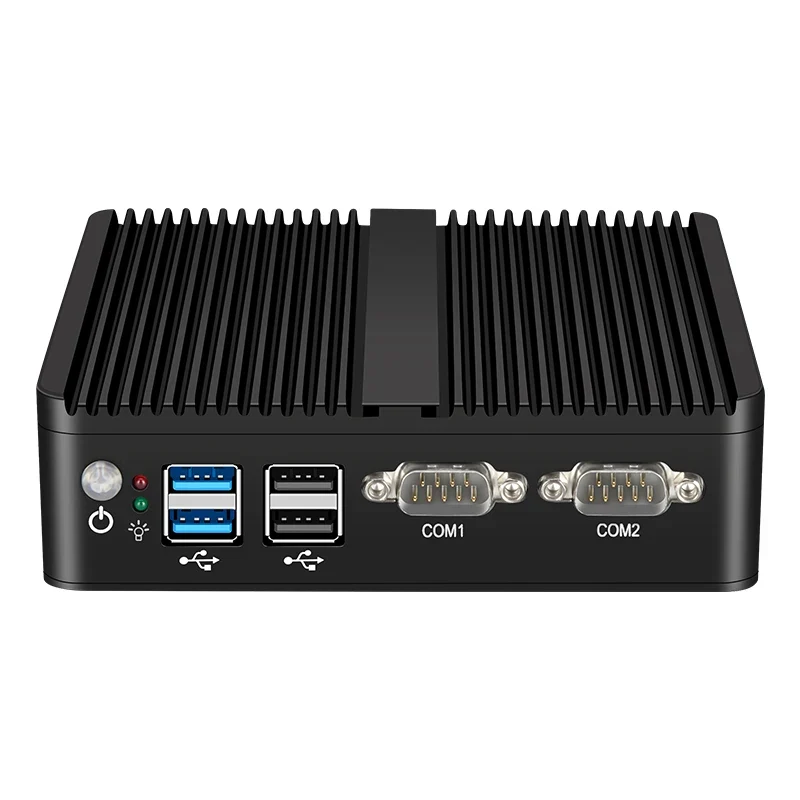

COM Ports

2x RS232

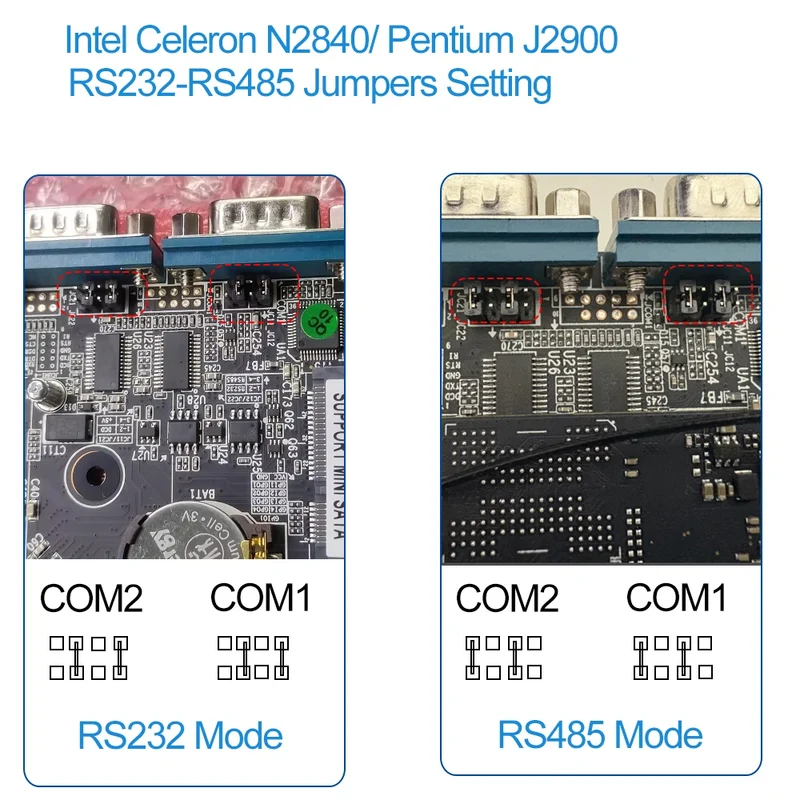

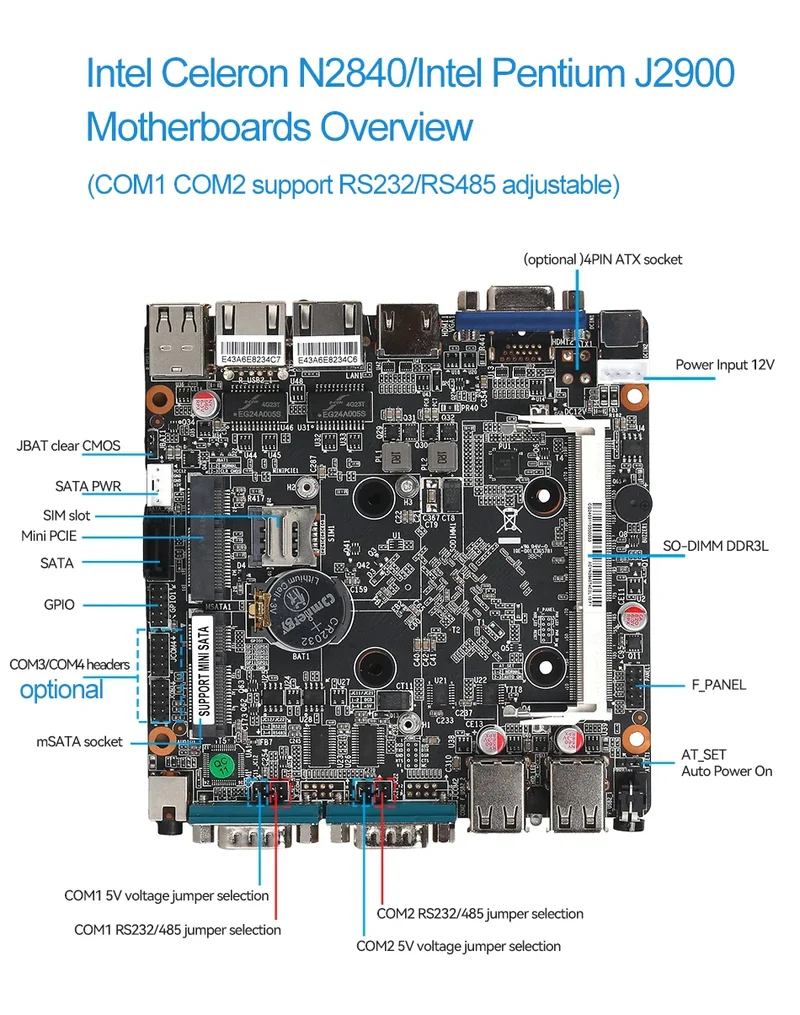

(J2900/N2840/J1900 two serial ports support RS232/485 adjustable )

Indicators

1x HDD LED, 1x Power LED

Audio Ports

3.5mm combo audio jack

Construction

Fanless passive cooling

Case

Aluminum Case

Dimension

135x124x40mm

Netweight

0.8Kg

OperatingTemperature

-20℃ to +60℃

RH

5%~90% @30℃，Non-condensing

Power Adapter

Input AC100-240V, Output DC12V-3A

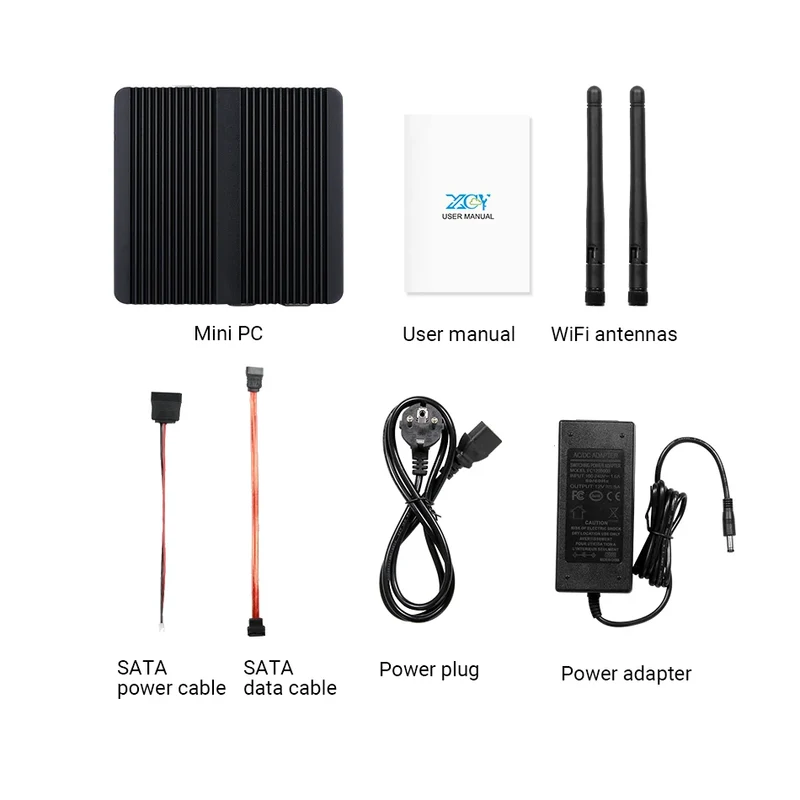

Package List

1x Mini PC X30G

1x AC Adapter

1x Power cord ( EU AU US UK type plug shipped according to buyer’s address )

1x SATA cables

1x User manual
  • NOTE: 1. Buy No RAM No SSD option, mini PC comes without WiFi and antennas pre-installed; 2. Buy mini PC with RAM and SSD option, mini PC comes with WiFi and antennas pre-installed; 3. Mini PC comes without 3G/4G LTE module pre-installed, please contact us if you need.
