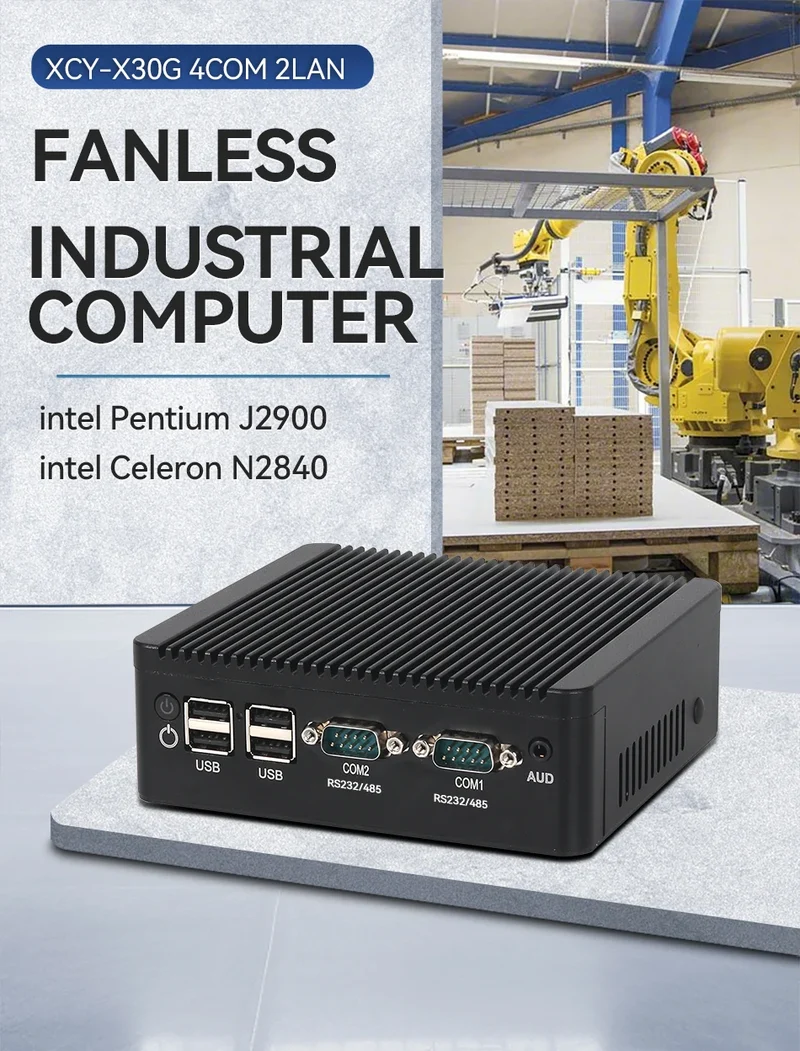

Fanless Industrial PC Intel J6412 N2840 J2900 4xCOM RS232 RS485 6xUSB 2x LAN HDMI VGA Mini PCIe WiFi 4G LTE GPIO Windows Linux

344,00 €618,67 €44% OFF

9 in den letzten 5 Stunden verkauft

Color: 8G RAM 512G SSD WiFi
Bundle: intel Celeron J6412
Menge

Noch 50,00 € bis zum kostenlosen Versand

Voraussichtliche Lieferzeit : 9. Oktober - 11. Oktober.

Garantiert sicher bezahlen

Beschreibung
SPECIFICATIONS

Audio: 1x 3.5mm Jack support Microphone, speaker

Brand Name: XCY

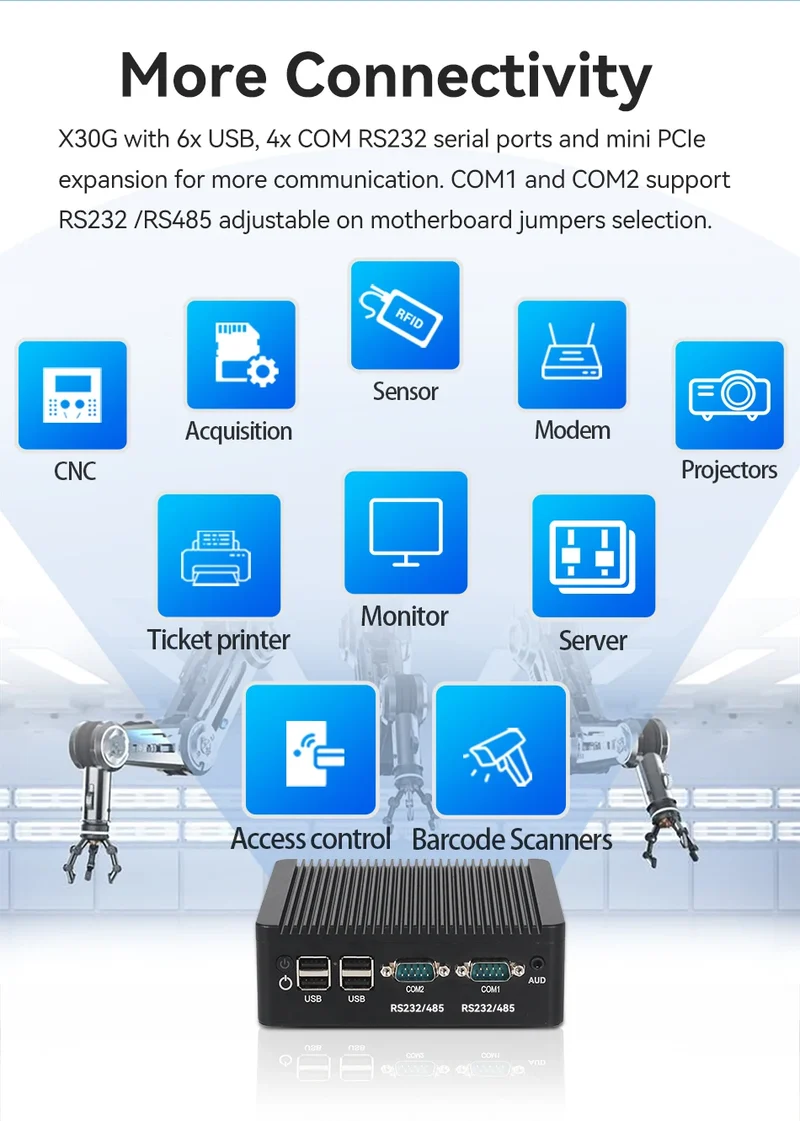

COM1 COM2: RS232 RS485 adjustable

COM3 COM4: RS232

Certification: CE,FCC,RoHS

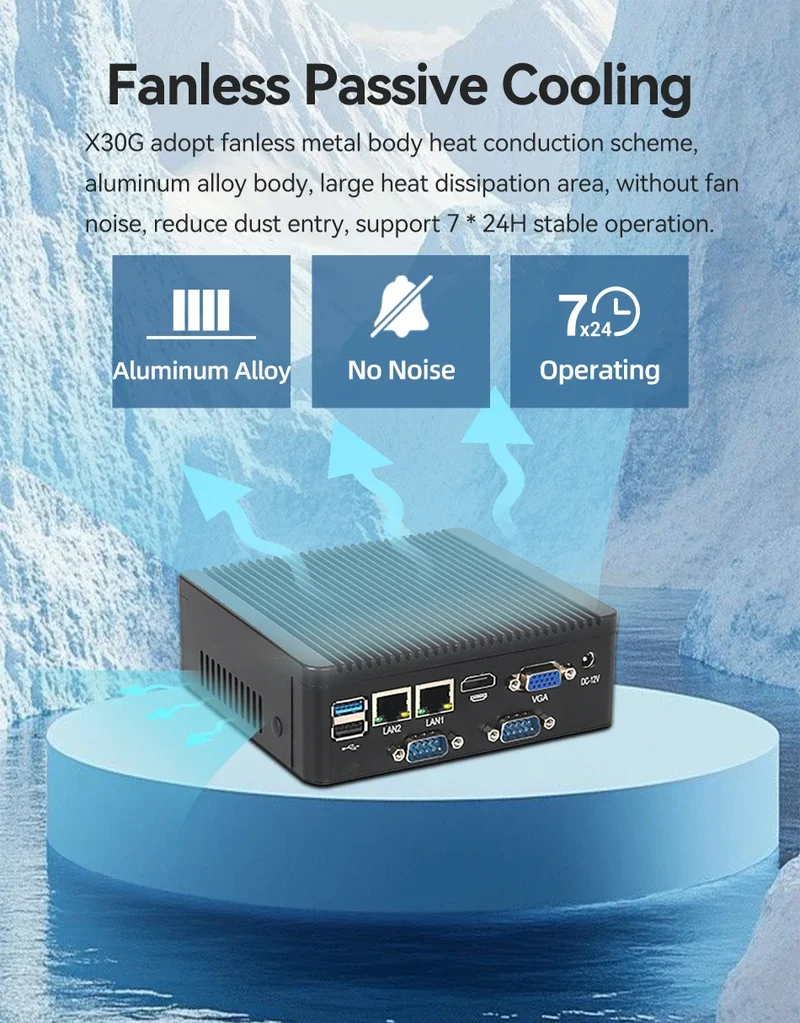

Cooling: Fanless Passive Cooling

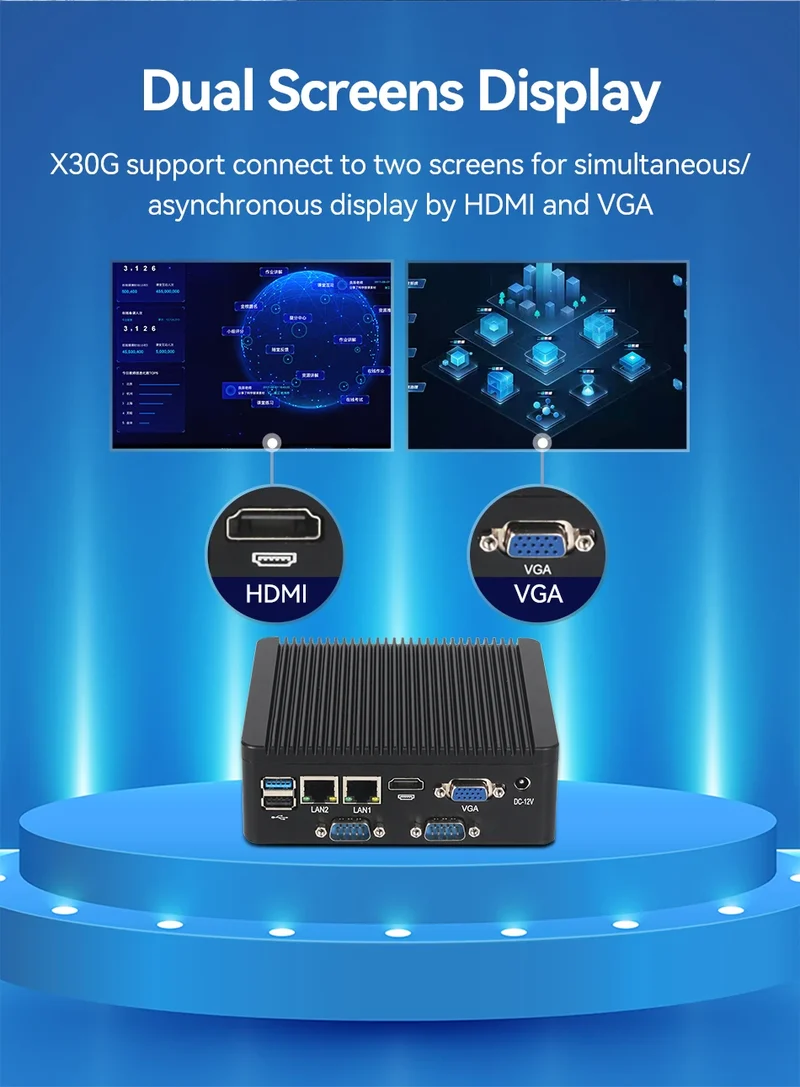

Display: 1x HDMI, 1x VGA

GPIO Extension: 4x Input, 4x Output, 5V

Graphics Card Type: Integrated Card

Hard Drive Capacity: 128 GB

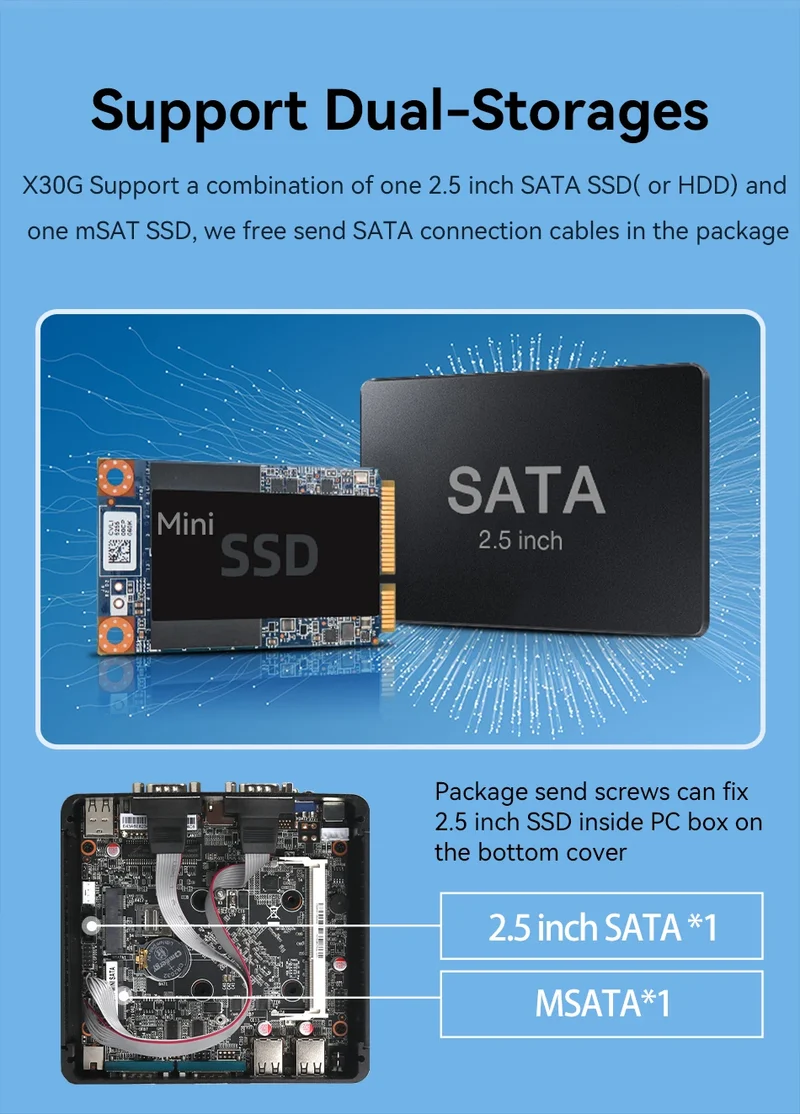

Hard Drive Support: 1x mSATA SSD, 1x 2.5 inch SATA

High-concerned chemical: None

LAN: 2x Realtek 8111H GbE, support WOL, PXE

Memory Capacity: ≥ 4GB

Memory Type: 1x SODIMM DDR3L or DDR4

Model Number: X30G-4COM

OS Support: Windows 7/8/10, Linux/Ubuntu/Debian

Operating Temperature: -20℃ to 60℃

Origin: Mainland China

PC Size: 134x124x40mm

Power Supply: DC12V-3A

Processor Brand: Intel

Processor Model: Intel Pentium J2900, intel Celeron N2840, J6412

Type: Mini Desktop,Mini PC

USB Ports: 1x USB3.0, 5x USB2.0

Use: Commercial

Wireless: 1x Mini PCIE slot for WiFi, 4G LTE

Important : Mini PC without preinstall a 4G LTE module, buyer need add a 4G LTE module, please contact us.

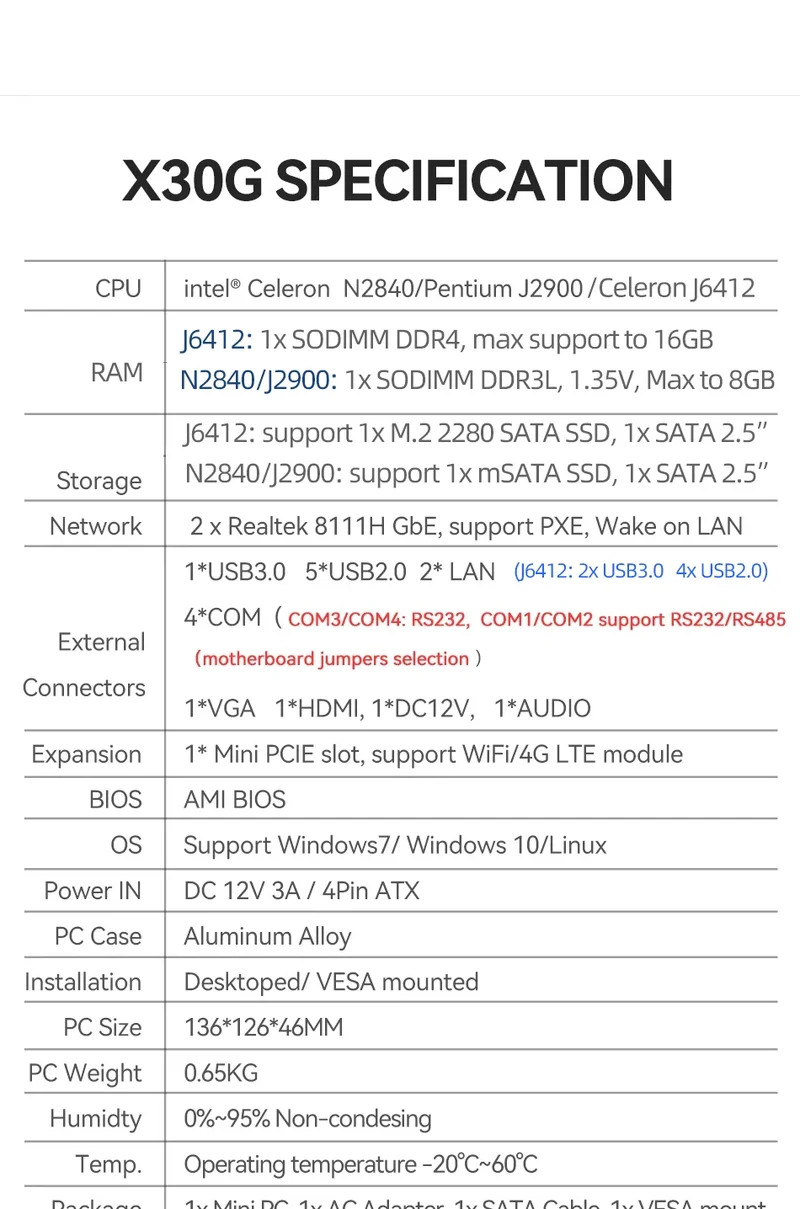

Datasheet:

Motherboard Size

121.6mmX121.6mm

Processors

Intel Celeron N2840 Processor, 2 cores 2 threads, base frequency 2.16GHz, up to 2.58GHz
Intel Pentium J2900 Processor, 4 cores 4 threads, base frequency 2.41GHz, up to 2.66GHz

Intel Celeron J6412 processor, 4 cores 4 threads, base frequecny 2.0Ghz, up to 2.60Ghz

Intel Celeron N5100 processor, 4 cores 4 threads,base frequency 1.10GHz, up to 2.8GHZ

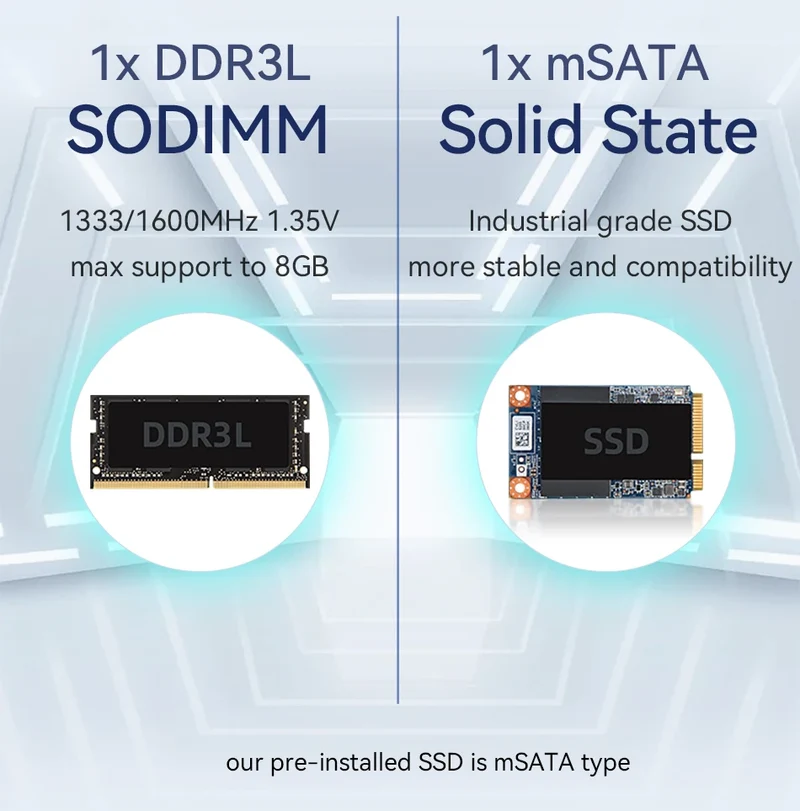

Memory Types

N2840/J2900:1x DDR3L SO-DIMM 1.35V 1333/1600MHz, Max support to 8GB

J6412/N5100: 1x SODIMM DDR4, max support 16GB

Expansion

1x mini PCIE slot for WIFI, 4G LTE module, 1x SIM slot on board

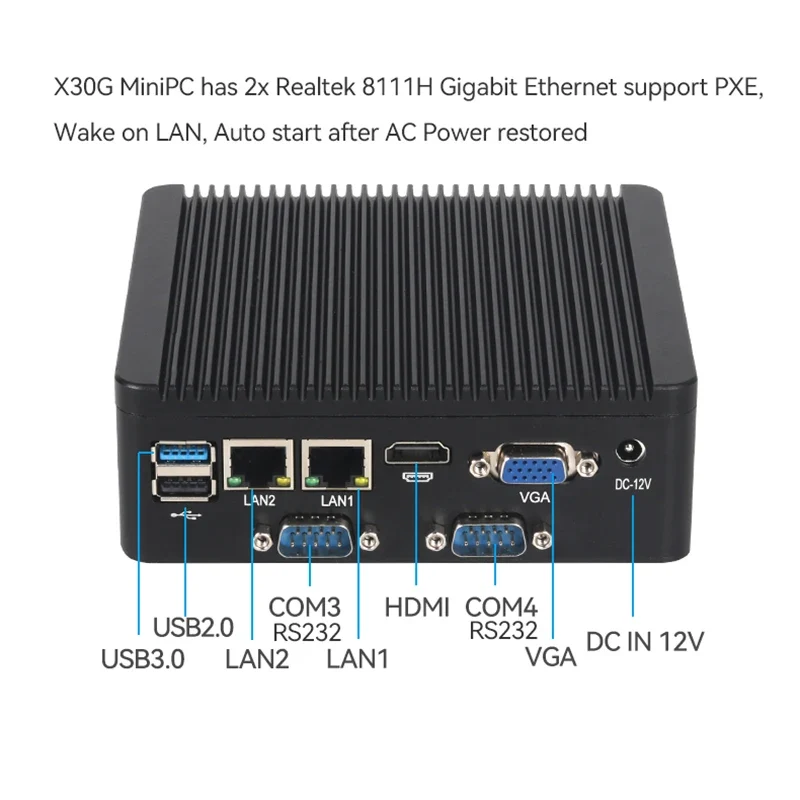

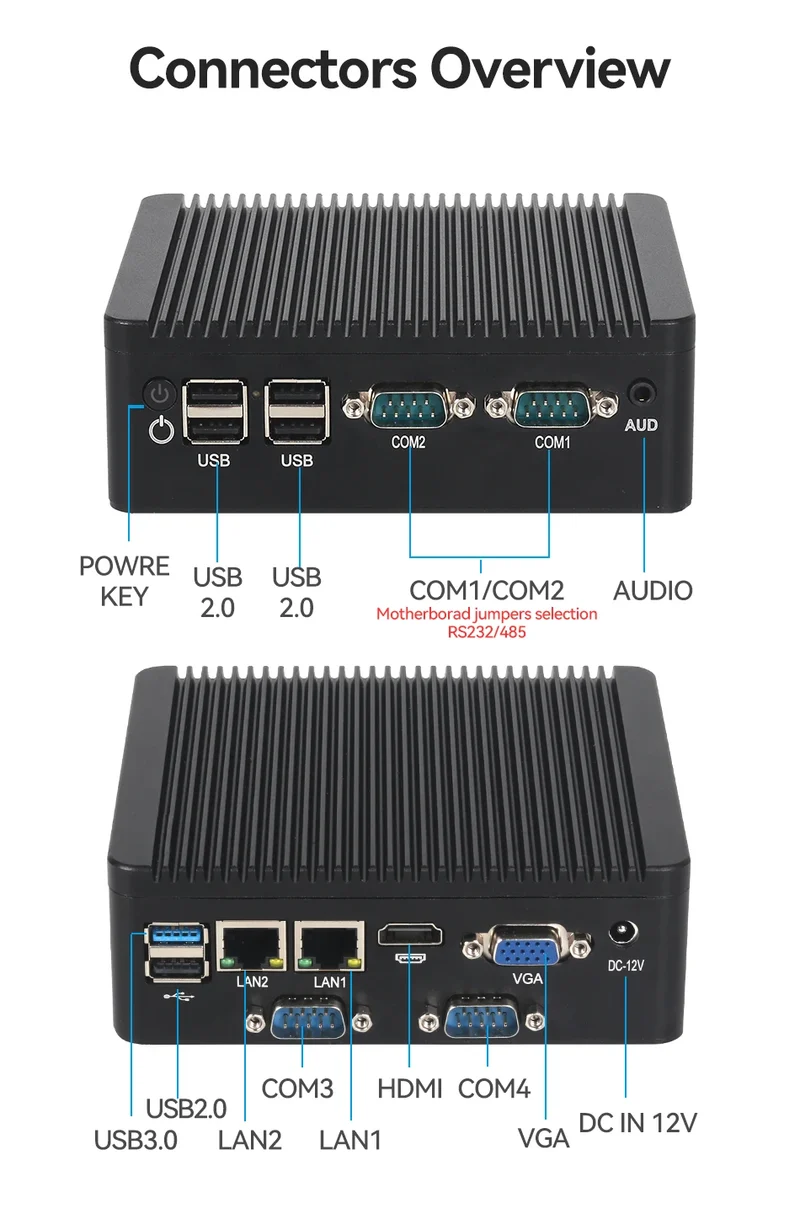

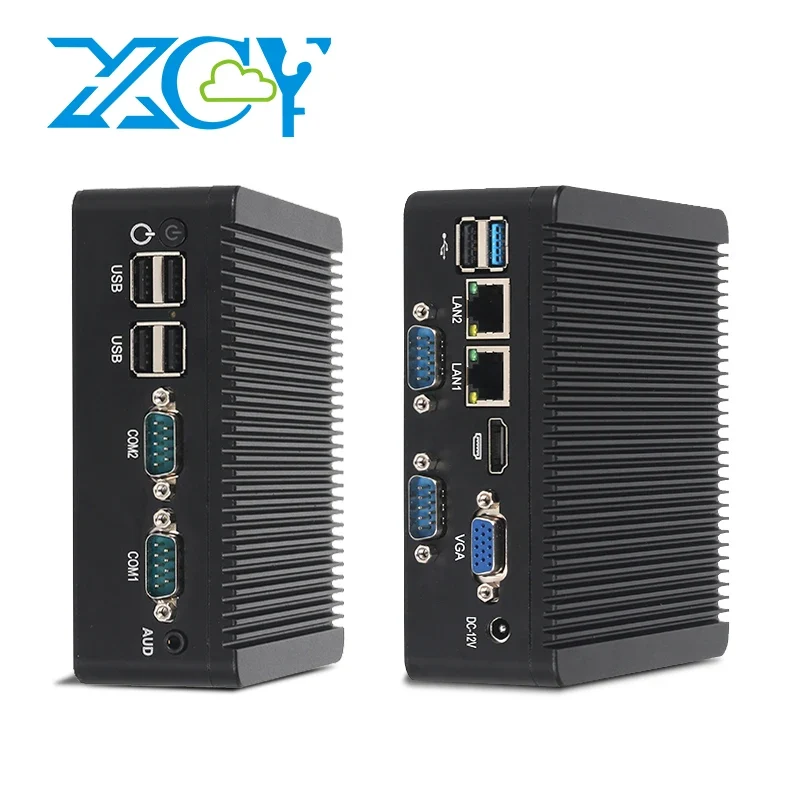

Rear Panel

1x DC_IN 12V

1x VGA ( HDMI optional )

1x HDMI

1x LAN1

1x LAN2

1x USB2.0+1x USB3.0

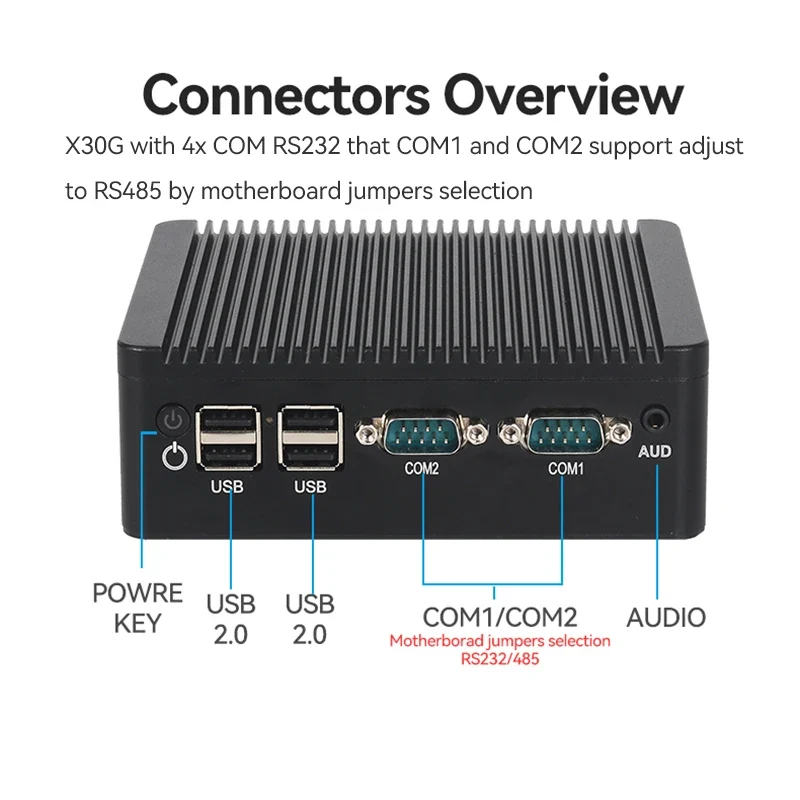

Front Panel

1x AUDIO

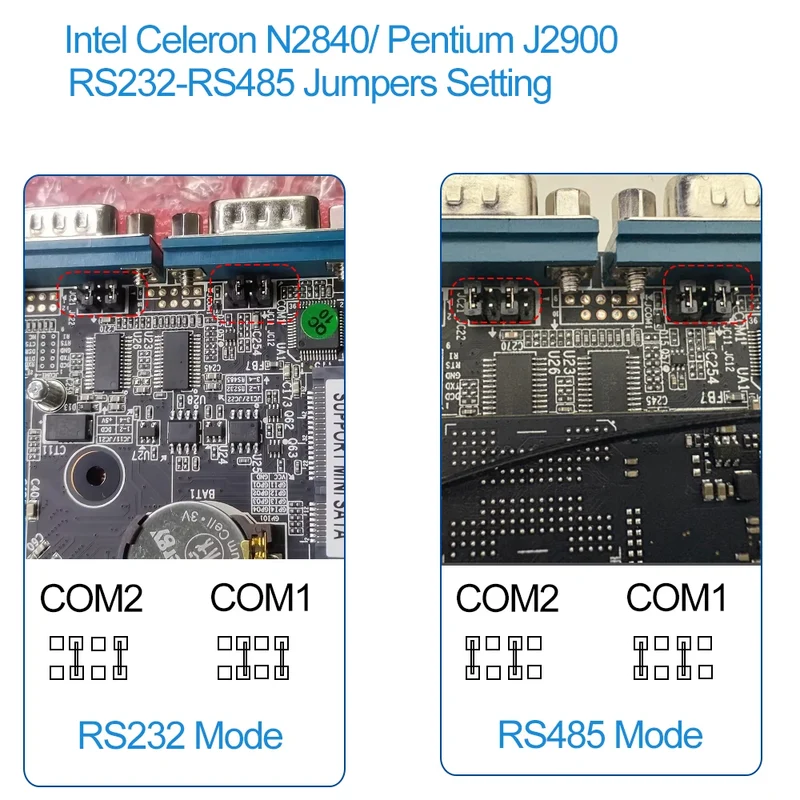

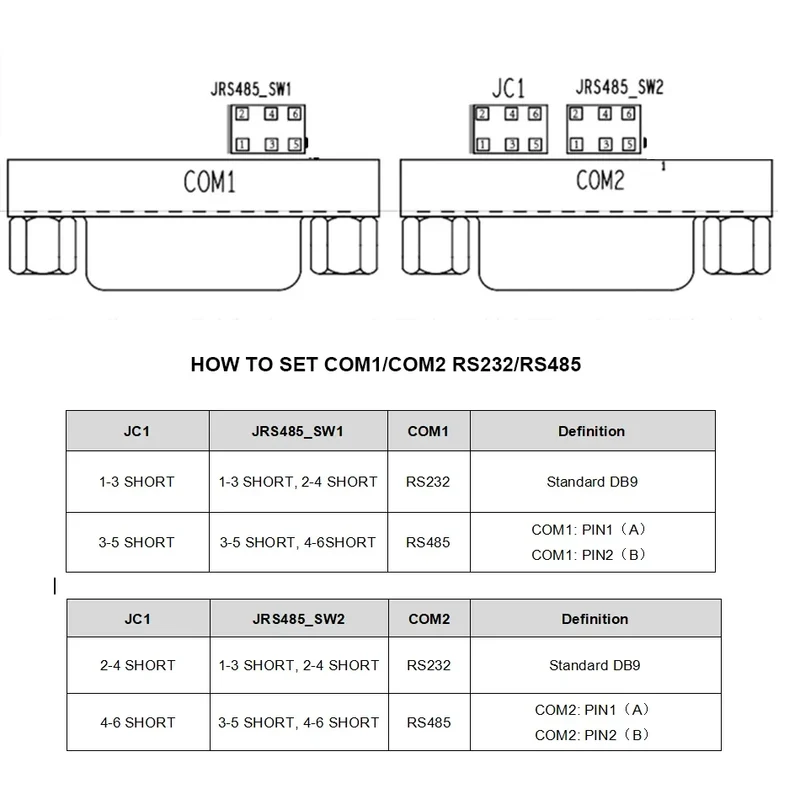

1x COM1 RS232/RS485 adjustable on motherboard jumper

1x COM2 RS232/RS485 adjustable on motherboard jumper

2x USB2.0

1x HDD_LED

2x USB2.0

1x POWER KEY

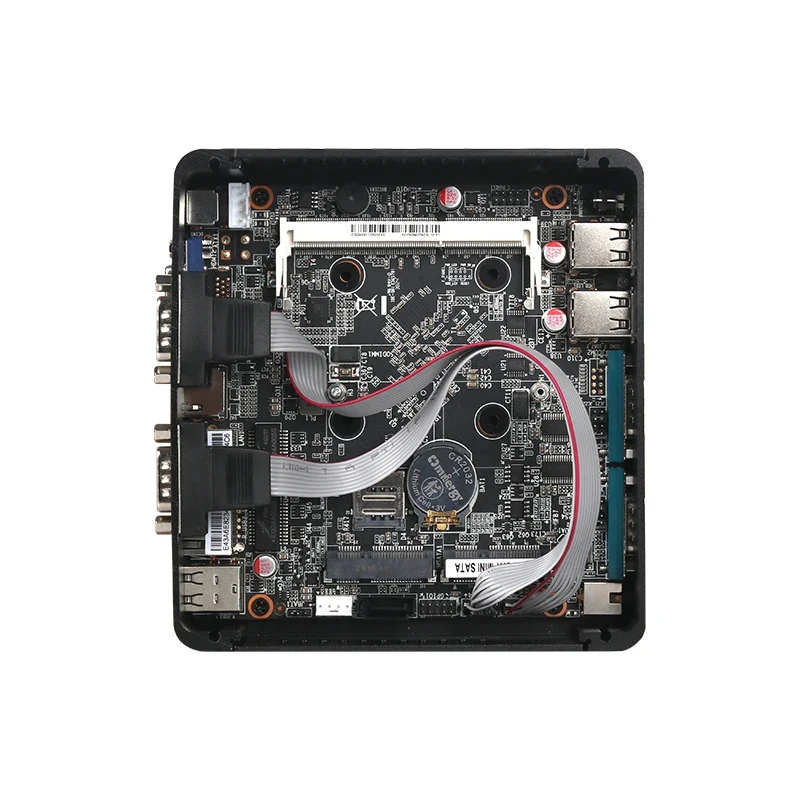

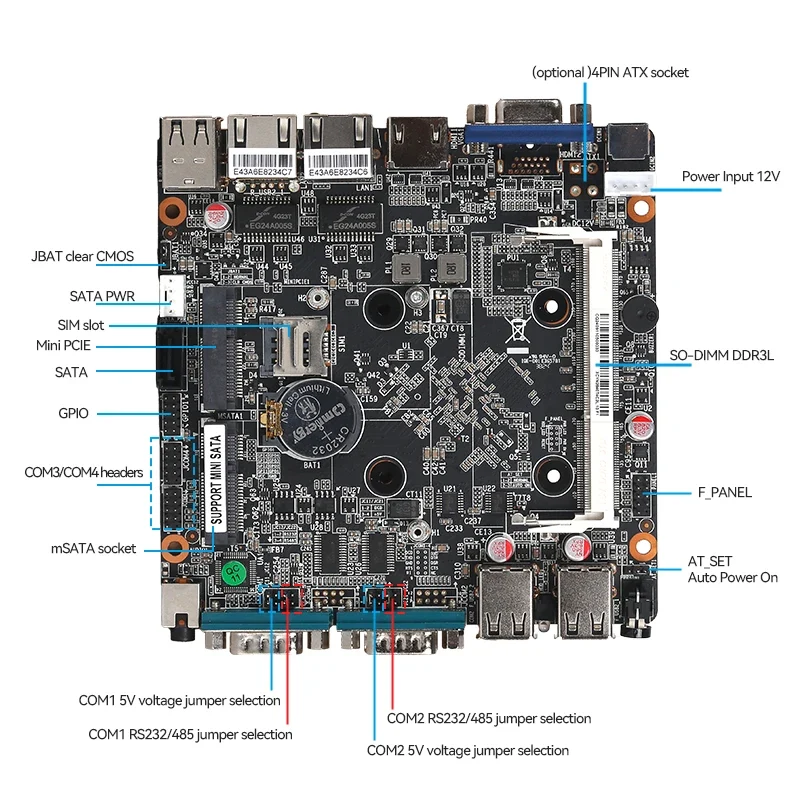

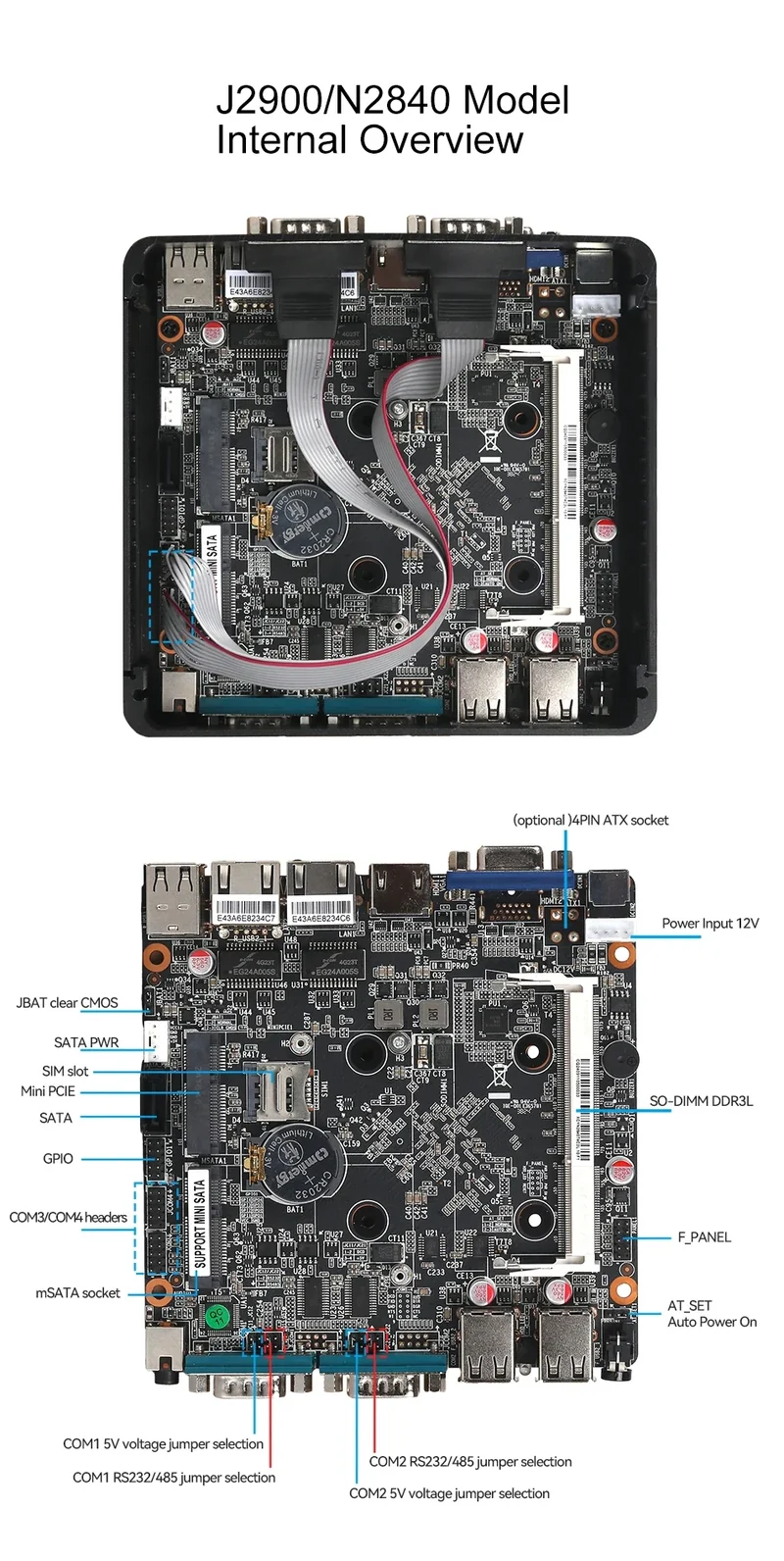

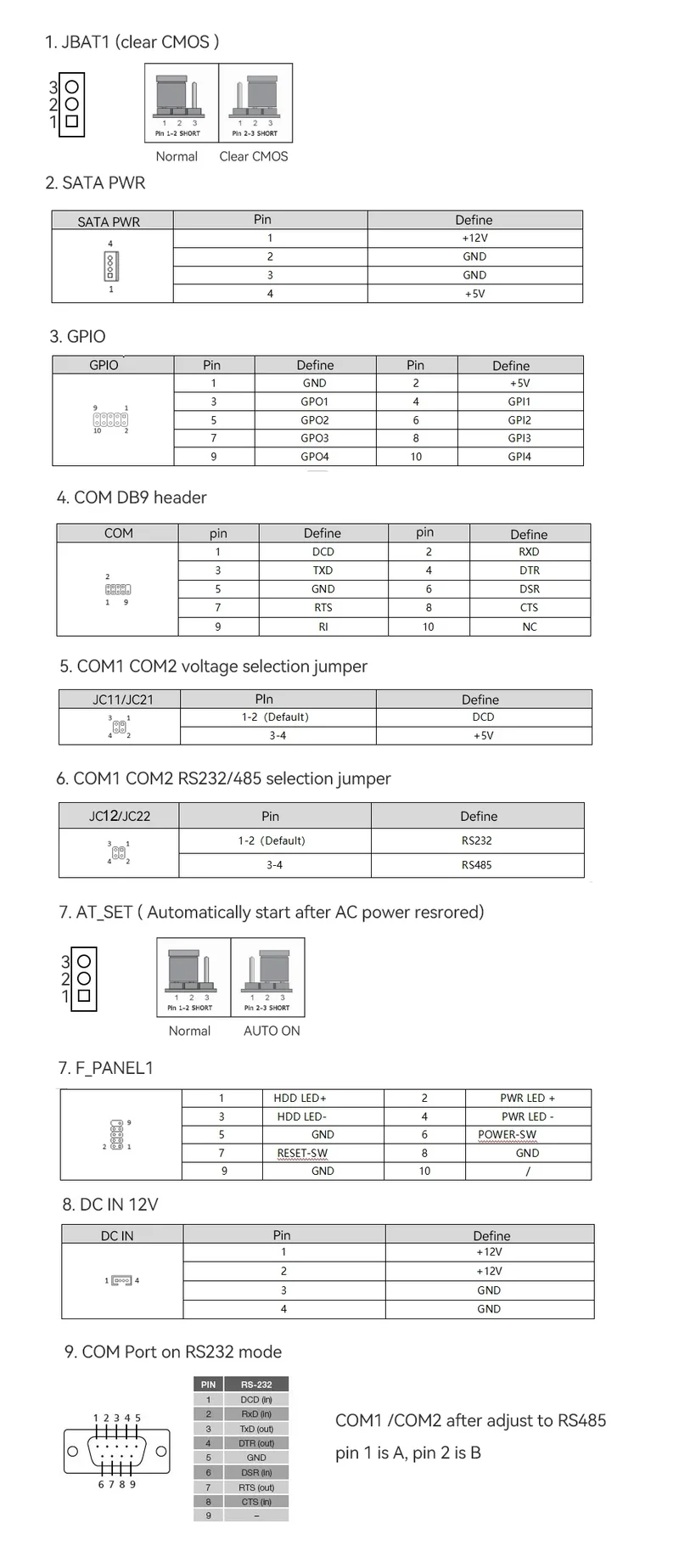

Internal Connectors

1x SATA ( 2.5 inch )

1x SATA_PWR

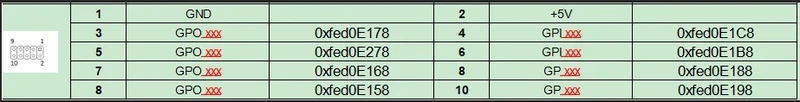

1x GPIO (4x input, 4x output, 5V)

1x COM3 1x COM4 DB9 connectors

1x F_PANEL

1x DC_IN 12V

BIOS

AMI BIOS

Power Management

Supports advanced power management ACPI

Support wake on LAN , S3、S4、S5，Auto restart, PXE

Display

VGA+HDMI

Network

2 x Realtek 8111H Gigabit Ethernet

Audio

ALC897 Audio Decoding Controller; Integrated Amplifier, 2W@4Ω

I/O Chip

IT8786E

Power Supply

100-240V AC to DC12V-3A

Environment

Operating temperature：﹣20℃~60℃

Humility：0%~95%

OS Support

Window7/ Windows 10/Linux/OpenWrt/Ubuntu/Debian

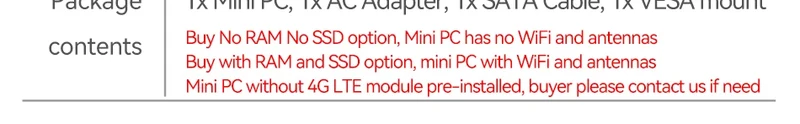

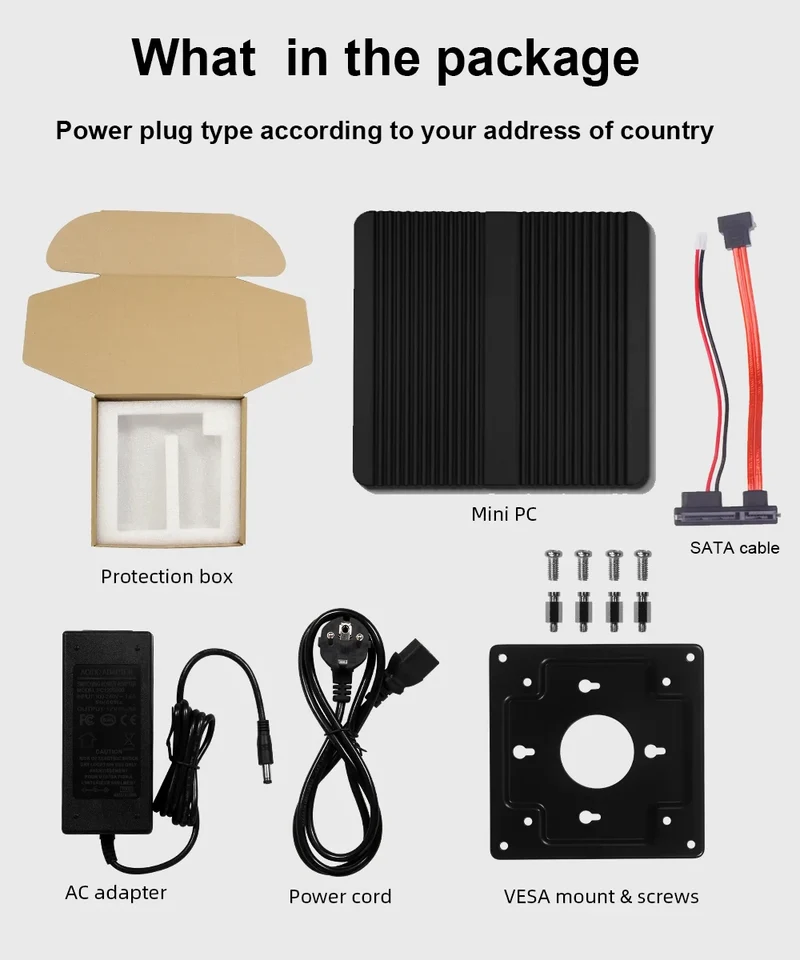

Package List

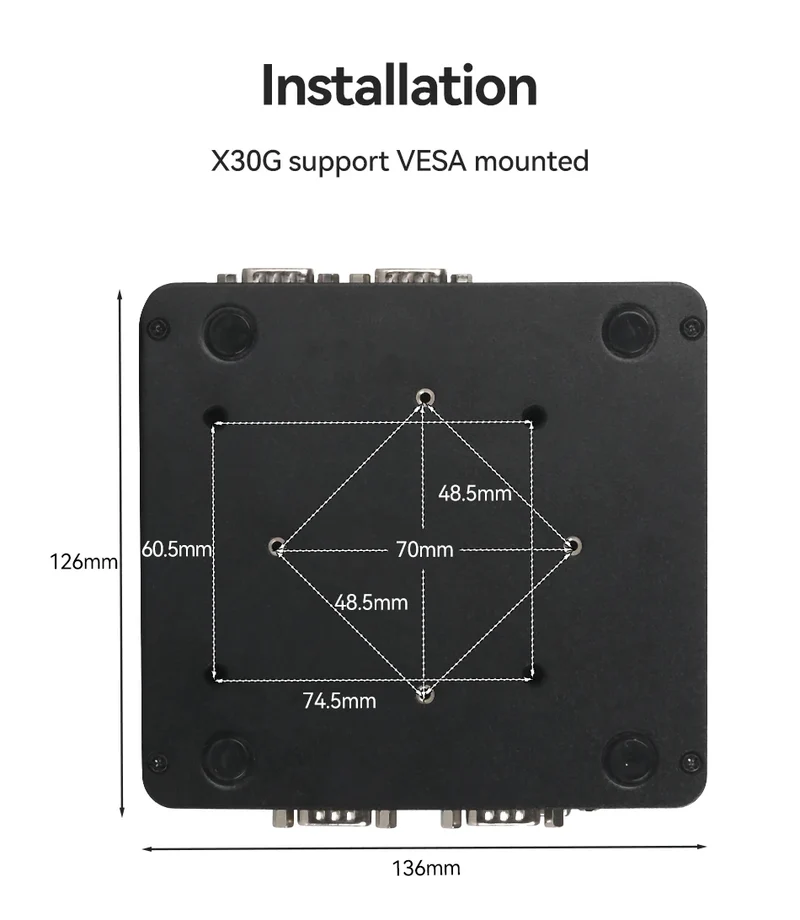

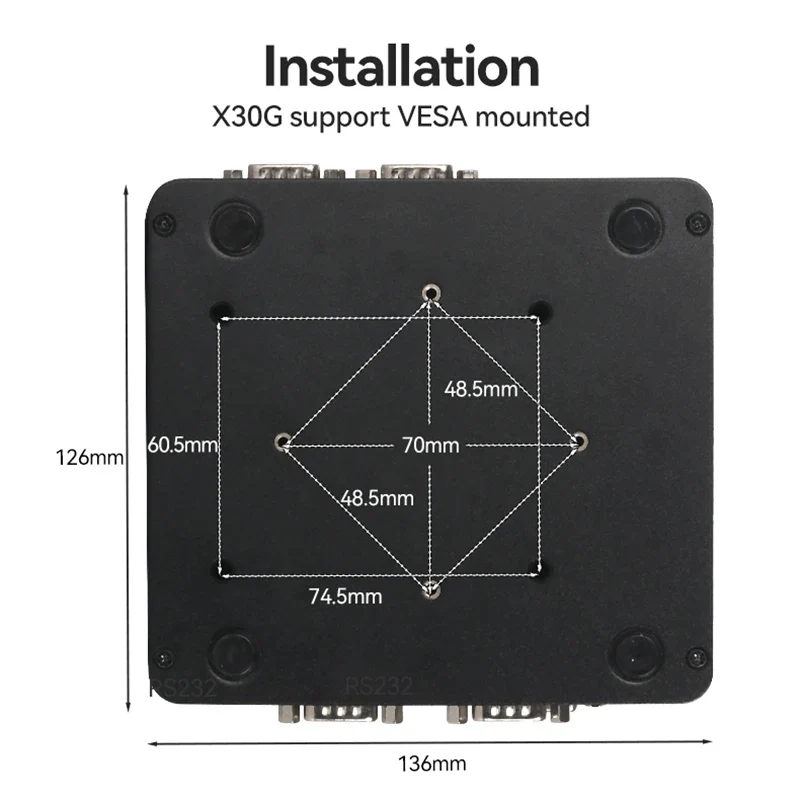

1x Mini PC, 1x AC Adapter, 1x SATA Cable, 1x VESA mount

PC Case Size

134x124x40mm
