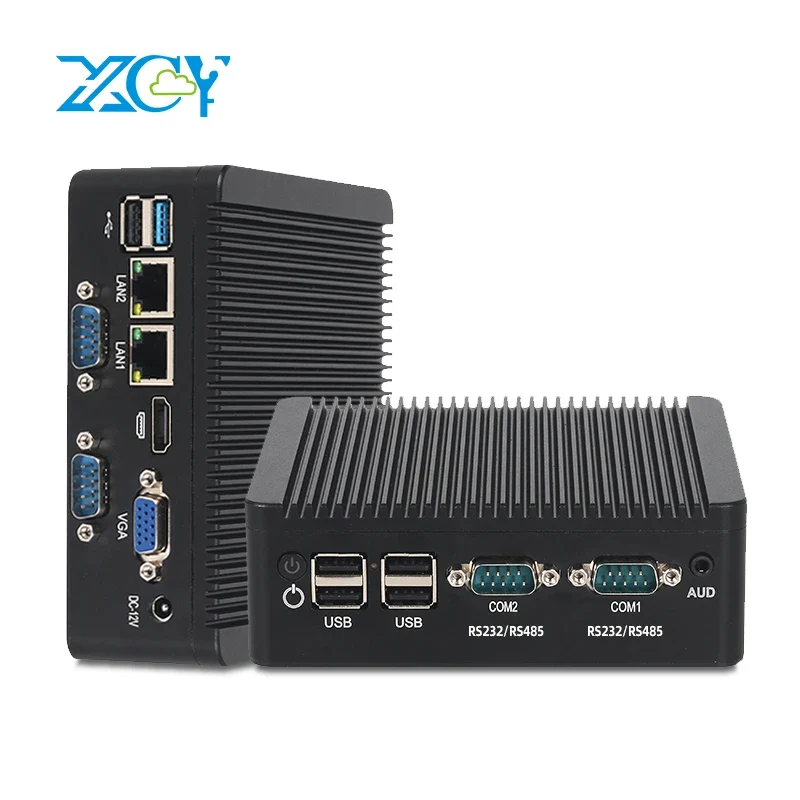

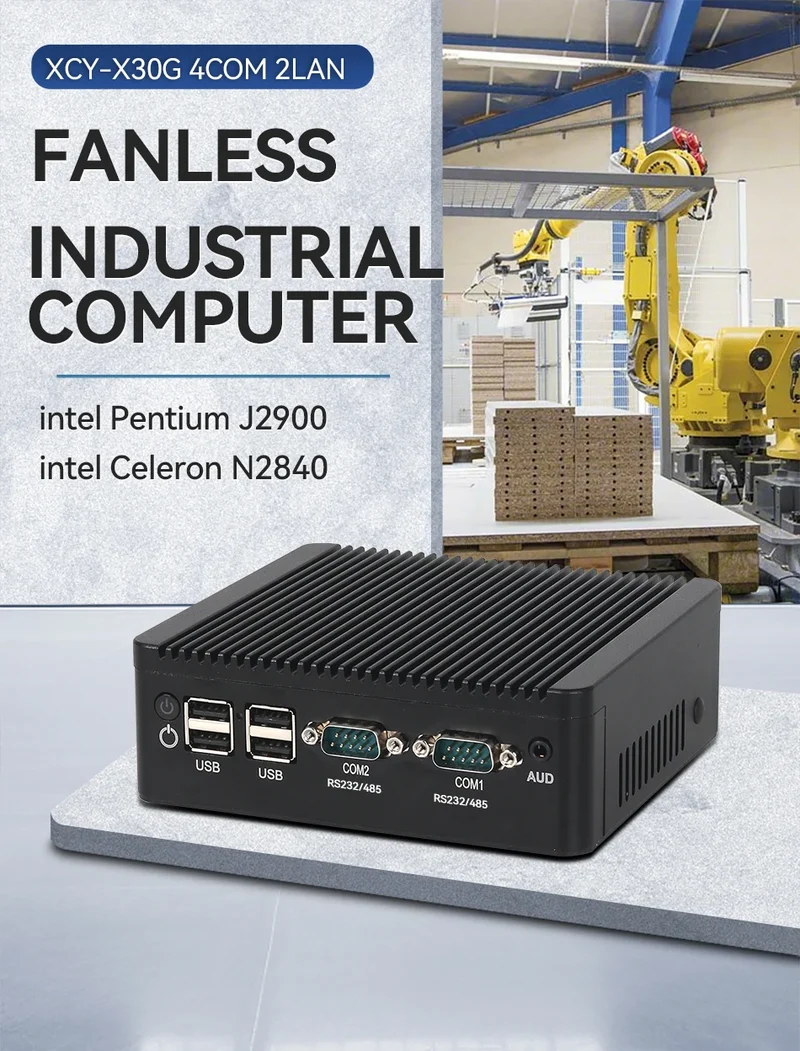

Fanless Industrial Mini PC Pentium J2900 4x Serial Ports RS232 RS485 2x Gigabit Ethernet Mini PCIe WiFi 4G LTE SIM Windows Linux

138,96 €~~200,83 €~~30% OFF

9 in den letzten 5 Stunden verkauft

Color: 8G RAM 128G SSD WiFi

Bundle: Intel Celeron N2840

Intel Celeron N2840Intel Celeron J6412Intel Pentium J2900

Noch 50,00 € bis zum kostenlosen Versand

Voraussichtliche Lieferzeit : 9. Oktober - 11. Oktober.

Garantiert sicher bezahlen

Beschreibung

SPECIFICATIONS

Audio: 1x 3.5mm Jack support Microphone, speaker

Brand Name: XCY

COM1 COM2: RS232 RS485 adjustable

COM3 COM4: RS232

Certification: CE,FCC,RoHS

Display: 1x HDMI, 1x VGA

GPIO: 4x Input, 4x Output, 5V

Graphics Card Type: Integrated Card

Hard Drive Capacity: 128 GB

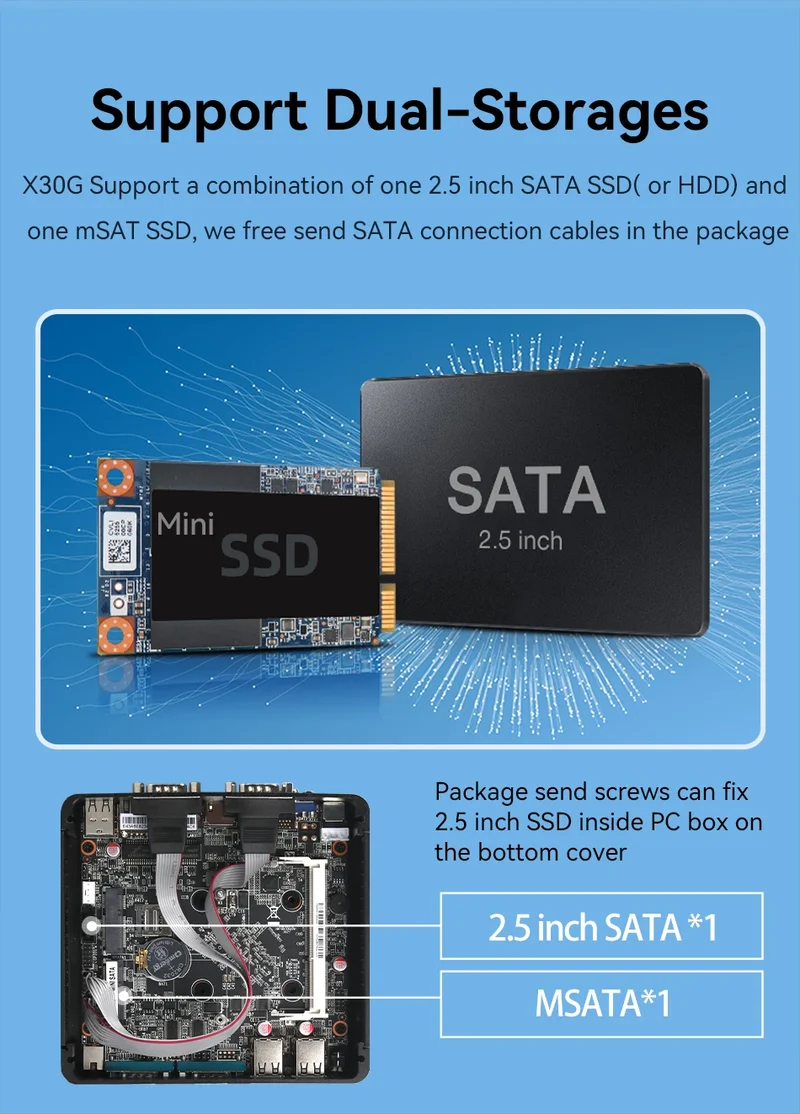

Hard Drive Support: 1x mSATA SSD, 1x 2.5 inch SATA

High-concerned chemical: None

LAN: 2x Realtek 8111H GbE, support WOL, PXE

Max Memory Support: 1x 8GB

Memory Capacity: 8 GB

Memory Type: SODIMM DDR3L 1.35V

Model Number: XCY-X30G-4COM

OS Support: Windows 7/8/10, Linux

Operating Temperature: -20℃ to 60℃

Origin: Mainland China

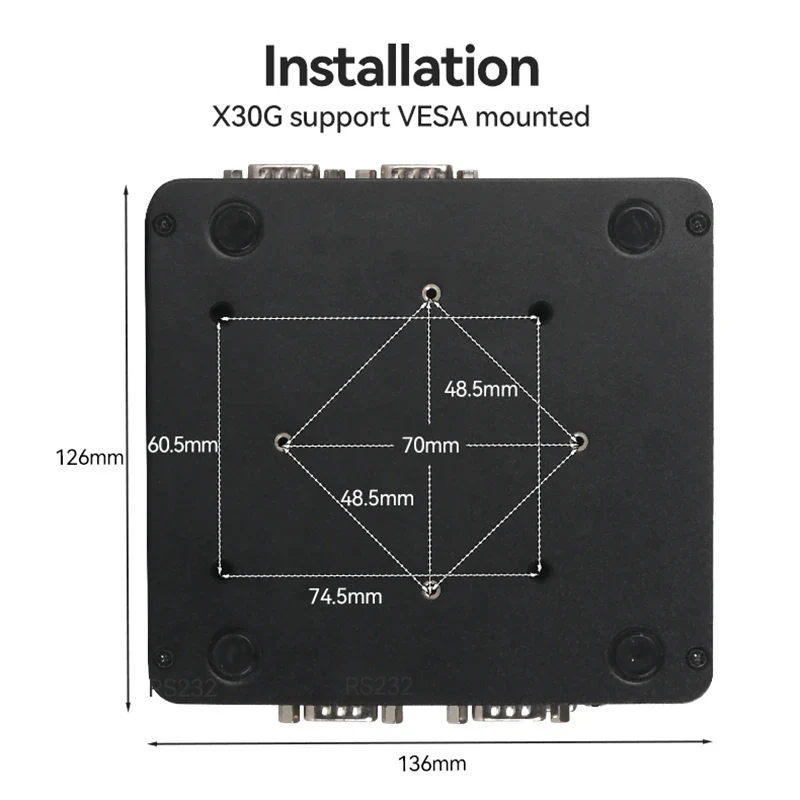

PC Size: 134x124x40mm

Processor Brand: Intel

Processor Main Frequency: 2.16GHz

Processor Model: Intel Pentium J2900, intel Celeron N2840

Type: Mini Desktop,Mini PC

USB Ports: 1x USB3.0, 5x USB2.0

Use: Commercial

Wireless: 1x Mini PCIE slot for WiFi, 4G LTE

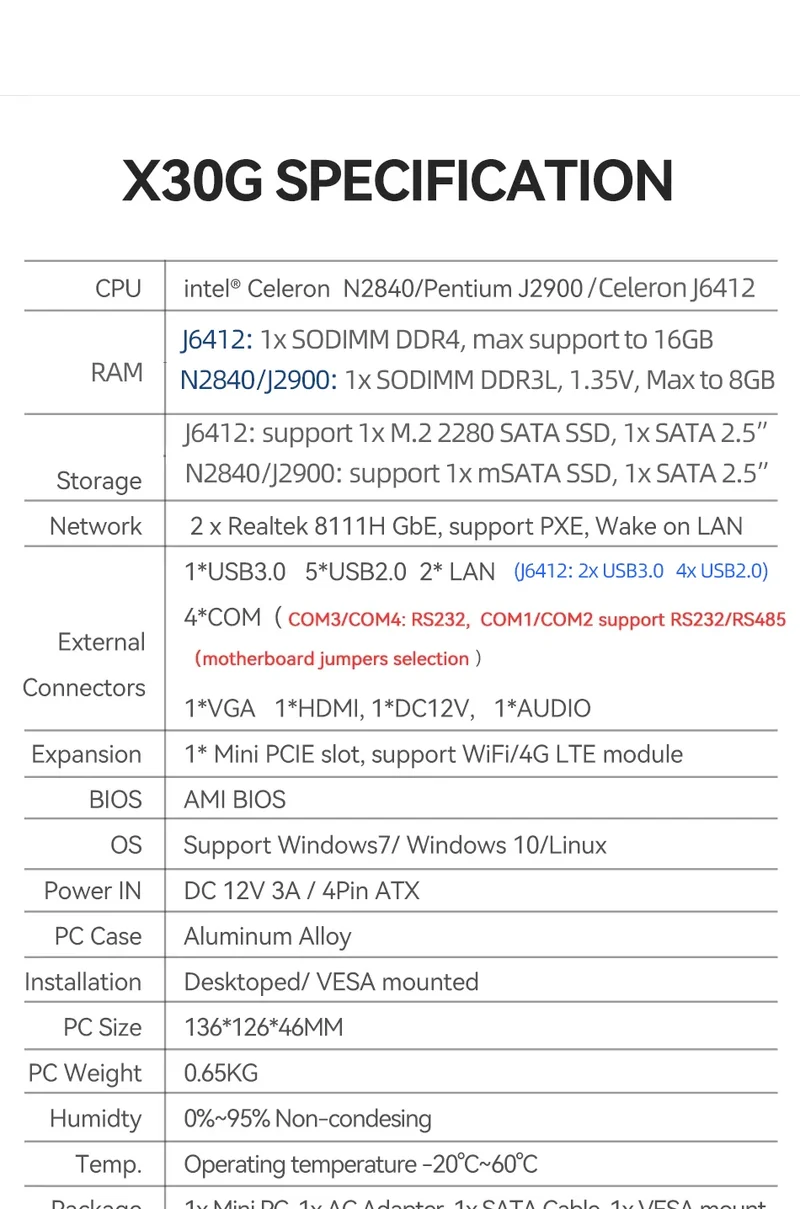

Motherboard Size	121.6mmX121.6mm
Processors	Intel Celeron N2840 Processor, 2 cores 2 threads, base frequency 2.16GHz, up to 2.58GHz Intel Pentium J2900 Processor, 4 cores 4 threads, base frequency 2.41GHz, up to 2.66GHz Intel Cleron J6412 processor, 4 cores 4threads, base frequecny 2.0Ghz, up to 2.60Ghz
Memory Types	N2840/J2900:1x DDR3L SO-DIMM 1.35V 1333/1600MHz, Max support to 8GB J6412: 1x SODIMM DDR4, max support 16GB
Expansion	1x mini PCIE slot for WIFI, 4G LTE module, 1x SIM slot on board

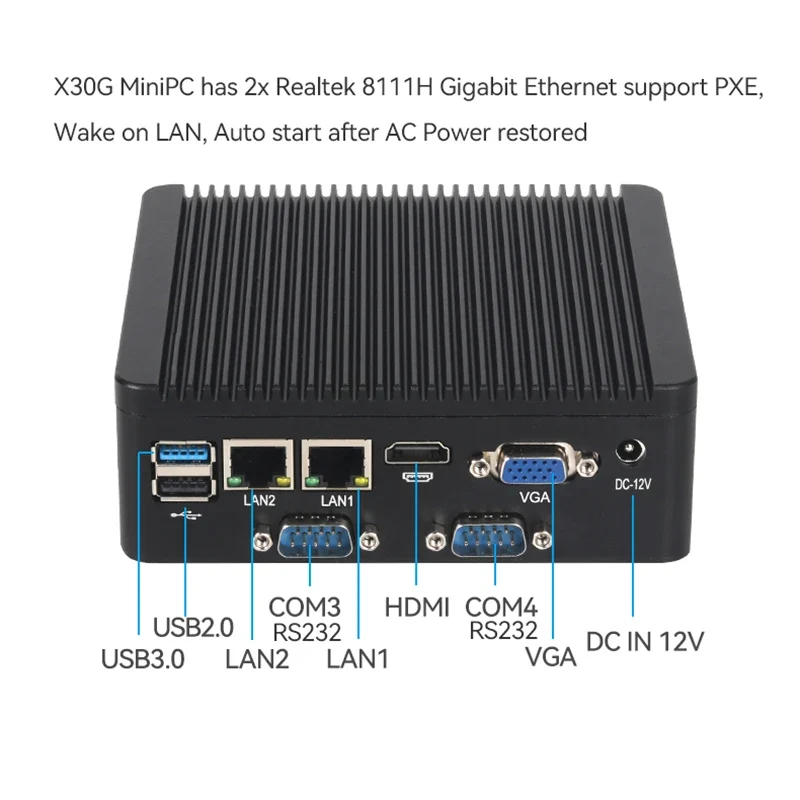

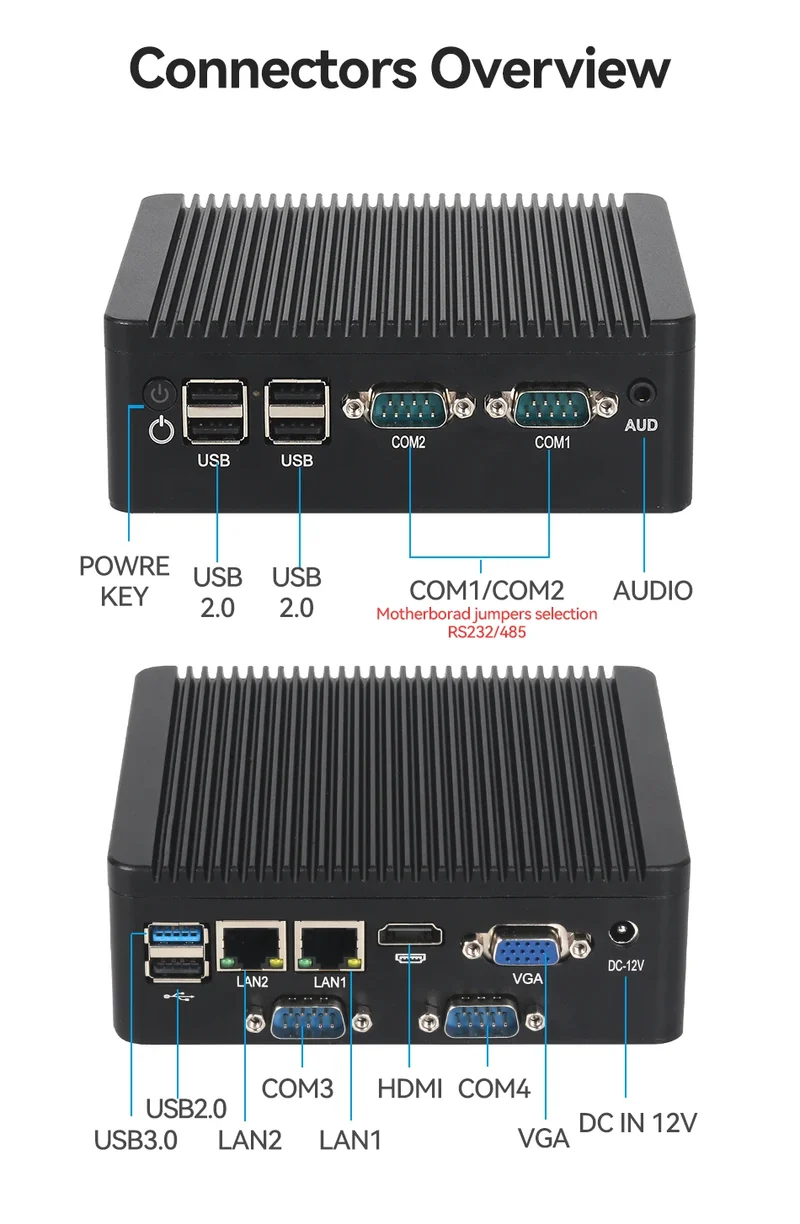

Rear Panel	1x DC_IN 12V
	1x VGA ( HDMI optional )
	1x HDMI
	1x LAN1
	1x LAN2
	1x USB2.0+1*USB3.0

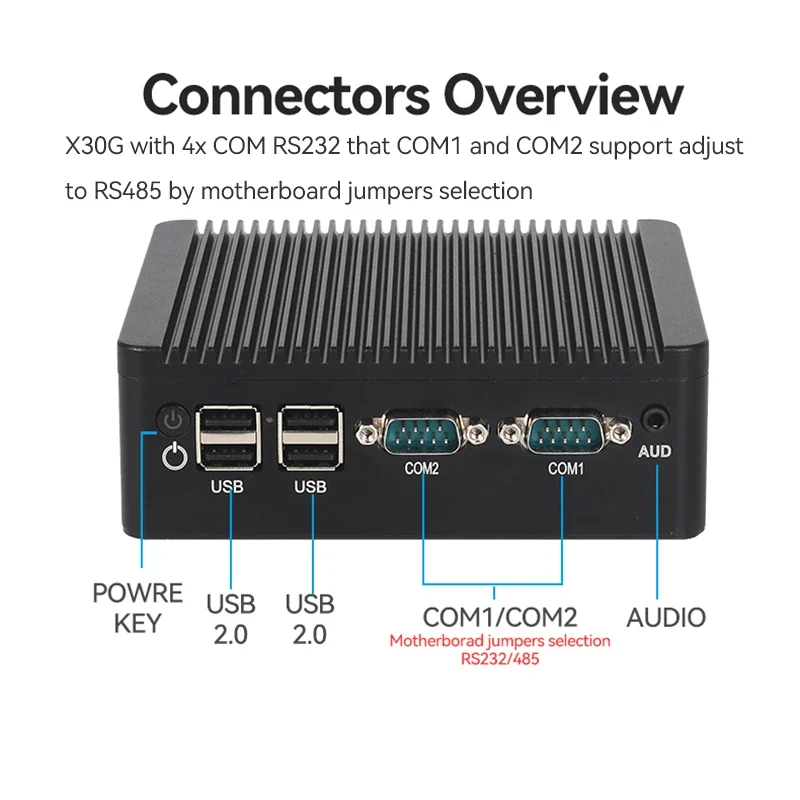

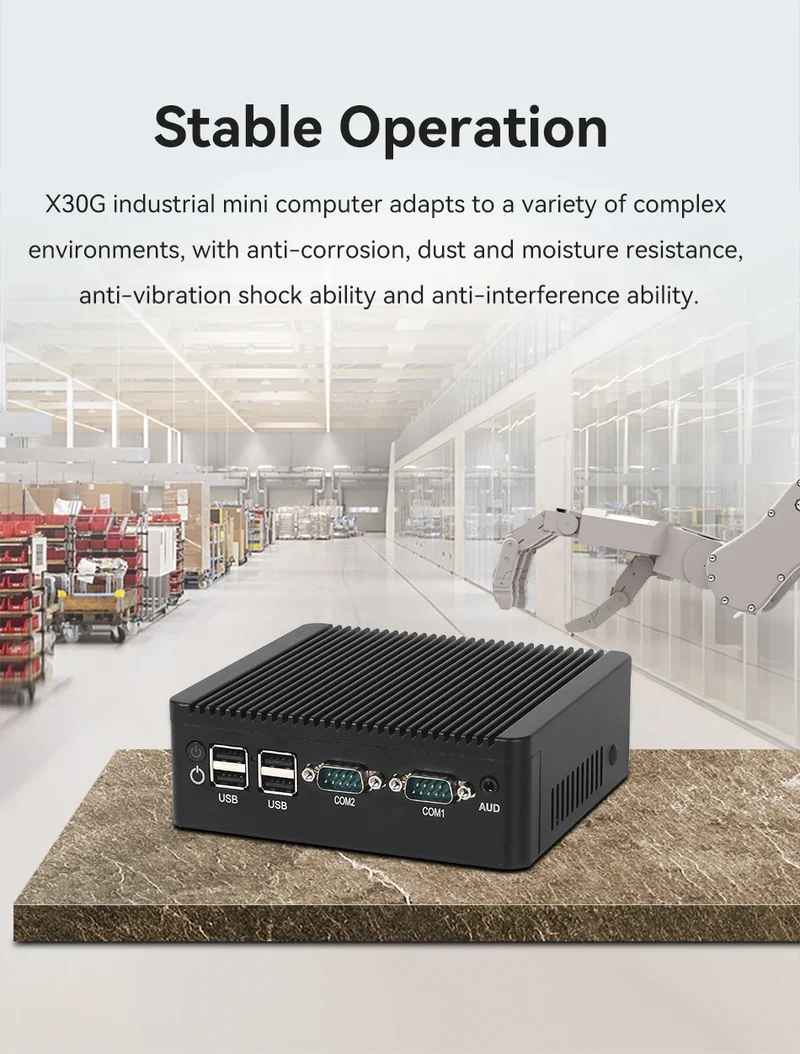

Front Panel	1x AUDIO

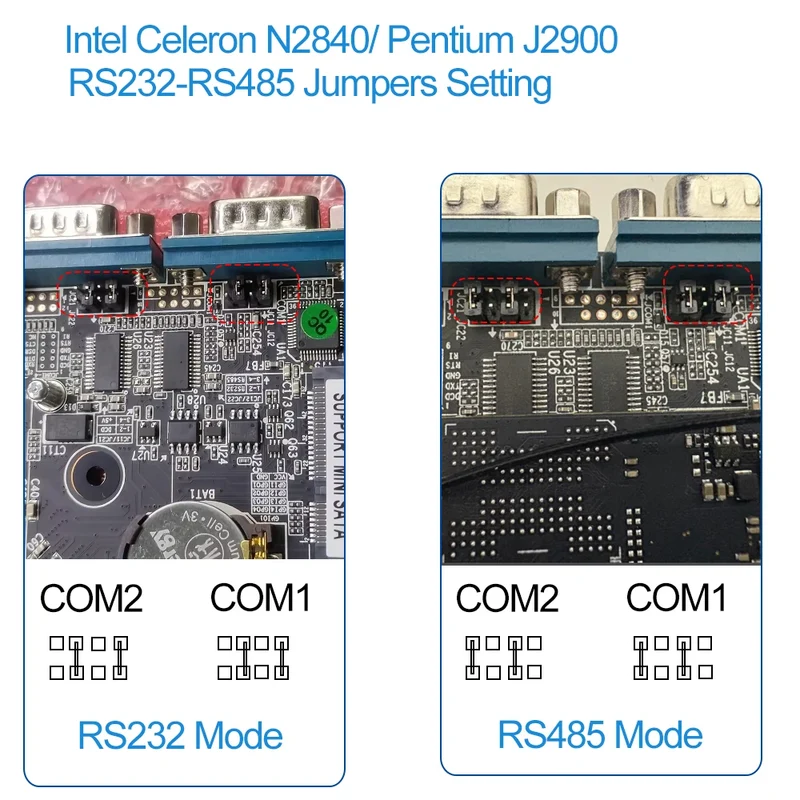

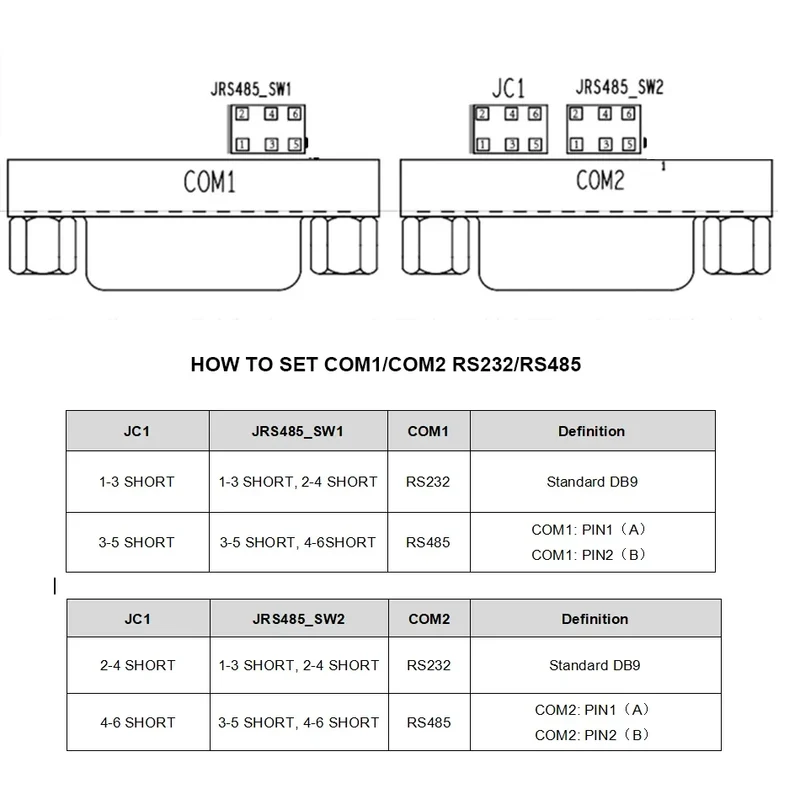

	1x COM1 RS232/RS485 adjustable on motherboard jumper
	1x COM2 RS232/RS485 adjustable on motherboard jumper
	2x USB2.0
	1x HDD_LED
	2x USB2.0
	1x POWER KEY

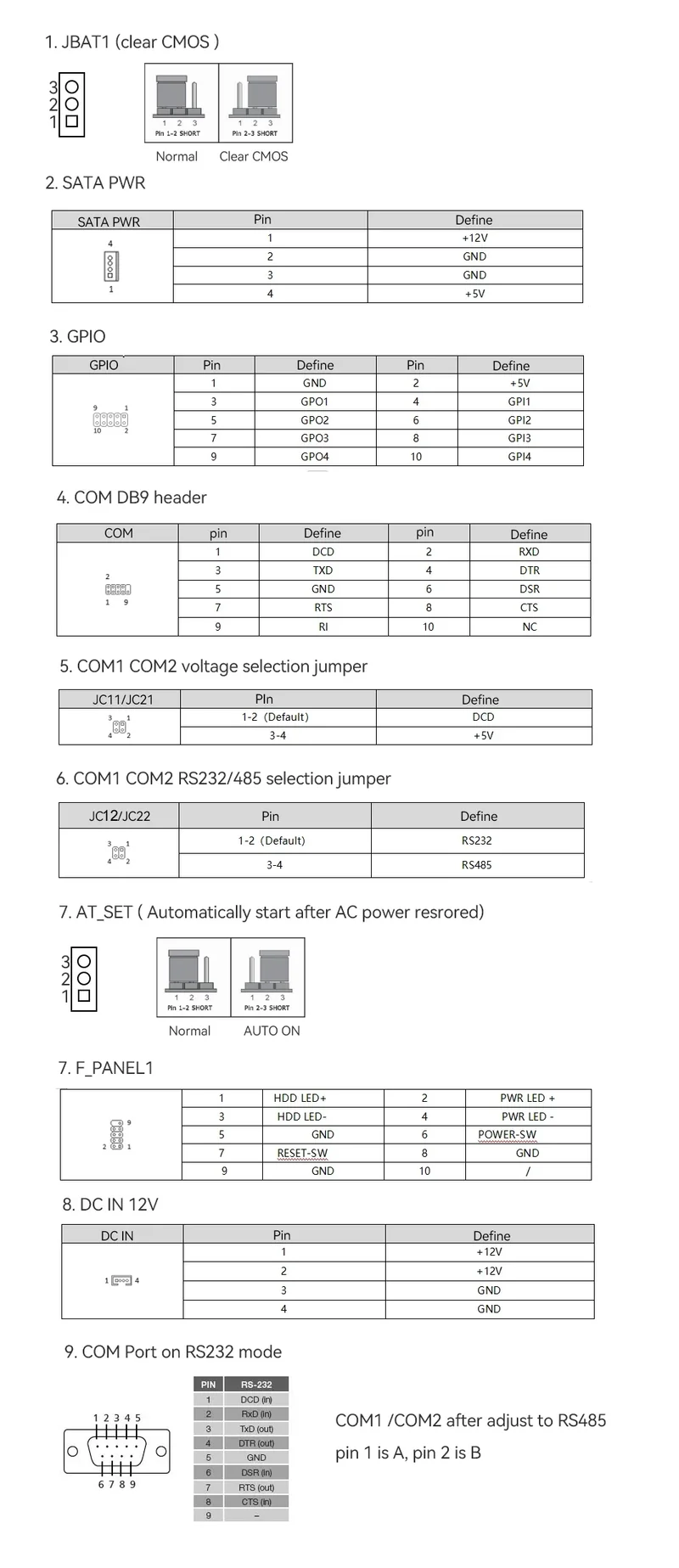

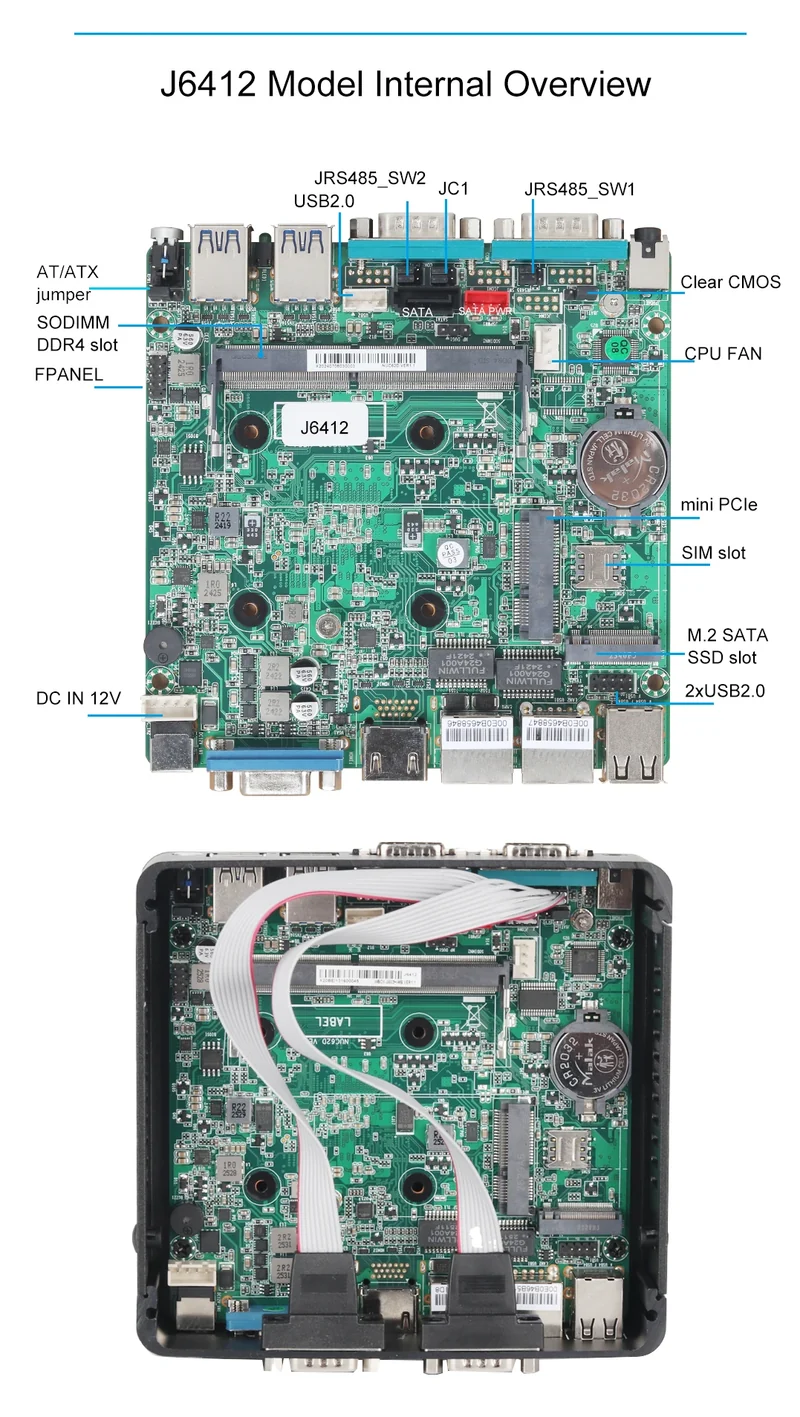

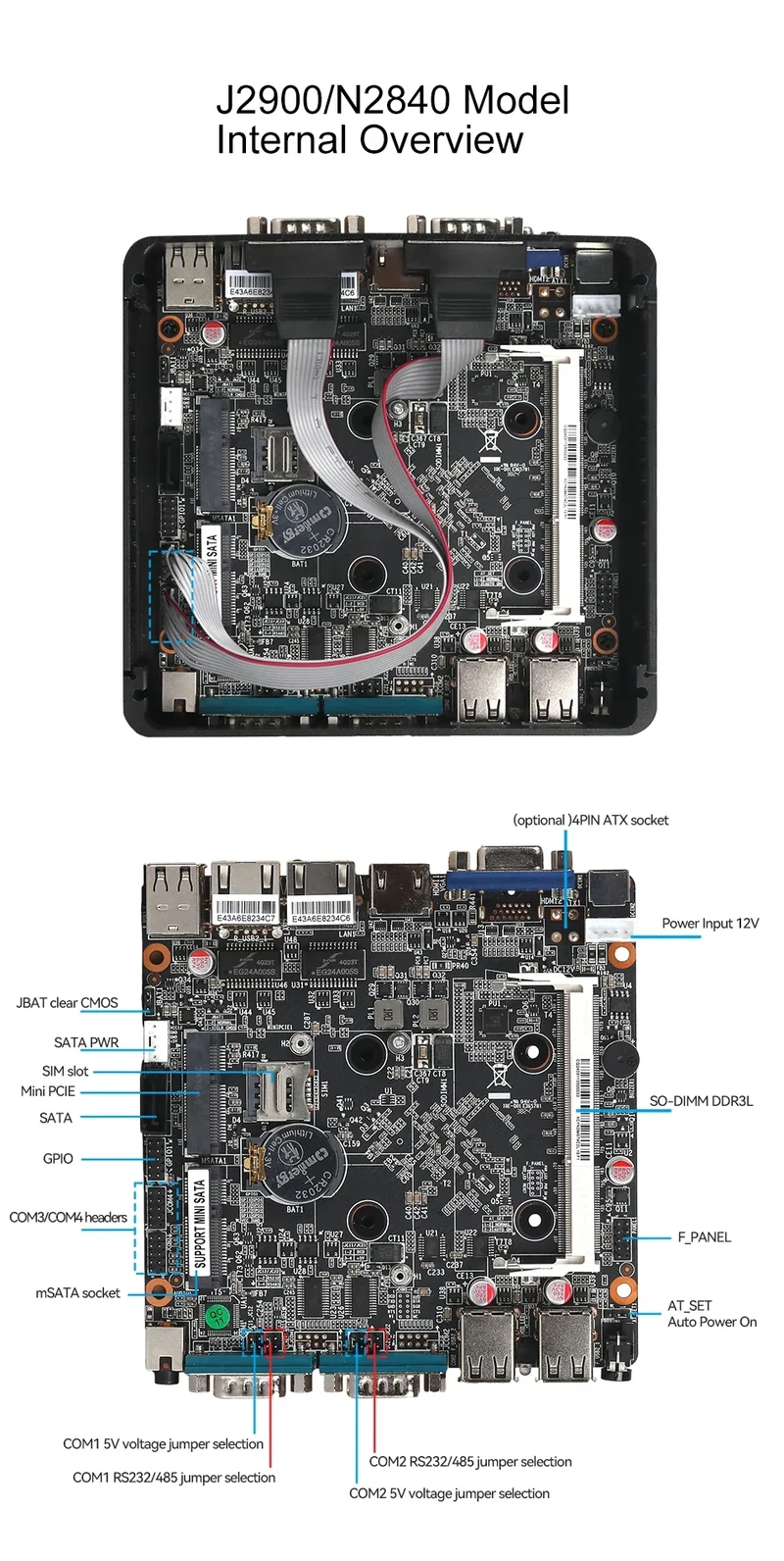

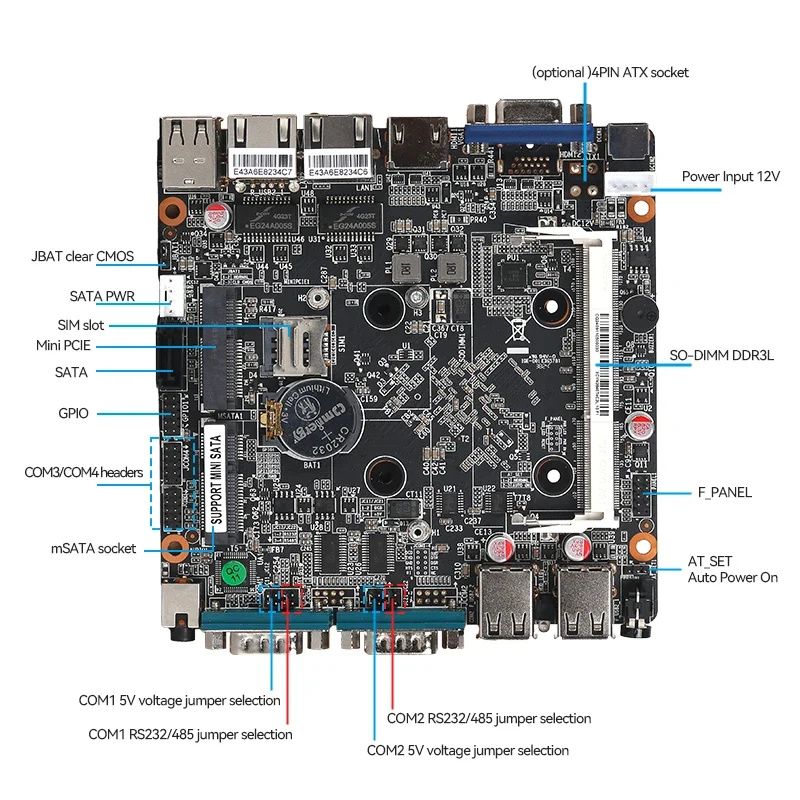

Internal Connectors	1x SATA ( 2.5 inch )
	1x SATA_PWR

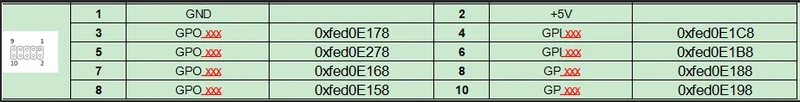

	1x GPIO (4x input, 4x output, 5V)
	1x COM3 1x COM4 DB9 connectors
	1x F_PANEL
	1x DC_IN 12V
BIOS	AMI BIOS
Power Management	Supports advanced power management ACPI
Power Management	Support wake on LAN , S3、S4、S5，Auto restart， PXE

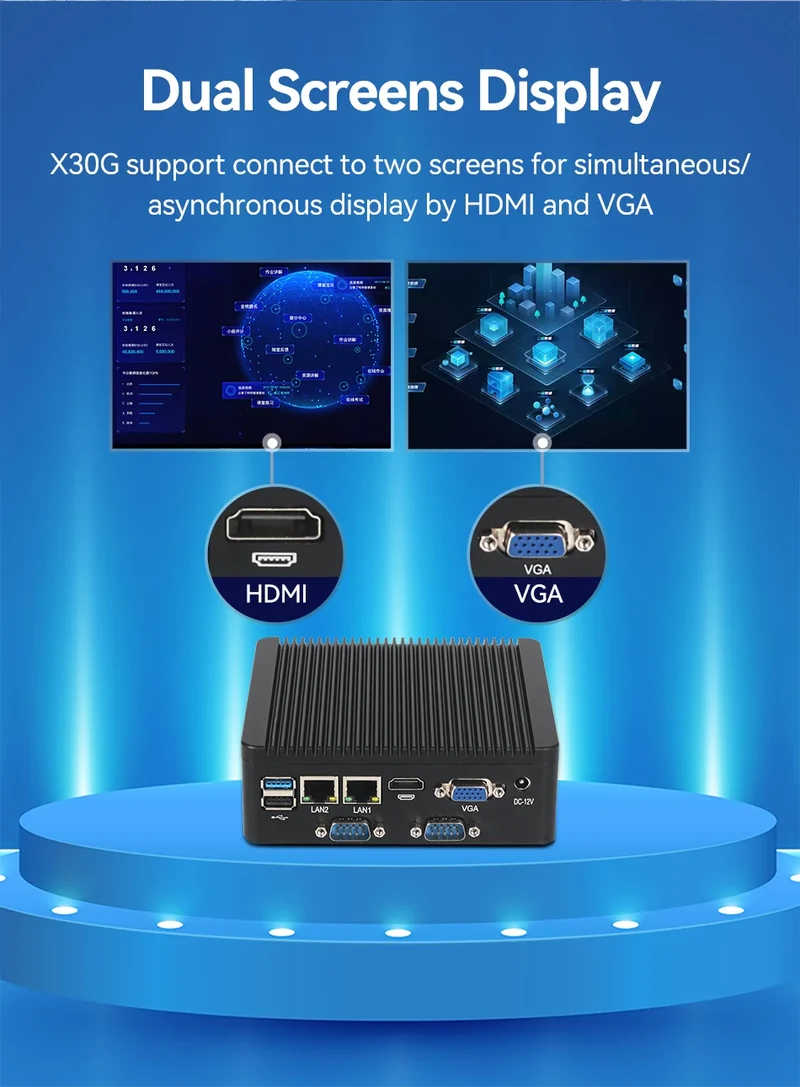

Display	VGA+HDMI
Network	2 x Realtek 8111H Gigabit Ethernet
Audio	ALC897 Audio Decoding Controller; Integrated Amplifier, 2W@4Ω
I/O Chip	IT8786E
Power Supply	DC/4Pin ATX
Environment	Operating temperature：﹣20℃~60℃
Environment	Humility：0%~95%
OS Support	Window7/ Windows 10/Linux/OpenWrt

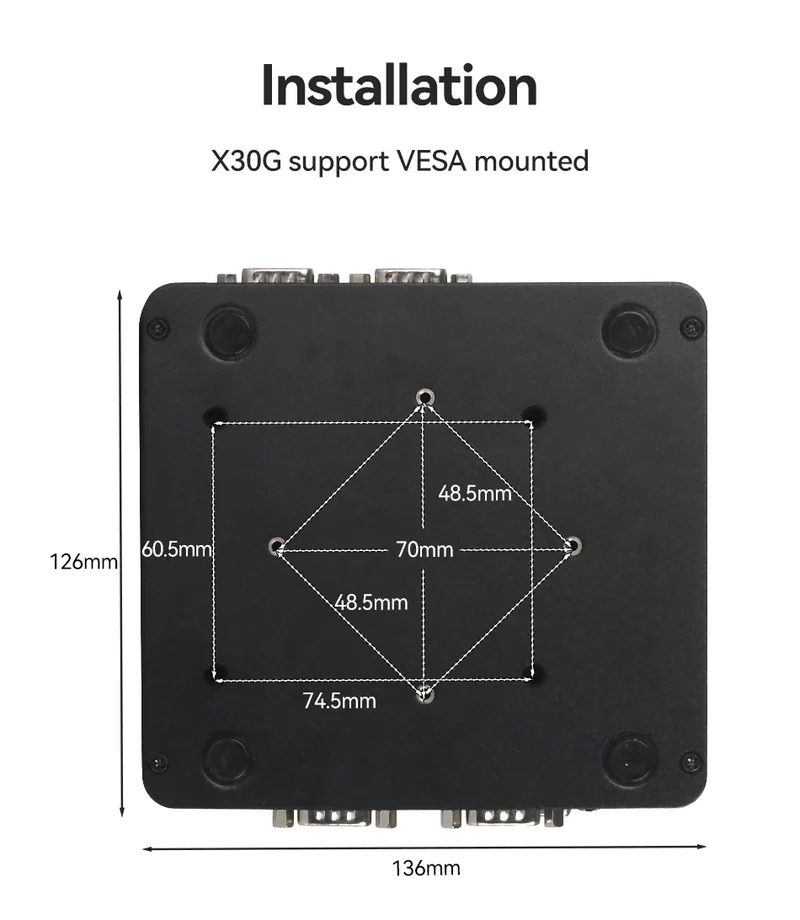

PC Case Size	134x124x40mm
