Eu Stock 6000 cycles 16Kwh Solar Energy Storage System 51.2V 314Ah Lifepo4 Lithium Battery with Wheels

SPECIFICATIONS

BMS: Built-in BMS Protection

Battery Type: LiFePO4

Battery cell: 3.2V LifePO4 Cell

Brand Name: DELONGTOP

Certification: CE/IEC62619/MSDS/UN38.3

Communication Port: CAN,RS-232,RS485

Cycle life: 6000 Times

Dimension (L*W*H): 436*262*875mm

Display: SOC Status Indicator

Grid connection: Off grid,Hybrid grid

Max Discharge Current: 200A Max Continous

Model Number: LVM15

Output Power Range: 5-10kW

Package: Wooden Pallet

Place of Origin: Guangdong, China

Product name: 51.2V 15KWh 16KWh vertical LiFePO4 solar energy storage battery

Protection Class: IP54

Shipping: by truck

System Type: Energy Storage System

System Voltage: 51.2 V

Type: Split

Warranty: 10 Years

Weight: 120kg

Product Description Specification

Product Model	LVM15
Nominal Voltage	51.2V
Nominal Capacity	314Ah
Battery Energy	16KWh
Weight	120kg
Size	437*262*878mm(L*W*H)
Charging cut off voltage	57.6V±0.2V
Discharging cut off voltage	44.8V±0.2V
Recommend charging current	40A
Max charging current	100A
Recommend discharging current	100A
Max discharging current	200A
Cell Type	Grade A prismatic LiFePO4 cells
Terminal	M8
Case material	metal box
Communication mode	RS485/CAN
Charge temperature	0~50℃
Discharge temperature	-10~50℃
The shelf temperature	-20~60℃
Humidity	5~95%(RH)
Design Life Cycle	10+Years(25℃)
Cycle Life	6000+ cycles
Certifications	CE,IEC62619,MSDS,UN38.3

Packing & Delivery

Packaging Information

LVM15 51.2V 16KWh LiFePO4 battery*1/Wooden boxGross weight:134KG Net weight:120KG Size of wooden box:93*52*43cm Application

Advantages of LiFePO4 Battery

1. 10 Years Lifespan Maximum performance2. Intelligent long-term solution
3. The hightest class of energy
4. Higher efficiency
5. High Adaptability to Environment
6. The battery will be not burning or explosion in case of acupuncture,baking and other extreme statues
7. One lithium battery takes up half the space as two normal lead acid batteries
8. One lithium battery weighs 1/3 the weight of one lead acid battery
9. Over 100Amp/hour discharge capability for intermittent high loads
10. Green energy,Non-toxic, non-polluting Compatible brands of inverters Our battery can work with many famous brands of inverter like DEYE,Growatt,GOODWE,Solis,SMA,Victron,MEGARENO and many others.If your inverters are not listed above,please contact me before confirming the order. Certifications Customers reviews What kind of Battery Cells Does DELONG Use? We usually use 100% new Grade A LiFePO4 battery cells,we have good cooperation with CATL,EVE,BYD,GanfengLithium,CALB.,etc. We only use the highest quality battery cells, meaning our batteries have an expected minimum lifespan of at least 10 years. This ensures maximum return on investment on the Powerplant as well as long term energy independence Company Profile Shenzhen Delong Energy Technology Co., Ltd. Is one of leading lithium ion battery Supplier in China, our management teams have been in lithium ion battery field for over 10 years, we have own associated factory, testing room and sales center. Our factory is located in Dongguan city, Guangdong Province which is occupied with over 5,000 square meters, we have strong R & D department,well trained workers who can ensure to make high quality and more stable products. Delong Energy is I S O 9 0 0 1 : 2 0 1 5 certificated high-tech factory.
We specialized in developing, manufacturing new energy customized products which cover Lithium iron phosphate battery, lithium ion battery pack, lithium polymer battery pack and Portable power station. we have been exporting our batteries to many countries like Europe, North America, Middle East and Southeast Asia. Our products are widely applied on Alternative lead-acid batteries, Solar and wind energy storage system, Outdoor emergency standby, Golf cart, R V, A G V, Robot, Marine, electric boat and others. All of our products are approved C E, RoHS, I E C 6 2 1 3 3, M S D S, U N 3 8.3, K C. We can provide D G certifications as well. FAQ Q1: What’s the lifecycle of solar energy storage battery?A: 80% DOD more than 6000 cycles

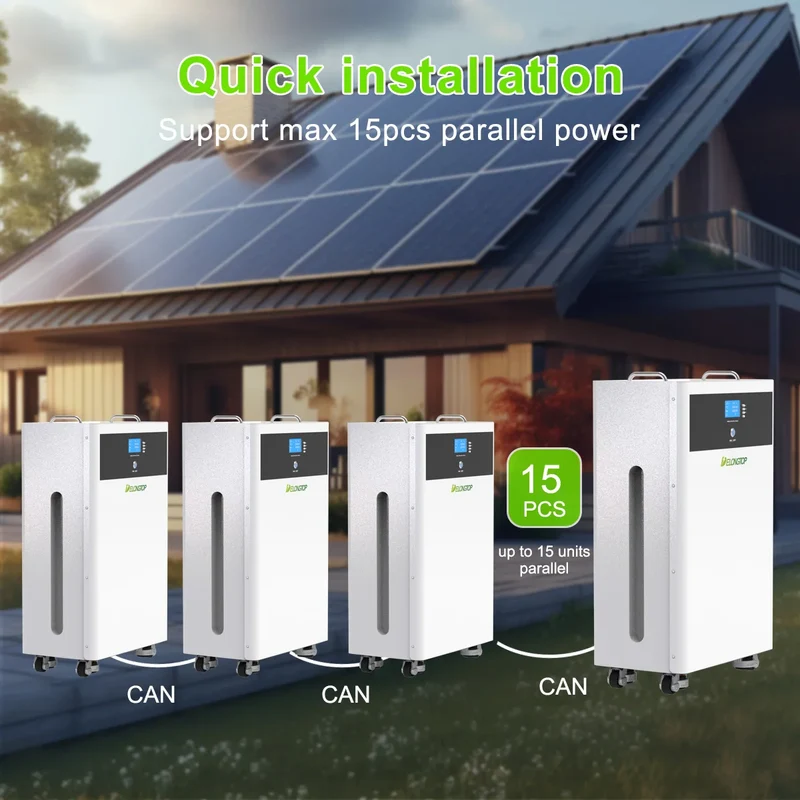

Q2: Can the battery be connect in parallel?
A: Yes,there are not limitation for parallel connection.

Q3: Can the solar energy storage battery work with my hybrid inverter?
A: Yes, the LifePO4 battery suitable for all off grid and on grid hybrid inverters.

Q4: What’s the warranty of solar energy storage battery?
A: We provide 10 years warranty policy.Replace new battery within 1st year;provide free components within 2nd to 5th years;provide free technical support within 6th to 10th years

Q5: What is your payment terms?
A: 30% deposit,70% balance payment before shipment or against copy of BL;if total amount is more than USD200,000,we can accept L/C at sight.

Q6: What is the leadtime?
A: 5-7 days for samples;25-30 days for bulk order.

Q7: Does the solar energy storage battery with communication function?
A: Yes, the battery with RS232&485&CAN communication with PC and smart LCD for monitoring.

Q8: What kind of battery cells do you use?
A:We always use high quality Grade A prismatic LifePO4 battery cells.We normally cooperate with EVE,CALB,Lishen,GanfengLithium and many others.
