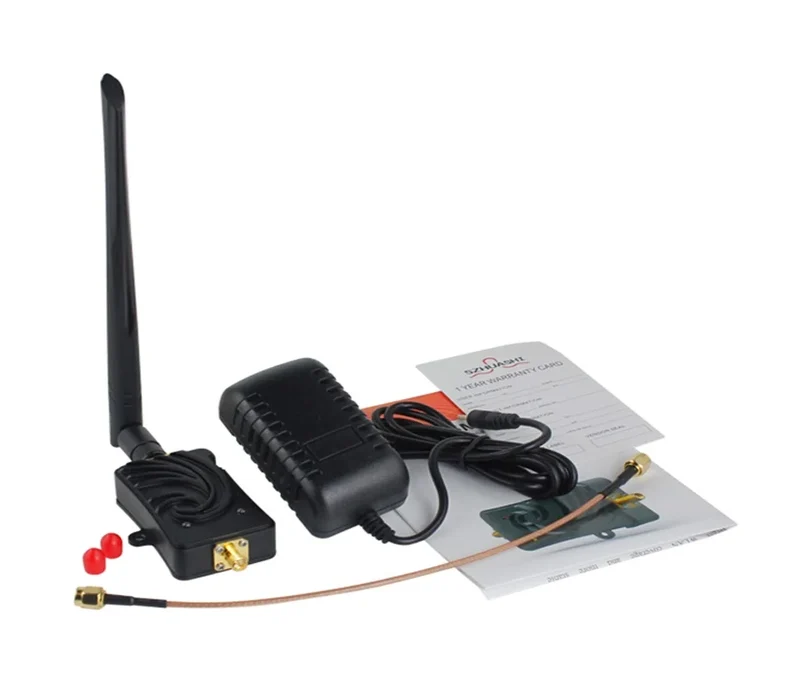

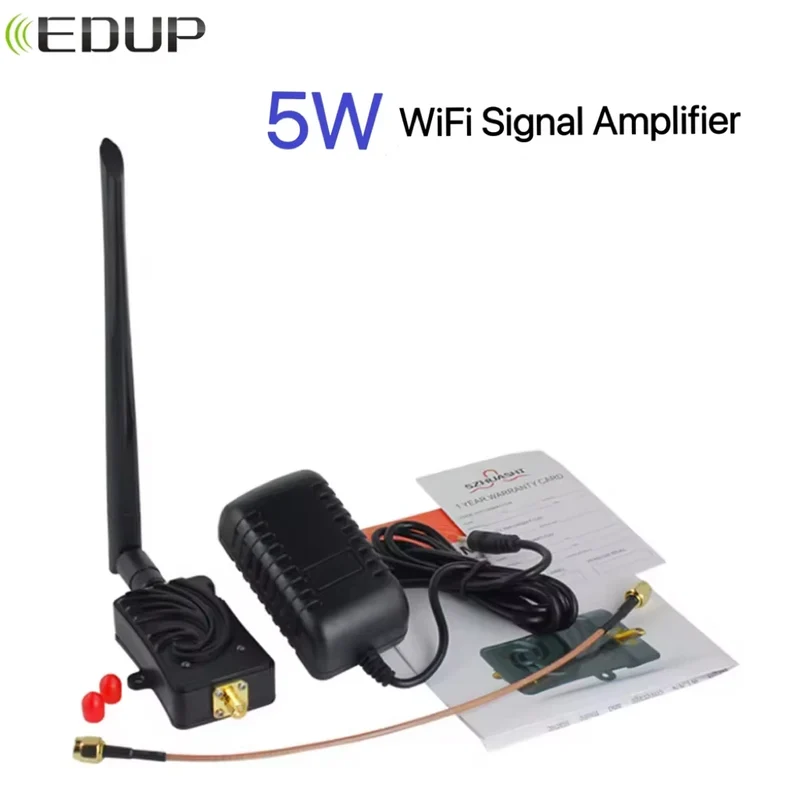

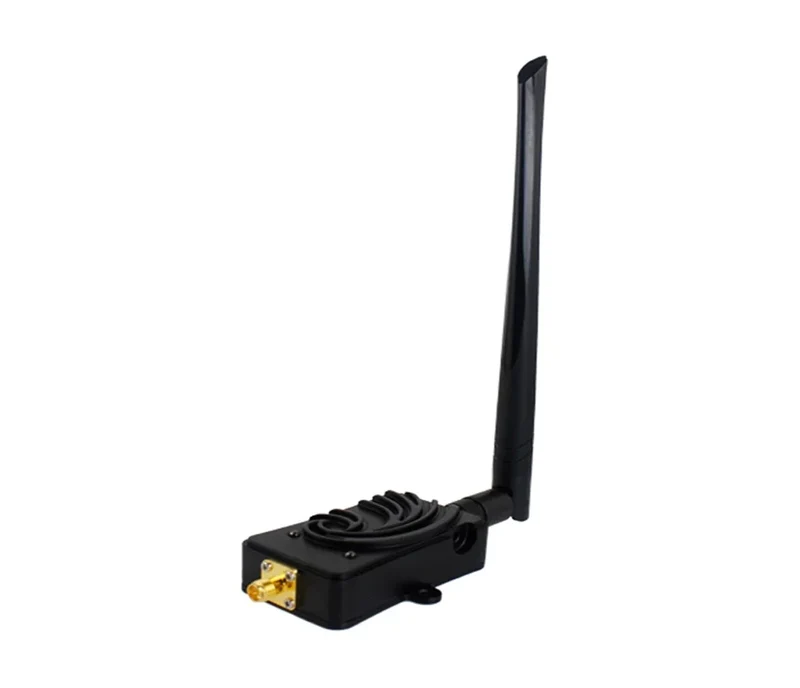

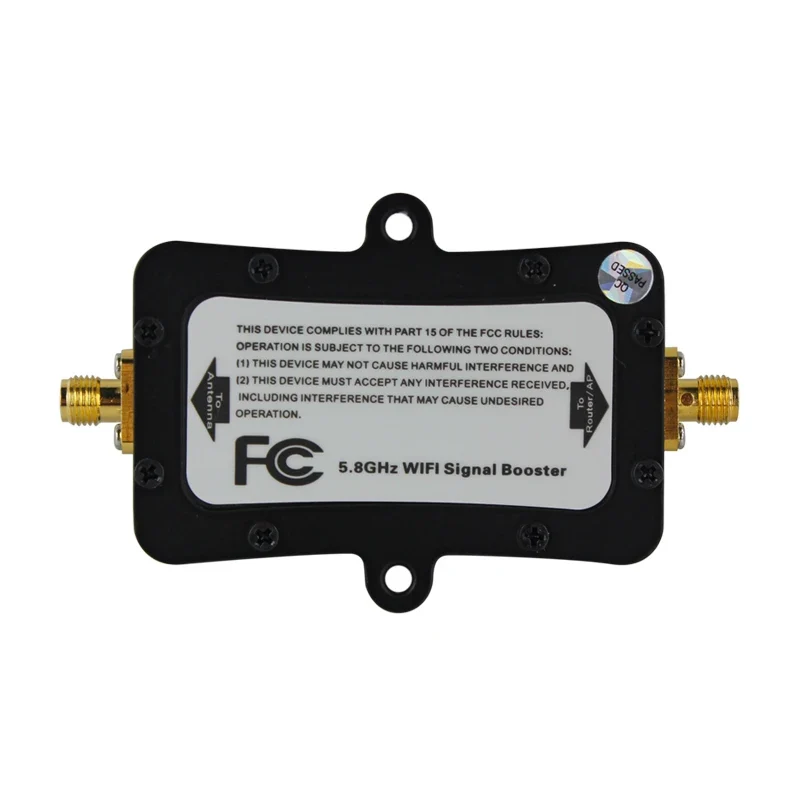

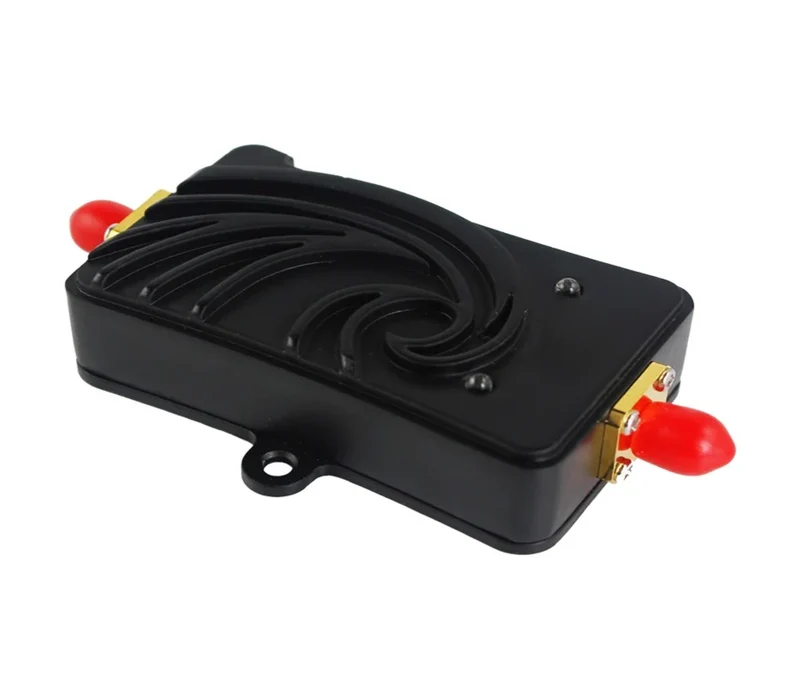

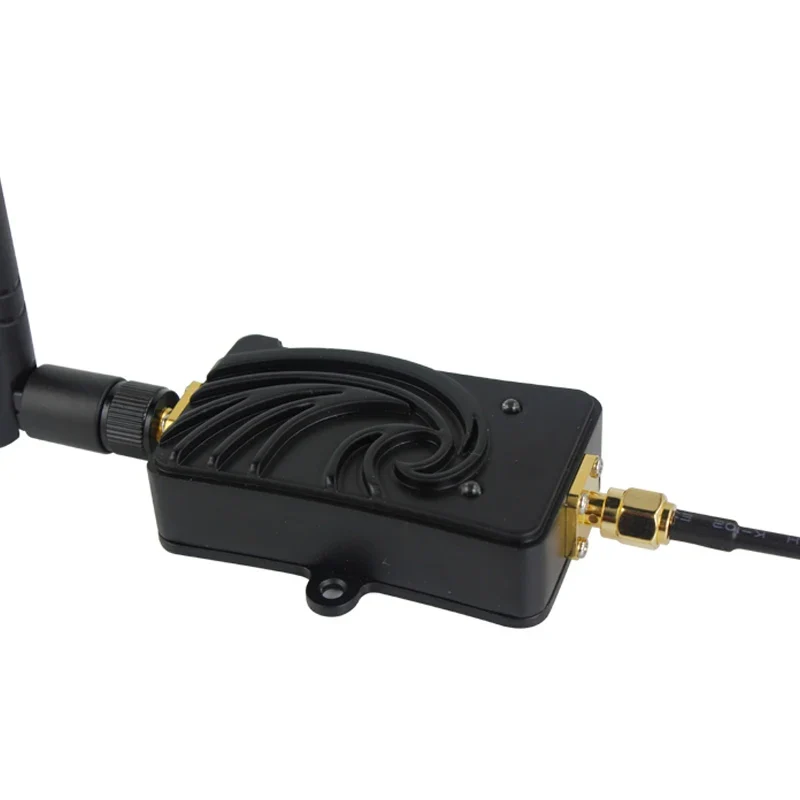

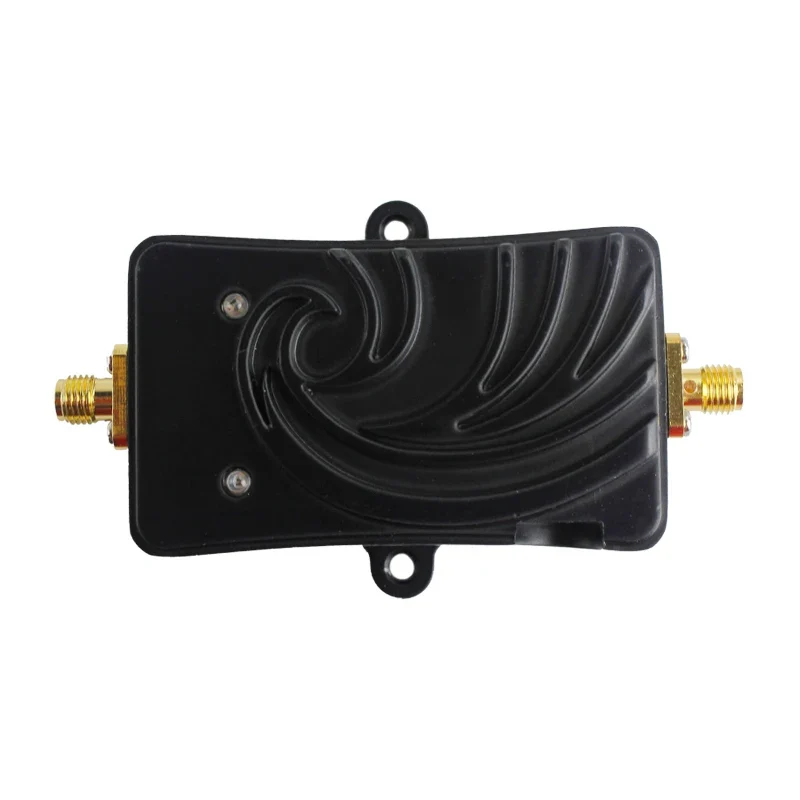

EDUP AB011 5.8G 5W WiFi Booster Wireless Amplifier Long Range Wi-Fi Repeater Model Remote Control Signal Extender

SPECIFICATIONS

Antenna Type: Internal

Application: Home

Brand Name: EDUP

Certification: CE,RoHS,NONE

Choice: yes

Frequency: 5 GHz

Frequency Band Class: Single-Band

Function: Firewall

High-concerned chemical: None

LAN Ports: 0

Max. LAN Data Rate: 100Mbps

Number of USB Interfaces: None

Origin: Mainland China

Package: Yes

Recommended Uses: Home

Standards And Protocols: Wi-Fi 802.11n

Support Mesh: Not Supported

Supports WDS: No

Supports WPS: No

Telecomcableconnected: Yes

Type: WireLess

Wi-Fi Supported Frequency: 5G

Wi-Fi Transmission Standard: 802.11n

Wired Transfer Rate: None

Wireless Communication Standard: 802.11.b

Wireless transmission rate: 1800M

With Modem Function: No

Product Description: The 5.8 GHZ WLAN signal booster is designed for IEEE 802.11a/n Wireless LAN applications.
It adopts the direct sequence spread spectrum (DSSS) and orthogonal frequency division multiplexing (OFDM) technology of WLAN communication.
The product is compatible with time division duplexing (TDD) method of WLAN and using rapid microwave detection technology to provide high linearity amplification. The signal booster can work with most WLAN/Wi-Fi devices and increase the WLAN signal strength, therefore a larger WLAN coverage and more stable transmission rate .   Features: 1. 100X the power, improving the link quality and coverage of certified WLAN devices 2. 3.0dB ultra-low noise 3. Wide 6v to 16v operating input range 4. working with certified IEEE 802.11a/n Wireless LAN devices 5. Simply plug and play, no software is required   Specifications: Frequency Range: 5.725~5.85GHz Operating Voltage: 6~16V Receiving Gain: 15dB±1 Transmission Gain: 20dB±1 Input Trigger Power: Min: 0dBm Max: 10dBm Maximum Output Power(P1dB): 37dBm(5W) EVM: 3%@29dBm 802.11a 54Mbps OFDM 64QAM BW 20MHz DC Supply Current: 700mA@Pout 29dBm 12V Noise Figure:﹤ . 3 0dB TX/RX Switch Time Delay:﹤1us LED Indicator: Transmitter: green; Receiver: red Operating Ambient Temperature: -40℃~+70℃ Operating Humidity: up to 95% rel. humidity Dimension: 82mm×50mm×21mm Weight: 0.25Kg net   Installation Instructions: Step1: Disconnect power supply toAP/Router. Step2: Detach the antenna from your certified wireless AP/Router Step3: Connect Rg316 cable to the booster and AP/Router Step4: Connect the antenna to the other end of the booster Step5: Connect the power supply to the booster first and subsequently the AP/Router
