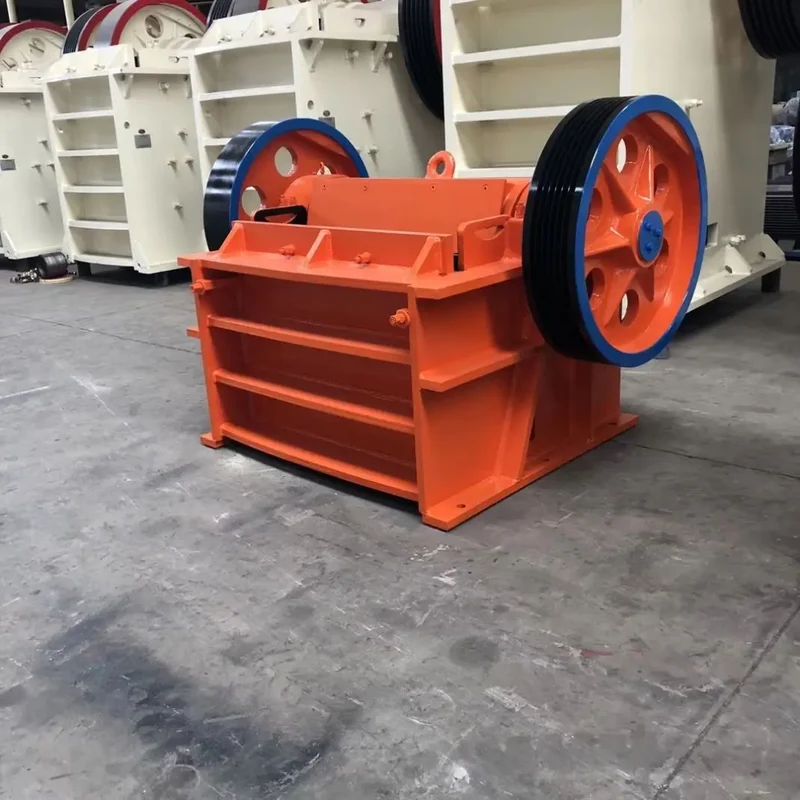

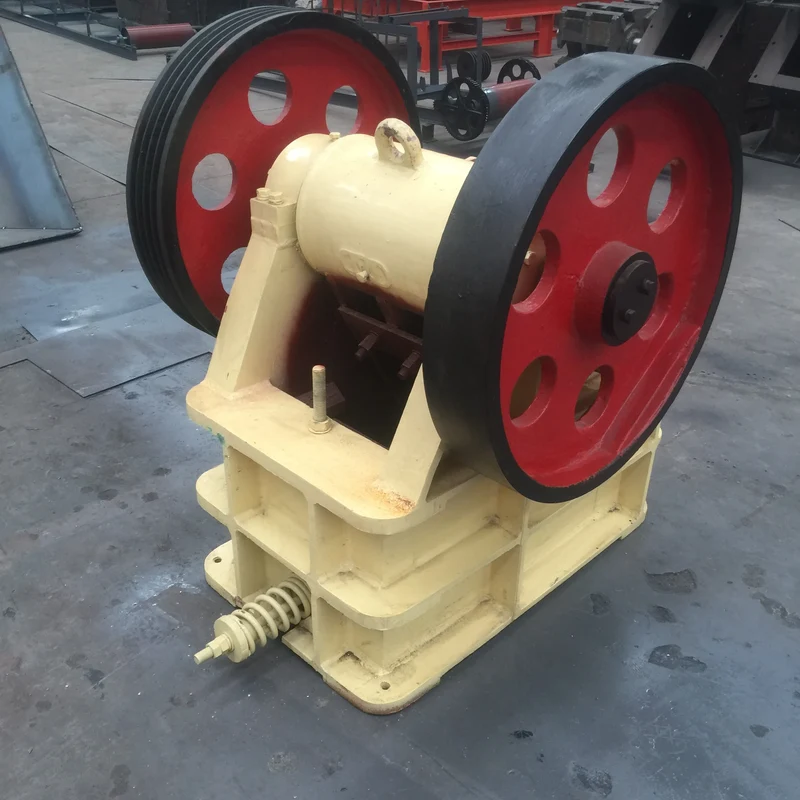

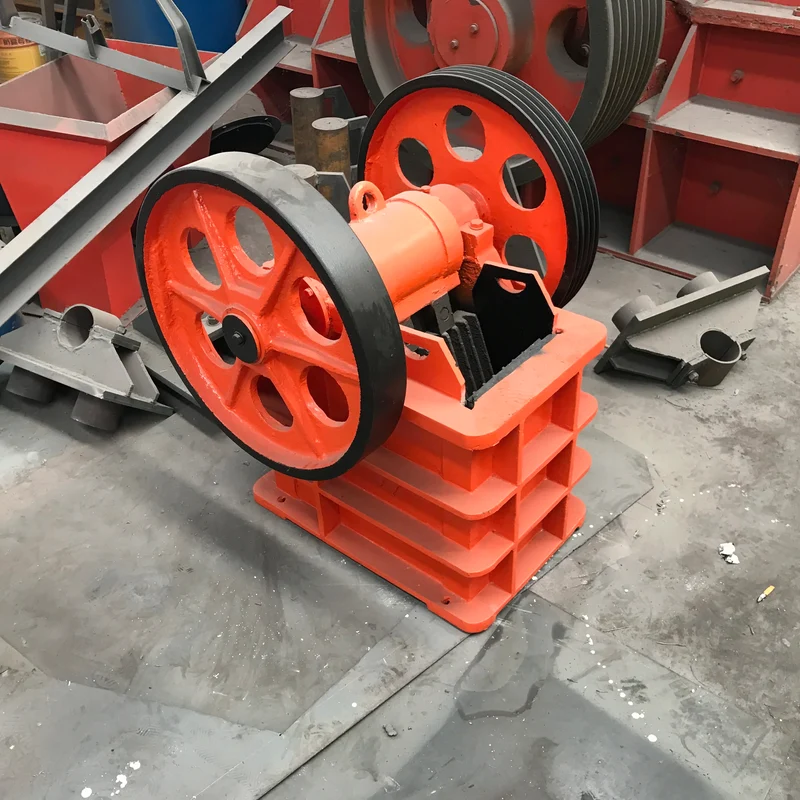

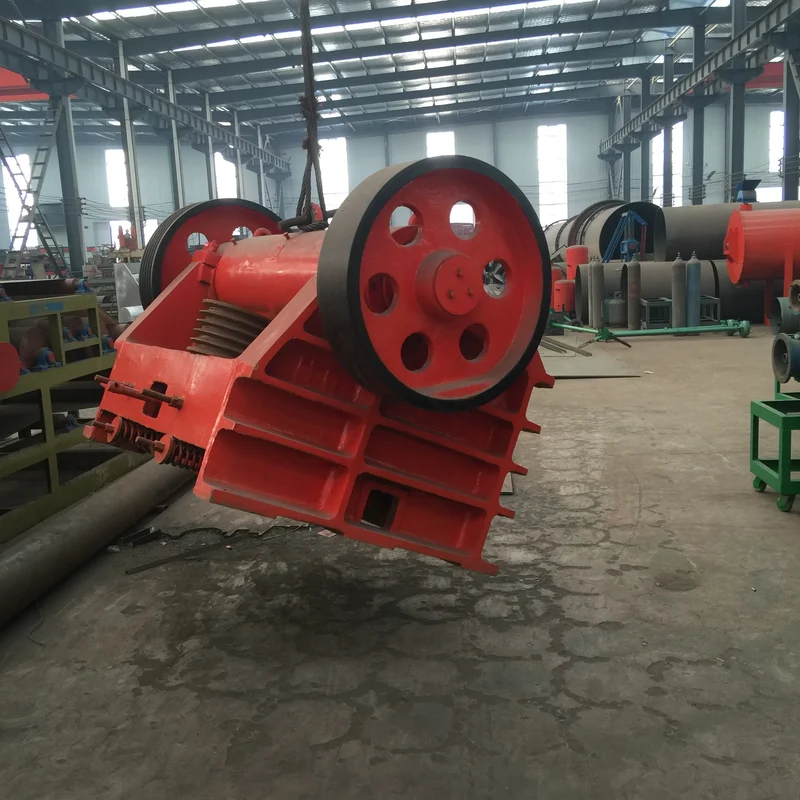

Eccentric Shaft Toggle Plate in Swing Jaw Crusher for Sale Shaft Unique Mobile Jaw Cone Crusher

SPECIFICATIONS

Action object: stone rock

Application: Jaw Crusher

Capacity(t/h): Max.7t/h

Color: optional

Core Components: Engine,Bearing,Other

Degree of comminution: Coarse or medium crushed

Dimension(L*W*H): Varies

Discharge size: 15-40mm

Driving mode: Extrusion grinding

Key Selling Points: High Productivity

Machinery Test Report: Provided

Maximum feed size: 180mm

Place of Origin: China

Processed Materials: steel

Product name: stone Jaw crusher

The Machines classification: Building Stone Production Line

Type: Jaw Crusher

Video outgoing-inspection: Provided

Warranty: 1 Year

Weight: 950 KG

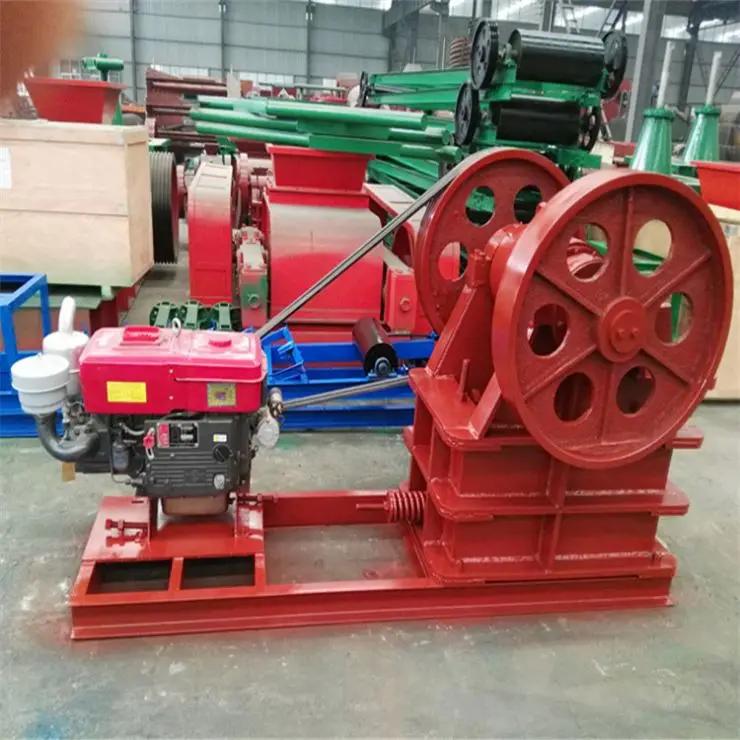

Factory Price Mobile 5-7t/H Rock Quartz Stone Jaw Crusher Diesel Power Concrete Stone Crusher Products Description Jaw crusher, also known as stone crusher, is widely used in mining, metallurgy, building materials, highway, railway, water
conservancy, chemical industry and other industries. For all kinds of ore, rock large materials of medium size crushing, crushing
compressive strength in 147~245MPa has coarse, medium and fine. Working Principle The working mode of jaw crusher is grinding and extrusion. Its working principle is:
through the eccentric wheel to move jaw up and down, when the jaw rises to the fixed jaw plate close, and at the same time the
material is crushed or split; When the moving jaw goes down, the Angle between the elbow plate and the moving jaw becomes smaller,
the moving jaw plate leaves the fixed jaw plate under the action of the pull rod and the spring. Specification

Model number	Feed port size (mm)	Maximum feed size (mm)	Discharge port adjustment range (mm)	yield(t/h)	Motor power (kw)	weight(t)
PE-150x250	150x250	125	10-40	1-3	5.5	0.8
PE-200x300	200x300	180	15-50	2-6	7.5	1.2
PE-220x350	220x350	180	18-70	3-10	11	1.5
PE-250x400	250x400	210	20-60	5-15	15	2.8
PE-300x500	300x500	280	25-80	5-20	18.5	3.5
PE-400x600	400x600	340	40-100	16-60	30	7
PE-500x750	500x750	425	50-100	40-110	55	12
PE-600x900	600x900	500	65-160	50-180	75	17
PE-750x1060	750x1060	630	80-140	110-320	110	29
PEX-100x600	100x600	80	10-30	5-15	7.5	2.8
PEX-150x750	150x750	120	18-48	8-25	15	3.8
PEX-250x750	250x750	210	25-60	13-35	22	5.5
PEX-250x1000	250x1000	210	25-60	16-52	30	7
PEX-250x1200	250x1200	210	25-60	20-61	37	9.7
PEX-300x1300	300x1300	250	20-90	16-105	55	15.6
