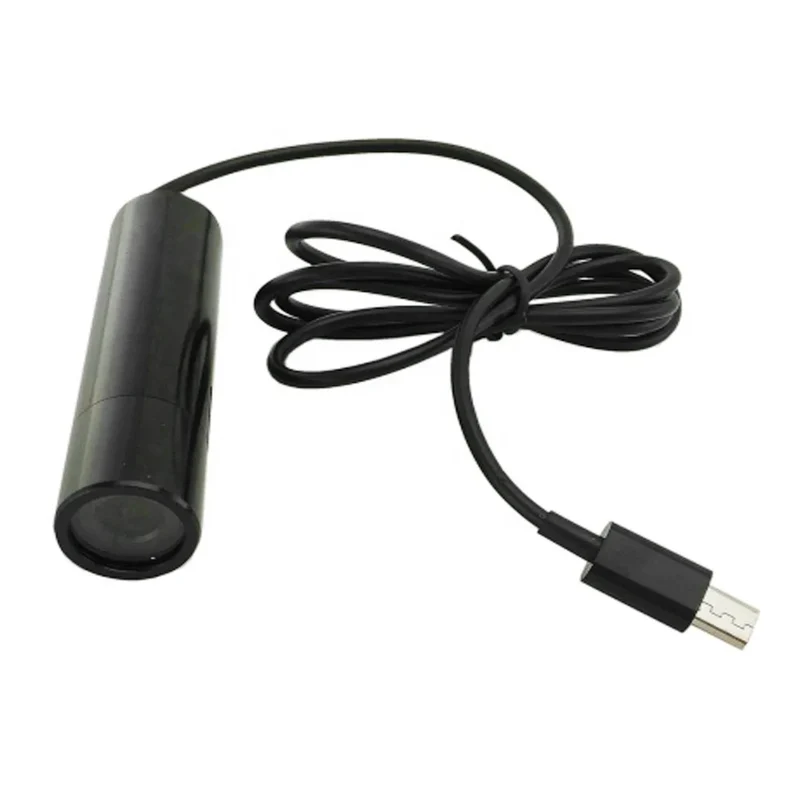

Ears Hanging UVC MJPEG/YUY2 1080P Android IOS OTG External USB Camera TYPE-C Micro for Helmet Equipment Lipstick Cam

Ears hanging UVC MJPEG/YUY2 1080P Android IOS OTG External USB Camera TYPE-C micro for helmet equipment lipstick cam    Product Description

Introducting:
USB Mini colour camera
Color CMOS CCD sensor
USB Format
Support Linux/windows operation system

Main Features:

• Image sensor 1/2.7" CMOS,  0.1Lux, 2.0MP imag
• Free Driver USB 2.0 (UVC)
• USB2.0 HIGH SPEED, compression USB 1.1
• Default setting (30fps@1920*1080p)
• Manual focus lens
• Angle of view around 90 degrees (without any distortion)
• Compression YUY2 & MJPEG
• Support  Windows 2000; Windows XP; Windows VISTA; Windows 7 and later;
• Linux(In 2.6.18 above the kernel version);Mac ps3; Android system
• Standard 1.5m cable, Can be connected through 10 meters USB cable
• Dimension: 20*75MM
• USB Power: 5V±10%DC,50mA
• Used:intelligent machine,especially Banks'ATM
• Can be customized by your requirements

Detailed Specifications Of The Parameters

Models
Image sensor	1/2.7" Color CMOS
Effective Pixels	1920*1080P 1280(H)x720(V), 640(H)x480(V), 352(H)x288(V), 320(H)x240(V) resolutions
Synchronizing system	Internal
Scanning system	Progressive Scan
Video output	VGA(640X480), CiF(352X288), SiF(320X240), QSiF(176X144, ),C iF(160x120)
S/N ratio	More then 48 dB (AGC Off)
Min. Illumination	0.1 Lux @ F1.2
Exposure	Auto / Manual(Shutter Speed & AGC Control)
White Balance	Auto / Fixed / Indoor / Initial / Outdoor
Gamma Characteristic	Auto r=0.45
Picture	Brightness / Contrast / Gamma / Saturation
Miscellaneous	BW Image / Mirror / Flip / Back Light / Flickerless
Power source	5V DC / 400mA
Operating current	125mA / regulated 5.7VC in
Lens	3.6mm lens default,2.8/4/8/12/16mm lens optional
Operating Temperature	0°C∼ 40°C (Humidity : 0% RH∼ 80% RH)
Interface Type	OTG Micro USB (Complies with USB 2.0)
Measurement (mm)	20*75mm
Weight (Approx. G)	50g

 Package list:

1pcs otg bullet camera with earphone

1pcs headset
