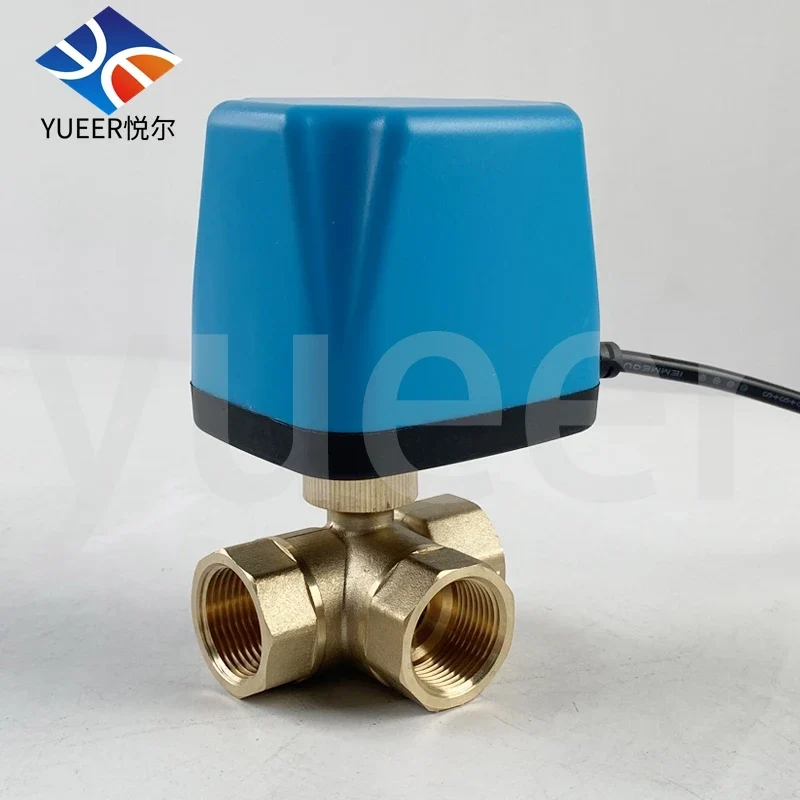

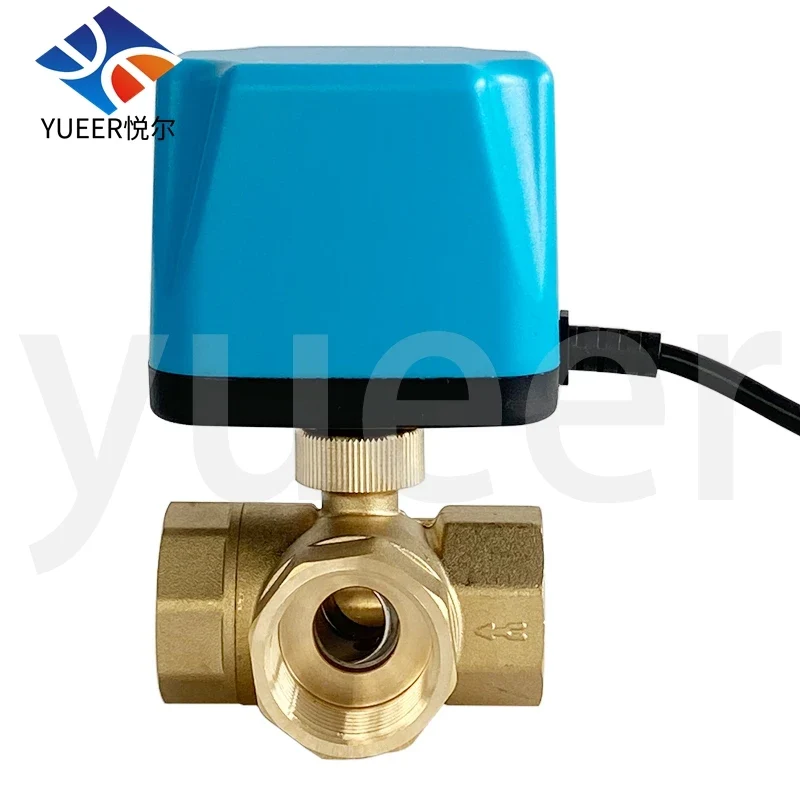

DN15 DN20 3-way Two Wire One Control Electric Ball Valve DC9-24V AC110V- 220V Brass Motorized Control Actuator Ball Valve

SPECIFICATIONS

Ball Material: Cast Iron

Connection: Female Thread

Connection Size: 1/2 in,3/4 in,1 in

Connection Type: Flanged,NPT

Connection type: G thread

MOQ: 1 Piece

Material: Brass

Medium: water

Operating Pressure: 900 psi

Operating Temp. Range: 60-150f

Port Size: DN15-DN25

Pressure: 1.6MPa

Sealing Material: NBR

Usage: Drainage

Voltage: AC220V AC110V DC12V DC24V

Workform: normally closed/normally open

Working Temperature: -10~100℃

application: General

brand name: yueer

customized support: OEM

media: Water

place of origin: Zhejiang, China

power: Electric

structure: Ball

temperature of media: Normal Temperature

warranty: 1 years

PRODUCT INFORMATION

Brand Name	YUEER
Power Supply	AC220V/AC110V/DC12V/DC24V
How it works	Gearbox transmission, 8 Nm copper gear linkage synchronous motor
Motor category	Synchronous motors
Work pressure	≤0.6Mpa（6kg）
The maximum pressure on the valve body	≤1.6Mpa（16kg）
Medium temperature	-5~80℃
Connection	Pipe thread G
Medium	Cold/hot water or 50% ethylene glycol solution
