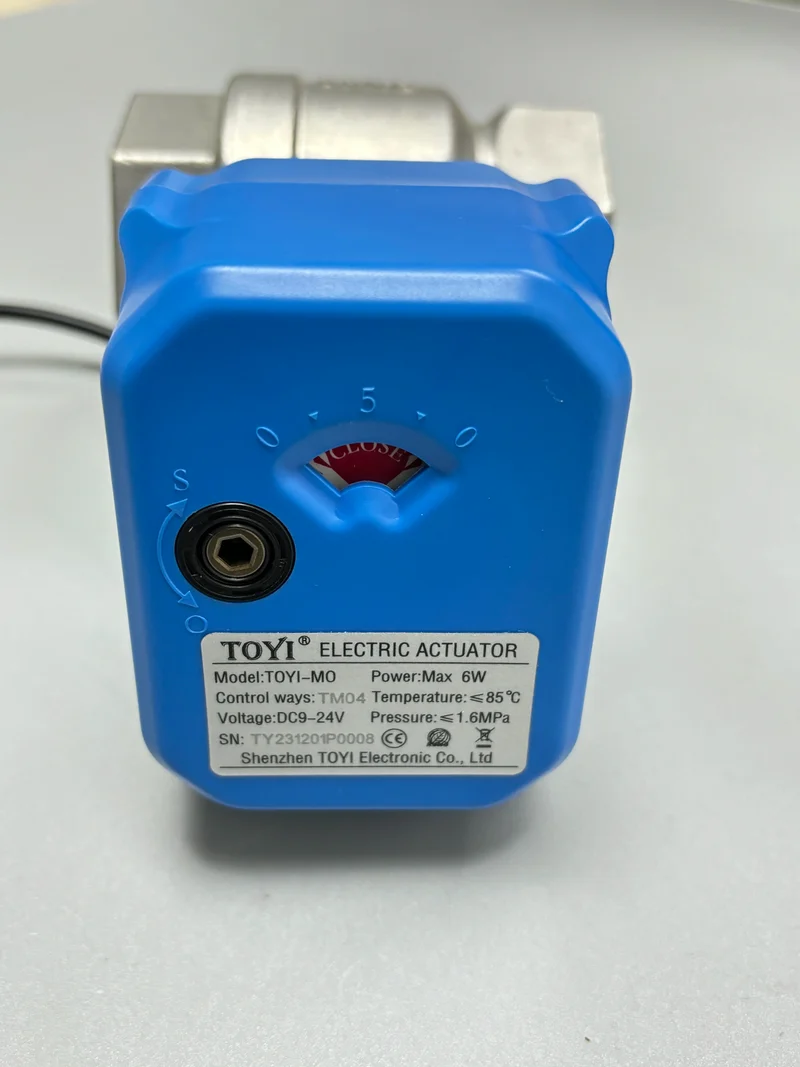

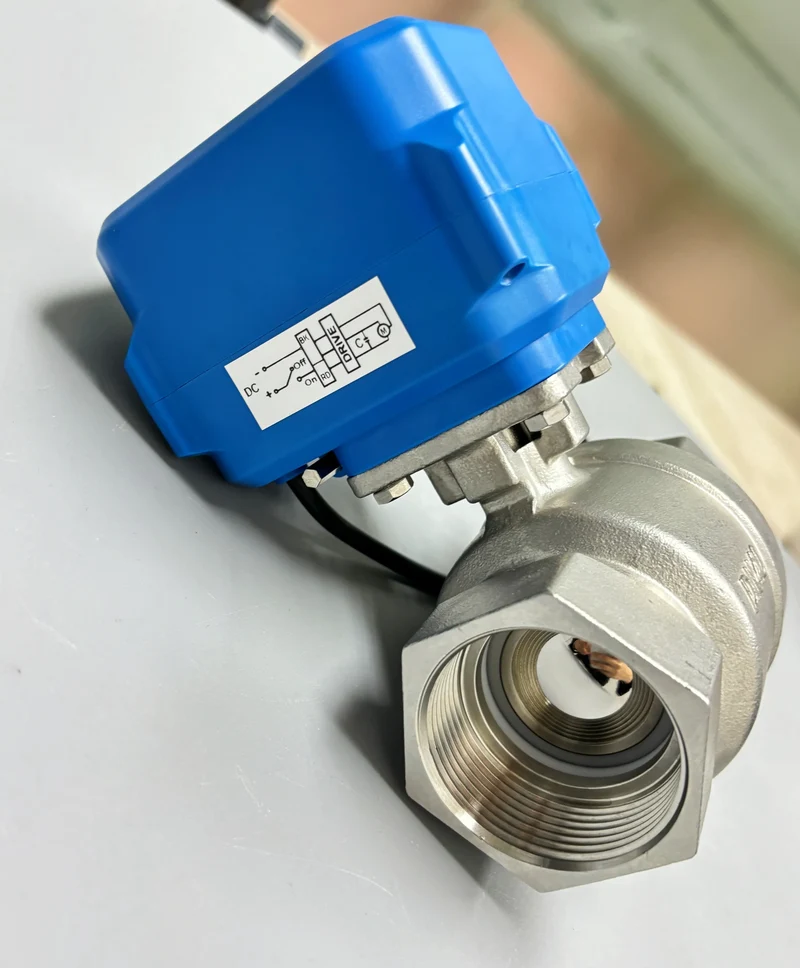

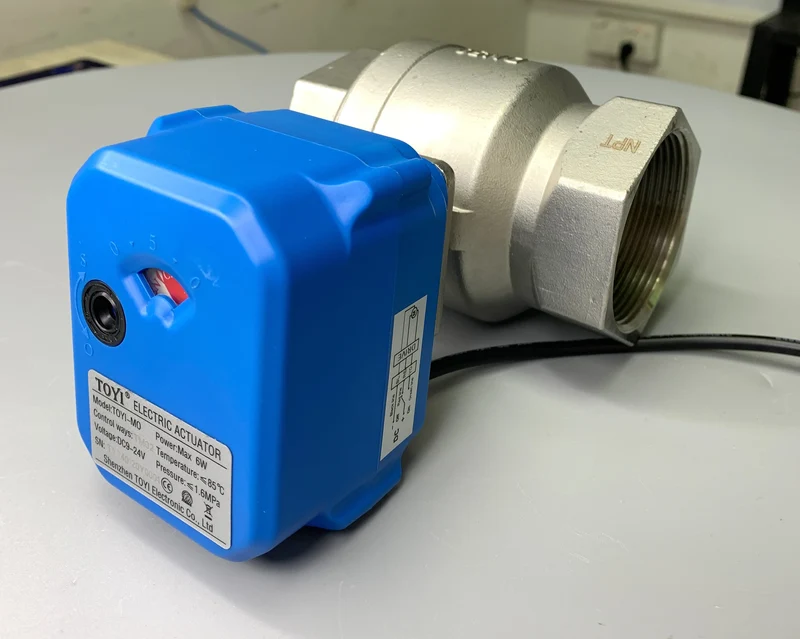

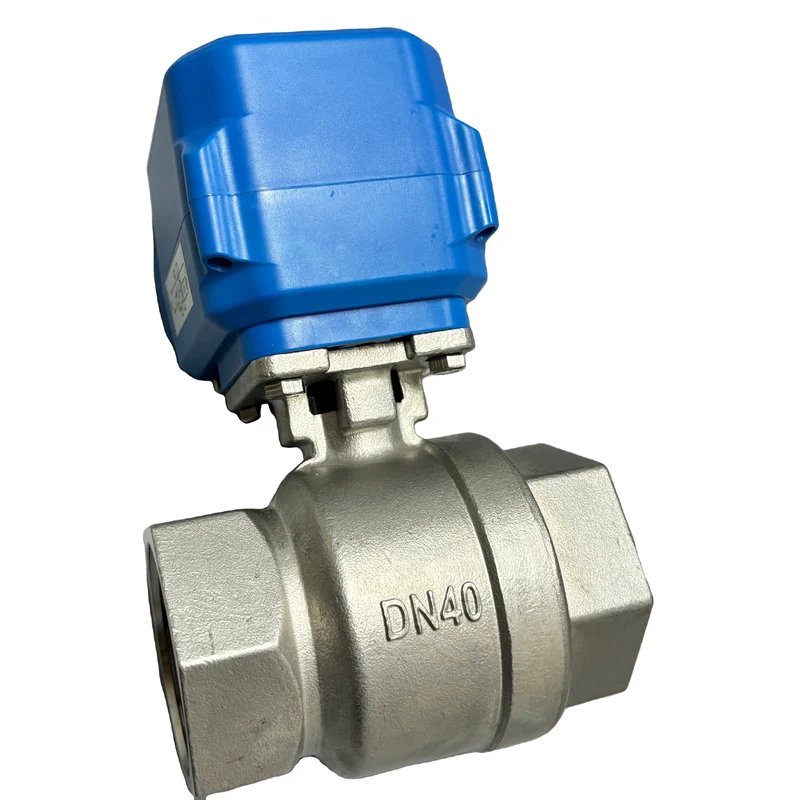

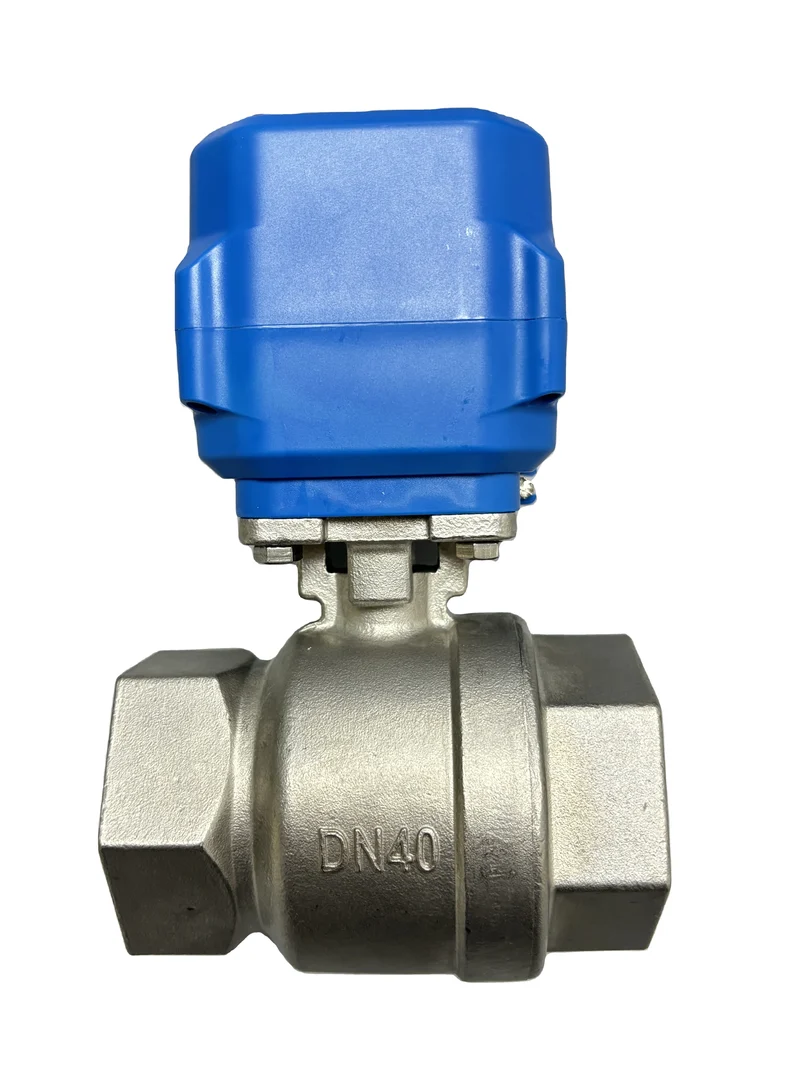

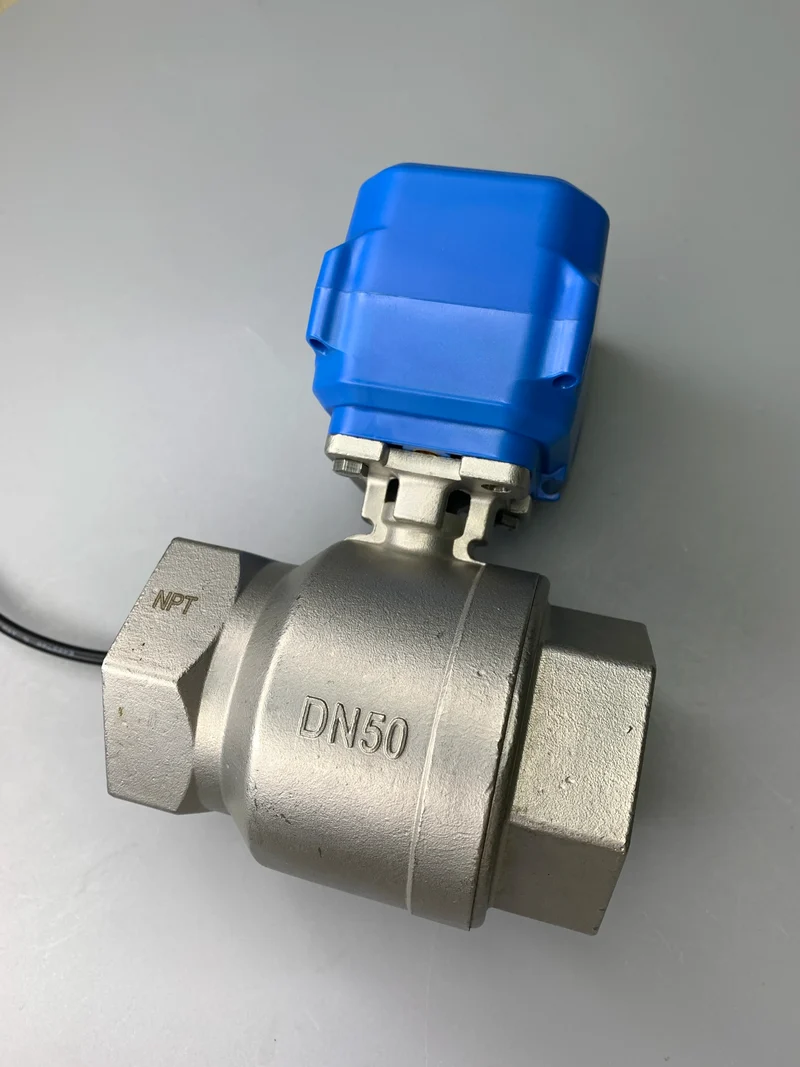

DC12VDC24V AC110V AC230V Motorized 2" Ball Valve Smart Control Small Electric Actuator 2-Way Stainless Steel Electric Ball Valve

SPECIFICATIONS

Ball Material: SS304

Body material: SS304

Certificate: CE

Connection: BSP/NPT

Connection Size: 2 in

Connection Type: NPT,BSP

For Maximum Pipe Size: 2in

Operating Pressure: 1.6Mpa

Operating Temp. Range: 0-80°C

Operating time: <6S

Output Torque: 10Nm

Port Size: DN8~DN50, 1/4"~2"

Product name,: electric 2 way ball valves

Protection grade: IP65

Sealing Material: PTFE

Size: DN8~DN50

Voltage: AC/DC9~24V AC110V AC220V

Working pressure: Max1.6MPa

application: General

brand name: TOYI

customized support: OEM,ODM

media: Water, gas, oil

model number: mini electric valve

place of origin: Guangdong, China

power: Electric

structure: Ball

temperature of media: Normal Temperature

warranty: 1 years

Specification

Model	TOYI
The output torque	10NM
The action time	5s
Rotation Angle	0-90 °
Working  current	0.48A
The power supply	AC110V AC220V AC380V DC24V DC12V AC24V
Protection grade	I р 65

Product Description Product Features: 1,strong function: switch type, intelligent type, proportion type, all kinds of signal output type.
2,Small size: volume only equivalent to about 35% of similar products.
3, light and pleasant: the weight is only equivalent to about 30% of similar products.
4, beautiful and generous: aluminum alloy die-casting shell, fine and smooth and can reduce electromagnetic interference
5, precision wear: turbine output shaft special copper alloy forging, high strength, good wear resistance.
6, safety assurance: through THE AC1500V voltage test,F class insulation motor, safety is guaranteed.
7, simple supporting: using single-phase power supply, external circuit is simple, can also do 380V, DC power supply, etc.
8, easy to use: no refueling, waterproof and rust prevention, arbitrary Angle installation.
9, protection device: double limit, overheating protection, overload protection.
10, a variety of speed: full travel time 8 seconds, 10 seconds, 13 seconds, 15 seconds, 30 seconds, 50 seconds, 100 seconds
11, corrosion and rust prevention: support, coupling, screws are made of stainless steel.
12, Intelligent numerical control: digital setting, digital setting, highly accurate, self-diagnosis, one machine multi-function.
13, integrated: intelligent control module is highly integrated in the body of the electric device, without external positioner.

Size	Material	L	L1	L2	G	H	D
DN15 (1/2'')	Stainless steel	62.5	31.5	12.5	25	56	15
DN20 (3/4'')	Stainless steel	71.5	33.5	15.5	31	66	20
DN25  (1'')	Stainless steel	82	41	19	38	78.5	25
DN32(1-1/4'')	Stainless steel	93				84	32
DN40(1-1/2'')	Stainless steel	102				91	40
DN50(2'')	Stainless steel	118				107	50

Size	Material	L	L1	L2	G	H	D
DN15	Brass	50	25	12.5	25	48.5	G1/2
DN20	Brass	64	32	16	32	49.5	G3/4
DN25	Brass	74	37	19	38.5	55.5	G1

WIRING Application field Garden irrigation Field irrigation Petrochemical industry Gas industry Certifications Packing & Delivery To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Company Profile ShenzhenTOYI Electronic Co.,Ltd, founded in 1993, is a leading company in the field of electric valves. Since its establishment at the end of last century, Dongyi has been providing comprehensive support to the users of electric valves at home and abroad with leading technology, strong performance products and quality service, and has established a leading position in the intelligent electronics industry with outstanding quality, reliable reliability and serious and responsible working attitude. At present, the TOYI company still adhere to the principle of technological innovation, adhere to the design concept of excellence, with dozens of independent intellectual property rights, and through strict implementation of IS09001:2015 management system, and was named shenzhen science and technology, economic integration designated service units, has a national hi-tech enterprise, shenzhen enterprises association, vice President of units, etc. TOYI's products are mainly electric valves, related products are electric actuators, valve positioners and so on. Products are widely used in petrochemical, metallurgy, electric power, forestry, machinery, food, pharmaceutical, brewing, papermaking and other industries of temperature, pressure, flow, liquid level, humidity, displacement, distance detection and automatic adjustment control. TOYI electronics has developed into a smart electronics industry can not be ignored the old power. We sincerely cooperate with the users who need electronic control products and devote ourselves to the cause of sustainable development. FAQ 1.How can I get the price?
